When it comes to ensuring your bicycle is equipped with reliable and effective stopping power, understanding the components that make up your braking system is crucial. For those looking at the Dominion A4 brake system, a common question that arises is precisely what type of brake pads are included in the package. This article aims to shed light on this, along with other pertinent information regarding the Dominion A4, to help you make informed decisions about your bike's maintenance and performance.

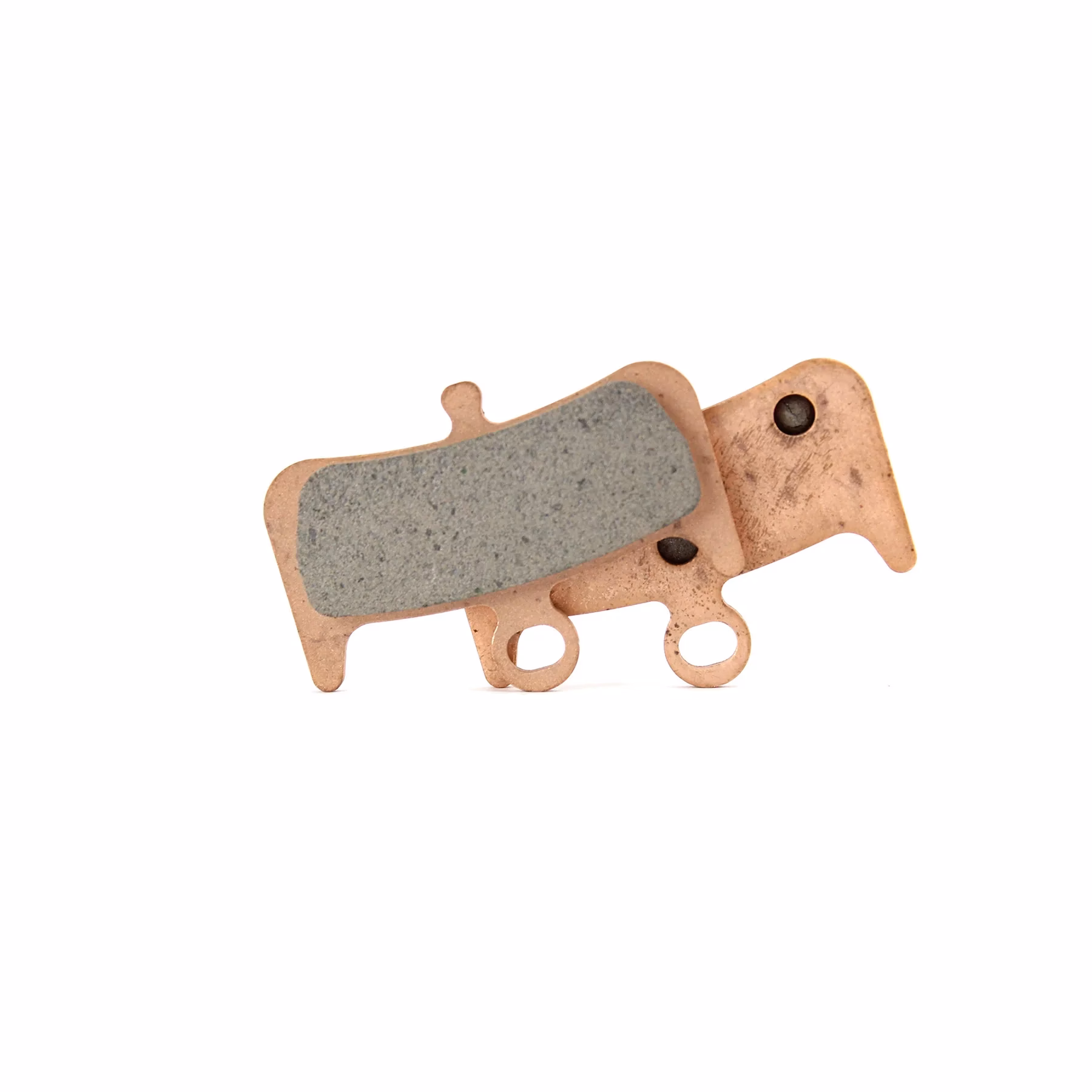

What's in the Box: Dominion A4 Brake Pad Types
A key piece of information for potential buyers and current owners of the Dominion A4 is the nature of the brake pads supplied as standard. The Dominion A4 brake sets are thoughtfully packaged to offer versatility right from the start. Each set of Dominion A4 brakes conveniently includes both sintered (metallic) and semi-metallic brake pads in the box. This dual inclusion is a significant advantage, allowing riders to experiment with different pad compounds to find what best suits their riding style and environmental conditions, whether that be dusty trails, wet descents, or long alpine passes.
Understanding Sintered vs. Semi-Metallic Pads
To fully appreciate the inclusion of both pad types, it's beneficial to understand their characteristics:
- Sintered (Metallic) Pads: These pads are made from a mixture of metallic particles that are fused together under high pressure and heat. They offer excellent heat resistance and durability, making them ideal for demanding conditions such as long descents, downhill riding, or heavy-duty use. Sintered pads tend to perform better in wet and muddy conditions and generally have a longer lifespan. However, they can sometimes produce more noise and may require a slightly longer bedding-in period.
- Semi-Metallic Pads: These pads are a hybrid, containing a blend of metallic fibres and organic resins. They strike a balance between the performance of metallic pads and the quiet operation and modulation of organic pads. Semi-metallic pads typically offer good all-around performance, providing a decent bite, reasonable heat management, and quieter operation than pure metallic pads. They are a popular choice for many types of riding due to their versatility.
Rotor Compatibility and Recommendations
While you have the flexibility to use off-brand rotors with your Dominion A4 brakes, it is highly recommended to pair them with the Hayes D-Series rotors. These rotors have been specifically developed and engineered to complement the Dominion platform. This synergy ensures optimal performance, heat dissipation, and pad wear. The Hayes D-Series rotors are exclusively offered in a 6-bolt configuration, and importantly, they come supplied with the appropriate mounting hardware, simplifying the installation process.
Why Use Specific Rotors?
Using rotors designed specifically for a brake system like the Dominion A4 can lead to several benefits:
- Optimised Braking Surface: The D-Series rotors will have a braking surface designed to work in conjunction with the pad compound, ensuring maximum contact and consistent friction.
- Improved Heat Management: Specific rotor designs can incorporate features like venting or specific metallurgy to dissipate heat more effectively, reducing the risk of brake fade during prolonged use.
- Quieter Operation: The interaction between the pad and rotor can significantly impact noise levels. Matching components often leads to a quieter and more pleasant riding experience.
- Enhanced Durability: Components designed to work together are often more durable, leading to longer service life for both the pads and the rotors.
The Hayes "K2" Hydraulic Lines: A Step Up
During the installation process, a notable feature that stands out is the quality of the hydraulic hoses themselves. Immediately apparent when compared to older or less robust hoses, the Hayes "K2" hydraulic lines are built to perform. They are reinforced with Kevlar, providing superior protection against external damage and wear. This Kevlar reinforcement is particularly valuable when hoses are routed internally within a bicycle frame, where they can be subjected to rubbing and abrasion against frame components. This added layer of protection ensures the longevity and reliability of your hydraulic system.
Bleeding and Caliper Alignment for Optimal Performance
Once the hydraulic lines are cut to the desired length and the calipers are loosely mounted with the new rotors, the next crucial steps involve bleeding the brakes (if necessary) and aligning the calipers to ensure a noise-free and efficient braking experience. The Dominion A4 system offers a user-friendly approach to bleeding.
The Bleeding Process Explained
When you connect your caliper syringe for bleeding, you'll notice two T10 screws on the backside of the caliper. This design feature differentiates the Dominion A4 from some other brands and offers a distinct advantage: the ability to thoroughly flush old fluid from both sides of the caliper. This ensures that any residual air or contaminants are completely removed, leading to the best possible braking performance and feel. For new, pre-bled systems, as was the case in the initial setup described, you can simply connect to one of the bleed ports, as there is no "used" fluid to purge yet. However, for future maintenance or after a full system flush, utilising both bleed ports will guarantee a comprehensive bleed.
Achieving Noise-Free Braking
Achieving a quiet ride is often dependent on precise caliper alignment. After the bleed, or even if the system was pre-bled, fine-tuning the caliper position relative to the rotor is essential. Misaligned calipers can lead to constant light contact between the pads and rotor, causing drag and often an irritating squeal or grinding noise, especially under braking.
Tips for Caliper Alignment:
- Loosen the caliper mounting bolts slightly.
- Gently squeeze and hold the brake lever.
- While holding the lever, carefully tighten the caliper mounting bolts.
- Release the lever and spin the wheel to check for any rubbing.
- If rubbing occurs, slightly adjust the caliper position and repeat.
- A small gap between the pad and rotor when the lever is released is ideal.
Frequently Asked Questions
Q1: Do Dominion A4 brakes come with mineral oil or DOT fluid?
While the provided text doesn't explicitly state the fluid type, Hayes Bicycles typically uses mineral oil in their hydraulic brake systems.
Q2: Can I use different rotors with Dominion A4 brakes?
Yes, you can use off-brand rotors, but Hayes strongly recommends using their D-Series rotors for optimal performance and compatibility.
Q3: How long do Dominion A4 brake pads typically last?
The lifespan of brake pads varies greatly depending on riding conditions, rider weight, braking habits, and the type of pad used (sintered generally last longer than semi-metallic). However, the inclusion of both types allows riders to choose for longevity or performance.
Q4: What is the advantage of the Kevlar reinforcement in the hoses?
The Kevlar reinforcement enhances the durability and protection of the hydraulic lines against abrasion and external damage, especially crucial for internally routed cables.
Q5: Why are there two bleed ports on the Dominion A4 caliper?
Having two bleed ports allows for a more thorough and effective bleeding process by enabling old fluid and air to be purged from both sides of the caliper, ensuring optimal brake performance.
Conclusion
The Dominion A4 brake system is designed with rider convenience and performance in mind. The inclusion of both sintered and semi-metallic pads provides immediate versatility, while the recommendation for Hayes D-Series rotors ensures a cohesive and high-performing braking package. Coupled with the robust "K2" hydraulic lines reinforced with Kevlar and a user-friendly bleeding system, the Dominion A4 stands out as a reliable choice for cyclists seeking dependable stopping power. By understanding these components and following best practices for installation and maintenance, you can ensure your Dominion A4 brakes deliver consistent and powerful performance on every ride.
