Caliper Alignment: Essential Tool Guide

Ensuring your vehicle's braking system is operating at its peak performance is paramount for safety and efficiency. At the heart of a well-functioning hydraulic brake system lies the caliper, and maintaining its correct alignment is crucial. This is where the humble yet incredibly effective caliper alignment tool comes into play. Often overlooked, this simple piece of equipment can make a world of difference in how your brakes feel, perform, and last. Whether you're a seasoned mechanic or a DIY enthusiast, understanding and utilising a caliper alignment tool can save you time, money, and potentially prevent more serious issues down the line.

Understanding Brake Calipers and Alignment

Before delving into the tool itself, it's important to grasp what a brake caliper does and why alignment matters. A brake caliper is essentially a clamp that houses the brake pads. When you press the brake pedal, hydraulic fluid forces pistons within the caliper to push the brake pads against the brake disc (rotor). This friction is what slows and stops your vehicle.

For optimal performance, the brake pads need to be perfectly centred on the brake disc. This is known as achieving the correct pad gap. If the caliper is misaligned, one pad might be closer to the rotor than the other, or the pads might not be making even contact. This can lead to a variety of problems:

• Uneven Wear: Misaligned pads will wear out faster and more unevenly, necessitating premature replacement.
• Reduced Braking Performance: Inconsistent contact can result in less effective braking, longer stopping distances, and a spongy or inconsistent brake pedal feel.
• Noise and Vibration: Improper alignment can cause squealing, grinding, or pulsing sensations during braking.
• Increased Heat and Drag: If a pad is constantly dragging slightly against the rotor due to misalignment, it generates excess heat and can even slightly reduce fuel efficiency.

What is a Caliper Alignment Tool?

A caliper alignment tool, often referred to simply as a caliper tool or a pad spacing tool, is a specifically designed implement used to set the precise gap between the brake pads when the caliper is being reassembled or adjusted. These tools are particularly invaluable when working with hydraulic brake systems, where achieving that perfect, even spacing is critical.

The basic principle behind most caliper alignment tools is to provide a consistent, measurable spacer that can be inserted between the brake pads (or where the pads would be) to ensure they are equidistant from the centreline of the brake disc. This facilitates the correct positioning of the caliper assembly over the rotor.

Types of Caliper Alignment Tools

While the core function remains the same, caliper alignment tools can come in various forms:

1. Universal Spacer Tools

These are perhaps the most common and versatile. They typically consist of a solid, precisely machined piece of metal, often with a specific thickness or a range of thicknesses. The user inserts this tool between the pads to set the desired gap. Some might have a stepped design to accommodate different pad sizes or desired gaps.

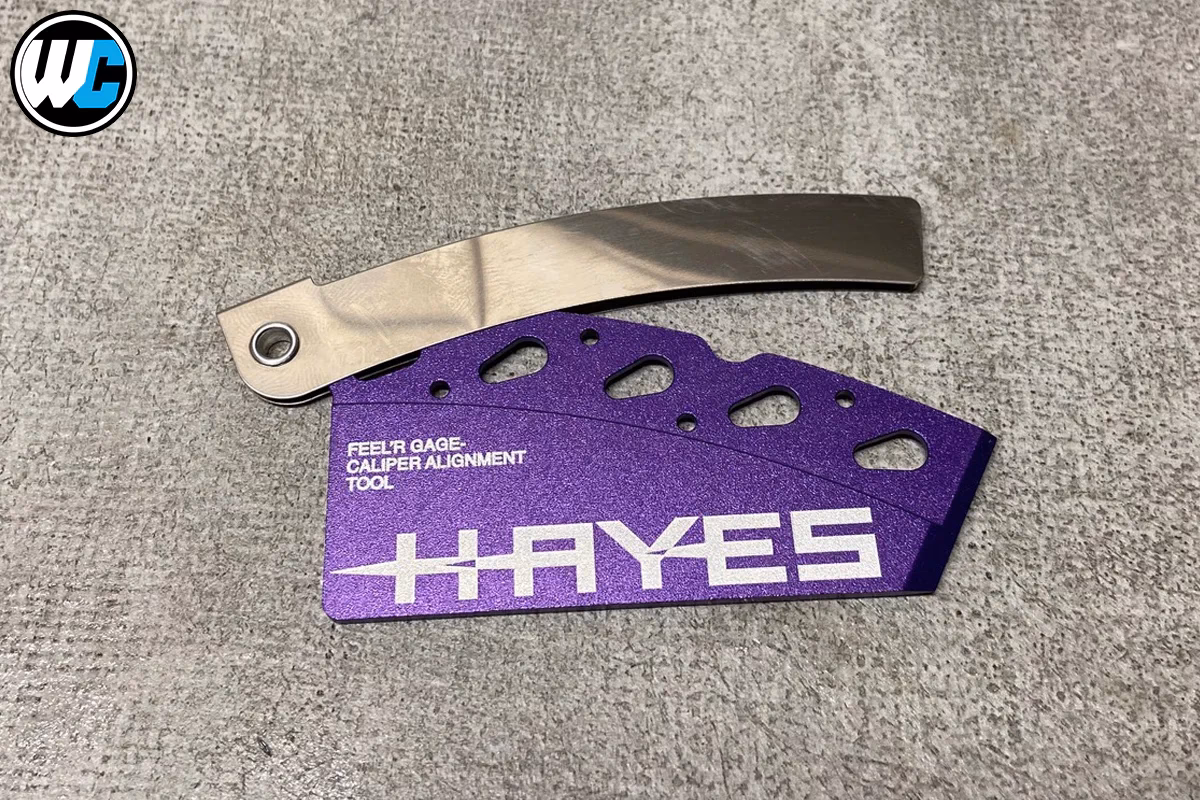

2. Feel'r Gage Caliper Alignment Tools

As mentioned in the provided information, a "Feel'r Gage" caliper alignment tool is a specific type of this handy device. The name suggests a tool that allows the user to "feel" the correct gap. These tools are designed to be incredibly simple and intuitive. They might be a single, perfectly sized shim or a set of shims that allow you to achieve the exact clearance needed. The key benefit is the ease and speed with which they allow you to achieve accurate alignment.

3. Piston Spreader Tools

While not strictly an "alignment" tool in the sense of positioning the caliper, piston spreader tools are often used in conjunction with caliper maintenance. These tools are used to retract the caliper pistons back into their bores, often after the pads have been removed or to make space for new, thicker pads. Some designs might incorporate a feature that helps maintain alignment as the pistons are retracted.

4. Specialized Vehicle-Specific Tools

For certain high-performance or exotic vehicles, manufacturers might produce or recommend specific alignment tools tailored to their unique caliper designs. These are less common for general DIY use but are important in professional settings.

Why Use a Caliper Alignment Tool?

The benefits of using a dedicated caliper alignment tool are manifold, making it an indispensable item for anyone who works on their vehicle's brakes:

• Precision: It allows for the exact setting of the pad gap, which is difficult to achieve consistently by eye or with makeshift tools.
• Speed and Efficiency: With the right tool, aligning calipers becomes a much faster and less fiddly process. It streamlines the reassembly of the braking system.
• Preventative Maintenance: By ensuring proper alignment from the outset, you prevent the premature wear, noise, and performance issues associated with misalignment.
• Improved Braking Feel: A correctly aligned system contributes to a firmer, more responsive brake pedal.
• Cost Savings: Avoiding uneven pad wear and potential damage to rotors or caliper components can save you money on replacement parts in the long run.

How to Use a Caliper Alignment Tool

The exact procedure can vary slightly depending on the type of tool and the specific vehicle, but the general steps are as follows:

1. Safety First: Ensure the vehicle is safely supported on jack stands, and the wheels are removed. Wear appropriate safety glasses and gloves.
2. Access the Caliper: Remove the caliper bolts and swing the caliper up or away from the rotor, depending on its design.
3. Remove Old Pads: Take out the old brake pads.
4. Clean and Inspect: Clean the caliper housing, piston bore (if accessible), and slide pins. Inspect for any damage, leaks, or seized components.
5. Retract Pistons: Using a piston spreader tool or a large C-clamp (with an old pad in place to protect the piston), carefully retract the caliper piston(s) back into the caliper body until they are flush.
6. Insert the Alignment Tool: Place the caliper alignment tool between the mounting points where the brake pads will sit. Alternatively, if the tool is designed to be inserted with the caliper in place, follow those specific instructions. For many simple spacer tools, you'll place it where the pads would be, ensuring it creates the correct gap.
7. Position the Caliper: Carefully swing the caliper back down or into position over the brake rotor and new pads. The alignment tool should help guide the caliper to sit correctly, centred over the rotor.
8. Install New Pads: Fit the new brake pads into the caliper bracket or carrier.
9. Secure the Caliper: Reinstall the caliper bolts, ensuring they are torqued to the manufacturer's specifications. The alignment tool might need to be removed at this stage if it was preventing the caliper from seating fully.
10. Final Checks: Before driving, pump the brake pedal several times until it feels firm. This will push the pistons back out against the new pads. Double-check that the caliper is centred and not binding.

A Note on "Feel'r Gage" Usage

Tools specifically marketed as "Feel'r Gage" likely aim for an even simpler, more tactile approach. They might be designed to slide into the gap with just the right amount of resistance, indicating the perfect clearance. The emphasis is on intuitive use and achieving that optimal pad gap without complex measurements.

Table: Common Brake Issues and Alignment Solutions

Frequently Asked Questions (FAQs)

Q1: Do I really need a special tool to align my calipers?
While experienced mechanics might achieve decent results without one, a caliper alignment tool provides the precision and consistency that is hard to replicate. It guarantees the correct pad gap, preventing potential issues and ensuring optimal performance. For DIYers, it's highly recommended.

Q2: Can I use a piece of cardboard or a ruler instead of a caliper alignment tool?
Improvising can be risky. Cardboard or rulers may not have the precise thickness or rigidity required, leading to inaccurate alignment. Dedicated tools are manufactured to exact tolerances for reliable results.

Q3: How often should I check my caliper alignment?
It's best practice to ensure proper alignment whenever you replace your brake pads or perform other brake maintenance. Regular inspections during routine servicing can also catch potential issues early.

Q4: What is the "correct pad gap"?
The correct pad gap is the small, precise clearance between the brake pads and the rotor when the brakes are not applied. This gap ensures the pads don't drag on the rotor while allowing the caliper to function correctly when the brakes are applied. The exact gap can vary by vehicle manufacturer, but the goal is even contact.

Q5: Are "Feel'r Gage" tools better than standard alignment tools?
"Feel'r Gage" tools emphasize ease of use and a tactile sense of the correct gap. They can be excellent for quick, accurate adjustments. Standard spacer tools offer a more direct measurement approach. Both are effective when used correctly; it often comes down to personal preference.

Conclusion

The caliper alignment tool, whether a universal spacer or a specialized "Feel'r Gage," is a small investment that pays significant dividends in brake system health and performance. It simplifies a critical aspect of brake maintenance, ensuring your pads and rotors work in harmony. By making this handy tool a standard part of your toolbox, you empower yourself to perform more precise, efficient, and effective brake maintenance, keeping your vehicle safe and reliable on the road. Don't underestimate the power of proper alignment – your brakes will thank you for it!
