Upgrade Your Car's Braking Power

What Exactly is a Big Brake Kit?

For any car enthusiast, the thrill of performance driving often involves pushing the limits of what your vehicle can do. While engine upgrades and suspension tweaks are common, one of the most impactful yet often overlooked areas for improvement is the braking system. This is where a Big Brake Kit (BBK) comes into play. Far more than just a simple replacement, a BBK is a comprehensive upgrade designed to significantly enhance your car's stopping power, heat dissipation, and overall braking feel.

Essentially, a Big Brake Kit replaces your car's standard brake components – typically the calipers, rotors, and sometimes the brake lines and pads – with larger, more robust, and higher-performance parts. The primary goal is to increase the braking force your car can generate, allowing you to slow down more effectively and with greater confidence, especially during demanding driving situations like spirited road driving or track use. The provided information highlights a specific range of BBKs, offering various rotor sizes and caliper configurations, all designed to provide a complete solution for those seeking superior braking performance.

Why Opt for a Big Brake Kit? The Advantages Unpacked

The decision to upgrade to a Big Brake Kit is driven by a desire for enhanced automotive performance and safety. Here’s a breakdown of the key benefits:

• Superior Stopping Power: The most obvious advantage is increased stopping force. Larger rotors offer a greater surface area for the brake pads to grip, and larger, multi-piston calipers provide more even and consistent pressure across the rotor surface. This translates to shorter braking distances and a more immediate response when you apply the brakes.
• Reduced Brake Fade: Brake fade is that dangerous situation where your brakes become less effective due to excessive heat buildup. BBKs, with their larger rotors and often more advanced materials, can dissipate heat much more efficiently. This means your brakes will perform consistently even under heavy use, such as during repeated hard braking on a track or a steep downhill descent. The upgrade to floating rotors, where the rotor ring can expand freely from the center bell, is a prime example of a feature designed to combat heat-related issues, making it an excellent option for track cars.
• Improved Brake Feel and Modulation: Higher-quality components, particularly multi-piston calipers, offer better feedback through the brake pedal. This allows for finer control over braking pressure, giving the driver more confidence and precision when modulating the brakes. You'll feel a more direct connection to the braking system, enabling more nuanced control.
• Enhanced Durability and Longevity: While the initial investment is higher, the robust construction of BBK components often means they are built to last longer than standard parts, especially under demanding conditions.
• Aesthetic Appeal: Let's not forget the visual impact. Larger, often colourfully finished calipers and drilled or slotted rotors can significantly enhance the visual appeal of your vehicle’s wheels, giving it a more aggressive and performance-oriented look.

Key Components of a Big Brake Kit

A comprehensive Big Brake Kit is more than just a couple of oversized parts. It’s a carefully engineered system. The information provided outlines the typical contents:

• Larger Rotors: Available in various sizes, from 286mm (11.3") up to a substantial 380mm (15"). These can be solid, drilled, or slotted. Slotted rotors, as mentioned, are standard in these kits, designed for ultimate performance by helping to clear away gases and debris from the pad surface.
• Performance Calipers: These are the heart of the system. Available in 4, 6, or 8-piston configurations, they offer superior clamping force and more even pad wear compared to standard 1 or 2-piston calipers. The calipers are often finished with powder coating or anodizing and may feature CNC logos for a premium look.
• High-Performance Brake Pads: While the kit may not always include pads as standard (though often they do or offer upgrades), it's designed to work with a wide range of popular performance pad compounds, from aggressive street use to dedicated track pads like the G-Loc R16.

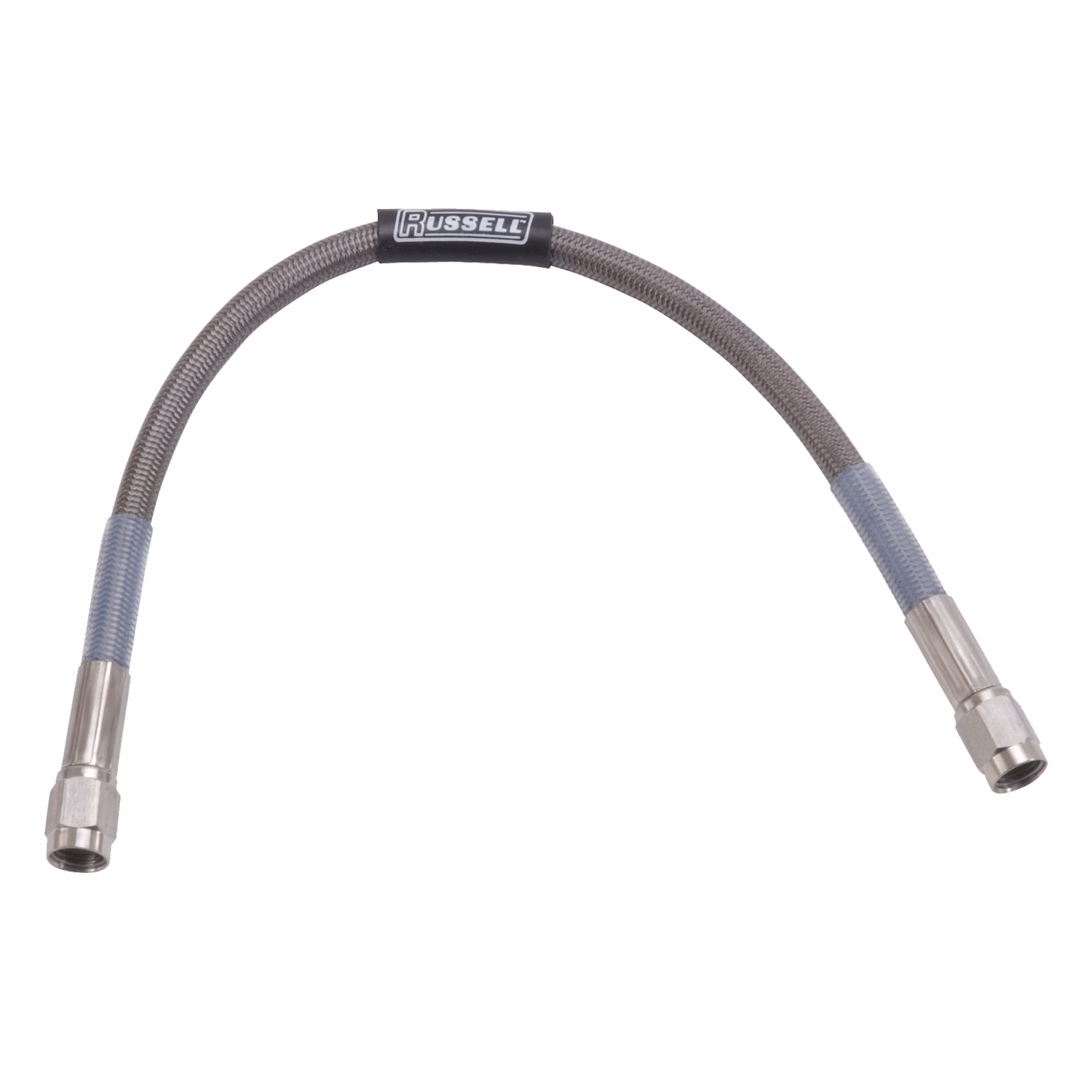

• Braided Stainless Steel Brake Lines: These replace the standard rubber brake lines, which can expand under pressure. Stainless steel lines offer a firmer pedal feel and more consistent braking performance.
• All Necessary Hardware: This includes brackets, bolts, and any other fittings required for installation, ensuring a complete and integrated system.

Understanding Rotor and Caliper Configurations

The size and configuration of the rotors and calipers are critical factors in a BBK's performance. The available rotor sizes in the example kit range from 286mm x 26mm to 380mm x 32mm. Generally, larger rotor diameter and thickness contribute to greater thermal mass, allowing the system to absorb and dissipate more heat. The width of the rotor (e.g., 26mm vs. 30mm vs. 32mm) also plays a role in heat dissipation and rigidity.

Calipers are typically categorized by the number of pistons they contain. More pistons generally mean:

• More Even Pad Pressure: Distributes clamping force more uniformly across the rotor.
• Increased Clamping Force: Leads to more powerful braking.
• Better Heat Management: Can help dissipate heat more effectively than fewer, larger pistons.

The choice between 4, 6, or 8-piston calipers will depend on the intended use of the vehicle and the overall braking requirements. For instance, an 8-piston caliper paired with the largest rotors would offer the ultimate in stopping power and heat resistance, typically suited for heavily modified vehicles or dedicated track cars.

Upgrade Options: Tailoring Your BBK

The beauty of a well-designed Big Brake Kit lies in its customisation potential. As highlighted, options like upgrading to aggressive street/race pads or track-only pads like G-Loc R16 allow users to fine-tune their braking system for specific conditions. The mention of upgrading to floating rotors is particularly noteworthy for track enthusiasts. Floating rotors consist of two parts: a rotor ring and a caliper mounting bell. This design allows the rotor ring to expand radially when heated without distorting the mounting bell. This reduces the risk of rotor warping and cracking, ensuring consistent performance lap after lap.

Compatibility and Wheel Fitment

A common concern when considering a Big Brake Kit is whether it will fit with existing wheels. Larger calipers and rotors require adequate clearance. Many reputable manufacturers, like K-Tuned in this example, provide templates to confirm wheel fitment. These templates allow you to measure the clearance inside your wheels before purchasing the kit, preventing costly mistakes. It's always advisable to check these templates carefully or consult with the manufacturer if you have any doubts about compatibility with your specific wheel model.

Installation and Lead Times

Installing a Big Brake Kit is generally a job for experienced DIY mechanics or professional workshops. It involves removing the old brake components and fitting the new, larger ones, which may require specific brackets and careful routing of brake lines. The provided information notes that these kits are made to order, with lead times typically ranging from 4 to 8 weeks. This manufacturing process ensures that the kits are built to precise specifications but also means planning ahead is essential if you need your car back on the road quickly.

Frequently Asked Questions (FAQs)

Q1: Will a Big Brake Kit fit my specific car model?
While BBKs are designed for specific vehicle applications, it's crucial to select the correct kit for your make, model, and year. Manufacturers usually have application guides. The example mentions selecting from a dropdown menu, indicating model-specific kits.

Q2: Can I use my existing brake pads with a Big Brake Kit?
No, BBKs are designed to work with specific pad shapes that match the larger calipers. However, as noted, many kits are compatible with a wide range of popular aftermarket pad manufacturers, offering flexibility in pad choice.

Q3: How often do I need to replace the rotors and pads on a Big Brake Kit?
This depends heavily on driving style and conditions. For spirited driving and track use, expect more frequent replacement than with standard brakes. High-quality pads and rotors will generally offer better longevity than budget options.

Q4: Are Big Brake Kits street legal?
In most regions, BBKs are legal for street use as long as they meet local regulations regarding braking performance and emissions. Always check local laws if you have concerns.

Q5: What is the difference between drilled and slotted rotors?
Drilled rotors have holes to help dissipate heat and expel gases and moisture. Slotted rotors have grooves that help clear away brake dust and gases, maintaining a clean pad surface for better grip. Many high-performance kits feature slotted rotors for optimal performance.

Conclusion: A Worthwhile Investment in Performance and Safety

A Big Brake Kit represents a significant upgrade for any vehicle where enhanced braking performance is desired. Whether you're a track day enthusiast, a spirited driver, or simply someone who values superior stopping power and safety, a BBK offers tangible benefits. By increasing stopping force, reducing fade, and improving pedal feel, these kits allow you to drive with greater confidence and control. While they are an investment, the improved performance, safety, and potential longevity make them a highly recommended upgrade for discerning car owners.
