Porsche 911 Carrera AOS: Location & Replacement

The Air-Oil Separator (AOS) is a vital, yet often overlooked, component in your Porsche 911 Carrera's engine. Acting as an emissions device, its primary role is to ensure your engine runs cleanly and efficiently. It achieves this by collecting residual gases and oil vapours from the crankcase, preventing them from being expelled into the atmosphere. Instead, these collected substances are intelligently funnelled back into the intake manifold, where they can be properly burned in the combustion chamber. This crucial process significantly reduces the overall emissions of your engine, contributing to both environmental responsibility and optimal engine performance.

However, like any mechanical part, the AOS is subject to wear and tear. When it fails, the consequences can range from minor annoyances to severe engine damage, often heralded by dramatic symptoms that are hard to ignore. Understanding its function, recognising the signs of failure, and knowing how to replace it are essential for any Porsche owner keen on maintaining their vehicle's health and longevity. This comprehensive guide will delve into the specifics of the AOS, its location for various Carrera models, and a detailed step-by-step replacement procedure.

Understanding the Air-Oil Separator's Role

The internal combustion engine, by its very nature, creates a significant amount of pressure and various gases within its crankcase as a byproduct of combustion. These 'blow-by' gases, which include unburnt fuel and oil vapours, can cause a build-up of pressure if not properly managed. This is where the Positive Crankcase Ventilation (PCV) system, and specifically the AOS, comes into play. The AOS works to separate the oil from these gases, returning the liquid oil to the sump while directing the 'cleaned' gases back into the intake for re-combustion. This not only minimises harmful emissions but also prevents pressure build-up that could lead to seal failures and oil leaks. A properly functioning AOS ensures a balanced crankcase vacuum, which is critical for the engine's seals and overall operation.

Recognising a Failing Air-Oil Separator

When the AOS begins to falter, its ability to separate oil from air diminishes, leading to several noticeable and often alarming symptoms. Prompt identification of these signs can prevent more significant and costly engine damage.

Common Symptoms of AOS Failure:

• Excessive White Smoke from Exhaust: This is perhaps the most dramatic and common indicator. If the separator fails to effectively separate oil from the air, oil is then sucked directly into the intake manifold and subsequently into the combustion chambers. This oil burns off, producing dense, white smoke that pours from the exhaust, often in significant quantities. This isn't just an aesthetic issue; it's a clear sign of unburnt oil entering your exhaust system.
• High-Pitched Squeal from the Engine: A failing AOS can lead to an extreme increase in vacuum within the engine crankcase. This excessive vacuum can cause air to be drawn in past the crankcase seals, producing a distinctive, loud, high-pitched squealing noise. This sound is a strong indicator of a severe vacuum leak caused by the AOS.
• Difficulty Removing Oil Filler Cap: Due to the increased vacuum levels within the crankcase when the AOS fails, the oil filler cap can become incredibly difficult to remove when the engine is running. The suction holds it firmly in place. This is a quick and easy diagnostic check for many DIY enthusiasts.
• Oil in the Intake System: A direct consequence of a failed AOS is the presence of oil within the intake manifold. This oil can foul spark plugs, leading to misfires and poor engine running. More critically, it can contaminate and destroy expensive catalytic converters, leading to a much larger repair bill.
• Check Engine Light (CEL): As oil is drawn into the intake system, it can significantly affect the air-fuel mixture, leading to the engine running either too rich or too lean. This imbalance will often trigger the Check Engine Light on your dashboard, accompanied by various diagnostic trouble codes related to mixture control.
• Poor Engine Running: Misfires, rough idling, hesitation, and a general lack of power are all common complaints when the AOS is not functioning correctly, primarily due to fouled spark plugs and an incorrect air-fuel mixture.

Diagnosing AOS Failure: The Proper Method

While the symptoms listed above are strong indicators, the most accurate method to confirm an AOS failure is to measure the engine crankcase vacuum using a slack tube manometer.

Crankcase Vacuum Test:

• Tool Required: A slack tube manometer.
• Procedure: Drill a small hole in the top of an old oil filler cap and attach the manometer's hose to this hole. This allows you to measure the vacuum directly from the crankcase.
• Normal Readings: A healthy engine with a functional AOS will typically show crankcase pressures ranging from approximately 4-7 inches of water.
• Failed AOS Readings: When the air-oil separator fails, the intake manifold's vacuum will directly draw into the crankcase, causing the levels to reach 9-12 inches or more. This significantly elevated reading confirms a faulty AOS.

For those without a specialised slack tube manometer, a standard vacuum gauge can offer a rough indication, or you can compare the oil cap difficulty to a normally running Carrera. However, for definitive diagnosis, the manometer test is highly recommended.

AOS Location by Carrera Model Year

The location of the Air-Oil Separator differs significantly between the earlier and later generations of the 996 and 997 Carrera models. Knowing the exact placement is crucial before attempting any diagnostic or repair work.

AOS Location Table:

The AOS Replacement Project: What You Need to Know

Replacing the AOS is a moderately challenging task that requires patience, the right tools, and a systematic approach. While the project time is estimated at around 3 hours, this can vary significantly depending on your experience level and the specific model year of your Carrera. The labour cost for this job, if undertaken by a professional, is estimated to be between £130 and £165, but performing it yourself can save you this expense.

Project Overview:

• Estimated Project Time: 3 hours
• Estimated Labour Cost (Professional): £130 to £165
• Tools Required: A comprehensive set including sockets (13mm, 10mm, 24mm), breaker bar, pliers, Torx bits (T20, T30), extensions, U-joints, telescoping magnet, syringe/turkey baster, rags.
• Parts Required: New oil separator. Consider replacing any old or brittle hoses/seals encountered during disassembly.
• Performance Gain: No more smoke from the exhaust, improved engine running, reduced emissions.
• Complementary Modification: Change the engine oil and filter after replacement, especially if oil has been drawn into the intake. Check and top up coolant and power steering fluid levels as required.

Step-by-Step AOS Replacement Guide: 1998-2005 Carreras (996)

For these earlier models, the AOS is notoriously difficult to access. While dropping the engine provides the best access, this guide focuses on replacing it with the engine in the car, which is a challenging but achievable method.

1. Disconnect the Battery: Safety first! Before you begin any work, especially around the starter motor where a constant 12V load is present, disconnect the battery's negative terminal. This prevents accidental short circuits or electrical system damage. Use Ziploc bags to neatly organise all nuts and bolts as you remove them.
2. Remove the Airbox: Open the engine lid. Loosen and remove the 13mm bolt at the front of the airbox (for 996 models). Loosen the hose clamp securing the boot to the throttle body. Unplug the MAF connector by squeezing it. Pull the boot off the throttle body and carefully remove the entire airbox from the engine bay. (For 3.8L cars, also remove the electrical connection attached to the vacuum line for the resonance valve).
3. Remove the Throttle Body: The throttle body is held by four 10mm bolts and one 10mm nut on an eccentric bracket. Remove all fasteners, taking extreme care not to drop them into the engine bay. Disconnect the throttle cable (early cars) or the electrical connector (later cars). For cable models, open the throttle manually to slacken the cable, allowing you to unhook the ferrule. Rotate the throttle body on earlier cars to access the hose connection at the back. Use pliers to loosen the hose clamp. Don't forget to retrieve the O-ring that seals the throttle body to the intake plenum. Set the throttle body aside safely.
4. Remove the Intake Plenums: Loosen the hose clamps securing the plenums to each manifold. It's often helpful to loosen the inner clamps first, rotate the plenum to break the seal, then tighten the inner and loosen the outer clamps to break the seal with the intake manifolds. This 'wiggle and rotate' technique helps free stubborn rubber seals. Remove the front plenum first, ensuring the left intake manifold is loosened/unseated. Slide the rubber seals onto the plenum and carefully wiggle it out. For 1998-2005 cars, you will also need to remove the rear plenum following similar procedures.
5. Prepare for Intake Manifold Removal: Remove the two 8mm screws holding the hose connection to the front of the left intake manifold. These screws also secure a retaining plate for a vacuum solenoid. Maneuver this hose, plate, and solenoid out of the way. Take a moment to inspect the engine bay for any loose items or debris that could fall into the cylinder head ports during manifold removal.
6. Remove the Intake Manifold: This is arguably the most challenging part. The intake manifold is secured by small Torx bolts to the cylinder head. A combination of 1/4" drive extensions and U-joints will be invaluable here due to limited space. Consider removing the coolant tank for slightly more room. Loosen each bolt to the point where they can be pulled out, then use a telescoping magnet to prevent them from dropping into the engine bay. Note the accessory bracket at the very front of the intake manifold – it must be reinstalled later. Carefully pull the intake manifold off the cylinder head, routing vacuum hoses and wiring harnesses over it as you extract it. Immediately stuff rags or paper towels into the exposed cylinder head ports to prevent foreign objects from falling in. This is crucial foreign object debris (FOD) prevention.
7. Access and Remove the AOS (Top & Bottom): With the intake manifold removed, you now have access to the top of the oil separator. Squeeze the black plastic connector to release the vacuum connection. Next, jack up the rear of the car and secure it safely on jack stands. Slide underneath the vehicle to locate the bottom of the oil separator, typically on the left side of the engine where it meets the transmission. Disconnect the bellows on the underside of the separator; removing this hose clamp can be frustrating due to tight clearance. Once the clamp is off, pull the bellows down and away. Then, squeeze the black plastic connector above the bellows to release the vacuum hose connection, which will also be a tight fit.
8. Final AOS Removal: Once both top and bottom connections are free, remove the two 13mm bolts holding the separator to the engine. Carefully pry the separator off the engine. As you remove it, you'll see the nipple piece that extends into the engine.
9. Installation: Installation is the reverse of removal. Crucially, before reinstalling the plenums, DOUBLE-CHECK that you have removed all rags or paper towels from the intake ports. Failure to do so can lead to catastrophic engine damage.

Step-by-Step AOS Replacement Guide: 2006-2008 Carreras (997)

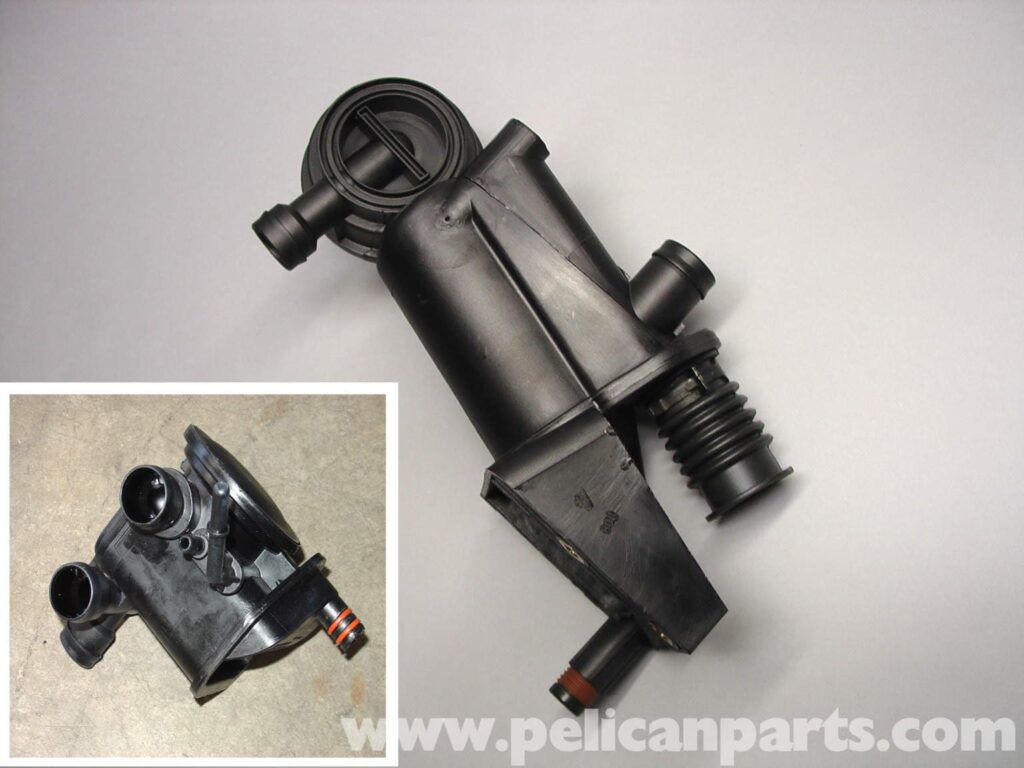

Porsche redesigned the AOS for these later models, moving its location and slightly simplifying the removal process compared to the earlier cars. However, it still requires significant disassembly.

1. Disconnect the Battery: As with the earlier models, always begin by disconnecting the battery's negative terminal to ensure electrical safety.
2. Remove the Accessory Belt: To access components, you'll need to remove the accessory belt. Attach a 24mm socket to a breaker bar, place it on the idler arm, and turn it clockwise to release tension. Carefully remove the belt.
3. Remove the Power Steering Reservoir: On the right side of the engine, locate the power steering reservoir. Open it and use a syringe or turkey baster to suction out as much power steering fluid as possible. Once emptied, remove the 10mm nut securing the reservoir to its bracket. Rotate the bayonet lock tab counter-clockwise to remove the reservoir from the car.
4. Remove the A/C Compressor (Lines Attached): The A/C compressor is held by three long 13mm bolts. Remove the two front bolts first. To access the remaining mounting bolt, you'll need to remove the temperature sensor located in the right (passenger) side manifold, between the first set of runners. This sensor sits in a rubber sleeve and slides out to the right. Once the sensor is out, you can access the final compressor bolt using extensions and U-joints. The long bolt needs to be held in an upward position to free the compressor. Once free, unplug the electrical ground connector. Lay a rag or towel on the car's paintwork and carefully lay the compressor off to the side of the engine with the lines still attached.
5. Access and Remove the AOS: With the A/C compressor out of the way, you'll have ample room to reach the AOS. Disconnect the two lines coming from each cylinder bank and the line going from the AOS to the intake plenum. There are also two water lines that need to be removed; be prepared for some coolant to spill out with rags. If these lines are original and stiff, don't loosen the separator yet, as you may need to tug a little to free them. Once all lines are separated and any spilled coolant is cleaned, you can remove the AOS itself. It is mounted to a bracket by two T20 Torx screws. After removing these, wiggle the AOS up and out of its bracket.
6. Remove AOS Mounting Bracket (Optional for Easier Access): Move the AOS aside. You can then remove the two T30 Torx screws holding the bracket to the engine. While you cannot fully remove the bracket (it's secured by the A/C compressor mounting spacer), removing these screws allows you to swing the bracket out of the way. This provides significantly more room for removing and reinstalling the Air-Oil Separator.
7. Installation: Installation is the reverse of removal. Pay close attention to fluid levels; ensure you check and top up your coolant level and power steering fluid level once the job is complete.

Common Procedures & Essential Tips for Both Models

• Patience is Key: This is not a rushed job. Take your time with each step, especially when dealing with tight spaces and small fasteners.
• Prevent Dropping Parts: A dropped bolt or tool into the engine bay can quickly turn a challenging repair into a nightmare. Use magnetic tools, be methodical, and consider stuffing openings with rags as a preventative measure.
• Inspect Hoses and Seals: While you have the engine disassembled, it's an ideal opportunity to inspect all surrounding hoses, vacuum lines, and seals for signs of cracking, brittleness, or wear. Replace any questionable components to prevent future leaks or issues.
• Cleanliness: Keep your work area clean. Any dirt or debris introduced into the intake system can cause problems.

Frequently Asked Questions (FAQs)

Q1: Can I drive my Porsche with a bad AOS?

A1: While you might be able to drive it for a short period, it is highly inadvisable. A failing AOS can lead to oil being drawn into the intake, fouling spark plugs, damaging catalytic converters, and potentially causing more severe engine damage over time due to improper crankcase ventilation. The white smoke also significantly impacts visibility for other drivers and is an environmental concern. It's best to address the issue as soon as symptoms appear.

Q2: How long does an AOS typically last?

A2: The lifespan of an AOS can vary significantly depending on driving conditions, maintenance, and specific model. Some can last over 100,000 miles, while others might fail much earlier. There isn't a fixed replacement interval; it's generally replaced when symptoms of failure become apparent.

Q3: What causes an AOS to fail?

A3: Over time, the internal diaphragm of the AOS can degrade, crack, or rupture due to exposure to oil vapours, heat, and the constant vacuum/pressure fluctuations within the crankcase. This degradation is a normal wear item.

Q4: Is replacing the AOS a DIY job for the average mechanic?

A4: For the 1998-2005 models, it's considered a challenging DIY job due to extremely tight access and the need to remove the intake manifold. For 2006-2008 models, it's slightly less complex but still requires significant disassembly and a good understanding of engine mechanics. If you're not comfortable with complex engine work, it's always best to consult a professional Porsche specialist.

Q5: Why is my oil cap so hard to remove when the engine is running?

A5: This is a classic symptom of a failed AOS. When the AOS diaphragm ruptures, the intake manifold's strong vacuum is directly applied to the crankcase, creating excessive suction. This suction makes the oil filler cap extremely difficult to remove while the engine is running.

Q6: Why is there so much white smoke from my exhaust?

A6: Excessive white smoke indicates that engine oil is being drawn through the faulty AOS into the intake manifold and subsequently into the combustion chambers, where it burns off. This is a tell-tale sign of a severely failed AOS.

Q7: What is crankcase vacuum and why is it important?

A7: Crankcase vacuum refers to the slight negative pressure maintained within the engine's crankcase by the PCV system. This vacuum helps to draw out blow-by gases and vapours, keeping the crankcase clean and preventing pressure build-up that could force oil past seals. A properly regulated crankcase vacuum is vital for engine health and emissions control.

Conclusion

The Air-Oil Separator, though a relatively small component, plays a critical role in the emissions control and overall health of your Porsche 911 Carrera's engine. Recognising the symptoms of a failing AOS early can save you from more extensive and costly repairs, such as catalytic converter damage or persistent misfires. While the replacement process can be daunting, particularly for the earlier 996 models, with patience, the right tools, and this detailed guide, it is a task that can be successfully undertaken by a competent DIY enthusiast. Always prioritise safety, double-check your work, and enjoy the peace of mind that comes with a properly functioning Porsche.
