Harley Fork Oil Change: Your Ultimate Guide

Owning a Harley-Davidson isn't just about the rumble and the open road; it's also about ensuring your machine performs flawlessly and safely. A critical, yet often overlooked, aspect of motorcycle maintenance is the health of your front forks. These vital components are responsible for your bike's stability, handling, and ultimately, your comfort on every journey. And at the heart of their performance lies the fork oil.

While many riders might assume their forks are a 'set and forget' component, the truth is, the fork oil inside them degrades over time, much like engine oil. Ignoring this can lead to a significant decline in ride quality, compromised safety, and even costly damage to your suspension system. The good news? Changing your Harley's front fork oil is a maintenance task that is well within the capabilities of most home mechanics, saving you a trip to the dealership and empowering you with a deeper understanding of your beloved bike.

Why Is Fork Oil So Important?

Your Harley-Davidson's front forks are sophisticated hydraulic damping systems. As your bike travels over bumps, potholes, or when you apply the brakes, the forks compress and extend, absorbing the impact and keeping your tyres firmly on the ground. This damping action is controlled by the fork oil, which is a highly specialised fluid designed to resist foaming and maintain consistent viscosity across varying temperatures and pressures.

Over time, this oil breaks down due to constant shearing forces and heat generated during suspension movement. It can become contaminated with microscopic metal particles from internal wear, and its damping properties diminish. When fork oil loses its effectiveness, you'll notice a significant change in your ride: a harsher feel over bumps, excessive front-end dive during braking, or a general 'wallowy' sensation. Fresh fork oil restores the damping characteristics, providing a more controlled, comfortable, and predictable ride.

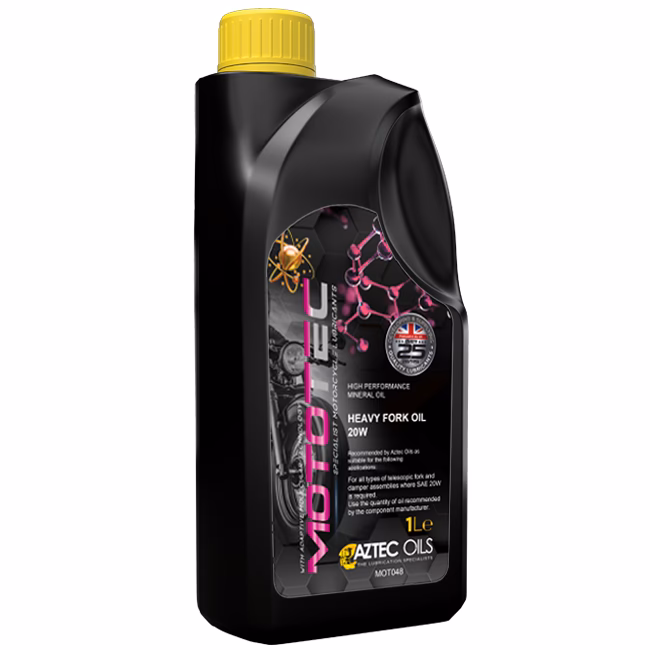

How Often Should You Change Your Harley's Fork Oil?

The frequency of fork oil changes is a common query among Harley owners. While there isn't a single, universal answer, Harley-Davidson's owner's manual is your primary source for specific recommendations for your model and year. However, general guidelines and expert advice suggest a more proactive approach than some manuals might indicate, especially given the stresses modern riding puts on suspension components.

Many experts recommend replacing your Harley-Davidson's fork oil every 3,000 to 5,000 miles, or at least every 1.5 to 2 years. For riders who cover significant mileage, frequently ride in dusty or muddy conditions, or engage in more aggressive riding styles that put extra stress on the suspension, more frequent changes are advisable. Consistent compression and rebounding generate extreme heat, which the fork oil absorbs to maintain performance. If you notice a degradation in damping performance, it's a clear sign that your fork oil has lost its efficiency and demands replacement, regardless of the mileage or time elapsed.

Understanding the Harley Fork Oil Capacity Chart

Accurate information is paramount when servicing your Harley-Davidson. The fork oil capacity chart is an invaluable resource that provides the precise details needed to ensure optimal fork oil levels for various models. Understanding this chart is crucial for maintaining your motorcycle's smooth operation and ensuring a safe, enjoyable riding experience.

Here's a breakdown of a typical Harley Fork Oil Capacity Chart, along with an explanation of its terms:

Harley Fork Oil Capacity Chart

Understanding 'Wet' vs. 'Dry' Measurements

The chart above presents two types of measurements: 'Wet' and 'Dry'.

• Wet (Fluid Ounces): This refers to the quantity of oil needed when performing a standard drain and refill service, where you drain the old oil from the fork via the plug. A residual amount of old oil will remain in the internal components.
• Dry (Fluid Ounces): This indicates the quantity required when the forks have been completely disassembled, cleaned, and are entirely dry inside. As you can see, dry forks typically require 0.5-1.0 oz. more than wet forks because there's no residual oil present.

It's also worth noting that Harley's 49mm fork oil capacity is generally around 24 fluid ounces, while 41mm forks typically take about 11.8 ounces. These are common queries, and while fork size influences capacity, the relationship isn't always linear, making the specific chart lookup even more critical.

The Right Oil: Why Specific Fork Oil Matters

When it comes to motorcycle forks, there are no suitable alternatives for dedicated fork oil. While you might hear discussions about using ATF (automatic transmission fluid), hydraulic fluid, or gear oil, these are simply not formulated for the unique demands of a motorcycle's suspension system.

• ATF (Automatic Transmission Fluid): Designed for torque converters and lubricating clutch assemblies in cars and trucks. Its properties are for torque transmission and lubrication, not high-speed damping and heat resistance in a suspension.
• Hydraulic Oil: Built for lifting heavy loads slowly (e.g., construction machinery) due to its high viscosity and resistance to foam, oxidation, and thermal breakdown. It's too viscous for the fast, precise movements required by motorcycle forks.
• Gear Oil: Solely intended for lubricating meshing gears, ensuring smooth transitions and reducing wear. It lacks the damping and anti-foaming properties essential for forks.

Fork oil, on the other hand, is a complex chemical lubricant specifically engineered to provide smooth compression and retraction to the fork piston while preventing rapid heating. It reduces friction between moving parts, prevents dirt and rust build-up, and crucially, provides lubrication without forming air entrainment (tiny air bubbles) and foaming. Inadequate lubrication can harden seals, leading to premature wear and seal failure. Always refer to your owner's manual for the OEM-recommended fork oil type and weight.

Understanding Fork Oil Viscosity (Weight)

Fork oils are graded by weight, typically indicated by numbers like 5W, 10W, 15W, or 20W. The 'W' signifies viscosity (thickness or density). A higher number indicates a more viscous (thicker) oil. Thicker oil provides more damping, resulting in a firmer ride, while thinner oil offers less damping, leading to a softer ride.

The ideal viscosity depends on several factors:

• Riding Style: Aggressive riding or frequent heavy braking generates more heat, which can thin out lighter oils.
• Rider Weight: Heavier riders often prefer slightly thicker oil for better support.
• Climate/Temperature: In colder climates, a lower 'W' grade oil (e.g., 5W or 7W) is recommended as it flows better and won't thicken excessively. In warmer climates, a higher 'W' grade (e.g., 15W or 20W) is more suitable as it resists thinning from heat.
• Desired Ride Feel: Experimenting with different weights can help you fine-tune your suspension to your preference.

Step-by-Step Guide: Changing Your Harley's Fork Oil

Changing your Harley's fork oil is a rewarding DIY task. While specific steps might vary slightly between models (e.g., Softails vs. Touring bikes), the general procedure remains consistent. This guide will help you through the process.

Tools and Materials You'll Need:

• Service Manual for your specific Harley model
• New Fork Oil (correct type and weight as per manual)
• Measuring Cup or Syringe (calibrated for accuracy)
• Drain Pan
• Basic Tool Set (wrenches, sockets, screwdrivers – including a well-fitting Phillips head for drain screws)
• Torque Wrench
• Funnel with a length of tubing
• Clean Rags/Shop Towels
• Thread Sealant (for drain screws)
• New Sealing Washers (recommended for drain screws)
• Motorcycle Lift/Stand (to get the front wheel off the ground)
• Fork Oil Level Gauge (optional, but highly recommended for precise levelling)

The Process:

1. Prepare Your Motorcycle: Safely lift the front end of your Harley using a motorcycle lift or suitable stand, ensuring the front wheel is off the ground and the bike is stable. This allows the forks to be fully extended, which is crucial for accurate oil draining and refilling. On some models, especially Softails, you may need to remove or reposition your handlebars to access the top fork nuts. If so, lay a towel on your tank and carefully set them aside once detached from the risers.

2. Measure and Loosen: Before disassembly, measure the height of the fork tubes above the triple clamp. This will help you reinstall them to their original position. Now, loosen the triple clamp (yoke) bolts that secure the fork tubes. This will allow you to slide the fork tubes down or remove them if necessary.

3. Access and Drain the Old Oil: Locate the drain screw on the backside of each fork leg, usually near the bottom. Place your drain pan directly underneath. Using a well-fitting Phillips head bit (an impact driver is highly recommended to prevent stripping, especially on older, stubborn screws), carefully remove the drain screw. Be warned: once the top nut is loosened (or if air is introduced), oil may shoot out under pressure, so use a large enough drain pan. Allow the oil to drain completely.

4. Remove Top Cap and Ensure Full Drain: With the drain screw removed, carefully unscrew the large top nut (fork cap) from the very top of the fork tube. On many Harleys, particularly Softails, this cap is not under significant spring pressure, so it won't be a projectile. Once the cap is off, you can gently pump the fork tube up and down several times to help expel any remaining old oil from the internal cartridge and damping rod. Repeat this until no more oil drips out.

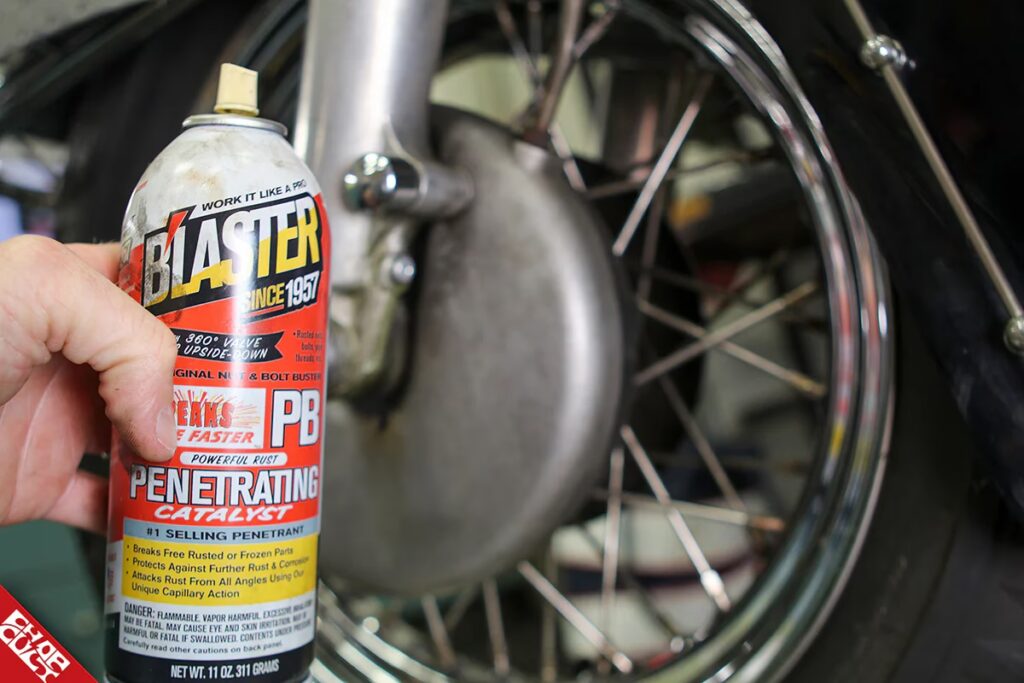

5. Inspect and Clean: While the forks are draining, take this opportunity to clean the inner fork tubes thoroughly with a clean cloth. If there are stubborn stains or minor imperfections, a very light touch with 400-grit sandpaper, moving around the tube (not up and down), can sometimes help, but be extremely cautious not to damage the chrome surface. Inspect the drain screw and its sealing washer. While your service manual will recommend replacing the washer, many experienced mechanics reuse them if they appear undamaged, though new ones are always safer. Apply a small amount of thread sealant to the drain screw threads before reinstallation.



6. Refill with New Oil: Consult your Harley-Davidson service manual and the fork oil capacity chart for the precise amount of new fork oil required for your model and whether you performed a 'wet' or 'dry' drain. Measure the new fork oil accurately using a calibrated measuring cup or syringe. Slowly pour the measured oil into each fork tube using a funnel with a length of tubing. Avoid introducing air bubbles.

7. Set the Oil Level and Remove Air: After pouring the oil, slowly pump the fork tube up and down about 10-15 times to distribute the oil and bleed any trapped air. This is crucial for consistent damping. Once pumped, allow the fork to settle for a few minutes. Then, use a fork oil level gauge (or follow your service manual's specific measurement method, often from the top of the tube with the fork fully compressed) to ensure the oil level is correct. Adjust by adding or removing small amounts of oil until perfect. Repeat for the other fork leg, ensuring both have the same oil level.

8. Reassemble: Once the oil level is correct, carefully thread the top fork cap back into place. Rotate it anti-clockwise initially until you hear a slight click, indicating the threads are aligned, then screw it in clockwise until hand-tight. Reinstall the drain screws, tightening them to the torque specification found in your service manual. These are small screws, so over-torquing can easily strip the threads. Finally, slide the fork tubes back into position in the triple clamps (using your initial measurement as a guide) and tighten the triple clamp bolts to their specified torque.

9. Final Checks: Lower your bike from the stand. Double-check all bolts are tightened to specification. Clean any spilled oil thoroughly. Take a short, gentle ride to test the suspension before heading out for a longer journey. You should immediately feel a noticeable improvement in your bike's handling and ride quality.

Benefits of Following Recommended Fork Oil Capacity

Adhering strictly to the recommended fork oil capacity, as per your Harley-Davidson's chart, offers numerous advantages:

• Optimal Suspension Performance: The correct oil volume ensures your damping and rebound characteristics are precisely as the manufacturer intended, leading to superior handling and a smoother ride.
• Enhanced Safety: Incorrect oil levels can compromise stability and control, particularly during braking or over uneven surfaces, increasing accident risk. Proper levels ensure predictable handling.
• Extended Fork Life: Adequate lubrication prevents premature wear and tear on internal components like fork seals, bushings, and damping rods, significantly prolonging the lifespan of your forks and avoiding costly repairs.
• Consistent Performance: The right amount of oil maintains consistent damping across various riding conditions, providing a reliable and controlled ride every time.
• Manufacturer's Warranty: Deviating from manufacturer specifications, including fork oil capacity, may void your bike's warranty. Following the guidelines ensures you remain compliant.

Conclusion

Changing your Harley-Davidson's front fork oil is a vital maintenance task that directly impacts your bike's performance, safety, and longevity. By understanding the importance of proper fork oil, knowing how often to change it, and accurately using your model's fork oil capacity chart, you empower yourself to perform this crucial service at home. There's truly no reason to pay a dealership for a job you can do yourself with basic tools and a little patience.

Regularly checking and servicing your forks, following the recommended capacities, and using the correct type of fork oil are simple yet profound steps in maintaining your Harley. Embrace the satisfaction of DIY maintenance, and keep your iconic machine running smoothly for countless miles of riding adventures.

Frequently Asked Questions (FAQs)

How much oil goes in a Harley fork?

The exact amount of oil needed for a Harley fork varies significantly depending on the model, year, and fork type (e.g., 49mm, 41mm). Always consult your Harley-Davidson owner's manual or the specific fork oil capacity chart for your bike's model year to determine the accurate quantity in fluid ounces or millilitres.

What is fork oil level?

Fork oil level refers to the precise height of the oil within the fork tube, measured from the top of the tube with the fork fully compressed and the spring removed. Maintaining the correct oil level is critical for optimal damping performance, preventing air pockets, and ensuring the fork operates as designed.

What weight is stock Harley fork oil?

The weight of stock Harley fork oil can vary by model and year. However, Harley-Davidson typically specifies a fork oil weighing around 10W or 20W for most of their fork applications. Always refer to your owner's manual for the precise recommended weight for your specific model.

How much fork oil to use?

The amount of fork oil to use is model-specific. It's crucial to consult your motorcycle's owner's manual or manufacturer's guidelines. This information will typically be provided in fluid ounces or millilitres, and will often distinguish between 'wet' (drain and refill) and 'dry' (fully disassembled) capacities.

What is the fork oil level on a Softail?

The fork oil level on a Softail motorcycle, like other Harley models, varies by specific model year and fork design. It is strongly recommended to consult your Softail's owner's manual or a certified Harley-Davidson dealership for the exact and correct fork oil level for your particular Softail model.
