Harley EFI Tuning & Troubleshooting Guide

Modern Harley-Davidson motorcycles rely on sophisticated Electronic Fuel Injection (EFI) systems to precisely manage fuel delivery and ignition timing, ensuring optimal engine performance and efficiency. While these systems offer significant advantages over older carburettors, their complexity means that achieving peak performance, especially after modifications or when using aftermarket tuning products, requires a nuanced understanding of their operation. An EFI controller, often an aftermarket unit like the 'DP product' mentioned, allows riders to fine-tune their bike's fuel mapping beyond factory settings. However, before you can truly unleash your Harley's potential with such a controller, it's crucial to address any underlying mechanical or sensor issues that might be present. Ignoring these foundational problems can lead to frustrating tuning experiences and suboptimal results. This guide will delve into the world of Harley-Davidson EFI troubleshooting, focusing on common pitfalls and their solutions across various models.

Understanding the EFI Controller

At its core, an EFI controller is an electronic device that modifies the signals sent to your bike's fuel injectors. The factory Engine Control Unit (ECU) or Engine Control Module (ECM) uses various sensors (throttle position, engine temperature, manifold absolute pressure, oxygen sensors, etc.) to determine the ideal amount of fuel to deliver to the engine. An aftermarket EFI controller intercepts these signals, allowing you to alter the Air-Fuel Ratio to suit specific modifications like aftermarket exhausts, air filters, or camshafts. This customisation is vital for maintaining engine health, preventing lean conditions (which can cause overheating and damage), and optimising power output. While powerful, these controllers are only as good as the data they receive, meaning pre-existing issues can severely hinder their effectiveness.

Pre-Tuning Essentials: The Warm-Up

Before attempting any adjustments with an EFI controller, it is absolutely imperative that your Harley-Davidson's engine is fully warmed-up. This isn't just a suggestion; it's a critical step. A cold engine operates under different parameters, often running richer to aid combustion. Tuning a cold engine will result in incorrect settings once it reaches operating temperature. To ensure your engine is ready, ride the bike for a good 15 minutes, then let it idle for another 2 to 3 minutes. This allows all components, including sensors, to reach their normal operating temperatures, providing a stable baseline for accurate adjustments.

Troubleshooting Magneti Marelli EFI Systems (1995-2001 Touring Models)

The Magneti Marelli injection system, found on models like FLHs and Road Kings up to 2001, is robust but can present specific challenges. If you find that adding fuel via your controller's 'green pot' (adjustment knob) actually decreases performance, it's a strong indicator of an underlying issue. Here's a systematic approach to troubleshooting:

1. Verify and Adjust Idle Speed

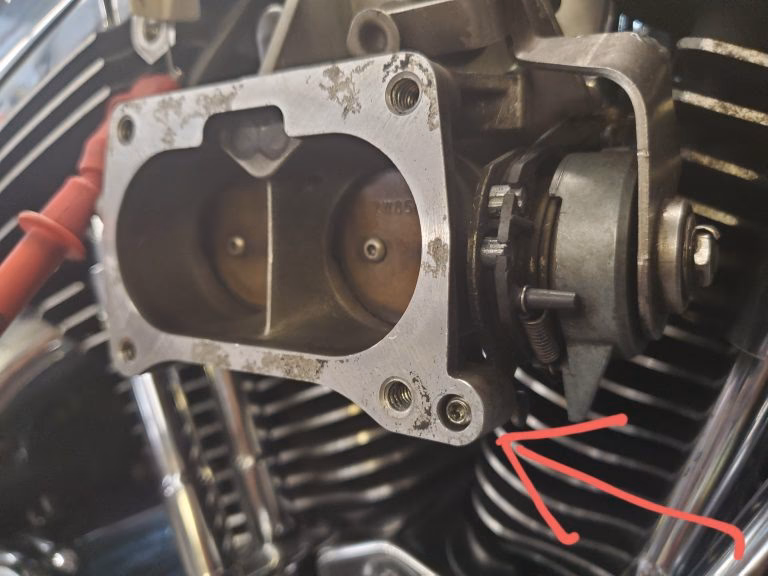

Incorrect idle speed is a surprisingly common culprit. Your bike must idle consistently at 1000 to 1050 rpm, with no exceptions. If the idle is off, you'll need to adjust it. Begin by removing the air cleaner cover to access the idle screw. Crucially, ensure you are adjusting the main idle screw, not the high idle adjustment. A simple way to verify this is to attempt to insert a small piece of paper between the base of the idle screw and the bracket it pushes against; if it's the correct screw, you should feel resistance. If unsure, consult your bike's shop manual. Once adjusted, reinstall the air cleaner and vent hose, as these can subtly affect idle speed, and double-check your setting.

2. Check for Intake Manifold Leaks

The number one problem observed with these systems is an intake manifold leak at the cylinder head. An unmetered air leak here can significantly disrupt the air-fuel ratio, causing the engine to run lean and making accurate tuning impossible. To check for this, with the bike idling, carefully spray aerosol carb cleaner at the intake manifold area where it meets the cylinder heads. If your engine's idle speed changes or becomes erratic, you have a leak that absolutely must be fixed before proceeding with any tuning. Repairing this leak is fundamental to proper EFI operation.

3. Perform an ECM Reset

If no air leak is detected, the next step is to reset the ECM. This clears any learned parameters that might be causing conflict. First, cycle the ignition key on and off 10 times, allowing the fuel pump to prime and stop each time. Then, with the key off, locate and pull the two flat fuses on the right side of the bike. Leave them out for a full 15 minutes before replacing them. After this reset, restart the bike and re-attempt tuning the green zone with your EFI controller. If the issue persists, disconnect your EFI unit temporarily to isolate the problem.

4. Adjust the Throttle Position Sensor (TPS)

An improperly calibrated Throttle Position Sensor (TPS) can send incorrect signals to the ECM, leading to poor performance. For Magneti Marelli systems, this can be a nuanced but effective adjustment. Remove the air cleaner assembly to gain access to the TPS, which is typically held by two Torx screws. The screws are often secured with epoxy. Carefully heat the epoxy using a windproof lighter or small torch until it softens, then dig it out to allow the screws to be loosened. Before loosening, make a small scribe mark on the TPS and the throttle body as a reference point. Loosen the two Torx screws slightly, then bring the engine up to a fast idle of approximately 1500 rpm. Very gently, tap the TPS clockwise (moving the top of the TPS switch towards you as you face the bike) so that it rotates the switch by the thickness of a business card (approximately 0.010 inches) off your scribe mark. As you do this, you should notice a distinct change in the exhaust note to a leaner, more uneven sound. This indicates you've found the correct adjustment point. Tighten the Torx screws, reconnect your EFI unit, and set the green fuel pot again. Once you achieve the desired smooth idle, verify the idle is still within the 1000-1050 rpm range. If it is, pull the fuses for 15 minutes and restart the bike one more time. If the idle has changed, readjust it to 1000-1050 rpm, then pull the fuses and restart again.

5. Check the Engine Temperature Sensor

Another common issue is a failed engine temperature sensor. This can cause erratic drivability problems that might appear intermittently (fine one day, problematic the next) and often manifest as backfiring on de-acceleration, especially when decelerating from high rpm down to around 3000 rpm. If you experience these symptoms, inspect or replace the temperature sensor.

6. Address Factory HD Downloads

If your bike has been experiencing occasional stalling or de-tonation at light loads (e.g., in parking lots), sometimes removing the last factory Harley-Davidson download can resolve these conflicts. Aftermarket EFI controllers generally perform best with a minimum of pre-existing factory downloads that might introduce conflicting fuel maps. Before installing your EFI product, consider having your dealer remove one factory download and test ride your bike to confirm an improvement in these issues.

Troubleshooting Delphi EFI Systems (2000+ Softail, 2002+ Touring, 2004+ Dyna)

Delphi EFI systems, found on later model Harleys, generally offer more advanced control, but they too have their specific considerations, especially with modifications.

1. Aftermarket Camshafts and MAP Sensor Readings

On some Delphi-equipped bikes, particularly those with aftermarket performance camshafts, setting the green fuel pot can be challenging. This is often due to the longer valve overlap introduced by performance cams, which can cause the Manifold Absolute Pressure (MAP) sensor to read incorrectly. This misreading can confuse both the factory ECM and your aftermarket EFI controller. In such cases, it is highly recommended to contact the manufacturer's technical support line for specific suggestions, as a simple pot adjustment may not suffice.

2. High Engine Temperature Safety Feature

The factory Delphi system includes a safety feature that will automatically add fuel if the engine reaches a very high temperature, specifically 280 degrees Fahrenheit (approximately 138 degrees Celsius). While this is a safety measure, it can disrupt your custom tuning. You should rarely experience this temperature unless driving in a parade or during other prolonged, slow-speed events with minimal airflow. If you anticipate being in such a situation, it's a good practice to proactively reduce your green fuel pot setting by one full clock position (e.g., from 3:00 to 2:00 o'clock) to compensate for the factory enrichment.

Common Harley EFI Troubleshooting Checklist

Frequently Asked Questions About Harley EFI Tuning

Q: Why is engine temperature crucial for tuning?

A: Engine temperature significantly affects how the EFI system operates. A cold engine requires a richer fuel mixture, while a fully warmed-up engine operates under its standard, optimised parameters. Tuning a cold engine will result in settings that are too lean or too rich once the engine reaches normal operating temperature, leading to poor performance and potential engine damage. Always ensure your bike is thoroughly warmed up before making any adjustments.

Q: How do I know if I have an intake manifold leak?

A: The most common method is to spray aerosol carb cleaner around the intake manifold area at the cylinder heads while the engine is idling. If the engine's idle speed changes or becomes rough, it indicates that the carb cleaner is being drawn into the engine through a leak, confirming an intake manifold leak. This must be repaired before any effective tuning can occur.

Q: Can I adjust my TPS without special tools?

A: For older Magneti Marelli systems, a careful TPS adjustment can be made with basic tools (Torx driver, small torch/lighter, scribe, and a business card for thickness measurement). However, it requires precision and attention to detail. Always follow the specific steps outlined in this guide or your shop manual to avoid damaging the sensor or causing further issues. For newer Delphi systems, TPS calibration is typically handled electronically and may not require manual adjustment.

Q: What are the signs of a failing engine temperature sensor?

A: Common signs of a failed temperature sensor include erratic drivability (the bike performs inconsistently, sometimes fine, sometimes not) and backfiring during de-acceleration, especially when rolling off the throttle from higher RPMs down to around 3000 RPM. Since the ECM relies on this sensor for accurate fuel calculations, a faulty one can lead to various running issues.

Q: Why should I consider removing factory Harley-Davidson downloads?

A: Factory downloads can sometimes introduce specific fuel maps or parameters that conflict with the operation of an aftermarket EFI controller, particularly if they were designed for different engine configurations or emissions standards. These conflicts can manifest as occasional stalling or de-tonation (engine knocking) under light loads. Removing older, potentially conflicting factory downloads can provide a cleaner slate for your aftermarket EFI controller to work with, leading to smoother and more consistent performance.

Q: What is the 'green pot' on my DP product?

A: The 'green pot' (or green adjustment knob) refers to a specific dial or control on your DP (or similar aftermarket) EFI controller that allows you to adjust the fuel delivery for a particular RPM or throttle range. Typically, these controllers have multiple 'pots' (e.g., green, yellow, red) corresponding to different zones of engine operation (idle/low RPM, mid-range, high RPM), allowing for granular control over your bike's fuel map.

Conclusion

Tuning your Harley-Davidson's EFI system with an aftermarket controller can unlock significant performance gains and improve overall rideability. However, the path to optimal tuning often begins with thorough diagnostics and addressing any underlying mechanical or sensor issues. By systematically checking for common problems like intake manifold leaks, correctly adjusting idle speed and TPS, and understanding the nuances of both Magneti Marelli and Delphi systems, you can ensure your bike is in prime condition for effective tuning. Remember, the goal is not just to add an EFI controller, but to ensure all components are working harmoniously, providing a stable foundation for a truly customised and enjoyable riding experience.
