Optimising Your Harley-Davidson Fuel Map

For many Harley-Davidson enthusiasts, modifying their beloved machine is a rite of passage. Whether it’s upgrading the exhaust, fitting a high-flow air cleaner, or installing a more aggressive camshaft, these enhancements are designed to boost performance and personalise your ride. However, what many owners quickly discover is that these modifications often lead to an imbalance in the engine's fuel delivery, necessitating an adjustment to the Electronic Fuel Injection (EFI) system's 'fuel map'. Without proper tuning, your Harley might suffer from frustrating issues like popping, surging, flat spots, or even overheating. This comprehensive guide will demystify the process of obtaining and optimising a fuel map for your Harley-Davidson, ensuring your bike runs as flawlessly as it looks.

Understanding Harley-Davidson's Electronic Fuel Injection (EFI)

Before diving into fuel maps, it's crucial to grasp the fundamentals of Harley-Davidson's EFI system. Introduced in 1995 and becoming standard across all models, including Sportsters, by 2007, EFI was a significant leap from the traditional carburettor. This shift was primarily driven by increasingly stringent emissions standards, as EFI offers far more precise fuel metering than its mechanical predecessor, leading to reduced emissions. Beyond environmental benefits, EFI also provides riders with improved cold and hot starting, crisper acceleration across varied conditions, and smoother operation at higher altitudes.

Carburettors vs. EFI: A Fundamental Shift

To truly appreciate EFI, let's briefly compare it to carburetion. A carburetted engine uses a mechanical device – the carburettor – with jets and a float bowl to mix air and fuel. Airflow creates a vacuum that draws fuel, and tuning involves physically changing jets, turning screws, or adjusting needles. It's a tangible, mechanical process often requiring simple tools like a screwdriver.

Conversely, EFI is a far more sophisticated, 'hypothetical' system. Instead of a carburettor, it uses a throttle body to regulate airflow, but it contains no jets or fuel storage. Fuel is delivered by electronically controlled fuel injectors, with the entire process managed by an Electronic Control Module (ECM) – often referred to as the 'brain' of the system. The ECM receives data from various sensors and, based on its internal 'map', instructs the injectors precisely when and for how long to spray fuel into the intake tract. Tuning EFI thus moves from tangible components to complex computer programming and 'baffling fuel maps'.

Key Components of Harley's ESPFI System

Harley-Davidson's Electronic Sequential Port Fuel Injection (ESPFI) system, found on models from 2001 onwards, is a Speed/Density, Open Loop system. This means the ECM monitors manifold air pressure, air temperature, throttle position, and engine RPM to manage fuel delivery, without directly monitoring exhaust gases. Fuel injectors are precisely timed to deliver fuel to each cylinder. Here are the core components:

• ECM (Electronic Control Module): The central microprocessor, often called ECU, that processes sensor inputs and sends output signals for fuel and spark. It holds the 'maps'.
• CKP (Crank Position Sensor): Provides engine RPM data and helps determine engine stroke for precise fuel and spark timing.

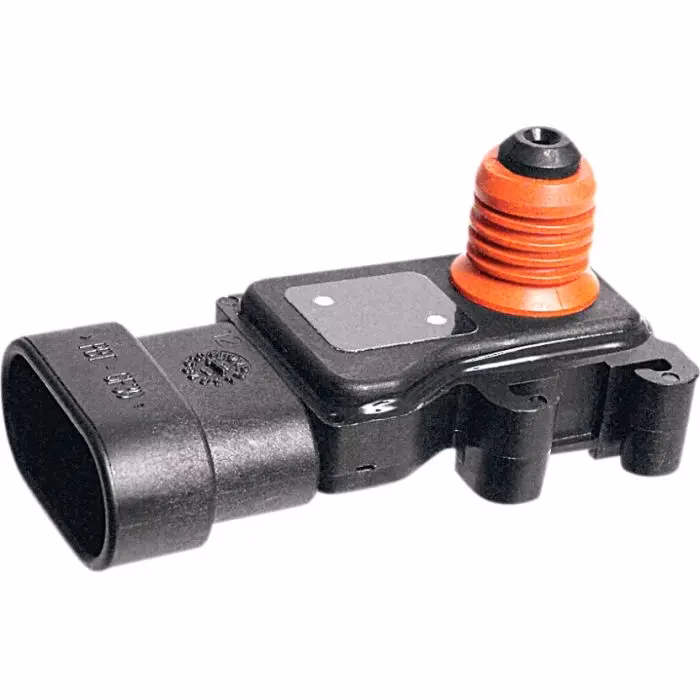

• MAP (Manifold Absolute Pressure): Reacts to intake manifold and ambient barometric pressure, helping the ECM calculate air entering the engine.
• IAT (Intake Air Temperature): Measures the temperature of incoming air, crucial for calculating oxygen content.
• ET (Engine Temperature): Monitors cylinder head temperature to determine if the engine is at operating temperature or warming up.
• TP (Throttle Position): Senses throttle shaft rotation, indicating throttle opening/closing speed and position.
• Fuel Injectors: Electronically controlled valves that spray high-pressure fuel into the intake manifold based on ECM commands (pulse width).
• Electric Fuel Pump: Located in the fuel tank, it supplies high-pressure fuel to the fuel rail.
• Fuel Pressure Regulator: Maintains consistent fuel pressure (55-62 PSI) by returning excess fuel to the tank.
• IAC (Idle Air Control): An electric valve controlled by the ECM to regulate air for starting and idle when the throttle is closed.

Why Optimise Your Harley's EFI System?

The primary reason for optimising your Harley's EFI system is to ensure the engine receives the correct air/fuel mixture under all operating conditions, especially after performance modifications. The factory-installed fuel map is calibrated for a stock bike and cannot account for changes in airflow from new exhausts or air filters, or changes in engine characteristics from new camshafts. Ignoring this can lead to:

• Reduced Performance: Loss of horsepower and torque, poor acceleration, and flat spots in the power band.
• Poor Drivability: Stumbling, surging, popping on deceleration (often due to a lean condition), and rough idling.
• Engine Damage: Running too lean can cause excessive heat, leading to premature wear, pinging (detonation), and potentially severe engine damage over time.
• Suboptimal Fuel Economy: While tuning aims for performance, an optimised map can also improve fuel efficiency by ensuring precise fuel delivery.

In essence, tuning your EFI system is about maximising the benefits of your modifications, ensuring your engine runs smoothly, efficiently, and reliably for years to come.

Methods for Obtaining and Optimising Your Fuel Map

When it comes to tuning your Harley-Davidson's EFI system, there are three main approaches, each with its own advantages, limitations, and costs. Understanding these will help you choose the right solution for your specific needs and modifications.

1. Downloadable Maps (ECM Calibration)

This is often the simplest and most cost-effective entry point into EFI tuning. Harley-Davidson itself offers 'ECM calibrations' – pre-designed fuel maps – for various Screamin' Eagle Stage I and Stage II performance kits. Many aftermarket performance parts manufacturers also provide downloadable maps on their websites for specific engine and exhaust combinations.

The process is straightforward: you purchase the recalibrated map, typically from a Harley dealer, and then pay a small labour charge to have it downloaded into your bike's stock ECM. If you've made minor modifications that exactly match a readily available map, this can often be sufficient to 'get the job done'. However, the key limitation is the need for an exact match. If your engine combination deviates even slightly from the map's design, or if you plan further incremental modifications, you might find this solution insufficient.

2. Add-On Modules

Add-on modules, often referred to as 'piggyback' units, connect in series between the stock ECM and the fuel injectors. Their function is to intercept the ECM's signals and modify them before they reach the injectors, thereby altering fuel delivery. Most of these are potentiometer-based devices, meaning they don't require a computer for basic adjustments.

These units typically have one or more 'pots' (potentiometers) that are adjusted with a screwdriver. Each pot controls a specific RPM range, allowing you to richen or lean the air/fuel mixture within those segments. Some modules can only add fuel (richen), while others offer the ability to both add and remove fuel, which is crucial for precise tuning. While relatively low-cost, their main limitation is the granularity of adjustment; they can't segment RPM ranges as finely as map-based reprogrammers, making them less suitable for highly modified engines.

Examples of potentiometer-style add-on modules include the Cobra FI2000, Dynatek F.I. Controller, Harley-Davidson SE Pro EFI Race Fueler, and Kryakyn Wild Things FI Controller. Some have evolved into digital versions with buttons instead of pots. The Vance & Hines Fuelpak is another popular add-on, using buttons and a display to enter numerical values for various 'modes' tailored to specific Harley models and exhaust systems.

3. Map-Based Reprogrammers

For more extensively modified engines – think 100-plus cubic inch displacements, big cams, or heavy cylinder-head porting – map-based reprogrammers are the ultimate solution. These are the most capable, and generally most costly, EFI tuning aids. They contain detailed 'look-up tables' or maps that finely divide engine operating conditions into many small 'cells'. Each cell represents a precise percentage of fuel change (plus or minus) from a base value, based on factors like RPM and throttle position. These systems allow for comprehensive adjustments to fuel, ignition timing, RPM limits, start-up, and warm-up functions.

Dynojet Power Commander

The Dynojet Power Commander is an add-on computer that connects in series between the ECM and fuel injectors. It stores and allows reprogramming of fuel maps using a personal computer (PC). Power Commanders offer separate fuel and ignition tables for both front and rear cylinders, and newer models even allow raising the engine's rev limit. They come with a CD-ROM of base maps, and new maps can be downloaded from Dynojet's website. While it's an add-on, its map-based nature sets it apart from simpler pot-style modules.

Harley-Davidson Screamin' Eagle Race Tuner

The Harley-Davidson Screamin' Eagle Race Tuner stands out because it's a software-based reprogrammer that directly modifies the stock ECM. This means no additional hardware remains on the bike after tuning. The Race Tuner software comes on a CD-ROM with a hardware 'key' (adapter) to connect a PC to the ECM. It offers extensive tuning capabilities, including adjustments for fuel, ignition, start-up, warm-up, rev limit, and even injector size, providing immense tuning flexibility. It includes various operating modes, such as basic, advanced, and data monitoring, making it a powerful tool for professional tuners.

Comparative Table of EFI Tuning Aids

To help you decide, here's a brief comparison of the three main categories:

Choosing the Right Tuning Solution for Your Harley

The choice of tuning device largely depends on the extent of your engine modifications and your long-term plans. Here are some considerations:

• Minor Upgrades: If you've only added a high-flow air cleaner and a free-flowing exhaust, a Harley-Davidson ECM recalibration (downloadable map) or a low-cost, pot-style add-on device might be sufficient. These can often correct the basic air/fuel imbalances.
• Moderate to Significant Modifications: Once you install mild to aggressive camshafts, or venture into larger displacement (100+ cubic inches), you will almost certainly need a map-based device. These provide the wide range of finely tuned adjustments necessary to properly support the engine's new air/fuel requirements. The Dynojet Power Commander and Harley-Davidson Screamin' Eagle Race Tuner are the prime contenders here.
• Incremental Modifications: If you plan to modify your bike in stages over time, it's often more cost-effective to invest in a map-based device like the SE Race Tuner or Power Commander from the start. This prevents you from buying multiple cheaper devices as your modifications escalate.
• Dyno Tuning: While some devices come with base maps, achieving optimal performance and drivability often requires custom dyno tuning. A dyno session allows a knowledgeable tuner to create a map specifically for your engine's unique combination of parts and your riding style, capturing real-world performance data.

Finally, and perhaps most importantly, ensure you have access to a knowledgeable and honest tuner who is proficient with the device you choose. Even the most advanced tuning aid is only as good as the person operating it. A good tuner is your best asset in the complex world of EFI.

Frequently Asked Questions About Harley EFI Tuning

Q1: Do I always need a fuel map adjustment after modifications?

Not always, but very often. If you're simply changing cosmetics or adding very minor accessories that don't affect airflow or engine characteristics, you might be fine. However, any change to the air intake (e.g., high-flow air filter), exhaust system (e.g., slip-ons or full system), or internal engine components (e.g., camshafts, cylinder head work, big bore kits) will alter the engine's volumetric efficiency and air requirements, necessitating a fuel map adjustment to prevent lean conditions and optimise performance.

Q2: Can I tune my Harley EFI system myself?

For basic add-on modules with potentiometers, minor adjustments can be made by a confident DIYer following instructions. However, for map-based reprogrammers like the Power Commander or Race Tuner, and especially for creating custom maps, significant technical knowledge, specialised software, and often a dyno are required. While you can download pre-made maps, achieving true optimisation for your unique setup is best left to experienced professional tuners. Incorrect tuning can lead to poor performance, excessive fuel consumption, or even engine damage.

Q3: What are the signs of a poorly tuned EFI system?

Common symptoms include:

• Backfiring or popping on deceleration: Often indicates a lean condition.
• Stumbling or surging: Inconsistent power delivery, especially at steady throttle.
• Flat spots in the power band: Areas where the engine feels sluggish or lacks power.
• Ping or detonation: A metallic rattling noise, particularly under load, indicating the fuel is igniting too early (very damaging).
• Excessive heat: A lean mixture burns hotter, leading to an overly hot engine.
• Poor fuel economy: While not always the primary symptom, a sub-optimal map can waste fuel.

Q4: What's the difference between a 'piggyback' and a 'flash tuner'?

A 'piggyback' system (like the Dynojet Power Commander) is an add-on module that intercepts and modifies the signals from the stock ECM to the fuel injectors. It doesn't permanently alter the original ECM's programming; it simply 'tricks' it into delivering different fuel amounts. A 'flash tuner' (like the Harley-Davidson Screamin' Eagle Race Tuner) directly reprograms or 'flashes' a new fuel map onto the stock ECM's internal memory. Once flashed, the tuning device can be removed, as the stock ECM now contains the new, optimised map. Flash tuners generally offer more comprehensive control over various engine parameters beyond just fuel, including ignition timing and rev limits.

Q5: What is 'Volumetric Efficiency' (VE) in relation to a fuel map?

Volumetric Efficiency (VE) is a critical concept in EFI tuning. It's a percentage that describes how efficiently an engine can fill its cylinders with air/fuel mixture compared to its theoretical maximum capacity. A 100% VE means the cylinder is completely filled. Performance modifications like improved air cleaners, exhausts, and cams can significantly increase an engine's VE, meaning it's drawing in more air than the stock map anticipates. The VE tables within a fuel map tell the ECM how much air is flowing into the engine at different RPMs and throttle positions, allowing it to calculate the correct amount of fuel to inject for the desired Air/Fuel Ratio (AFR). When you modify your bike, these VE tables need to be adjusted to reflect the engine's new airflow characteristics, ensuring it doesn't run too lean.

Conclusion

Navigating the world of Harley-Davidson EFI tuning might seem daunting at first, especially with its complex computers and 'shadowy black boxes'. However, understanding the core principles – the shift from tangible carburettors to sophisticated electronic control – and familiarising yourself with the available tuning aids will empower you to make informed decisions. Whether you opt for a straightforward downloadable map, an accessible add-on module, or a powerful map-based reprogrammer, the goal remains the same: to achieve a perfectly balanced air/fuel mixture. This dedication to precision tuning ensures your modified Harley-Davidson delivers maximum power, runs smoothly, and provides the exhilarating, trouble-free riding experience you expect. Happy tuning, and enjoy the open road with your perfectly optimised machine!
