Harley Davidson Fuel Filter Guide

Your Harley-Davidson is more than just a motorcycle; it's a statement, a passion, and a reliable companion for countless miles of freedom. To ensure your beloved machine continues to perform at its peak, understanding the role of each component is vital. One often-overlooked, yet critically important part, is the fuel filter. This unassuming component works tirelessly behind the scenes, safeguarding your engine from impurities that could lead to costly damage and frustrating breakdowns. But does your Harley-Davidson need a new fuel filter? The answer, like many things in life, is not a simple yes or no, but rather a question of timing, maintenance, and the overall health of your fuel system.

Why is a Fuel Filter So Important?

Think of your Harley's fuel filter as the bouncer at the exclusive club of your engine. Its sole purpose is to prevent unwanted guests – dirt, rust particles, sediment, and other contaminants that can accumulate in your fuel tank or be present in the fuel itself – from entering the delicate internal workings of your motorcycle's motor. These impurities, if allowed to pass, can cause a multitude of problems:

• Clogged Fuel Injectors: Modern Harleys rely on precise fuel injection systems. Even microscopic particles can obstruct the tiny nozzles of the fuel injectors, leading to a lean fuel mixture, rough idling, poor acceleration, and ultimately, reduced performance.
• Fuel Pump Damage: The fuel pump works hard to deliver fuel to the engine. If the filter is clogged, the pump has to work harder, potentially leading to overheating and premature failure. Debris can also be drawn into the pump itself, causing internal wear and tear.
• Engine Wear: Abrasive particles that bypass a faulty or missing filter can act like sandpaper within your engine cylinders, causing accelerated wear on piston rings, cylinder walls, and valves. This can result in reduced compression, loss of power, and a shorter overall engine lifespan.
• Fuel Starvation: A severely clogged fuel filter restricts the flow of fuel to the engine. This can cause sputtering, hesitation, and a complete loss of power, especially under load or at higher speeds. It's often described as the bike "running out of gas" even when the tank is full.

When Should You Consider Replacing Your Harley Fuel Filter?

Harley-Davidson, like most manufacturers, provides recommended service intervals for various components. However, the lifespan of a fuel filter can be influenced by several factors:

• Manufacturer Recommendations: Always consult your Harley-Davidson owner's manual for the specific recommended replacement interval for your model and year. This is your primary guideline.
• Fuel Quality: The quality of the fuel you use can significantly impact the life of your filter. If you frequently use fuel from less reputable sources or suspect your fuel might contain contaminants, you may need to replace the filter more often.
• Riding Conditions: If you ride in dusty or dirty environments, your fuel system may be exposed to more contaminants. This could necessitate more frequent filter checks and replacements.
• Symptoms of a Clogged Filter: Don't just rely on mileage. Pay attention to how your bike is running. If you notice any of the following symptoms, it's a strong indicator that your fuel filter may be clogged and in need of replacement:
• Difficulty starting or extended cranking time.
• Rough idling or stalling.
• Hesitation or sputtering during acceleration.
• Loss of power, especially at higher RPMs or under load.
• Poor fuel economy.
• The engine cutting out unexpectedly.

Types of Harley-Davidson Fuel Filters

Harley-Davidson motorcycles have evolved over the years, and so have their fuel systems. Depending on the age and model of your Harley, you might have one of two primary types of fuel filters:

In-Line Fuel Filters

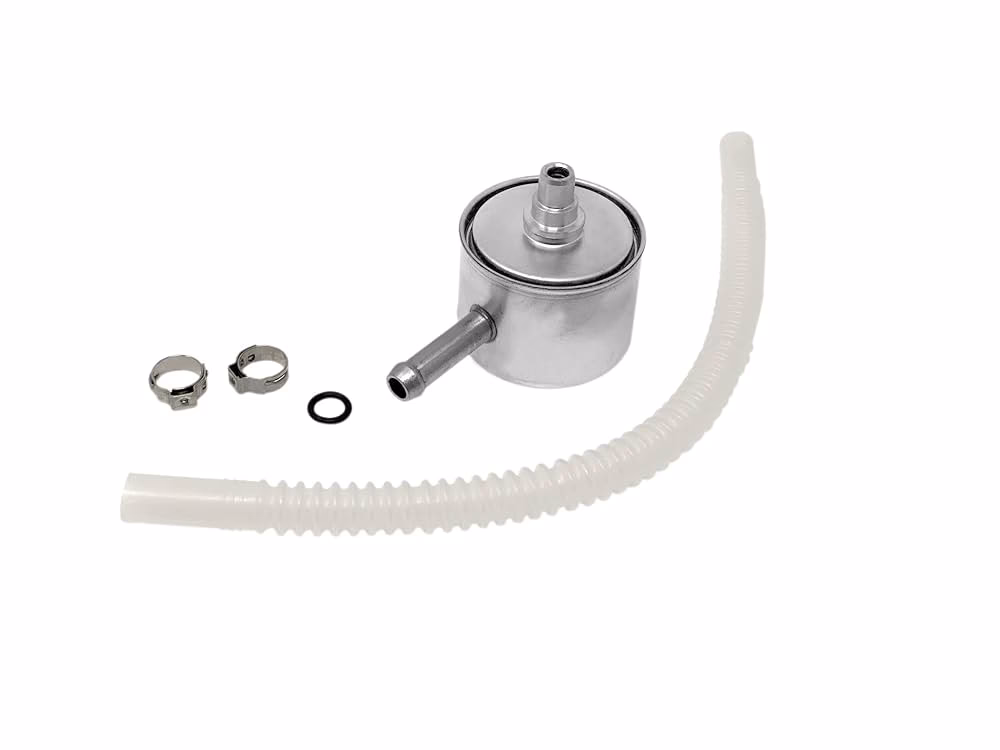

Older carbureted models typically use an in-line fuel filter. This is usually a small, cylindrical unit installed in the fuel line between the fuel tank and the carburettor. These are generally straightforward to replace. The filter media is contained within a plastic or metal housing.

In-Tank Fuel Filters

Most modern fuel-injected (EFI) Harley-Davidson motorcycles have the fuel filter integrated within the fuel pump assembly, located inside the fuel tank. These are often referred to as "sock filters" or "strainers." Replacing these can be a more involved process, often requiring the removal of the entire fuel pump module from the tank. The filter media is typically a fine mesh or a pleated paper-like material.

It's crucial to identify which type of filter your Harley-Davidson uses to ensure you purchase the correct replacement part. Reputable suppliers like jpcycles.com offer a wide range of filters specifically designed for various Harley-Davidson models.

How to Replace a Harley Davidson Fuel Filter

Replacing a fuel filter can be a manageable DIY task for many riders, but it's essential to proceed with caution as you're dealing with flammable fuel. If you're not comfortable with mechanical work, it's always best to have a qualified mechanic perform the replacement.

For In-Line Filters:

1. Safety First: Ensure the engine is cool. Work in a well-ventilated area away from open flames or sparks. Have a fire extinguisher readily available.
2. Relieve Fuel Pressure: If your bike is fuel-injected, you'll need to relieve the fuel pressure before disconnecting any lines. Consult your owner's manual for the specific procedure. For carbureted models, this is generally less of a concern, but it's still wise to be prepared for some fuel spillage.
3. Locate the Filter: Identify the current fuel filter in the fuel line.
4. Disconnect Lines: Using appropriate tools (pliers or wrenches, depending on the fittings), carefully disconnect the fuel lines from the old filter. Be prepared for a small amount of fuel to leak out. Have a rag and a suitable container ready to catch any drips.
5. Install New Filter: Note the direction of flow indicated on the new filter (usually an arrow). Install the new filter, ensuring the fuel lines are securely attached to the correct ports.
6. Reconnect Lines: Reconnect the fuel lines to the new filter. Ensure the clamps or fittings are tight to prevent leaks.
7. Check for Leaks: Once everything is reconnected, turn the fuel on (if applicable) and carefully check all connections for any signs of fuel leakage.
8. Start the Engine: Start your motorcycle and let it run for a few minutes, continuing to monitor for leaks.

For In-Tank Filters (More Complex):

Replacing an in-tank filter is a more involved process that typically requires removing the fuel tank and then the fuel pump module. The filter is usually attached to the bottom of the pump assembly.

1. Drain the Fuel Tank: Safely drain all fuel from the tank into an approved container.
2. Remove the Fuel Tank: Follow your service manual's instructions for safely removing the fuel tank. This usually involves disconnecting fuel lines, electrical connectors, and mounting bolts.
3. Remove the Fuel Pump Module: Once the tank is off, you'll need to access and remove the fuel pump module. This typically involves removing a locking ring or screws.
4. Replace the Filter: Carefully disassemble the fuel pump module to access and replace the old fuel filter with a new one. Ensure you replace any associated O-rings or seals as recommended.
5. Reassemble and Reinstall: Reassemble the fuel pump module, install it back into the tank, secure the fuel tank, and reconnect all lines and electrical connections.
6. Check for Leaks and Test: As with the in-line filter, thoroughly check for leaks and then start the engine to test.

For in-tank filter replacements, it's often recommended to replace the entire fuel filter and pump assembly if you're not confident in disassembling the module. Companies like jpcycles.com offer complete fuel pump assemblies for various Harley-Davidson models.

Table: Common Harley Davidson Fuel Filter Symptoms

Here's a quick reference guide to help you identify potential fuel filter issues:

Frequently Asked Questions (FAQ)

Q1: How often should I replace my Harley Davidson fuel filter?

A1: Always refer to your owner's manual for the manufacturer's recommended interval. Generally, for in-line filters, it might be every 10,000-15,000 miles, but this can vary greatly. For in-tank filters, they are often designed to last much longer, but it's still wise to check them during major service intervals or if you suspect issues.

Q2: Can I ride my Harley with a clogged fuel filter?

A2: While you might be able to ride for a short period, a clogged fuel filter will negatively impact your engine's performance and can lead to more significant damage over time. It's best to address the issue as soon as possible.

Q3: Where can I buy a replacement Harley Davidson fuel filter?

A3: Reputable online retailers like jpcycles.com offer a wide selection of high-quality fuel filters and related parts specifically designed for Harley-Davidson motorcycles. You can also check with your local Harley-Davidson dealership.

Q4: Is it difficult to replace a fuel filter on a Harley?

A4: The difficulty depends on the type of filter. In-line filters are generally straightforward. In-tank filters are more complex and may require specialized tools or a higher level of mechanical skill. If you're unsure, it's always best to seek professional help.

Q5: What happens if my Harley Davidson fuel filter is missing?

A5: If your Harley is supposed to have a fuel filter and it's missing or has been bypassed, your engine is highly vulnerable to contaminants. This can lead to rapid wear and tear on fuel injectors, the fuel pump, and internal engine components. It's crucial to have a functioning fuel filter installed.

Conclusion

Your Harley-Davidson's fuel filter is a critical component that plays a vital role in the longevity and performance of your engine. By understanding its function, recognizing the signs of a clogged filter, and adhering to recommended maintenance schedules, you can help ensure your ride remains as exhilarating as the day you first throttled up. Don't take chances with your engine's health; ensure your fuel system is clean and protected. When it's time for a new or replacement Harley fuel filter, remember that quality parts are essential, and trusted suppliers like jpcycles.com are your go-to resource for keeping your iconic machine running smoothly mile after mile.
