Harley-Davidson Big Bore Engine Kits Explained

For many Harley-Davidson enthusiasts, the pursuit of more power and a truly exhilarating riding experience is a continuous journey. One of the most effective and popular avenues for achieving this enhancement is through the installation of a big bore engine kit. This modification fundamentally transforms your motorcycle's heart, leading to a significant uplift in performance that you'll feel with every twist of the throttle. But what exactly does a big bore kit entail, and how can it revolutionise your Harley-Davidson XL motor?

What Exactly is a Big Bore Engine Kit?

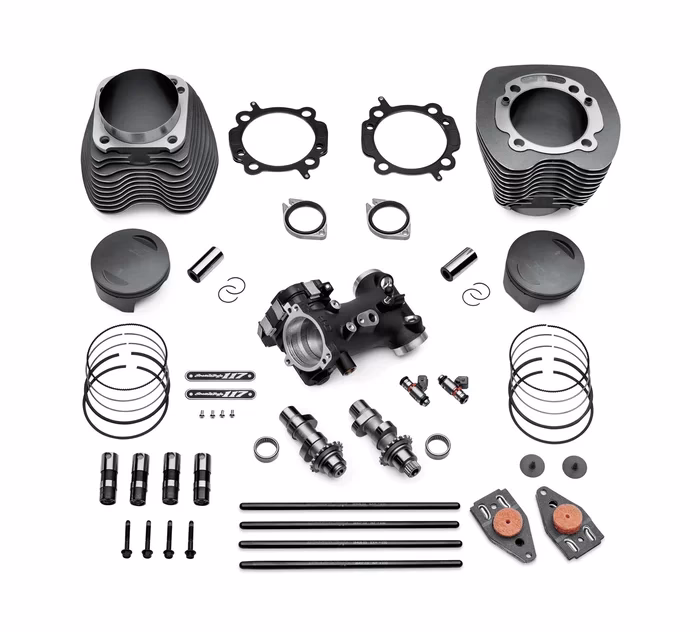

At its core, a big bore engine kit for a Harley-Davidson engine involves the precise replacement of the bike's stock cylinders and pistons with larger, more robust counterparts. This seemingly simple change has a profound effect: it effectively increases the engine's overall displacement. Think of it as giving your engine bigger lungs; the larger cylinders allow for a greater volume of air and fuel to be combusted with each stroke. The direct result of this increased capacity is a substantial boost in both engine power and torque.

Riders often opt for this upgrade to achieve a variety of performance improvements. The most immediately noticeable benefits include enhanced acceleration, a more responsive throttle, and an overall more dynamic and thrilling riding experience. It's a highly sought-after customisation option for those who are not content with factory performance and are seeking a more formidable and performance-oriented Harley-Davidson motorcycle.

Transforming Your XL Motor: The Legendary 1250 & 1275 Kits

When it comes to upgrading your Harley-Davidson XL motor, the 1250 and 1275 big bore kits have established themselves as benchmarks in performance enhancement. What sets these particular kits apart, beyond their impressive power gains, is their remarkable convenience: they are designed as truly bolt-on solutions. This means that, unlike some more invasive engine modifications, these kits can be installed without the need for case boring and, crucially, without having to remove your engine from the frame. This significantly simplifies the installation process, making it an achievable afternoon project for many skilled enthusiasts or a quicker job for a professional.

These kits come standard with some of the finest components available on the market, meticulously engineered for durability and performance. A prime example is the inclusion of exclusive forged Sledge Hammer pistons. These pistons are not just larger; they are meticulously designed with features such as extra-large valve pockets to accommodate radical cam profiles, anti-detonation grooves for increased reliability, dual wrist pin oilers for enhanced lubrication, and expansion grooves for superior ring seal. All these elements work in concert to deliver maximum strength with minimum weight, ensuring you cannot find a finer piston for your Harley-Davidson or Buell.

1250 vs. 1275: Choosing Your Power Upgrade

While both the 1250 and 1275 kits offer significant performance boosts, understanding their key differences is crucial for making the right choice for your ride. The 1275 kit is built upon the legendary foundation of the 1250 kit but introduces a critical innovation that pushes the boundaries of performance even further.

Key Differences Between 1250 and 1275 Big Bore Kits

The core distinction lies in the 1275's cylinder liner. It's crafted from a special 120,000 psi tensile strength steel. This exceptionally strong material facilitates a thinner spigot, which in turn permits the larger bore of the 1275 kit. Crucially, this is achieved while maintaining a full four inches outside diameter for the working area of the cylinder, ensuring the cylinder wall remains thick and incredibly strong. The result is a cylinder that delivers superb ring seal even in the most highly stressed and demanding applications, directly translating into more power across the entire RPM range, without compromising power in other areas. This is a significant advantage over many modifications that might boost power in one specific RPM band at the expense of another.

The Importance of Fin Design: Cooling and Aesthetics

Beyond raw displacement, the design of your cylinders plays a vital role in both engine cooling and maintaining your bike's aesthetic appeal. Harley-Davidson themselves introduced larger cylinder fins in 2004 for a very specific reason: cylinder pressures in 1200 models were dramatically increased from that year onwards. The larger fins were an integral part of a coordinated plan to improve the cooling of the motor to handle this additional heat, alongside other innovations like oil squirters under the pistons and MAP-based ignition systems.

It's crucial not to compromise the cooling capacity or the appearance of your motor. For 2004+ bikes, using big fin cylinders is highly recommended. While 86-03 style small fin cylinders can be made to fit 04-up bikes with some grinding on the lowest fin on the pushrod side, this is considered a 'hack' that can reduce cooling capacity and create an appearance mismatch with the factory black highlighted cylinder heads. Conversely, 04-up style large fin cylinders will fit on 86-03 bikes, offering improved cooling. For owners of 1986-2003 models who wish to maintain the proper factory appearance, small fin style cylinders are also available.

Furthermore, attention to detail extends to the fin highlighting. Unlike some competing kits that simply sand the fin edges, premium big bore cylinders feature CNC machined fin edge treatments. This ensures a precise match to the factory fin highlighting found on 1200 models, preserving your engine's beautiful, high-quality appearance.

Real-World Power Increases

The most compelling argument for a big bore kit is the tangible increase in performance. For a late model EFI 1200 with stock heads, stock W cams, and typical Stage 1 modifications (air cleaner, exhaust, tuner), a flat top 1275 kit delivers a significantly higher power curve across the entire RPM range compared to a stock 1200. The 1250 kit also shows substantial gains over stock, with the 1275 pushing those boundaries even further.

Similarly, for late model EFI 883 motors with stock heads and W cams, a 1275 kit with reverse dome conversion pistons and Stage 1 mods provides a dramatic increase in power over the stock XL883. The 1250 kit with similar setup also demonstrates impressive gains, making both options incredibly effective for converting an 883 into a much more powerful machine. While specific numerical figures from dyno charts vary based on exact setup, the consistent feedback is an immediate and noticeable boost in acceleration and overall riding exhilaration. For those seeking the absolute maximum, combining a 1275 kit with additional upgrades like head work and performance cams can push power figures well beyond 120 horsepower, transforming your Sportster into a true powerhouse.

Simplified Installation: The Pre-Assembly Option

To further enhance the convenience of installation, many big bore kits offer a pre-assembly option. This invaluable service takes the guesswork and meticulous detail out of some of the trickiest parts of the build. With this option, your new cylinders are thoroughly cleaned, the piston rings are precisely gapped to specification, and then the pistons and rings are pre-lubed and carefully assembled into the cylinders. This ready-to-install assembly is then shipped to you in a sealed plastic bag, ensuring it remains clean and safe until you're ready to fit it.

This service makes the actual installation a breeze. You simply lower the piston down enough in the bore to expose the wrist pin hole, position it over the connecting rod, insert the wrist pin and circlip, and then push the cylinder down into position. Crucially, no special tools are required for this final assembly step, making it accessible to more enthusiasts who prefer to undertake the work themselves.

Optimising Your Build: Gaskets and Other Considerations

Beyond the core components of the big bore kit, there are other crucial elements to consider to ensure optimal performance and longevity for your upgraded engine.

• Gasket Sets: When selecting your top end gasket set, base your choice on the type of rocker boxes you're using. Happily, the head and base gaskets themselves are interchangeable across all models from 1986 to the present day. One critical aspect is head gasket thickness, which is chosen to optimise squish clearance – a vital measurement for engine performance and reliability. While it's impossible to predict with 100% certainty due to various engine tolerances, practical experience overwhelmingly shows that a .030 head gasket combined with a .020 base gasket provides excellent squish clearance more than 95% of the time. Most customers successfully use .030 gaskets without issue, but if it proves too thin, a .040 gasket can be provided.

• Carburettor Main Jet: For 1988-2006 models, a CV main jet is required. Most basic conversions will perform best with a 185 or 190 jet. If you have an earlier 1986-1987 model with the original carburettor, it's advisable to consult with the kit supplier for appropriate jetting.

• Ignition System: An upgraded ignition system is recommended for 1986-2003 models and is required for all 2004-2006 models. Various plug-and-play options are available, such as nose cone modules for 1998-2003 bikes (which can also be fitted to any 86-03 model), 7-pin modules for 1991-1993, and 8-pin modules for 1994-1997. For 1986-1990 models, nose cone modules are generally recommended.

Frequently Asked Questions (FAQs)

Q: Do I need to bore my engine cases for a big bore kit?

A: No, the 1250 and 1275 big bore kits are specifically designed as bolt-on upgrades. This means you will not need to bore your engine cases, nor will you need to remove your engine from the frame for installation, making the process significantly simpler and quicker.

Q: Will these big bore kits fit my older or newer Harley-Davidson XL model?

A: Yes, these kits offer broad compatibility across XL models. 04-up style large fin cylinders are designed to fit 86-03 bikes. Conversely, 86-03 style small fin cylinders can fit on 04-up bikes, though this typically requires some minor grinding on the lowest fin on the pushrod side. For optimal cooling and a factory-matched appearance, especially on 2004+ models, it is strongly recommended to use the appropriate big fin cylinders.

Q: What's the main difference between the 1250 and 1275 kits?

A: The primary distinction lies in the cylinder liner material and the resulting bore size potential. The 1275 kit utilises a special 120,000 psi tensile strength steel liner. This stronger material allows for a thinner spigot while maintaining thick cylinder walls, enabling a larger bore and delivering even greater power over the entire RPM range, along with superior ring seal, compared to the 1250 kit.

Q: How do these kits affect engine cooling?

A: Modern big bore kits, particularly those with the larger fin designs introduced in 2004 and later, are engineered to handle the increased heat generated by higher cylinder pressures. The larger fins, alongside other factory innovations like oil squirters and MAP-based ignition, form a coordinated system to maintain optimal engine cooling. Using cylinders with the correct fin design for your model year is crucial to ensure efficient heat dissipation.

Q: Is professional installation required, or can I do it myself?

A: While professional installation is always an option for peace of mind, the design of these bolt-on kits, especially when combined with the available pre-assembly option, significantly simplifies the process. Many mechanically inclined individuals can perform the installation themselves, as no special tools are required for the final assembly of the pistons into the cylinders.

Conclusion

A big bore engine kit is a transformative upgrade for any Harley-Davidson XL motor, offering a proven and effective way to unleash substantial performance improvements. By increasing engine displacement, these kits provide a noticeable boost in power and torque, enhancing acceleration and throttle response for a truly exhilarating riding experience. With the convenience of bolt-on installation, advanced components like forged pistons, and meticulous attention to details such as fin design for optimal cooling, these kits offer a comprehensive solution for riders seeking to elevate their Harley's capabilities. Whether you choose the robust 1250 or the even more potent 1275, you're investing in a significant enhancement that will redefine your time on the road, making every ride more powerful and more enjoyable.
