Brembo Brakes: Performance & Stopping Power

When it comes to automotive braking systems, few names evoke the same sense of performance, precision, and reliability as Brembo. For decades, this Italian manufacturer has been at the forefront of braking technology, supplying components to some of the world's most prestigious car manufacturers and motorsport teams. But what exactly makes a Brembo braking system so special, and why are they often considered the benchmark for stopping power and driver confidence? This article delves into the engineering, benefits, and key components that define the Brembo experience for drivers across the UK and beyond.

The Brembo Philosophy: Engineering for Excellence

At its core, Brembo's success is built on a relentless pursuit of engineering excellence. Their philosophy centres around developing braking systems that not only meet but exceed the demands of modern vehicles, from everyday family cars to high-performance supercars and competitive racing machines. This dedication translates into a meticulous approach to design, material selection, and manufacturing processes. Brembo understands that brakes are not just about slowing down; they are a critical safety component that directly impacts a vehicle's handling, stability, and the driver's ability to react effectively in dynamic situations. Their commitment to research and development ensures they are constantly pushing the boundaries of what's possible in braking technology, focusing on areas like heat dissipation, braking force modulation, and overall system durability.

Key Components of a Brembo Braking System

A high-performance braking system is a complex interplay of several key components, each designed and manufactured to exacting standards by Brembo. Understanding these elements helps to appreciate the sophistication of their offerings:

Brake Discs (Rotors)

Brembo brake discs are renowned for their superior performance and durability. They offer a range of designs to suit different applications:

• Vented Discs: These feature internal vanes that help to channel air through the disc, significantly improving heat dissipation. This is crucial for preventing brake fade during prolonged or heavy braking.
• Drilled Discs: Holes drilled into the disc surface help to expel gases and water vapour that can build up between the pad and the disc, improving initial bite and performance in wet conditions.
• Slotted Discs: Slots on the disc surface serve a similar purpose to drilled holes, helping to clear away brake dust and gases, and maintaining a cleaner friction surface for consistent performance.
• Co-Cast Discs: Brembo pioneered the 'Co-Cast' technology, where the iron braking surface is cast directly onto an aluminium hat. This reduces weight, improves heat transfer, and minimises thermal distortion.

The materials used in Brembo discs, often high-carbon iron alloys, are carefully selected for their thermal properties and resistance to wear and cracking. The precision machining ensures a perfectly flat and balanced surface, contributing to smooth braking and reduced vibration.

Brake Calipers

The caliper is the component that houses the brake pads and, when activated by hydraulic pressure, clamps them onto the brake disc. Brembo calipers are a hallmark of their performance:

• Monobloc Calipers: These are machined from a single piece of forged aluminium or cast iron. This construction method provides exceptional rigidity, leading to more precise pedal feel and consistent braking force. The lack of joints or welds also enhances durability and reduces the potential for flex under extreme pressure.
• Multi-Piston Calipers: While many standard vehicles use single or twin-piston calipers, Brembo commonly employs calipers with four, six, or even eight pistons. More pistons distribute pressure more evenly across the brake pad, ensuring a larger, more uniform contact area with the disc. This results in improved stopping power, better heat management, and reduced pad wear.
• Aluminium Construction: The use of lightweight, high-strength aluminium alloys in many Brembo calipers significantly reduces unsprung weight. Lower unsprung weight is beneficial for a vehicle's overall handling, suspension response, and fuel efficiency.

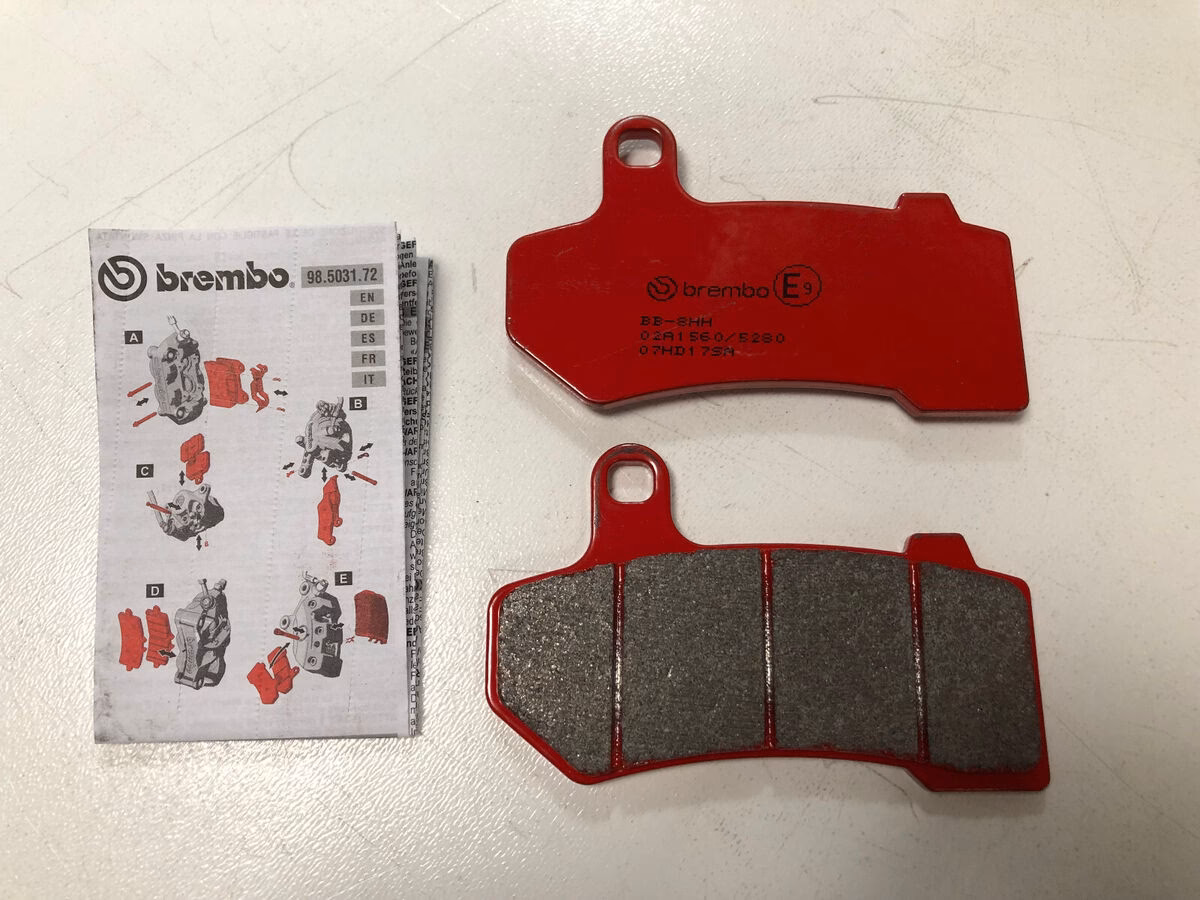

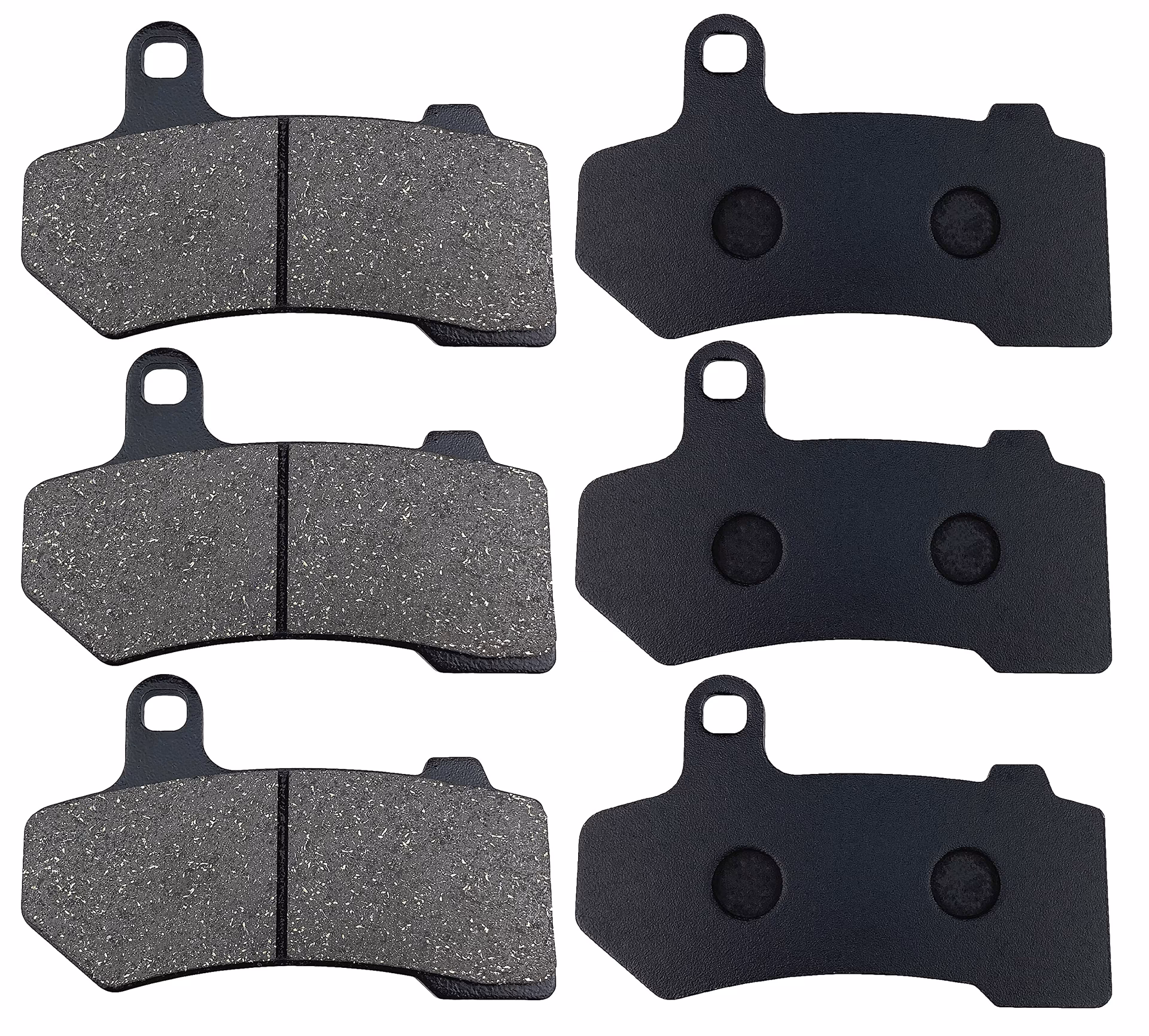

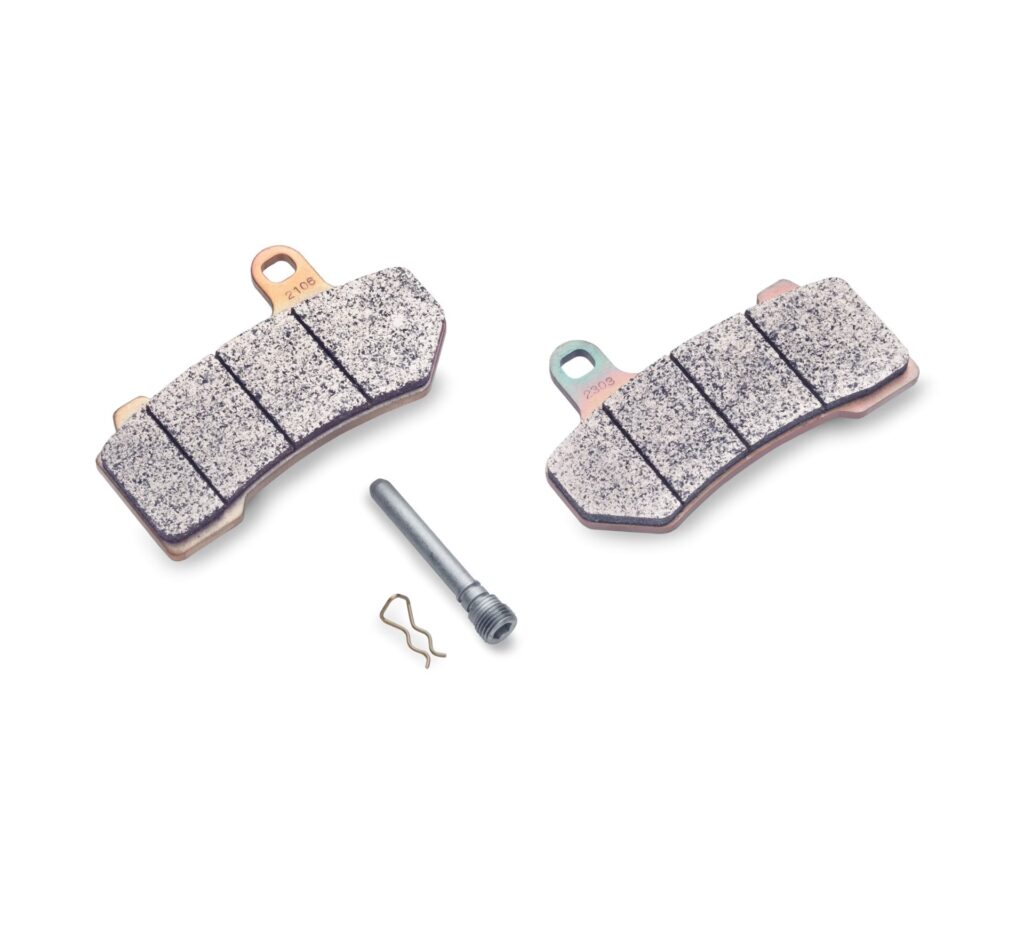

Brake Pads

Brake pads are the friction material that makes contact with the disc. Brembo offers a variety of pad compounds tailored to different driving styles and conditions:

• High-Performance Compounds: These are designed for aggressive driving and track use, offering excellent bite and fade resistance at high temperatures. They typically require a bedding-in period to reach optimal performance.
• Fast Road Compounds: A balance between performance and everyday usability, these pads offer improved stopping power over standard pads with good cold performance and reasonable longevity.
• Standard Replacement Pads: Brembo also manufactures high-quality OE (Original Equipment) specification pads for a wide range of vehicles, ensuring a direct replacement with the same performance characteristics as the original fitment.

The material composition of Brembo pads is critical, influencing friction coefficient, temperature range, noise levels, and wear rates. Their extensive testing ensures that each compound performs as intended.

Brake Hoses

While often overlooked, brake hoses are vital for transmitting hydraulic pressure from the master cylinder to the calipers. Brembo often recommends or supplies braided stainless steel brake hoses. These hoses offer several advantages over standard rubber hoses:

• Reduced Expansion: Under heavy braking, standard rubber hoses can expand slightly due to hydraulic pressure. This expansion can lead to a 'spongy' brake pedal feel. Braided hoses are far more resistant to expansion, providing a firmer and more direct pedal response.
• Increased Durability: The stainless steel braiding protects the inner hose from abrasion and damage, increasing its lifespan and reliability, especially in demanding driving conditions.

The Benefits of a Brembo Braking System

Upgrading to or specifying a Brembo braking system offers a multitude of advantages for any driver:

Enhanced Stopping Power

This is perhaps the most immediate and noticeable benefit. Brembo systems are engineered to provide significantly shorter stopping distances, giving drivers greater confidence and control, especially in emergency situations. The superior materials and design ensure consistent and powerful braking force.

Improved Fade Resistance

Brake fade occurs when brakes overheat, reducing their effectiveness. Brembo's advanced cooling solutions, such as vented and drilled discs, coupled with high-performance pad compounds, dramatically reduce the likelihood of fade, making them ideal for spirited driving or demanding conditions like descending steep hills.

Superior Pedal Feel and Modulation

A well-engineered braking system provides precise feedback to the driver. Brembo calipers, with their rigidity and multi-piston design, combined with braided hoses, offer a firm, consistent, and highly controllable brake pedal. This allows for finer adjustments to braking force, improving vehicle control and driver confidence.

Increased Durability and Longevity

While often seen as a performance upgrade, Brembo components are also built to last. The high-quality materials and robust construction mean that Brembo parts can often outlast standard components, offering better long-term value, even with spirited use.

Weight Reduction

Many Brembo performance calipers and discs (especially those with aluminium hats) are lighter than their standard counterparts. Reducing unsprung weight is a key factor in improving a car's overall dynamics, including handling, acceleration, and braking response.

Aesthetic Appeal

Let's not forget the visual impact. Brembo calipers, often finished in vibrant colours like red, yellow, or even bare aluminium, are instantly recognisable and add a touch of performance flair to any vehicle, visible through the spokes of the wheels.

Brembo vs. Standard Braking Systems: A Comparison

To illustrate the advantages, consider a comparison between a typical standard braking system and a Brembo upgrade:

Frequently Asked Questions (FAQs)

Is a Brembo braking system worth the cost?

For drivers who prioritise safety, performance, and a superior driving experience, yes, a Brembo system is often considered a worthwhile investment. The enhanced stopping power, improved feel, and increased durability can justify the higher initial cost, especially for performance vehicles or those used in demanding conditions.

Do Brembo brakes require special maintenance?

Brembo brakes require similar maintenance to standard brakes, such as regular inspection of pads and discs for wear, and ensuring the brake fluid is changed at recommended intervals. However, due to their performance nature, it's advisable to use high-quality brake fluid and to bed-in new pads and discs correctly to achieve optimal performance and longevity.

Can I fit Brembo brakes to any car?

Brembo offers a wide range of braking kits and components designed to fit various makes and models. However, direct fitment of larger or more powerful Brembo systems may require specific mounting brackets, larger wheels, or modifications to the vehicle's suspension or chassis. It's crucial to ensure compatibility before purchasing or fitting.

What is 'brake fade' and how do Brembo brakes prevent it?

Brake fade is a reduction in braking performance due to overheating. Brembo combats this through superior heat dissipation (vented, drilled, slotted discs), higher temperature-resistant pad materials, and more efficient caliper designs that resist heat soak.

Conclusion

Brembo braking systems represent the pinnacle of automotive braking technology, offering a compelling blend of performance, safety, and driver engagement. Whether you're a performance enthusiast seeking maximum stopping power and track-day capability, or simply a driver who values the utmost confidence in their vehicle's ability to stop, Brembo provides solutions that deliver. From the meticulously engineered discs and powerful monobloc calipers to the carefully formulated pad compounds, every component works in harmony to provide an unparalleled braking experience. For drivers in the UK looking to elevate their vehicle's safety and performance, understanding the benefits of a Brembo system is the first step towards achieving superior stopping power.
