Hand Tamper for Foot Traffic: Is It Enough?

When embarking on any landscaping or construction project, especially those involving paths, patios, or garden features, achieving a stable and durable base is paramount. This often requires soil compaction, a process that removes air pockets and increases the density of the ground material. One of the most common and accessible tools for this task is the hand tamper. But for areas solely subjected to foot traffic, is a hand tamper truly sufficient, or are more robust methods necessary? This guide will delve into the capabilities and limitations of hand tampers, helping you decide if this humble tool is the right choice for your next groundwork endeavour.

What is a Hand Tamper?

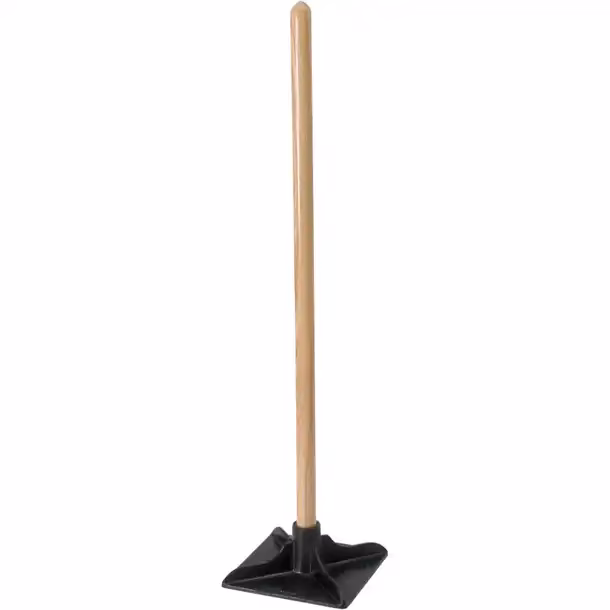

A hand tamper is a manual tool primarily used for compacting soil, gravel, sand, or other granular materials in small, confined, or difficult-to-reach areas. It typically consists of a heavy, flat steel plate, often square or rectangular, attached to a long handle, usually made of wood or steel. The user lifts the tamper and then drops it with force onto the material below, using gravity and their own exertion to compress the ground. It's a fundamental piece of kit for many DIY enthusiasts and professionals alike, valued for its simplicity, affordability, and effectiveness in specific applications.

The Science of Compaction: Why It Matters

Compaction is a critical step in many construction and landscaping projects because it significantly improves the load-bearing capacity and stability of the ground. When soil or aggregate is loose, it contains numerous air voids. Under load, these voids can collapse, leading to settlement, uneven surfaces, and potential structural failures. Proper compaction:

• Increases Density: Reduces air pockets, making the material more solid.
• Improves Stability: Prevents sinking, shifting, and unevenness over time.
• Enhances Drainage: While seemingly counter-intuitive, a well-compacted base can help shed water more effectively, preventing waterlogging in the sub-base.
• Reduces Frost Heave: By minimising voids where water can accumulate and freeze, compaction helps mitigate the damaging effects of frost heave in colder climates.

Understanding Load Bearing: Foot Traffic vs. Heavier Loads

The type of load an area will bear is crucial in determining the required level of compaction. Foot traffic, as the name suggests, involves the weight of people walking across a surface. This is a relatively light and distributed load. In contrast, vehicular traffic (cars, lorries, machinery) imposes significantly heavier, more concentrated, and dynamic loads. Areas designed for vehicular traffic require a much higher degree of compaction and often thicker, more robust sub-bases to prevent rutting, cracking, and long-term degradation. For foot traffic, the demands are less stringent, but stability is still key to prevent tripping hazards and maintain the aesthetic appeal of a path or patio.

Can a Hand Tamper Effectively Compact for Foot Traffic?

The direct answer is yes, a hand tamper can be highly effective for compacting areas destined solely for foot traffic, provided certain conditions are met. Its effectiveness shines in smaller projects and where precise compaction is needed. For instance, creating a small garden path, preparing a base for stepping stones, or laying a compact patio for a seating area are all tasks where a hand tamper can deliver adequate results.

Ideal Scenarios for Hand Tamping Foot Traffic Areas

• Small Patios: For compact patio areas where you anticipate only pedestrian use, a hand tamper can provide a sufficiently stable base for paving slabs or block paving.
• Garden Paths: Narrow or winding garden paths, especially those made of gravel or small paving units, are perfect candidates for hand tamping.
• Repair Work: For patching small depressions or uneven spots in existing paths or drives where only foot traffic is present, a hand tamper offers precise control.
• Base for Stepping Stones: Each individual stepping stone needs a firm foundation, and a hand tamper allows you to compact the immediate area around each stone effectively.
• Confined Spaces: Areas inaccessible to larger machinery, such as between flower beds or against walls, are where a hand tamper truly excels.

When a Hand Tamper Falls Short: Knowing Its Limits

While versatile, a hand tamper does have its limitations, especially when considering the scale and intensity of use:

• Large Areas: Compacting a large patio or an extensive pathway with a hand tamper would be incredibly labour-intensive, time-consuming, and difficult to achieve uniform compaction across the entire surface.
• Heavy Foot Traffic: If the area is a public walkway, a main thoroughfare in a large garden, or an entrance often used by many people, the repeated, concentrated impact might eventually lead to settlement if not thoroughly compacted.
• Deep Compaction Needs: For sub-bases deeper than 100-150mm, achieving adequate compaction throughout the entire depth with a hand tamper alone can be challenging.
• Very Dense Materials: While it can compact aggregates, very dense, stubborn materials might require the more powerful vibrations of a mechanical compactor.

Mastering the Art of Hand Tamping for Optimal Results

To ensure your hand tamping efforts yield a stable and long-lasting base for foot traffic, follow these key techniques:

Preparing the Sub-base

Before you even pick up the tamper, ensure your sub-base is properly prepared. This involves excavating to the correct depth, ensuring proper drainage (a slight slope away from structures is often recommended), and laying down a suitable geotextile fabric if needed to prevent sub-base material from mixing with the underlying soil.

Layering and Moisture Control

Compaction is most effective when done in layers. Don't try to compact a thick layer of material all at once. Instead, spread your chosen aggregate (e.g., MOT Type 1, gravel, crusher run) in layers of no more than 50mm to 100mm (2-4 inches) at a time. Lightly moisten the material before tamping; this helps the particles bind together more effectively. Too dry, and it won't compact well; too wet, and it can become muddy and unstable.

The Tamping Technique

Lift the tamper straight up and let it drop, using its weight to do the work. Apply consistent, overlapping blows across the entire surface of each layer. Work systematically, moving from one end to the other, then overlapping your passes to ensure no spots are missed. You'll hear a change in sound as the material compacts, becoming duller and firmer. Aim for a solid, unyielding surface before adding the next layer.

Hand Tamper vs. Plate Compactor: A Comparative Look for Foot Traffic

While this article focuses on hand tampers, it's useful to understand their mechanical counterpart, the plate compactor, especially when considering larger foot traffic areas.

Maintaining Your Hand Tamper

A hand tamper is a robust tool, but a little care ensures its longevity. After use, clean off any soil or aggregate from the plate and handle. Store it in a dry place to prevent rust on the steel plate. Occasionally check the handle for splinters or cracks and replace if necessary for safety. A well-maintained tamper will serve you reliably for many years.

The Long-Term Benefits of Proper Compaction

Regardless of whether you use a hand tamper or a plate compactor, the effort put into proper compaction pays dividends in the long run. For foot traffic areas, a well-compacted base ensures:

• Longevity of Surfacing: Paving slabs, block paving, or gravel will remain level and stable, reducing cracking, shifting, and the need for frequent repairs.
• Enhanced Safety: A stable surface minimises trip hazards created by uneven ground.
• Improved Aesthetics: Your paths and patios will look neat and professional for years to come.
• Better Drainage: A solid base helps water drain away effectively, preventing puddles and potential damage from water ingress.

Frequently Asked Questions (FAQs)

How many layers should I compact with a hand tamper?

It's best to compact in layers of no more than 50mm to 100mm (2-4 inches) at a time. This ensures thorough compaction throughout the entire depth of your sub-base.

Can I use a hand tamper for a driveway?

Generally, no. Driveways are subjected to heavy vehicular traffic, which requires a much higher level of compaction than a hand tamper can provide. A vibrating plate compactor or even a roller would be necessary for such a project to ensure long-term stability and prevent rutting.

What's the best material to compact with a hand tamper for foot traffic areas?

Crushed stone (like MOT Type 1 or Type 3), gravel, and sharp sand are excellent choices. These materials have angular shapes that interlock well when compacted, providing a very stable base. Avoid using topsoil or clay for compaction as a base material, as they can retain too much water and are prone to expansion/contraction.

How do I know if the area is sufficiently compacted?

A well-compacted area will feel incredibly firm and solid underfoot. When you walk on it, your feet shouldn't sink in at all. If you try to push a rod or stick into the compacted material, it should meet significant resistance. You can also perform a simple test by trying to make an impression with your heel; if it leaves a deep mark, more compaction is needed.

Is using a hand tamper hard work?

Yes, it can be quite physically demanding, especially for larger areas or if you're not used to manual labour. It requires repetitive lifting and dropping of a heavy tool. However, for small projects, it's manageable and provides excellent results. Taking regular breaks and using proper lifting techniques can help minimise strain.

Do I need to moisten the material before tamping?

Yes, absolutely. Lightly moistening the aggregate or soil before tamping helps the particles move closer together and interlock more effectively, leading to better compaction. Be careful not to over-saturate it, as too much water can hinder compaction.
