Dead Ends & Diversions: Designing for Safety

Designing roads and access routes within any development is far more than simply laying tarmac; it's about ensuring safety, efficiency, and crucial accessibility, particularly for emergency services. One often-overlooked yet critically important aspect of road design concerns dead-end routes, especially when they exceed a certain length. This guide delves into the specific requirements for providing adequate turning facilities in such scenarios, focusing on the stringent demands of fire and rescue services, as well as considerations for general residential and commercial vehicle access across the United Kingdom.

A well-designed access route can mean the difference between a minor incident and a major catastrophe, ensuring that fire engines, ambulances, and other essential vehicles can reach buildings swiftly and operate effectively. It also significantly impacts the daily lives of residents and businesses, preventing unnecessary vehicle manoeuvring and potential hazards.

The Critical Need for Turning Facilities on Dead-End Routes

The primary reason for mandating turning facilities on dead-end routes stems from the operational limitations and safety requirements of various vehicles, most notably those used by the fire and rescue service. Imagine a large fire engine, weighing 14 tonnes, attempting to reverse hundreds of metres down a narrow cul-de-sac. This scenario is not only time-consuming and inefficient but also inherently dangerous, posing risks to personnel, property, and the public.

For this reason, mandatory standard regulations dictate that fire and rescue service vehicles should not be required to reverse more than 20 metres from the end of an access road. If a dead-end route extends beyond this 20-metre threshold, it is an absolute requirement that appropriate turning facilities are provided. These facilities are typically designed as either a turning circle or a hammerhead, allowing large vehicles to turn around safely and efficiently without excessive reversing.

The specific design and dimensions of these turning areas are not arbitrary; they are meticulously calculated to accommodate the largest and heaviest vehicles likely to use them, ensuring that emergency services can perform their vital functions unimpeded.

Fire and Rescue Service Access: A Paramount Concern

Every building, by law, must be accessible to the fire and rescue service. This accessibility is fundamental for enabling high-reach appliances, such as turntable ladders and hydraulic platforms, to be deployed, and for pumping appliances to supply water and equipment for fire-fighting and rescue operations. The scale of access required typically increases with the size and height of the building, reflecting the greater potential risks and operational demands.

It is crucial to provide vehicle access from a public road to at least one elevation of all buildings, ideally where the principal entrances are located. Additional access to other elevations is recommended for specific building types, such as hospitals, non-domestic buildings with a compartment area exceeding 900m², or buildings with a footprint perimeter greater than 150m. However, site constraints can sometimes limit the provision of multi-elevation access, in which case pedestrian access for fire and rescue personnel may suffice.

To further assist fire and rescue personnel, parking spaces should be strategically located no more than 18 metres from dry or wet riser inlets. This ensures quick and efficient connection of hoses, minimising critical response times during an emergency.

Designing for Emergency Vehicles: Dimensions and Considerations

The design of vehicle access routes for fire and rescue service vehicles is intrinsically linked to the need for water hydrants and fire mains. Early consultation with the local fire and rescue service is not just recommended; it is absolutely essential. Their expertise will dictate the precise requirements, especially concerning the more demanding guidance for high reach appliances, which can significantly impact planning and feasibility studies.

The following table outlines the minimum dimensions for access routes, differentiating between requirements for high reach appliances and those solely for pumping appliances:

It's important to note that where, following consultation with the fire and rescue service, access is only needed for pumping appliances, the smaller dimensions for turning circles may be permissible. This flexibility underscores the importance of bespoke design based on direct dialogue with the relevant authorities.

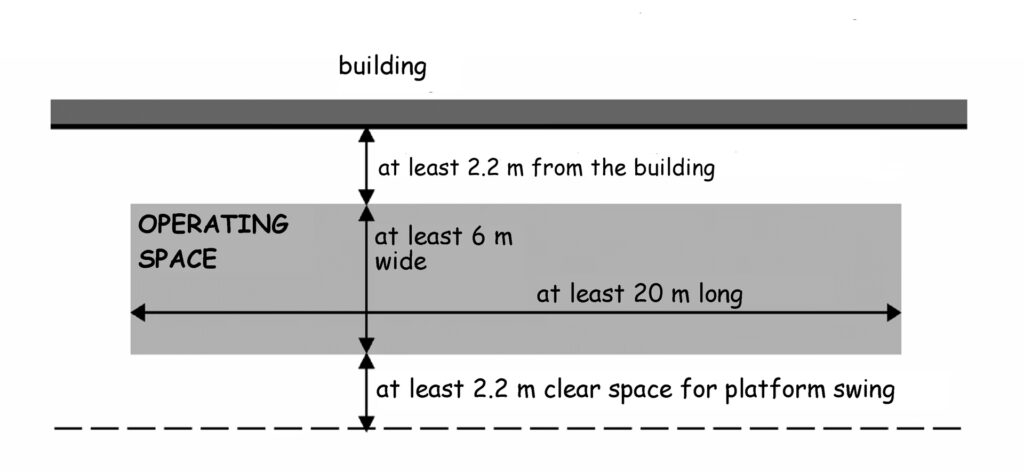

Beyond the access routes themselves, specific operating spaces may be required for high reach appliances. These spaces must have a ground loading capacity of not less than 8.3kg/m² and be level, or have a gradient no steeper than 1 in 12. These specifications ensure the stability and safe operation of heavy equipment like hydraulic platforms and turntable ladders.

Turning Facilities in Residential and Non-Residential Developments

While emergency access is paramount, turning facilities also serve a crucial role in general vehicle circulation within residential and non-residential areas. The overarching goal is to design new road layouts such that service and delivery vehicles do not need to reverse on public roads, thereby enhancing safety and reducing congestion.

Cul-de-sacs are generally accepted only where traffic volumes are expected to be low, acknowledging the inherent dangers associated with reversing vehicles. The design of turning areas in these contexts should always be informed by a swept-path analysis, which models the path of the largest vehicles expected to use the facility regularly.

Vehicle Characteristics and Dimensions

The dimensions of turning areas vary significantly depending on the type of development and the vehicles it needs to accommodate:

• In residential roads, the design typically caters for a 'Large Rigid Vehicle', which is approximately 2.5m wide with a 6.1m wheelbase, within an overall vehicle length of 10m.
• For potential bus routes, a larger 13.5m bus model should be used for the swept-path analysis.
• In non-residential developments, the requirements are often more stringent, potentially needing to cater for 15.5m long articulated vehicles or even 18m long draw-bar trailers.

Where there is no adjacent footway, turning areas should include a 2m wide verge or margin. This provides essential clearance for any overhang of vehicle bodies during manoeuvring, preventing damage to property or injury to pedestrians.

The layout of a development should also actively discourage casual parking within turning areas. This can be achieved by positioning turning circles away from direct frontage development or by designing premises and designated parking bays to take access via the turning area, thus integrating the turning function into the overall site layout.

In residential areas, the use of less formal shapes for turning heads may be acceptable, offering a more aesthetically pleasing solution while still incorporating the fundamental turning dimensions required for safe operation. While specific diagrams illustrate these dimensions (e.g., A, B, C, D, E, F, G), the principle is to ensure adequate space for the intended vehicle types.

Note: The dimensions A-G are illustrative and refer to specific points on standard turning head diagrams. Adherence to these dimensions ensures the functionality for the specified vehicle types.

Beyond Turning: Other Critical Access Considerations

While turning facilities are a key focus for dead-end routes, they are part of a broader framework of access requirements that contribute to overall safety and functionality:

Emergency Vehicle Route Width

Beyond the turning dimensions, the width of emergency vehicle routes is consistently specified. Building Standards (Scotland) Regulations, for instance, stipulate a minimum width of 3.7m between kerbs for emergency vehicle routes, aligning with the general access requirements for fire and rescue services.

Refuse Collection Access

Accessibility for waste collection is another practical consideration. Household waste containers must be easily transportable to a collection point adjacent to the public road, suitable for emptying by the Waste Collection Authority. This means the route should be free of steps and the distance to the collection point should be reasonable, often designated to prevent clustering of bins on footways.

Shared Surfaces

The concept of shared surfaces, where pedestrians and vehicles share the same level, is generally not encouraged in residential areas. This is because, without high volumes of pedestrian activity, vehicle speeds can inadvertently increase, posing safety risks. Shared surfaces may only be adopted where it can be demonstrably proven that traffic speeds will be physically constrained to less than 10mph, and the space will not become choked with parked cars. Furthermore, an Occupancy Certificate for a dwelling may not be issued unless the shared surface is complete, ensuring premises are fully accessible from the outset.

Ensuring Compliance and Long-Term Safety

The meticulous planning and execution of turning facilities and access routes are not merely regulatory hurdles; they are fundamental to creating safe, functional, and resilient communities. Adherence to Building Standards and local authority guidance is paramount. For any new development or significant conversion, early and comprehensive consultation with the fire and rescue service, as well as the local planning authority, is the single most important step.

Proper design from the outset avoids costly retrospective modifications and, more importantly, ensures that emergency services can respond effectively when lives and property are at stake. It means providing clear, unobstructed pathways and adequate turning spaces, enabling vehicles to operate efficiently and safely, regardless of the circumstances.

Frequently Asked Questions (FAQs)

Q1: Why can't fire engines reverse more than 20 metres?

A1: Requiring a fire engine to reverse more than 20 metres on a dead-end route is deemed unsafe and inefficient. Large, heavy vehicles like fire engines have limited rear visibility, making long reversing manoeuvres hazardous, especially in an emergency situation where speed and clear access are critical. It also significantly increases the time taken to respond, which could have dire consequences during a fire or rescue operation.

Q2: What is the difference between a turning circle and a hammerhead?

A2: Both are types of turning facilities for dead-end roads. A turning circle is a circular area at the end of the road that allows vehicles to drive around in a loop to turn around. A hammerhead is a T-shaped or Y-shaped area at the end of the road where a vehicle can pull forward into one arm of the 'T' or 'Y', reverse into the main road, and then drive forward out of the dead end. Hammerheads are often more space-efficient than full turning circles in constrained areas.

Q3: Do these access and turning rules apply only to new buildings?

A3: While these guidelines are primarily for new builds, in the case of conversions, the building as converted must meet the requirements of these standards as far as is reasonably practicable. Crucially, the access arrangements should in no case be worse than they were before the conversion, ensuring that safety standards are maintained or improved.

Q4: Can residential turning heads be smaller than those for commercial or industrial areas?

A4: Yes, generally, the dimensions for residential turning heads can be less formal and potentially smaller than those for non-residential developments. This is because the expected vehicle types in residential areas (e.g., typical refuse lorries, large rigid delivery vehicles) are generally smaller than the articulated lorries or draw-bar trailers that might need to access commercial or industrial sites. However, they must still accommodate the largest expected vehicle and facilitate safe turning without excessive reversing.

Q5: Who should I consult regarding vehicle access requirements for my development?

A5: The most important entities to consult are the local Fire and Rescue Service and your Local Planning Authority. They can provide specific guidance based on local policies, the nature of your development, and the precise requirements for emergency vehicle access, general traffic flow, and waste collection. Early consultation can prevent costly design changes later in the development process.
