H22 Engine Sleeves Explained

Understanding Sleeves in the H22 Engine

The Honda H22 engine, a popular choice for performance enthusiasts seeking power and reliability, features a sophisticated design that includes critical components like cylinder sleeves. When delving into engine builds, upgrades, or even basic maintenance for these engines, understanding the role and characteristics of cylinder sleeves is paramount. This article aims to demystify what a sleeve is in the context of an H22 engine, its importance, and the considerations surrounding it, drawing upon the insights shared by experienced mechanics and tuners.

What is a Cylinder Sleeve?

At its core, a cylinder sleeve is a cylindrical metal lining inserted into the engine block to form the inner wall of the cylinder. In the case of the H22 engine, and indeed most modern internal combustion engines, these sleeves provide a durable and precise surface for the piston to travel within. They are crucial for several reasons:

• Wear Resistance: The constant friction between the piston rings and the cylinder wall necessitates a material that can withstand significant wear over time. Sleeves are typically made from cast iron or a specialized alloy, offering superior durability compared to the aluminium alloy of the engine block itself.
• Thermal Management: Sleeves help to dissipate heat generated during combustion away from the piston and into the engine's cooling system via the block.
• Repairability: In the unfortunate event of cylinder wall damage, such as scoring or excessive wear, sleeves can often be replaced or reconditioned, saving the entire engine block.
• Bore Sizing: Sleeves allow manufacturers to achieve precise cylinder bore dimensions, which is critical for optimal engine performance and sealing.

FRM Sleeves in the H22 Engine

A significant characteristic of all H-series motors, including the H22A, H22Ax, H23A1, and H23A VTEC, is the use of FRM (Fibre Reinforced Metal) cylinder liners. FRM is a composite material that offers exceptional strength, wear resistance, and thermal conductivity. These liners are typically cast directly into the aluminium engine block. The unique properties of FRM contribute to the longevity and performance of the H22 engine, allowing it to handle significant power levels.

When working with H22 engines, it's crucial to be aware of the FRM liners. Unlike traditional cast iron sleeves that can be easily honed or bored, FRM requires specialized machining techniques. Attempting to hone or bore FRM liners with standard equipment can lead to catastrophic damage, as the reinforcing fibres can be pulled out or damaged, compromising the integrity of the cylinder wall.

Deck Configurations: Open vs. Closed Deck

Another important aspect of engine block design that impacts cylinder integrity is the deck configuration. The deck is the top surface of the engine block where the cylinder head bolts on.

• Closed Deck: In a closed-deck design, the cylinder block is reinforced by a solid deck, providing maximum structural integrity. This is particularly beneficial for high-boost applications as it helps to prevent the cylinder walls from flexing or distorting under extreme pressure.
• Open Deck: An open-deck design has cutouts between the cylinders, offering better coolant flow and lighter weight. However, it is generally less rigid than a closed-deck design and can be more susceptible to cylinder wall distortion under high stress.

The provided information highlights a key difference between JDM H22A engines based on their generation:

• 4th Generation (4g) H22A's: Are typically closed deck.
• 5th Generation (5g) H22A's: Are typically open deck, similar to their USDM counterparts.

It's important to note that engine designations can be nuanced. For instance, JDM engines may not always have the last number in their designation regardless of the year, so specifying the vehicle the engine came from is vital. Furthermore, the H23A VTEC is also mentioned as likely being open deck.

For high-horsepower builds, especially those involving significant boost, a closed-deck block is generally preferred for its superior strength and resistance to cylinder wall flex. If you are planning a high-boost H22 build, seeking out a 4th generation JDM H22A or a USDM H22A block that has been converted to a closed deck (a process known as 'sleeving' or 'block reinforcing') might be a wise consideration.

Compression Ratio (CR) and JDM H22 Engines

Compression ratio is a critical factor influencing an engine's power output and efficiency. It's the ratio of the volume of the cylinder with the piston at the bottom dead centre (BDC) to the volume with the piston at the top dead centre (TDC).

According to the provided information:

• Standard JDM H22A's (4g and 5g): Feature a 10.6:1 CR. This is attributed to higher-domed pistons compared to some USDM variants.
• Prelude Type-S, S-Spec, and Accord/Torneo Euro-R Engines: These specific JDM variants, often referred to as 'redtop' engines, are noted for having a higher 11:1 CR. They also boast more aggressive camshafts, a factory-ported and polished head, and modifications to the valves and seats to handle the increased performance.

The CR of an engine is closely tied to the fuel octane required and the potential for detonation (knocking). Higher compression generally leads to more power and better fuel economy, but it also increases the risk of detonation, especially under load or with lower octane fuel. For high-boost applications, a lower compression ratio is often used to prevent detonation. The information suggests staying with stock compression unless planning for 25+ psi of boost, implying that higher CRs are more suited to naturally aspirated or low-boost setups.

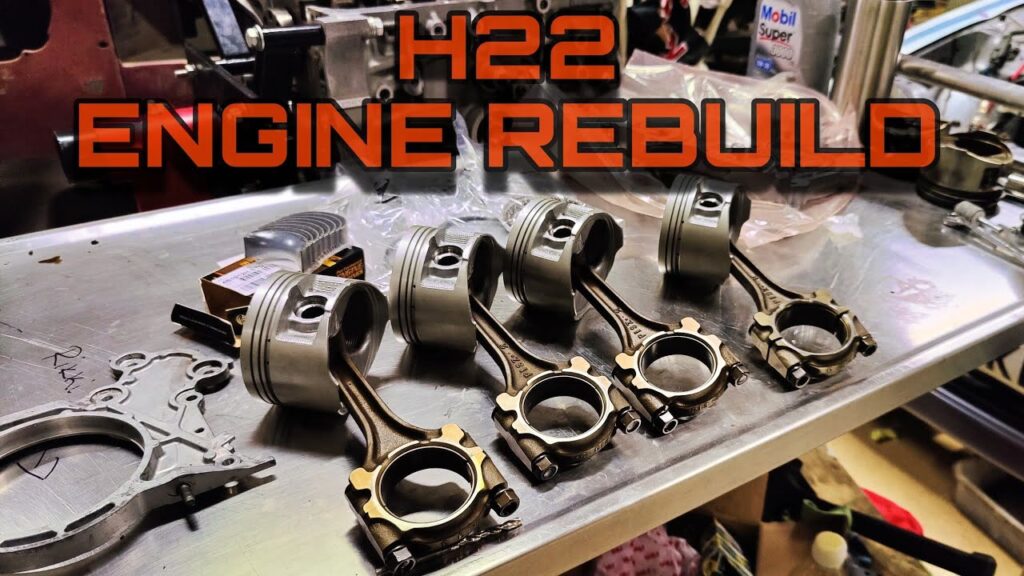

Pistons and Ring Tolerances

When discussing engine builds, pistons are a vital component that interacts directly with the cylinder sleeves. For the H22, brands like CP or Endyn are recommended.

A crucial point raised is the importance of correct ring tolerances. Improperly set ring gaps can lead to increased oil consumption. Ensuring the piston rings are gapped correctly for the specific application and operating conditions is essential for engine longevity and to prevent issues like oil burning.

The recommendation to consider an 89mm bore (over the stock 87mm) for increased torque is also noteworthy. A larger bore can improve volumetric efficiency and torque output, but it also requires careful consideration of block strength and piston design. When increasing bore size, especially in an open-deck block, the integrity of the cylinder walls becomes even more critical.

Camshafts and Head Flow

The H22 head is known for its good flow characteristics in stock form, capable of supporting over 500whp with appropriate supporting modifications. For those looking to extract more power from the cylinder head, specialized tuning shops like PortFlow are mentioned as being able to achieve further gains. The stock camshafts are considered decent, but for more aggressive performance, custom camshafts from companies like Web Cams are an option.

There's also a discussion about the nuances of OEM H22 camshafts, particularly between different generations and trim levels (e.g., base vs. SH VTEC). While part numbers might be the same, minor differences in lift or duration could exist. It's an area where definitive, universally agreed-upon facts can be scarce, highlighting the importance of consulting with camshaft specialists.

Engine Management (EMS) and Tuning

Achieving optimal performance from a modified H22 engine, especially one with significant power, hinges on proper engine management and tuning. The choice of Engine Management System (EMS) is a critical decision.

Popular EMS options include AEM, Hondata, Chrome, MoTeC, and Haltech. The most effective approach is to collaborate with a tuner who is proficient with a particular system. Sticking to Honda-centric systems like Hondata can simplify troubleshooting and maintenance, as many mechanics are familiar with them. The decision should be driven by the tuner's expertise and your specific build goals.

Maintenance and Reliability

As the power output of an H22 engine increases, so does the stress on its components. It's essential to anticipate that things will break. Regular and diligent maintenance is not just recommended; it's imperative. This includes:

• Oil Changes: Frequent oil changes with high-quality synthetic oil are crucial to maintain lubrication and cooling for stressed components.
• Cooling System: Ensure the cooling system is in top condition to prevent overheating, which can lead to severe engine damage.
• Component Inspection: Regularly inspect hoses, belts, and other wear items for signs of degradation.
• Monitoring: Utilize gauges to monitor oil pressure, oil temperature, coolant temperature, and boost levels.

The experience of driving a Honda with over 300whp is described as exhilarating but also challenging, particularly in adverse conditions like rain. It's a significant transformation that requires a driver to adapt and respect the increased power.

H22 Engine Swaps vs. Builds

For those seeking a performance upgrade without the complexities and potential reliability concerns of a fully built aftermarket engine, a JDM H22 engine swap can be a compelling option. Engines like the Type-S, S-Spec, or the H23A VTEC offer substantial factory performance enhancements at a competitive price point (estimated at £3,000-£4,000 for the engines themselves).

The H23A VTEC, with its 10.6:1 CR and longer stroke, offers a good base. While its stock cams might be less aggressive than some USDM counterparts (potentially due to being paired with automatic transmissions), a mild upgrade with cams like the Type-S or S2 tuner series can result in a potent setup.

Ultimately, the choice between a custom build and a factory performance swap depends on budget, desired power levels, and tolerance for complexity. While a custom build can often achieve higher peak power, a well-chosen factory JDM engine swap can provide a significant, reliable performance boost.

Frequently Asked Questions (FAQs)

Q1: What are FRM liners and why are they important for the H22?
FRM (Fibre Reinforced Metal) liners are the cylinder walls in H-series engines. They are made of a strong composite material that offers excellent wear resistance and thermal conductivity, contributing to the engine's durability and performance. However, they require specialized machining if any work is needed on the cylinder walls.

Q2: Is it better to have a closed-deck or open-deck H22 block for high power?
For high-power applications, especially those involving significant boost, a closed-deck block is generally preferred due to its superior rigidity and resistance to cylinder wall flex under extreme pressure.

Q3: What is the typical compression ratio for JDM H22A engines?
Standard JDM H22A engines usually have a compression ratio of 10.6:1. However, performance variants like the Prelude Type-S have 11:1 CR.

Q4: What should I consider regarding pistons for an H22 build?
When selecting pistons, ensure correct ring tolerances are set to prevent excessive oil consumption. Brands like CP or Endyn are often recommended. Consider bore size increases (e.g., 89mm) for more torque, but ensure the block can support it.

Q5: How much power can a stock H22 head handle?
A stock H22 head, with appropriate supporting modifications, can reliably handle over 500 wheel horsepower (whp).

Q6: Should I consider a JDM H22 swap instead of building my current engine?
A JDM H22 swap can be a cost-effective way to achieve significant performance gains, especially if your budget is tight or you want to avoid the complexities of a full custom build. Engines like the Type-S or Euro-R offer excellent factory performance.

In conclusion, understanding the intricacies of the H22 engine, including its FRM cylinder liners, deck configurations, and the importance of proper tuning and maintenance, is crucial for any enthusiast looking to maximize its performance and ensure its longevity. Whether you're planning a mild upgrade or a full-blown race engine, informed decisions about components and modifications will pave the way for a successful and exhilarating build.
