The Cornerstone of Control: Front End Alignment
When we talk about front end alignment, we're primarily referring to the relationship between your front wheel and the triple clamps. This seemingly small detail has a profound impact on your motorbike's steering geometry and overall handling characteristics. If your front end is out of alignment, the fork geometry will be incorrect, leading to compromised steering and a less predictable ride.
Checking for Misalignment

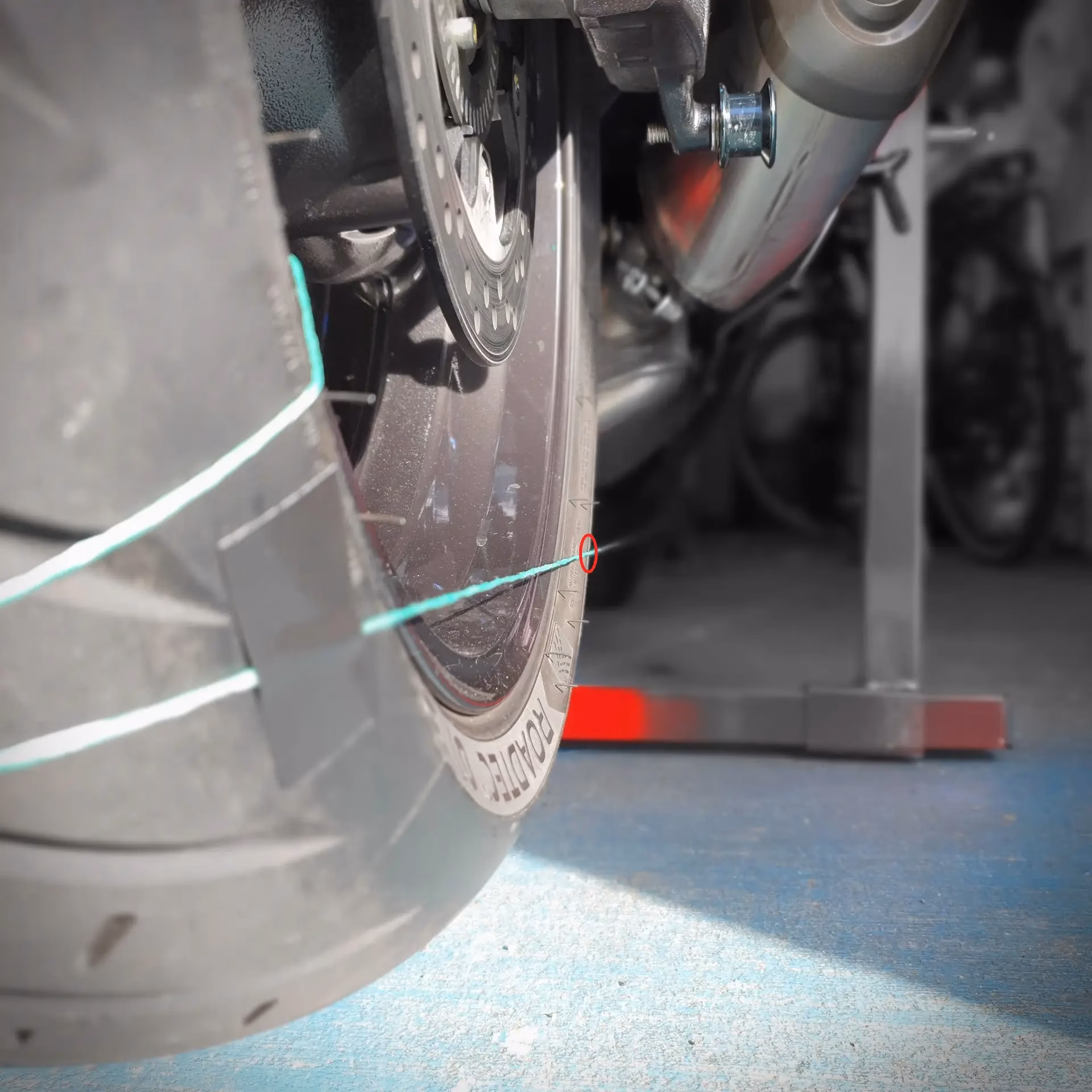

While the provided guide highlights the importance of checking front end alignment, it doesn't detail the 'how'. Generally, this involves ensuring that the front wheel is perfectly centred and aligned with the triple clamps and the rest of the bike's chassis. A quick visual check can sometimes reveal obvious twists, perhaps after a minor tumble or a hard impact. More precise checks involve using alignment tools or even string lines to ensure the front and rear wheels are running in parallel. Any misalignment will put undue stress on components and, as mentioned, severely hamper steering precision. Always ensure the wheel alignment is checked in conjunction with the triple clamps.
Foundational Checks: Setting the Stage for Optimal Performance
Before diving into the intricate world of suspension adjustments, it's vital to ensure some fundamental elements of your motorbike are correctly set. These basic checks, often overlooked, form the bedrock of good handling and directly impact how effectively your suspension can perform.
- Race Sag (25-30 mm, 1 - 1 3/16 inch) and Street Sag (30-35 mm, 1 3/16 - 1 3/8 inch): Sag, also known as 'rider sag', is the amount your suspension compresses under the bike's own weight plus the rider's weight. It's a critical starting point for any suspension setup. Correct sag ensures the suspension operates within its optimal travel range, allowing it to extend into dips and compress over bumps effectively.
- Chain Alignment: An often-forgotten aspect, incorrect chain alignment drastically increases sprocket wear and can introduce subtle handling quirks, especially under acceleration and deceleration. Always ensure your chain is perfectly aligned.
- Proper Tyre Balance and Pressure: Tyres are your only point of contact with the road. If they are out of balance, you'll experience noticeable vibration in either wheel, leading to reduced comfort and compromised traction. Correct tyre pressure is paramount for grip, wear, and handling stability.
- Steering Head Bearings and Torque Specifications: Loose steering head bearings can cause a terrifying 'head shake' at high speeds, making the front end feel disconnected and unstable. Ensure these are torqued to the manufacturer's precise specifications.
- Crash Damage and Frame Geometry: After any significant impact, it's crucial to check for proper frame geometry. Even slight bends or twists can fundamentally alter handling and make proper alignment impossible.
Unlocking Performance: Understanding Suspension Adjustments
Motorbike suspension systems are sophisticated marvels of engineering, designed to absorb bumps, maintain tyre contact, and provide a stable platform for handling. Most modern systems offer various adjustments to fine-tune their performance to your weight, riding style, and specific conditions. Let's break down the key adjustment locations and their effects for both forks and the rear shock.
Forks: Adjustment Locations
- Rebound Adjustment: Typically located near the top of the fork (if applicable). Rebound damping controls the speed at which the fork extends after being compressed.
- Compression Adjustment: Generally found near the bottom of the fork (if applicable). Compression damping controls the speed at which the fork compresses when hitting a bump or under braking.
- Spring Preload Adjustment: Usually a hex-style adjuster located at the top of the fork (if applicable). Preload adjusts the initial compression of the spring, primarily affecting sag and ride height.
Forks: Diagnosing and Solving Issues
Understanding the symptoms of incorrect fork settings is the first step towards rectifying them. Here's a guide to common issues and their solutions:
| Symptom | Diagnosis | Solution |
|---|---|---|
| Forks are plush, but increasing speed causes loss of control and traction. Motorcycle wallows exiting turns, causing fading traction and loss of control. Front-end chatter, loss of traction and control when cornering at speed. Aggressive input at speed lessens control and chassis attitude suffers. Front end fails to recover after aggressive input over bumpy surfaces. | Lack of Rebound | Increase rebound gradually until control and traction are optimised and chatter is gone. |
| Front end feels locked up, resulting in a harsh ride. Suspension packs in and fails to return, giving a harsh ride. | Too Much Rebound | Decrease rebound gradually until control and traction are optimised. |
| Front end dives severely, sometimes bottoming out over heavy bumps or during aggressive braking. Front feels soft or vague, similar to lack of rebound. A 'clunk' is heard when bottoming out due to reaching the end of fork travel. | Lack of Compression | Increase compression gradually until control and traction are optimised. |
| Front end rides high through corners, causing the bike to steer wide. It should ride in the middle of suspension travel. Front end chatters or shakes entering turns (due to incorrect oil height and/or too much low speed compression damping). Bumps and ripples are felt directly in the triple clamps and through the chassis, causing the front wheel to bounce over bumps. Ride is generally hard, and gets even harder when braking or entering turns. | Too Much Compression | Decrease compression gradually until bike neither bottoms nor rides high. First, verify oil height. If correct, decrease compression gradually until chattering and shaking ceases. Decrease compression gradually until control is regained. |
Rear Shock: Adjustment Locations
- Rebound Adjustment: Typically found at the bottom of the shock (if applicable). Controls the speed at which the rear shock extends.
- Compression Adjustment: Often located on the reservoir (if applicable). Controls the speed at which the rear shock compresses.
- Spring Preload: Generally found at the top of the shock. Adjusts the initial compression of the rear spring.
Rear Shock: Diagnosing and Solving Issues
The rear shock is just as crucial as the forks for maintaining stability and traction. Here's how to identify and address common problems:
| Symptom | Diagnosis | Solution |
|---|---|---|
| Ride feels soft or vague. As speed increases, the rear end wants to wallow and/or weave over bumpy surfaces, and traction suffers. Loss of traction causes the rear end to 'pogo' or chatter due to the shock returning too fast on exiting a corner. When chopping the throttle, the rear end tends to skip or hop on entries. | Lack of Rebound | Increase rebound gradually until wallowing and weaving disappears, and control and traction are optimised. |
| Ride is harsh, suspension control is limited, and traction is lost. Rear end will 'pack in', forcing the bike wide in corners due to rear squat. When the rear end packs in, tyres generally overheat and will skip over bumps. | Too Much Rebound | Decrease rebound gradually until harsh ride is gone and traction is regained. Decrease rebound to prevent rear end packing. |
| The bike will not turn in when entering a turn. With bottoming, control and traction are lost. With excessive rear end squat, when accelerating out of corners, the bike will tend to steer wide. | Lack of Compression | Increase compression gradually until traction and control are optimised and/or excessive rear end squat is gone. |
| Ride is harsh, but not as bad as too much rebound. As speed increases, so does harshness. There is very little rear end squat, causing loss of traction/sliding. Tyre will overheat. Rear end will want to kick when going over medium to large bumps. With acceleration, the front end will 'tank slap' or shake violently due to lack of front wheel tyre contact. | Too Much Compression | Decrease compression gradually until harshness is gone. Decrease compression until sliding stops and traction is regained. |
Beyond the Clickers: Deeper Suspension Considerations
While external adjusters offer a good range of tuning, sometimes the underlying components of your suspension require attention, particularly on stock setups. New motorbikes often come from the dealership set up on the softer side, typically for a rider in the 140-165 lbs (approx. 63-75 kg) range. If you fall outside this range, a simple adjustment of clickers might not be enough; internal re-tuning is often necessary.
The Problem with Stock Setups: Hydraulic Lock and Progressive Springs
Within the internals of forks and shocks, manufacturers use valves with small venturis and shims to create a damping curve. This works adequately at slower speeds. However, at higher speeds, when the suspension must react more quickly, this method can lead to insufficient oil flow, causing what's known as hydraulic lock. With hydraulic lock, there is effectively no damping, and the fork or shock cannot dampen correctly, leading to severe handling issues.
The solution to hydraulic lock and achieving a proper damping curve is often to revalve the active components. It doesn't matter whether you have Ohlins, Fox, KYB, or Showa components; the goal is to achieve the necessary damping curve for your specific needs. Sometimes, with stock components, turning the adjusters full in or out yields no noticeable difference. This is often because the manufacturer has placed the damping curve outside your ideal range. After revalving, the adjusters will become effective, and you'll clearly notice their impact on fork or shock performance.
Another common issue with stock springs is their progressive rate. This means a spring might be, for example, 0.85 kg per mm at sag but stiffen to 1.05 kg per mm at 2.5 inches of travel. While this offers a soft initial feel and resistance to bottoming out, it can make the suspension unpredictable. The ideal solution is to install a straight rate spring, specifically chosen for your weight and the weight of your motorbike. In some cases, factories do install straight rate springs, but often the rate is incorrect for the rider's weight.
The Consequences of Poor Suspension Setup
An incorrectly set up suspension has far-reaching negative consequences. Tyre wear is significantly increased, as the tyres are forced to work outside their optimal contact patch. Handling suffers dramatically, leading to a less confident and often perilous ride. This poor handling inevitably results in increased rider fatigue, diminishing your enjoyment and concentration. For those on the track, lap times can be dramatically slower, but more importantly, overall safety for both street and race enthusiasts becomes a significant concern. Add to this the sheer frustration factor of a bike that simply doesn't feel right, and it becomes abundantly clear why properly setting up your suspension is not just an option, but a necessity.
Frequently Asked Questions (FAQs)
How often should I check my front-end alignment?
It's advisable to check your front-end alignment after any significant impact, such as a crash or a hard bump. Beyond that, a general inspection during regular maintenance or if you notice any changes in handling (e.g., pulling to one side, unstable steering) is a good practice.
Can I perform all suspension tuning adjustments myself?
Basic adjustments like sag, rebound, and compression can often be done by a competent home mechanic with the right tools and a clear understanding of the principles. However, more advanced procedures like revalving or changing springs require specialised tools, knowledge, and experience. It's often best to consult a professional suspension tuner for these internal modifications.
What's the most important suspension adjustment?
While all adjustments play a role, setting the correct sag (rider sag) is arguably the most crucial initial step. It establishes the correct starting point for your suspension travel, allowing all other damping adjustments to work effectively. Without correct sag, you're building on a shaky foundation.
Why do my adjusters sometimes seem to have no effect?
As mentioned, if your motorbike's internal damping curve is outside your ideal range, the external adjusters (clickers) may have little to no noticeable effect. This is common with stock components not matched to your weight or riding style. In such cases, internal revalving by a specialist is usually the solution.
How do I know if my springs are the right rate for me?
The correct spring rate is determined by your weight (with riding gear) and the weight of your motorbike. A professional suspension tuner can calculate the ideal straight rate spring for your setup. If your sag cannot be set correctly within the recommended range even after adjusting preload, it's a strong indicator that your springs are either too soft or too stiff for you.
Conclusion
Proper front-end alignment and meticulous suspension tuning are not merely about optimising performance; they are fundamental to your safety and enjoyment on two wheels. By understanding the basics of alignment, diligently performing initial setup checks, and methodically adjusting your forks and rear shock based on symptoms, you can dramatically improve your motorbike's handling, stability, and responsiveness. Remember, suspension setup is an ongoing process that might require fine-tuning as your riding style evolves or conditions change. Invest the time and effort into getting it right, and you'll unlock a riding experience that is both faster and, most importantly, significantly safer.
If you want to read more articles similar to Mastering Your Motorbike's Front End: Alignment & Suspension, you can visit the Automotive category.
