The GSXR1000 ECU: Unveiling Its Secrets

Every rider knows the thrill of a Suzuki GSXR1000, a machine renowned for its blistering performance and precision. But what truly makes this two-wheeled marvel tick? At its core lies the Engine Control Unit, or ECU, the sophisticated digital brain orchestrating every aspect of the motorcycle's operation. Far from a simple black box, the ECU is a complex repository of instructions and data, meticulously calibrated to deliver that signature GSXR experience. Understanding what lies within this crucial component is the first step towards truly appreciating the engineering brilliance beneath your saddle.

The Digital Core: Memory & Data Allocation

At its heart, the GSXR1000 ECU, specifically models like the 2005/2006, relies on a powerful CPU equipped with a 256-kilobyte (KB) FLASH memory. To put that into perspective, that's precisely 262,144 bytes of information meticulously stored within. This digital real estate is divided into two primary sections, each serving a distinct, vital purpose.

Approximately two-thirds of this memory is dedicated to the ECU's core software. Think of this as the motorcycle's equivalent of an operating system, much like Windows on a computer. This software comprises the intricate code that dictates how the ECU processes inputs, executes commands, and manages all its functions. It's the firmware that defines the very logic of the bike's electronic control.

The remaining third of the memory, roughly 81,920 bytes, is allocated to the 'data' or 'map' section. While many might envision picturesque 3D topographical fuel maps when thinking of this section, it contains a far broader array of information. Beyond the actual fuel and ignition maps that define engine behaviour under various conditions, this section houses a multitude of other critical data points.

Decoding the 'Numbers Game': What the Data Holds

The 'map' section is a treasure trove of numerical values, each playing a specific role in the ECU's operation. These include:

• Single-Byte 'Switches': These are like digital on/off toggles, controlling various features within the software. For instance, one byte might instruct the software to limit RPM by cutting fuel, while another dictates limiting RPM by cutting ignition. These small values wield significant control over the bike's characteristics.
• 2D Conversion Maps: Sensors on your bike, such as temperature or pressure sensors, often provide non-linear electrical signals. The ECU uses 2D maps to convert these raw, non-linear sensor inputs into precise, linear temperature or pressure values that the software can accurately interpret and utilise.
• Voltage Correction Maps: Even subtle fluctuations in voltage can impact performance. There's a specific 'map' designed to compensate for potential loss of fuel pump pressure at lower voltages, a common occurrence during engine start-up, ensuring consistent fuel delivery.
• RPM Limiters: Crucially, this section also stores the critical RPM limiter values. These are the numbers that prevent the engine from over-revving, protecting it from damage.

In essence, all these diverse numbers instruct the ECU on how to operate. Changing these numbers fundamentally alters the bike's behaviour. The challenge, however, lies in deciphering which numbers correspond to which specific function – a task that requires deep technical insight.

The Art of Disassembly: Unravelling the ECU's Logic

So, how does one begin to understand which specific byte controls what? The answer lies in a meticulous process known as software disassembly and circuit tracing. This involves taking the ECU's software, which is essentially a very long list of machine code instructions, and converting it back into a human-readable (albeit still highly technical) format.

Consider the RPM measurement, for example. Your bike knows its engine speed via a crankshaft position sensor. This sensor sends a signal to a particular pin on the ECU's wire harness connector. The signal then travels through a series of internal electronic circuits before reaching a specific pin on the CPU itself. The CPU converts this incoming signal into a numerical value, storing it in a dedicated 'register' within its architecture. Each register has a unique numerical address.

The next step involves painstakingly searching through the disassembled software for instructions that read the address of this register. By meticulously tracing the flow of these instructions, one can identify the code that calculates the time elapsed between successive pulses from the timing wheel tabs as they pass the sensor. This 'crank period' is then converted into a rate – the number of events per unit of time – thus yielding the engine's RPM.

Continuing this forensic analysis, you eventually locate the part of the software that compares the current RPM to values stored in the map data. This comparison determines when a specific function, such as an RPM limiter, should activate or deactivate. Through this rigorous process, the exact addresses of critical map data, like the RPM limiters, can be identified. For instance, it's been discovered that map bytes at address 170,667 hold a value (32755) that, when divided by 2.56, corresponds to the sixth-gear ignition RPM limit value, the very setting that prevents the bike from exceeding approximately 186 mph. While incredibly useful, this raw data format is far from user-friendly.

Empowering the Rider: The Role of Map Editing Software

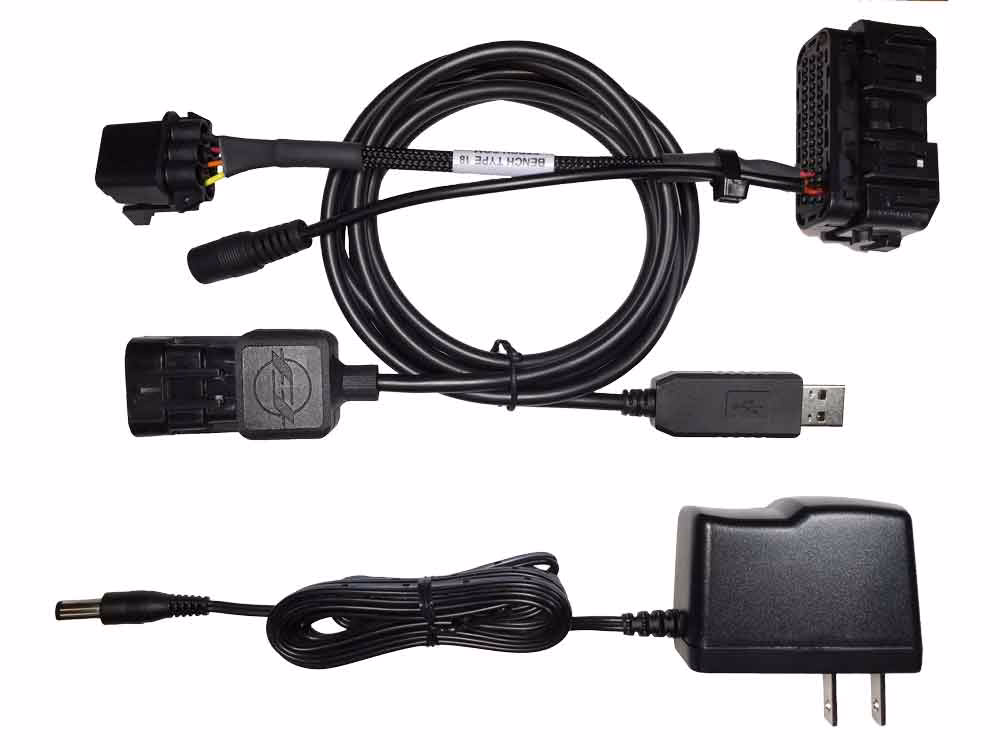

This is precisely where map editing software becomes indispensable. A map editor is a specialised program designed to read the raw map data section from the ECU, format it, and convert it into easily understandable information. For an editor to function correctly, it requires a 'definition file'.

A definition file is the key. It tells the editor precisely what each different byte represents and how to convert its raw numerical value into meaningful parameters like RPM, throttle position, or degrees Before Top Dead Centre (BTDC). Once armed with this information, the editor can display the complex data in a user-friendly graphical interface, allowing users to view, edit, or change values with relative ease. After modifications are made, the editor converts these changes back into the original format the ECU understands, enabling the modified data to be 'flashed' back onto the ECU's memory.

Practical Applications: Understanding Limiters and Controls

Let's delve into some practical examples of what a map editor reveals, using insights from a tool like Enginuity for a K5/K6 GSXR-1000 ECU:

Fuel Cut Limiting: Soft vs. Hard

One critical 'map switch' controls how the ECU implements fuel cuts. If a specific box is checked in the map editor, it sets a byte value that instructs the ECU software to use a 'soft cut' fuel limiting strategy. This involves cutting half the injector pulses, typically affecting only the outside cylinders (1 & 4). A soft cut provides a smoother, less abrupt limit, which can be preferable for rideability.

However, for bikes running advanced setups like turbo kits with secondary injectors, a soft cut can be detrimental, potentially causing the outside cylinders to run dangerously lean. By unchecking this box, the editor sets a value that forces the ECU to employ a 'hard cut' of all injectors, providing a more aggressive but often safer limiting action for highly modified engines.

RPM Limiter Values: High and Low Thresholds

The ECU's RPM limiters operate with distinct 'high' and 'low' values. This dual-threshold system ensures smooth engagement and disengagement of the limiter:

Once the engine RPM exceeds the 'Hi' value, the limiter activates and remains active until the RPM falls below the 'Lo' value. This prevents the limiter from rapidly cycling on and off around a single threshold.

Soft vs. Hard Limit Engagement

Often, a 'soft limit' engages first. If the engine speed continues to rise despite this initial intervention, a 'hard limit' will then kick in. It's important to note that certain tables, like the soft limit values, are only utilised if the corresponding soft-limit checkbox is activated. If not, the ECU defaults to a 'hard-only' limit table.

Neutral and Gear-Specific Limits

The ECU also employs a dedicated 'neutral limit table'. Bikes tend to rev up much faster when not under load, so a lower RPM limit is imposed when the bike is in neutral to prevent over-revving. Furthermore, the software provides for a fuel RPM limit by gear, though this is typically disabled on stock GSXR models. If enabled, you can choose whether this gear-specific limit is soft or hard.

Those seemingly low numbers seen in 6th gear are precisely what prevent the GSXR from exceeding 186 mph. This also explains how 'faking' the bike out with a TRE (Timing Retard Eliminator) device, making it believe it's in 5th gear, can bypass this speed restriction.

Ignition vs. Fuel Cut Speed Limiting

Intriguingly, unlike some other high-performance bikes like the Kawasaki ZX-12 or Suzuki Hayabusa, which often use a fuel cut for speed limiting, the stock GSXR typically has its fuel limit by gear turned off. Instead, it relies on an ignition (or coil) cut limit by gear to restrict top speed. This subtle difference highlights the nuances in how various manufacturers approach electronic limitations.

The Power to Modify: Considerations and Hazards

With map editing software, altering these settings can be as simple as clicking on an RPM value and typing in a new one, then saving the file and flashing it back to the ECU. However, this power comes with significant responsibility. The editor itself will not prevent you from making highly detrimental changes, such as setting an RPM limit of 18,000 – a value that would undoubtedly destroy the engine.

There are also less obvious hazards. For example, you must never set a limiter 'Lo' value greater than its corresponding 'Hi' value. If you do, the limiter will activate but will never disengage, leading to severe running issues or even engine damage. Proper understanding and careful calibration are paramount.

Beyond the Known: Unidentified Maps and Shared Knowledge

While many critical maps have been identified – such as the Ignition maps, Speed Density fuel maps, and Alpha-N fuel maps – the GSXR1000 ECU still holds some secrets. Within the map section, there's a 'map table of contents' that defines the location and dimensions of over 200 maps. However, many of these, often listed as folders like 'x17' or 'x40', remain 'undefined' because their specific functions haven't been meticulously traced through the software.

As time progresses and more enthusiasts delve into the code, these definitions become increasingly detailed. A significant advantage is that Denso, the manufacturer of many Suzuki ECUs, often uses similar internal software structures across different models. This means that discoveries made on, say, a Hayabusa ECU can often be quickly translated and applied to a GSXR, accelerating the pace of understanding.

Accessing the Tools: A World of Free Resources

Perhaps one of the most exciting aspects for enthusiasts is the widespread availability of tools. Stock map files, crucial definition files, and even map editing software are often available for free on the internet. Even if you already use an aftermarket tuning solution like a Power Commander and don't intend to flash your ECU, examining the stock maps can offer invaluable insights into how your bike was originally calibrated and provide a baseline for understanding its performance characteristics.

A Note on Specificity: The 05/06 GSXR Focus

It's important to clarify that much of the detailed understanding and specific examples discussed here primarily apply to the 2005 and 2006 GSXR1000 models. This is largely due to the efforts of individuals who have specifically managed to open up and read out the data from these particular ECU versions. While general principles may apply across other models, the precise addresses and values can differ significantly.

Frequently Asked Questions (FAQs)

Q1: Can I damage my ECU by attempting to modify it?

A1: Yes, absolutely. Incorrectly modifying the ECU's map data can lead to severe engine damage, running issues, or even render the ECU inoperable. It requires a thorough understanding of the parameters and the potential consequences of changes. Always back up your original map file before making any modifications.

Q2: Is map editing difficult for a beginner?

A2: While the tools themselves can be user-friendly, understanding the underlying principles and the impact of each parameter requires significant learning and research. It's not recommended for casual experimentation without proper guidance and safety precautions.

Q3: What are the main benefits of editing the stock ECU map?

A3: Editing the stock map allows for fine-tuning of fuel and ignition timing for specific modifications (e.g., exhaust, air filter), adjusting RPM limits, disabling certain restrictions (like speed limits), and optimising performance beyond what aftermarket piggyback modules can achieve. It offers a deeper level of control and optimisation.

Q4: Where can I find the free tools mentioned?

A4: A quick search on dedicated motorcycle forums, enthusiast websites, or tuning communities often yields links to stock map files, definition files, and free map editing software like Enginuity. Always exercise caution and verify sources when downloading software from the internet.

Q5: Does this information apply to GSXR models other than 2005/2006?

A5: While the general concepts of ECU operation and map data are similar across different GSXR models and years, the specific addresses, map layouts, and definition files will vary significantly. The detailed insights provided here are most directly applicable to the 05/06 GSXR1000 due to the availability of specific data for those models.

The Suzuki GSXR1000 ECU is a marvel of electronic engineering, a testament to the intricate balance between power, control, and safety. Its internal workings, though initially appearing as a bewildering array of numbers, reveal a highly organised and adaptable system once decoded. For those willing to delve into its depths, a world of customisation and performance enhancement awaits, but always with the understanding that such power demands respect and careful handling. After all, an ECU is a terrible thing to waste.
