SSD Health: Understanding Lifespan and Checks

The Inner Workings of SSDs and OS Communication

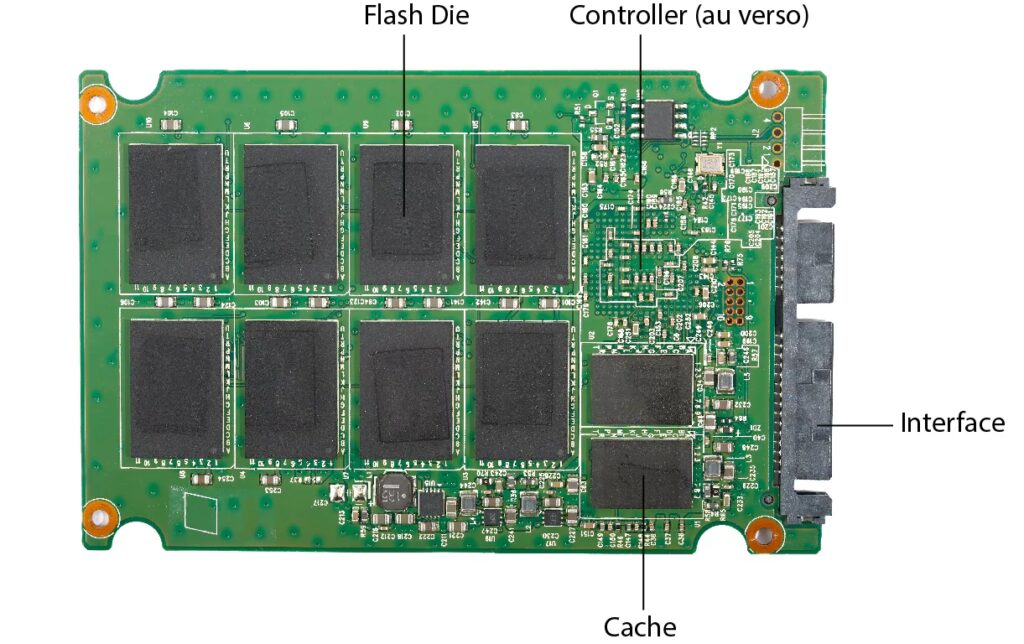

Solid State Drives (SSDs) have revolutionised data storage with their speed and efficiency, largely replacing traditional Hard Disk Drives (HDDs). Unlike their mechanical predecessors, SSDs utilise flash memory chips to store data. This fundamental difference in technology dictates how the operating system (OS) interacts with the drive. While an HDD requires the OS to manage the precise physical location of data and the state of its read/write heads, an SSD operates differently. The OS doesn't need to micromanage where each piece of data is physically stored on the flash memory cells. Instead, the SSD's internal controller handles this complex task, optimising data distribution and wear levelling.

A key technology that facilitates this efficient communication is the TRIM command. This command allows the OS to inform the SSD controller which data blocks are no longer in use and can be erased. When a file is deleted, the OS simply marks it as deleted. Without TRIM, the SSD wouldn't know that those blocks are free, and they would still be considered occupied until the next write operation. This would lead to performance degradation over time, as the drive would have to read existing data, erase unnecessary data, and then write new data in a more complex process. TRIM ensures that when a block is to be rewritten, the SSD can proactively erase the old data, optimising write operations and maintaining performance. This is a crucial aspect of how the OS and SSD work in tandem for seamless operation.

Understanding SSD Degradation: The Inevitable Reality

While SSDs are significantly more robust and faster than HDDs, they are not immortal. The flash memory cells within an SSD have a finite lifespan, measured in write cycles. Each time data is written to or erased from a cell, it undergoes a small amount of wear. Over years of use, these cumulative read, write, and erase cycles will eventually lead to the degradation of the memory cells. Although SSD controllers are designed to distribute these operations across all cells (wear levelling) to maximise the drive's longevity, even the most sophisticated systems will eventually experience wear.

It's a common misconception that SSDs are eternal. The reality is that the constant activity of reading, writing, and erasing data, even with advanced wear-levelling algorithms, will eventually take its toll. The cells, the fundamental building blocks of flash memory, will start to wear out. This wear is a gradual process, but it means that SSDs do have a limited operational life. This lifespan is often expressed in Terabytes Written (TBW) or Drive Writes Per Day (DWPD).

Factors Influencing SSD Failure

Several factors can influence how quickly an SSD might approach the end of its life. SSDs used as the primary storage device for an operating system and frequently accessed applications tend to experience more wear than secondary drives used for archiving. Similarly, users who frequently manipulate large files, such as video editors or graphic designers, will put more strain on their SSDs.

Another critical factor is the SSD's capacity. Smaller capacity SSDs are often more susceptible to premature failure. This is because the data and operations are concentrated across fewer memory cells. In a smaller SSD, each cell is subjected to a higher frequency of read and write operations. In contrast, larger capacity SSDs have a greater number of cells. The controller can distribute the workload more evenly across these numerous cells, meaning each individual cell is less stressed. This distributed load significantly extends the overall lifespan of larger drives.

Consider this analogy: imagine a team of workers. If you have a small team, each worker has to handle many tasks, leading to faster fatigue. If you have a large team, the workload can be spread out, and each worker handles fewer tasks, allowing them to work for longer. The same principle applies to SSD cells.

Monitoring Your SSD's Health on Windows 11

Fortunately, you don't have to guess when your SSD might be nearing its end. Modern operating systems, including Windows 11, provide built-in tools to monitor the health and remaining lifespan of your SSD. While in the past you might have needed third-party software, Windows 11 integrates this functionality directly into its settings.

Checking the Health of an NVMe SSD (Internal)

For internal NVMe SSDs, which are increasingly common in modern PCs and laptops, checking their health is straightforward:

1. Open Settings: Press the Windows key + I on your keyboard to quickly open the Settings app.
2. Navigate to Storage: In the left-hand pane, select "System," and then locate and click on the "Storage" section.
3. Access Advanced Storage Settings: Scroll down the Storage page and click on "Advanced storage settings" to expand it.
4. View Disks and Volumes: Within the "Storage management" section, click on "Disks & volumes."
5. Check Disk Properties: Your primary drive (usually Disk 0) will likely be selected by default, showing its partitions. Click on the "Properties" button for your SSD.

In the new window that opens, you should find a section labelled "Drive health." Look for the "Estimated remaining life" entry. This will typically display your SSD's health as a percentage, giving you a clear indication of its remaining lifespan. It's important to note that this specific feature might not be available for all types of SSDs or configurations.

Checking the Health of a Traditional SATA SSD

For traditional SATA SSDs, the built-in graphical interface might not display the detailed health information. In such cases, you'll need to use the Command Prompt or PowerShell:

1. Open PowerShell as Administrator: Right-click on the Start button and select "Terminal (Admin)" or "Windows PowerShell (Admin)." If Command Prompt opens by default, click the dropdown arrow next to the '+' sign in the tab bar and select "Windows PowerShell."
2. Enter the Command: In the PowerShell window, type the following command and press Enter:

   Get-PhysicalDisk | Get-StorageReliabilityCounter | Format-List

3. Interpret the Results: This command will generate a report detailing various aspects of your SSD's health. Look for metrics such as temperature, error counts, wear level (often expressed as a percentage), and power-on hours (PowerOnHours).

Third-Party Tools for Comprehensive SSD Health Checks

If you find the command-line interface intimidating or if the provided information isn't detailed enough, numerous third-party applications can offer a more user-friendly experience and deeper insights into your SSD's condition. Most SSD manufacturers provide their own utility software:

• Samsung Magician Tool
• Intel Memory and Storage Tool
• Western Digital SSD Dashboard
• Kingston SSD Manager
• Crucial Storage Executive

Alternatively, you can opt for a generic, free, and open-source utility like CrystalDiskInfo. This tool boasts an intuitive graphical interface and provides comprehensive, easy-to-understand information about your SSD's health, including its S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) attributes, temperature, read/write counts, and overall health status. Using such tools can give you a more detailed picture of your drive's performance and remaining lifespan.

When to Consider Replacing Your SSD

If your SSD is several years old and you start noticing signs of performance degradation, such as slower boot times, longer application loading times, or occasional file corruption, it might be time to consider a replacement. While monitoring its health is crucial, proactively replacing an aging SSD, especially if it's your primary drive, can prevent data loss and system instability. Backing up your important data regularly is always a wise precaution, regardless of your storage hardware.

Table: SSD vs. HDD Lifespan Considerations

Frequently Asked Questions (FAQ)

Q1: Will my SSD suddenly stop working?
While it's possible for any component to fail suddenly, SSDs typically show signs of degradation before complete failure. Performance may decrease, or you might encounter read/write errors. Regular health checks can help predict issues.

Q2: Is it bad to delete files on an SSD?
No, deleting files is a normal operation. The TRIM command helps the SSD manage deleted data efficiently. It's the constant writing and erasing of data that contributes to wear, not simply deleting files.

Q3: How often should I check my SSD's health?
For most users, checking your SSD's health every few months or annually is sufficient. If you're a heavy user of the drive (e.g., video editing, constant large file transfers), you might want to check more frequently.

Q4: Does defragmenting an SSD hurt it?
Defragmenting an SSD is generally unnecessary and can actually contribute to unnecessary wear cycles. SSDs do not suffer from fragmentation in the same way HDDs do due to their random access nature. Windows automatically handles defragmentation for SSDs by running TRIM commands.

Q5: What does a low percentage in "Estimated remaining life" mean?
A low percentage indicates that the SSD has undergone a significant number of write cycles and is approaching the end of its designed lifespan. It's a strong signal to start planning for a replacement and to ensure your data is backed up.

In conclusion, understanding how your SSD communicates with your OS, acknowledging its finite lifespan, and regularly monitoring its health are key to ensuring optimal performance and preventing data loss. By utilising the tools available within Windows 11 or reliable third-party applications, you can stay informed about your drive's condition and make informed decisions about its maintenance and eventual replacement.
