Gravely Zero-Turn Hydraulic Fluid Change Guide

Maintaining your Gravely zero-turn mower is paramount to its longevity and optimal performance. Among the critical tasks, changing the hydraulic fluid stands out as an essential service. Over time, this vital fluid can accumulate dirt, debris, and other contaminants, compromising its effectiveness and potentially leading to significant damage to your mower's sophisticated hydraulic system. Regular replacement not only ensures smooth operation but also safeguards your investment against premature wear and tear.

This detailed guide will walk you through every step of changing the hydraulic fluid on your Gravely zero-turn, providing practical tips and insights to make the process as straightforward and efficient as possible. By following these instructions, you'll be well-equipped to keep your Gravely operating at its absolute best.

Why Is Hydraulic Fluid So Important for Your Gravely Zero-Turn?

Hydraulic fluid is the lifeblood of your Gravely zero-turn's transmission system. It’s responsible for transmitting power, lubricating moving parts, and dissipating heat within the hydrostatic drive system, which controls both steering and deck lift functions. Without clean, effective hydraulic fluid, your mower simply cannot perform as intended. Think of it as the engine oil for your car, but for the intricate drive system that gives your zero-turn its agility and power.

Over time, the fluid degrades due to heat, friction, and contamination from microscopic wear particles and environmental ingress. This degradation leads to reduced viscosity, diminished lubricating properties, and an inability to effectively transfer heat. The consequences of neglected hydraulic fluid can be severe:

• Jerky or sluggish movements: Contaminated fluid can cause erratic operation of the drive wheels and deck, making mowing difficult and inconsistent.
• Decreased performance: The mower may lose power, struggle on inclines, or exhibit reduced responsiveness.
• Overheating: Degraded fluid cannot dissipate heat efficiently, leading to excessive temperatures in the transmissions, which can cause seals to fail and components to warp.
• Permanent damage: Prolonged operation with old or contaminated fluid can lead to irreversible damage to expensive hydraulic pumps, wheel motors, and transaxles, necessitating costly repairs or even full system replacement.
• Reduced lifespan: Ultimately, neglecting fluid changes will significantly shorten the overall lifespan of your Gravely mower.

Understanding these risks underscores the importance of proactive maintenance. Regular hydraulic fluid changes are a small investment in time and materials that can save you a substantial amount of money and frustration in the long run.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will streamline the process and ensure you can complete the job safely and efficiently. Here’s a comprehensive list:

• Oil Drain Pan: A large capacity pan is essential to collect the old hydraulic fluid.
• Wrench or Socket Set: For removing any guards or skid plates, and potentially for drain plugs if your model has them.
• Oil Filter Wrench: Specifically designed to remove spin-on filters.
• Funnel: A clean funnel with a wide mouth to prevent spills when refilling.
• Cleaning Rags: Plenty of clean rags for wiping up spills and cleaning around components.
• Jack Stands: Crucial for safely raising the rear of the mower off the ground during the air purging process.
• Protective Gloves and Eyewear: Safety first! Hydraulic fluid can be an irritant.

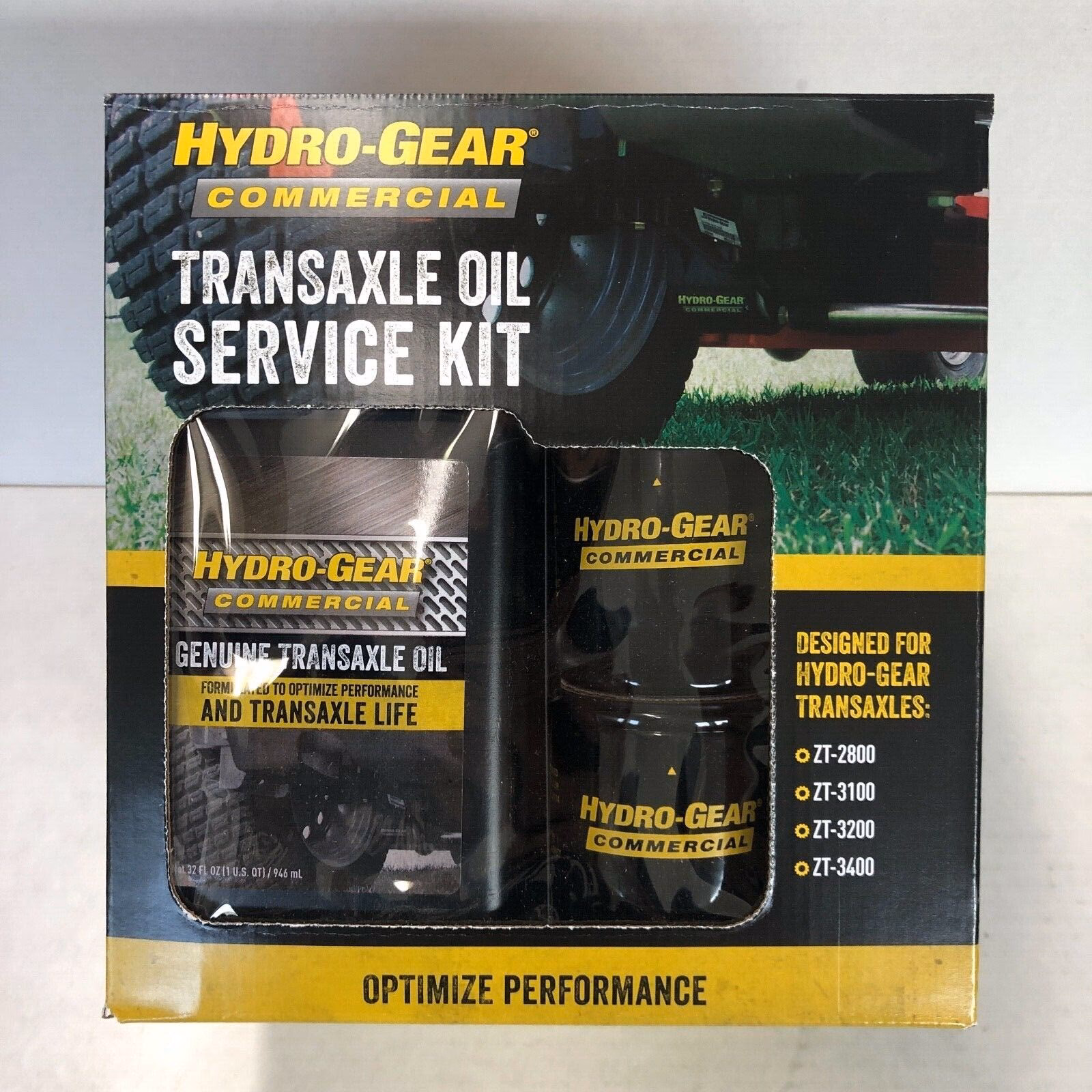

• New Hydraulic Fluid: Ensure you have the correct type and quantity. For Gravely zero-turns with Hydro-Gear pumps and wheel motors or individual transaxles, a high-quality 20W-50 or 15W-50 synthetic motor oil is typically recommended. Always check your owner's manual for the exact specification and volume.
• New Hydraulic Filters: You will typically have two filters, one for each transaxle. Ensure they are the correct OEM or approved aftermarket filters for your Gravely model.
• Cardboard or Newspaper: To protect your work surface from spills.

Step-by-Step Guide: Changing Hydraulic Fluid on Your Gravely Zero-Turn

Follow these detailed steps to successfully change the hydraulic fluid on your Gravely zero-turn mower:

Step 1: Preparation and Safety First

1. Park on a Level Surface: Ensure your mower is on firm, level ground to allow for accurate fluid level checks and safe operation.
2. Engage Parking Brake: Secure the mower to prevent any accidental movement.
3. Turn Off Engine and Remove Key: This is a critical safety step. Never work on a running or potentially starting machine.
4. Disconnect Spark Plug Wires: For an added layer of safety, disconnect the spark plug wires to prevent accidental engine start-up.
5. Warm Up the System (Slightly): Run the engine for a few minutes before draining. Warm fluid flows more easily, ensuring a more complete drain.
6. Protect Your Work Area: Place cardboard or newspaper under the mower to catch any drips or spills.
7. Consult Your Owner's Manual: Always refer to your specific Gravely model's owner's manual for any unique instructions, fluid capacities, or filter locations.

Step 2: Locating and Cleaning Around the Filters

Your Gravely zero-turn will typically have two hydraulic filters, one located near each rear wheel, connected to the transaxle. These may be covered by a guard or skid plate. Use your wrench or socket set to remove any necessary covers.

Crucially, clean the area thoroughly around the filters before removal. Any dirt or debris falling into the hydraulic system during filter removal can cause significant damage. Use a rag or brush to remove all loose dirt, grass, and grime.

Step 3: Draining the Old Hydraulic Fluid

1. Position Drain Pan: Place your oil drain pan directly underneath one of the hydraulic filters.
2. Remove the Filter: Use your oil filter wrench to loosen and unscrew the filter. Be prepared for fluid to start draining immediately. Allow the fluid to drain completely into the pan.
3. Repeat for Second Filter: Once the first transaxle has drained, move the drain pan to the other hydraulic filter and repeat the process.
4. Proper Disposal: Once all the old fluid has drained, securely cap your drain pan or transfer the fluid to a sealed container. Dispose of the used hydraulic fluid responsibly at an approved recycling centre or automotive parts store. Never pour it down drains or onto the ground.

Step 4: Installing New Hydraulic Filters

1. Prepare New Filters: Take your new hydraulic filters. Apply a thin film of clean, new hydraulic fluid to the rubber gasket seal of each filter. This helps ensure a good seal and prevents the gasket from tearing during installation.
2. Install Filters: Carefully screw on the new filters by hand, turning clockwise. Once the filter gasket makes contact with the mounting surface, tighten it an additional 3/4 to one full turn. Do not overtighten, as this can damage the filter or its housing.
3. Replace Guards (If Applicable): Reinstall any guards or skid plates you removed earlier.

Step 5: Refilling with New Hydraulic Fluid

The hydraulic fluid reservoirs (often called expansion reservoirs) are typically small plastic tanks located on top of your mower, behind the seat. There will be one for each transaxle.

1. Clean Around Reservoirs: Just like with the filters, clean the area around the reservoir caps thoroughly to prevent dirt from entering the system.
2. Remove Caps: Unscrew and remove the caps from both expansion reservoirs.
3. Fill with Recommended Fluid: Using your clean funnel, slowly add the new 20W-50 or 15W-50 synthetic hydraulic fluid to each reservoir. Fill until the fluid level reaches the 'Full Cold' line indicated on the reservoir.
4. Vent Plugs (Optional but Recommended for Some Models): Some Gravely transaxles may have a vent plug on each unit. If yours does, loosen these plugs before filling. Continue filling through the expansion reservoir until oil begins to seep out of the vent plug. Once this occurs, tighten the vent plugs, then continue filling the reservoir to the 'Full Cold' line. This helps to initially bleed air from the system.

Step 6: Purging Air from the Hydraulic System

This is a critical step to ensure proper operation and prevent damage. Air trapped in the hydraulic system can cause spongy controls, noisy operation, and poor performance.

1. Raise Rear Wheels: Safely lift the rear of your mower using jack stands so that the drive wheels are completely off the ground and can spin freely. Ensure the mower is stable.
2. Open Bypass Valves: Locate the bypass valves on each transaxle (consult your manual for exact location). Gently open these valves. This allows the fluid to circulate more freely during the purging process.
3. Start Engine: With the bypass valves open and wheels off the ground, start your mower.
4. Throttle Control: Increase the engine throttle to about half.
5. Engage Drive Levers: Slowly and deliberately move the speed control levers (steering levers) both forward and reverse, about six times in each direction. Do this slowly, allowing the fluid to circulate and air to escape. The wheels may not spin or may spin erratically at first.
6. Close Bypass Valves: Once you've completed the initial forward/reverse cycles, close the bypass valves.
7. Repeat Cycle (with Closed Valves): Repeat the process of slowly moving the speed levers forward and reverse (six times each way). The wheels should begin to rotate more normally and smoothly. Listen for any unusual noises or whining.
8. Continue as Necessary: Continue this purging cycle until the wheels rotate at a normal rate in both directions, without any hesitation, jerking, or unusual noises. This indicates that most of the air has been expelled.
9. Shut Down and Cool: Turn off the engine and allow the hydraulic system to cool down for a few minutes.

Step 7: Final Fluid Level Check

After the purging process and allowing the system to cool, re-check the fluid levels in both expansion reservoirs. The level may have dropped as air was expelled and fluid filled the system. Top off with additional hydraulic fluid as needed, ensuring the level is at the 'Full Cold' line. Reinstall the reservoir caps securely.

Recommended Hydraulic Fluid for Gravely Zero-Turns

As mentioned, for Gravely zero-turn units equipped with "Hydro-Gear" pumps and wheel motors, or "Hydro-Gear" individual transaxles, the manufacturer specifically recommends using either a 20W-50 or 15W-50 synthetic motor oil. It is crucial to adhere to these recommendations for several reasons:

• Warranty Compliance: Using an unapproved fluid can potentially void your mower's warranty.
• Optimal Performance: The specified viscosity and synthetic properties are designed to provide the best lubrication, heat dissipation, and power transfer for your mower's hydraulic components.
• Component Protection: Synthetic oils offer superior protection against wear, corrosion, and thermal breakdown compared to conventional oils, especially under the high-stress conditions found in hydrostatic transmissions.

While Gravely may sell their own branded oils, compatible 20W-50 or 15W-50 synthetic motor oils from reputable brands are widely available. Always confirm the specifications in your owner's manual before purchasing.

Maintaining Your Gravely Zero-Turn's Hydraulic System

Beyond regular fluid changes, a few simple practices can significantly extend the life and performance of your Gravely's hydraulic system:

• Regular Fluid Level Checks: Periodically check the hydraulic fluid level, especially before extended use. Ensure it remains at the 'Full Cold' mark. Low fluid can lead to cavitation and pump damage.
• Inspect Hoses and Fittings: Visually inspect all hydraulic hoses and fittings for any signs of wear, cracks, bulges, or leaks. Address any issues promptly, replacing damaged components as necessary. A small leak can lead to significant fluid loss and introduce air.
• Keep it Clean: Regularly clean around the hydraulic components, including the cooling fins on the transaxles and the hydro fans. Debris buildup can restrict airflow, leading to overheating, which is detrimental to hydraulic fluid and components.
• Adhere to Service Intervals: Follow Gravely's recommended service intervals for hydraulic fluid and filter changes. Typically, an initial "break-in" change is recommended at around 75 hours, followed by changes every 400 hours of operation. Consult your specific model's manual for precise timings.

Comparative Table: Old vs. New Hydraulic Fluid

Frequently Asked Questions (FAQs)

Q1: How often should I change the hydraulic fluid on my Gravely zero-turn?

A: Gravely typically recommends an initial "break-in" hydraulic fluid and filter change at around 75 hours of operation. After that, changes are usually recommended every 400 hours, or annually, whichever comes first. Always refer to your specific model's owner's manual for the most accurate intervals.

Q2: Can I use regular engine oil instead of synthetic hydraulic fluid?

A: No, absolutely not. While the recommended hydraulic fluid for many Gravely models is a 20W-50 or 15W-50 *synthetic motor oil*, it must be specifically designed for hydrostatic transmissions or be the type recommended by Gravely/Hydro-Gear. Using conventional engine oil or an incorrect type can lead to severe damage to your hydraulic system.

Q3: What happens if I don't purge the air from the hydraulic system?

A: Failing to purge air from the system can result in spongy or unresponsive controls, jerky movements, excessive noise (whining or grinding), and potentially lead to cavitation, which can severely damage the hydraulic pump and other components over time. It's a critical step for smooth and reliable operation.

Q4: How do I know if my hydraulic fluid is low or contaminated?

A: You can check the fluid level in the expansion reservoirs (typically behind the seat) when the engine is cold. If the level is below the 'Full Cold' line, it's low. Contaminated fluid often appears dark, cloudy, or has a burnt smell, differing significantly from the clear, amber appearance of new fluid.

Q5: Where can I dispose of used hydraulic fluid?

A: Used hydraulic fluid should never be poured down drains or onto the ground. It is considered hazardous waste. Most local recycling centres, automotive parts stores, or service stations will accept used oil for proper disposal. Check with your local authorities for specific regulations in your area.

Conclusion

Regular maintenance, particularly changing the hydraulic fluid, is not merely a suggestion but a necessity for ensuring your Gravely zero-turn mower operates at its peak performance and enjoys a long, productive life. By diligently following the steps outlined in this guide – from careful preparation and draining to meticulous refilling and crucial air purging – you actively prevent the common issues that arise from neglected fluid. This proactive approach safeguards your investment against costly repairs, maintains the smooth and responsive handling you expect from a Gravely, and ultimately extends the lifespan of your valuable machine.

Remember to always prioritise safety by wearing protective gloves and glasses, and to consult your owner's manual for any model-specific details. A well-maintained Gravely zero-turn will not only perform better but also provide you with reliable service for countless hours of mowing. Take the time to care for your machine, and it will undoubtedly take care of your lawn.
