VW Golf IV/Bora Fuse Guide

Navigating the electrical systems of your Volkswagen Golf IV or Bora can sometimes feel like a cryptic puzzle, especially when a blown fuse leaves you in the dark, quite literally. Whether it's a lack of power to your cigarette lighter or a more general electrical gremlin, understanding fuse locations is a fundamental skill for any owner. This guide aims to demystify the fuse box for your Golf IV and Bora, with a specific focus on common power outlets and an important component: the fuel pump relay.

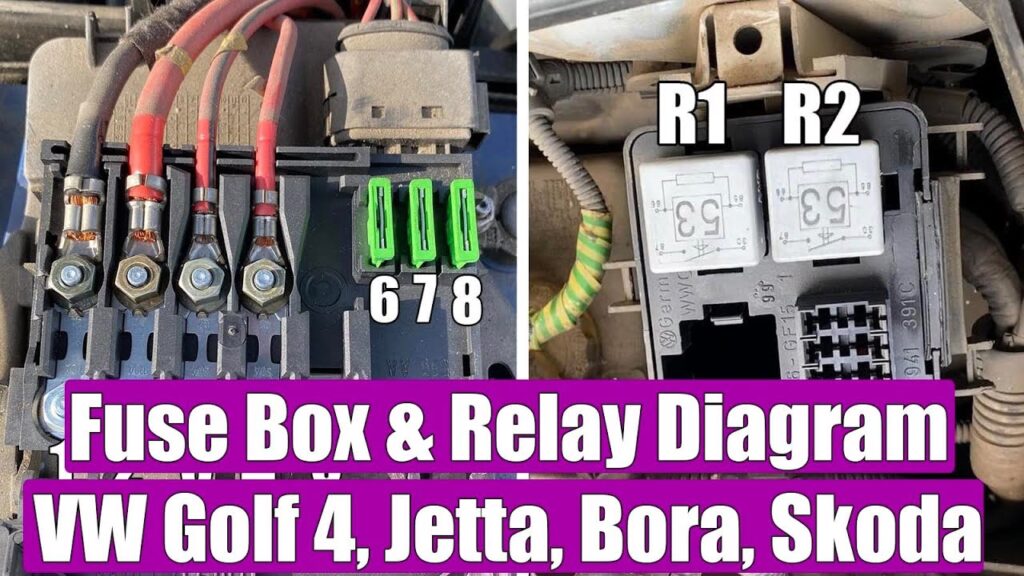

Locating the Main Fuse Box

For the Volkswagen Golf IV and Bora models, the primary fuse box is conveniently located behind a removable cover on the driver's side edge of the instrument panel. To access it, you'll typically need to gently pry off this cover. It's often secured with clips, so avoid excessive force. Once the cover is off, you'll be presented with a neatly arranged array of fuses and relays, usually labelled with their respective functions, though an accompanying fuse diagram (often found in the owner's manual or sometimes stuck to the inside of the fuse box cover itself) is highly recommended for precise identification.

Fuses for Power Outlets and Cigarette Lighter

When your cigarette lighter or the 12V power outlet in the luggage compartment isn't working, the culprit is often a blown fuse. In the Golf IV and Bora, these specific circuits are typically protected by fuses located within the main instrument panel fuse box. Specifically:

• Fuse #35 (12V power outlet in luggage compartment): This fuse is responsible for the power socket you might find in the boot or rear storage area of your vehicle.
• Fuse #41 (Cigarette lighter): This fuse directly relates to the operation of the cigarette lighter socket itself, often used for charging devices or, historically, for lighting cigarettes.

It's crucial to consult your vehicle's specific owner's manual for the most accurate fuse numbering and layout, as minor variations can occur between model years and trim levels. Always ensure you replace a blown fuse with one of the correct amperage. Using a fuse with a higher rating can lead to overheating and potentially serious electrical damage or fire. Conversely, a fuse with a lower rating will blow prematurely.

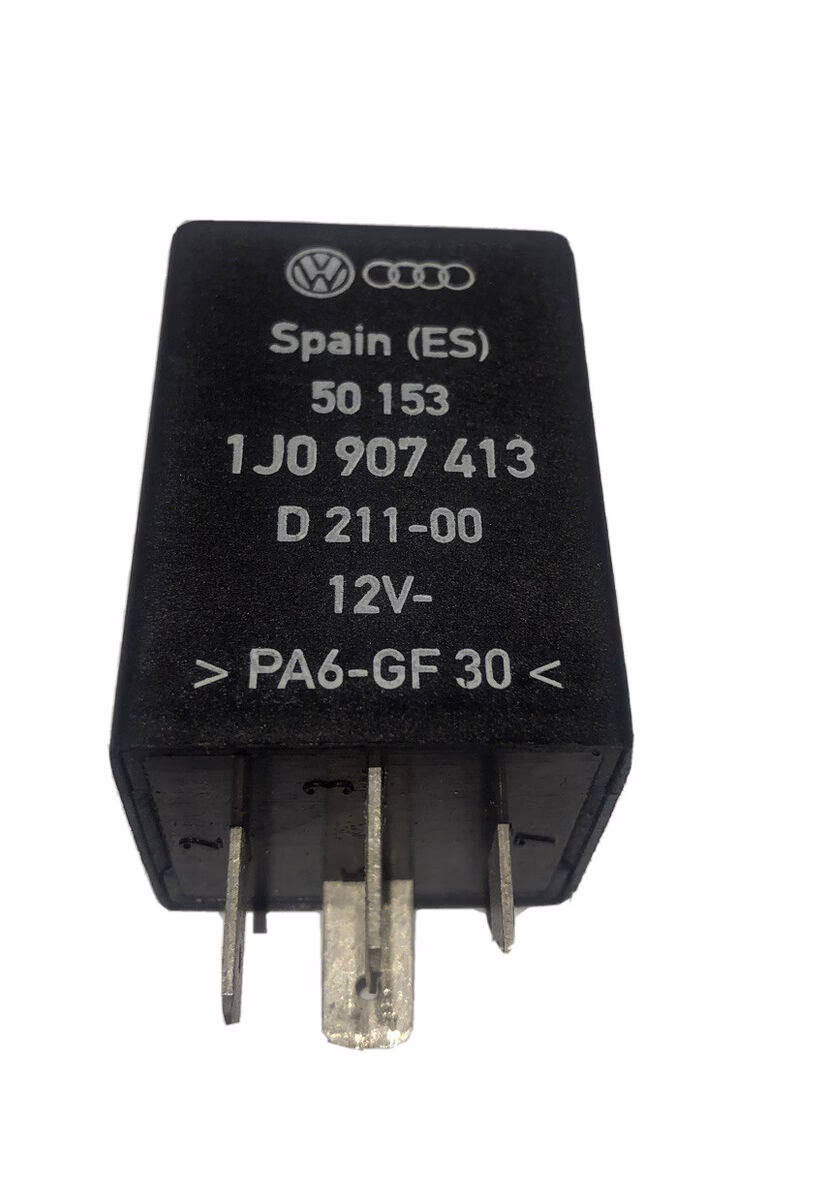

Understanding the Fuel Pump Relay

While the previous section focused on user-accessible fuses, the mention of a user's experience highlights the importance of other electrical components, like relays. A fuel pump relay is a critical switch that controls the flow of electrical current to the fuel pump. When you turn the ignition key to the 'on' position (without starting the engine), you should typically hear a brief whirring or humming sound from the rear of the car – this is the fuel pump priming the fuel system. This action is orchestrated by the fuel pump relay.

What does a fuel pump relay do?

The fuel pump relay acts as an electrically operated switch. It receives a signal from the engine control unit (ECU) or other control modules. When the ECU determines that the engine needs fuel (e.g., during ignition or cranking), it sends an electrical signal to the relay. This signal energises a coil within the relay, causing its internal contacts to close. Once closed, these contacts complete a circuit, allowing a significant amount of current to flow from the battery to the fuel pump, powering it up. When the engine is switched off, or if the ECU detects a problem, it de-energises the relay, opening the circuit and stopping the fuel pump.

Common Issues and Symptoms related to Fuel Pump Relays

A failing fuel pump relay can manifest in several ways, often leading to frustrating and seemingly random engine problems:

• No-start condition: If the relay fails to close its contacts, the fuel pump won't receive power, and the engine will not start because it's starved of fuel.
• Intermittent stalling: A relay that is starting to fail might work intermittently. This can cause the engine to cut out unexpectedly while driving, often feeling like a sudden loss of power.
• Hesitation or misfiring: Inconsistent fuel pressure due to a faulty relay can lead to poor engine performance, such as hesitation during acceleration or misfiring.
• Engine warning lights: While not always the case, some modern ECUs can detect issues with fuel delivery and may illuminate the engine warning light.

The user account shared in the prompt, detailing a Mk4 Golf with various significant issues including engine failure and gearbox problems, touches upon the broader reliability concerns some owners have experienced with this generation of Golf. While not directly related to fuses or the fuel pump relay in that specific anecdote, it underscores the importance of proper maintenance and understanding potential common faults for the model. Mechanical failures like a blown piston or gearbox issues are far more serious than a blown fuse, but both stem from the vehicle's complex engineering.

Fuse Replacement: A Step-by-Step Guide

Replacing a blown fuse is a relatively straightforward DIY task, provided you have the correct replacement. Here’s how:

1. Identify the Blown Fuse: First, locate the fuse box and consult your diagram to identify the fuse responsible for the non-functioning component. Turn off the ignition and remove the key.
2. Visually Inspect the Fuse: Carefully pull out the suspected fuse. Most fuse boxes come with a small plastic tool designed for this purpose. Examine the fuse's metal filament. If the filament is broken or appears burnt, the fuse has blown.
3. Obtain the Correct Replacement: Ensure you have a new fuse of the exact same amperage as the blown one. The amperage rating is usually printed on the top of the fuse.
4. Insert the New Fuse: Push the new fuse firmly into the correct slot.
5. Test the System: Turn on the ignition and check if the component is now working. If it is, you've successfully replaced the fuse.

Important Note: If a new fuse blows immediately or shortly after replacement, it indicates a more serious underlying electrical problem, such as a short circuit. In such cases, it is highly recommended to seek professional diagnosis from a qualified mechanic to prevent further damage.

Troubleshooting Common Electrical Issues

When faced with electrical problems in your Golf IV or Bora, consider these troubleshooting steps:

• Check the Fuse First: As detailed above, fuses are the most common cause of many electrical failures. Always start here.
• Inspect Wiring: Look for any visible signs of damage to the wiring harness connected to the component in question. frayed wires, melted insulation, or loose connections can all cause issues.
• Consider the Component: If the fuse is good and the wiring appears intact, the component itself (e.g., the power outlet socket, cigarette lighter element, or even the fuel pump) might have failed.
• Relay Issues: As discussed, relays can also fail. If you suspect a relay, and you can locate it, you might be able to test it or swap it with an identical relay for a non-critical system to see if the problem moves.

Frequently Asked Questions (FAQs)

Q1: Where is the fuse box located in a VW Golf IV?

A: The main fuse box is located behind a cover on the driver's side edge of the instrument panel.

Q2: Which fuse is for the cigarette lighter in a Golf IV/Bora?

A: Fuse #41 is typically for the cigarette lighter, and Fuse #35 is for the luggage compartment power outlet.

Q3: Can I use a higher amperage fuse if the correct one keeps blowing?

A: Absolutely not. Using a higher amperage fuse is dangerous and can cause significant electrical damage or fire. Always use the specified amperage.

Q4: What if the new fuse blows again immediately?

A: This usually indicates a short circuit in the wiring or the component itself. You should not keep replacing fuses and should have the vehicle inspected by a mechanic.

Q5: What does the fuel pump relay control?

A: The fuel pump relay controls the electrical power supply to the fuel pump, allowing it to deliver fuel to the engine.

Q6: My car won't start, and I hear no fuel pump noise. What could it be?

A: This could be a faulty fuel pump, a blown fuel pump fuse (if applicable), or a faulty fuel pump relay. Checking the relay is a common diagnostic step.

Understanding the fuse system and key components like the fuel pump relay is essential for maintaining your VW Golf IV or Bora. While minor issues like blown fuses are often easily rectified, more complex problems, as hinted at by the user's experience, may require professional attention. Always refer to your owner's manual for the most accurate and vehicle-specific information.
