Unravelling the GTI's K-Jetronic Fuel System

For many enthusiasts, the Golf GTI represents a pinnacle of hot hatch engineering, yet even these revered machines can suffer from perplexing running issues. Whether it's intermittent performance, difficulty starting, or inconsistent idling, the root cause often lies within the intricate workings of its fuel system. This article aims to demystify the Bosch K-Jetronic fuel injection system, particularly as found in classic GTIs, explaining how its various components collaborate to ensure your engine runs optimally. We'll delve into the fundamental principles, examine the roles of key parts, and offer insights into common troubleshooting and adjustment procedures.

The Essence of Combustion: Fuel-Air Mixture

At its core, any internal combustion engine relies on a precise blend of fuel and air to operate efficiently. While many older vehicles employed carburetors, modern cars predominantly feature electronic fuel injection. Regardless of the mechanism, the objective remains the same: to supply and mix the correct proportions of petrol and air for combustion. Chemically, for petrol to burn completely and cleanly in air, an ideal ratio of 14.7 parts air to 1 part fuel is required. This specific balance is universally known as the stoichiometric ratio.

However, an engine's operating conditions are anything but static. From a gentle idle to wide-open throttle (WOT) at maximum revolutions, the amount of air drawn into the engine varies dramatically. This air intake is primarily a function of the engine's revolutions per minute (RPMs) and the vacuum generated within the intake manifold – often referred to as Manifold Air Pressure (MAP). This vacuum changes significantly, by approximately 85 times between its minimum and maximum states, as the engine's intake stroke pulls against a partially or fully closed throttle. The fuel system's crucial task is to accurately 'measure' this varying air intake and subsequently add the exact amount of fuel required to maintain that consistent, ideal ratio.

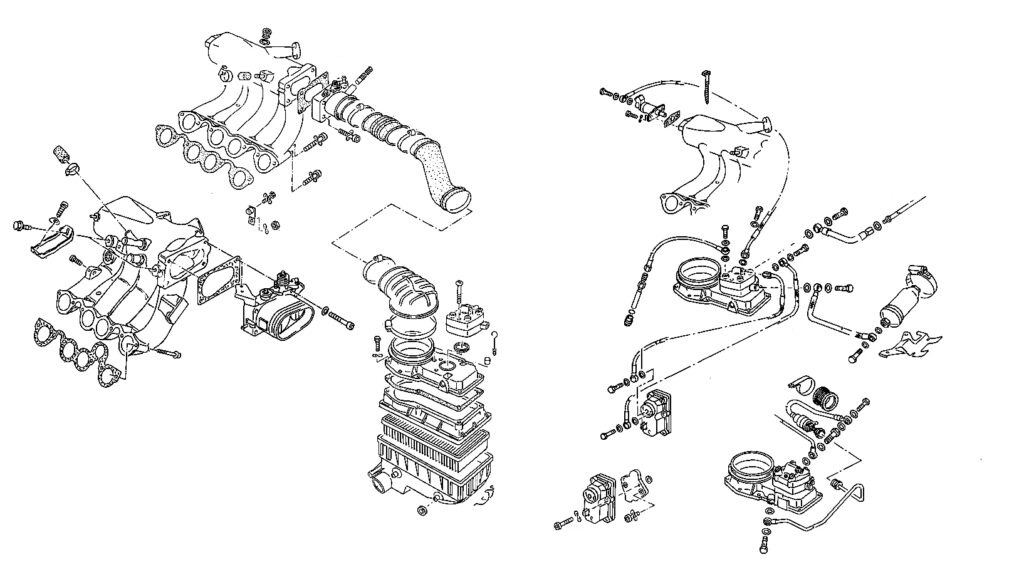

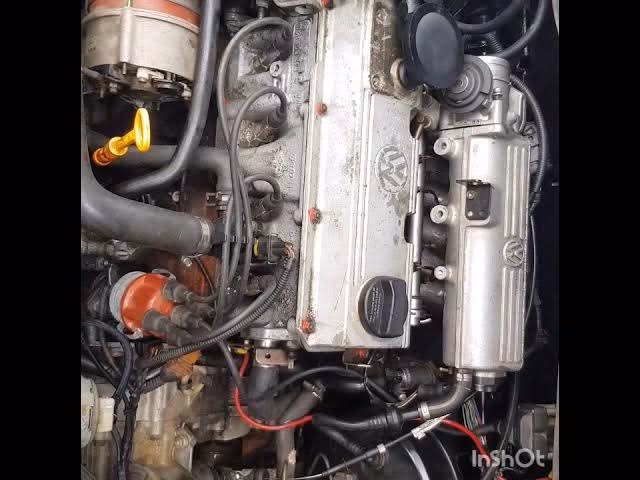

At the Heart: The K-Jetronic Metering Head and Injectors

The Bosch K-Jetronic system, a mechanical fuel injection system, centres around its sophisticated metering head. This unit is ingeniously divided into two primary sections. The lower section houses a flap designed to measure the incoming airflow. In the Golf GTI, air enters from below the metering head and travels upwards, causing the flap to rise proportionally with increased airflow. This upward movement of the flap directly pushes a plunger into the upper section of the metering head. The upper section is responsible for measuring the precise amount of fuel and then distributing it to each of the engine's injectors.

From the metering head, the fuel is routed to the individual injectors. The primary function of these injectors is to 'atomise' the fuel – transforming it into a fine mist. This pulverisation is vital because it ensures a much more consistent and efficient burn within the cylinders. The injectors deliver this atomised fuel directly into the inlet manifold, just before the cylinder. They operate by opening only when a specific threshold fuel pressure is exceeded and then closing against a spring once this pressure drops. In practical terms, these injectors don't just open once; they 'pulse', opening and closing many hundreds of times per second. This rapid pulsing action is why they can often be heard operating, producing a distinct clicking sound.

The volume of fuel squirted into the cylinders is not only a direct consequence of the lift applied to a valve within the fuel distributor but is also critically dependent on the fuel's pressure. This is where the 'control pressure' comes into play. This control pressure is dynamically varied throughout the engine's warm-up phase. Furthermore, in later iterations of the K-Jetronic system (which can sometimes be adapted to the Mk1 GTI), this control pressure is also adjusted during full throttle and part throttle operations, allowing for finer tuning of the fuel delivery across various driving conditions.

The Cold Start Conundrum: Assisting Warm-up

When an engine is cold, it requires a significantly richer fuel mixture than when it's at normal operating temperature. This is due to several factors: a proportion of the fuel condenses on the cold surfaces of the inlet manifold and cylinder walls, meaning it doesn't vaporise and burn effectively. Additionally, colder engine oil increases internal friction, demanding more effort from the engine to turn over. To compensate for these conditions and ensure reliable starting and smooth running during warm-up, the K-Jetronic system incorporates three crucial auxiliary devices:

1. The Cold Start Valve (CSV) – The 'Fifth Injector'

Commonly referred to as the 'fifth injector' or cold start injector, the Cold Start Valve (CSV) is typically located on the right-hand side of the inlet manifold. Its sole purpose is to squirt additional fuel into the engine specifically during a cold start. The amount and duration of this extra fuel delivery are precisely determined by two factors: the engine's temperature and whether the starter motor is actively engaged. Crucially, the CSV only operates while you are attempting to start the engine, meaning it's active only when the starter motor is spinning.

The CSV's operation is governed by the Thermo Time Switch (TTS). This vital component is positioned at the front of the cylinder head, within the coolant flange. The TTS acts as a temperature sensor, determining if the engine is sufficiently cold to necessitate additional fuel. If it is, the TTS then dictates the maximum duration for which the fifth injector will fire. The CSV itself is a straightforward electrical fuel injector, functionally similar to those found in more modern, electronically controlled fuel systems.

2. The Auxiliary Air Valve (AAV)

The Auxiliary Air Valve (AAV) plays a critical role in managing the engine's idle speed during warm-up. This valve provides an additional amount of air that effectively bypasses the main throttle body. By allowing this extra air in, the AAV raises the engine's idle speed when cold, preventing stalling and ensuring smoother initial operation. The AAV is open when the engine is cold and gradually closes as the engine heats up. This closing action is facilitated by a bimetallic strip located inside the valve, which responds to temperature changes.

The AAV receives heat partly through conduction from its attachment to the inlet manifold and partly from its own internal electrical heater element. The wiring to this element is live continuously whenever the engine is running. It's worth noting that while the AAV provides a basic method for controlling idle speed during warm-up, later Volkswagen models adopted a more sophisticated approach using an Idle Stabilisation Valve (ISV) coupled with an electronic module, offering more precise and dynamic idle control.

3. The Warm Up Regulator (WUR)

Remember the importance of fuel pressure in mixture control? The Warm Up Regulator (WUR) is the device responsible for varying this crucial control pressure during the warm-up phase. Its function is to gradually reduce the fuel pressure as the engine approaches its normal operating temperature, thereby leaning out the mixture to the correct stoichiometric ratio. Like the AAV, the WUR is heated both by heat conduction from the engine block and by its own dedicated electrical heating element.

The WUR is an integral and indispensable part of the K-Jetronic fuelling system. It is impossible to bypass it, as doing so would result in completely incorrect fuel pressures throughout the system, leading to severe running problems. While the AAV and CSV can sometimes be temporarily disconnected or bypassed for troubleshooting purposes, the WUR must always remain in circuit for the system to function correctly.

Here's a quick overview of these key components:

Diagnosing Running Issues: The Three Misfire Reasons

When an engine misfires or runs poorly, the symptoms – the sound and feel – can be remarkably similar, regardless of the underlying cause. Fundamentally, an engine misfires for only three primary reasons:

1. Poor ignition: Issues with spark plugs, ignition leads, distributor, or ignition timing.
2. Too rich: The engine is receiving too much fuel relative to the air.
3. Too lean: The engine is receiving too little fuel relative to the air.

Before delving into fuel system specifics, it's crucial to eliminate ignition problems first. Basic troubleshooting steps for ignition include verifying correct ignition timing, inspecting spark plugs for good condition, checking wiring integrity, and ensuring all electrical terminals are secure. Once ignition is confirmed to be in order, attention can then turn to the fuel mixture.

Measuring Mixture: Tools and Techniques

Accurately measuring the fuel-air mixture requires specialised instruments. While experienced mechanics might 'feel' or 'smell' an overly rich mixture from the exhaust, or interpret spark plug colour, these methods are insufficient for precise adjustments. The most common and reliable tool for measuring mixture is a gas analyser, which measures the percentage of Carbon Monoxide (CO) in the exhaust gases. When an engine runs rich, some fuel combusts only partially with air, forming CO instead of the more complete CO2. Thus, the % CO provides a direct indication of how rich or lean the engine is running.

Another, more advanced tool for mixture measurement is a lambda probe (also known as an oxygen sensor). These devices react much faster than traditional gas analysers and can measure mixture dynamics more quickly. However, they are typically more expensive and less commonly found in a DIY home garage setting. While a basic CO analyser might be obtainable for around £50 from automotive parts retailers like Halfords, a wideband lambda probe setup could easily cost upwards of £200. Professional workshops often utilise both for comprehensive diagnostics.

Adjusting Your K-Jetronic System

Once you've ruled out ignition issues and understand the principles of mixture measurement, you can proceed with adjustments. The K-Jetronic system offers two primary adjustments for fine-tuning engine performance:

Mixture Adjustment

The actual adjustment of the fuel mixture is performed using a small 3mm hex screw, located deep within the metering head. This adjustment is exceptionally sensitive; even small turns can have a significant influence on the mixture. Turning the screw clockwise will make the mixture richer. It is imperative that you do not rev the engine while this adjustment is being made, or while the adjustment tool is inserted into the screw. Furthermore, you must only turn the screw; do not apply downward pressure, as the delicate internal components of the metering head can be easily damaged.

Idle Speed Adjustment

The engine's idle speed can be accurately measured using the rev counter, which is standard on all GTIs. Adjustment is made via a 7mm screw situated at the back of the throttle body, very close to the scuttle tray. Its proximity to the bulkhead makes it challenging to access, often requiring the use of a socket and T-bar for effective manipulation. Some mechanics find a socket with a knurled edge useful, as it offers sufficient grip to be turned by hand once it's seated on the screw. Unlike some illustrative diagrams, tilting the engine forwards is generally not necessary to perform this adjustment.

After carefully checking and, if necessary, adjusting the ignition timing, fuel mixture, and idle speed, you may well discover that your GTI's engine runs faultlessly. A significant number of common running issues in K-Jetronic equipped vehicles are resolved simply by meticulous adjustment of these fundamental parameters. Patience and precision are key to unlocking the smooth, powerful performance your classic GTI was designed to deliver.

Frequently Asked Questions (FAQs)

What is the stoichiometric ratio and why is it important for my GTI?

The stoichiometric ratio is the chemically ideal air-to-fuel ratio for complete combustion of petrol, which is 14.7 parts air to 1 part fuel by mass. It's crucial for your GTI because maintaining this ratio ensures maximum fuel efficiency, minimises harmful emissions, and provides optimal engine performance. Deviations from this ratio (running too rich or too lean) can lead to poor running, reduced power, and increased fuel consumption.

Why does a cold engine need more fuel?

When an engine is cold, a significant portion of the fuel injected into the intake manifold and cylinders condenses on the cold metal surfaces rather than vaporising. This means less fuel is available for combustion. To compensate for this condensation and ensure enough fuel actually burns, the system provides an enriched mixture during cold starts and warm-up, preventing stalling and allowing the engine to reach operating temperature more quickly.

How can I tell if my GTI's engine is running too rich or too lean?

While precise measurement requires a gas analyser, some signs can indicate a rich or lean condition. A rich mixture might manifest as excessive black smoke from the exhaust, a strong smell of unburnt fuel, fouled or black spark plugs, and poor fuel economy. A lean mixture might cause the engine to hesitate, surge, or feel sluggish, produce light grey or white spark plugs, and potentially lead to engine overheating or backfiring. However, these are rough guides, and instrument-based measurement is always recommended for accurate diagnosis.

Can I adjust the fuel mixture on my K-Jetronic system myself?

Yes, the fuel mixture can be adjusted via a 3mm hex screw on the metering head. However, it's a very sensitive adjustment, and small turns have a large effect. It's highly recommended to use a CO gas analyser to accurately measure the exhaust gases while making adjustments. Without one, you're essentially guessing, which can lead to further running problems or potential engine damage. Always follow proper procedures and ensure the engine is at operating temperature before making adjustments.

What's the difference between the Auxiliary Air Valve (AAV) and an Idle Stabilisation Valve (ISV)?

The AAV is a simpler, mostly mechanical valve that provides extra air during cold starts to raise idle speed, gradually closing as the engine warms up due to a bimetallic strip. It's a basic form of idle control. An ISV, found in later, more electronically controlled systems, is a more sophisticated electronic solenoid valve that precisely regulates idle speed across a wider range of conditions, often working in conjunction with an electronic control unit (ECU) for dynamic adjustments based on various engine parameters.

Is it possible to bypass the Warm Up Regulator (WUR) for troubleshooting?

No, the Warm Up Regulator (WUR) is an integral and indispensable part of the K-Jetronic fuelling system. It actively varies the control pressure, which directly influences the fuel mixture. Bypassing or disconnecting the WUR would result in completely incorrect fuel pressures, causing severe running issues and potentially making your car undrivable. Unlike the AAV or CSV, which can sometimes be temporarily disconnected for diagnostic purposes, the WUR must always remain functional within the system.
