VW Golf Mk3 096 ATF Change: A Complete Guide

Ensuring your vehicle's automatic transmission fluid (ATF) is in prime condition is paramount for its longevity and smooth operation. For owners of the venerable VW Golf Mk3 equipped with the 096 automatic transmission, understanding when and how to service this crucial component can save you from costly repairs and enhance your driving experience. This comprehensive guide will walk you through the tell-tale signs that your ATF needs attention, the recommended procedure for changing it, and how to perform a safe, effective "flush" to keep your Golf shifting like new.

Is Your VW Golf Mk3's ATF Due for a Change?

The 096 automatic transmission, a robust unit found in the Golf Mk3 from its introduction until mid-1995 (before the switch to the 01M unit), is designed for reliability. However, like engine oil, its fluid degrades over time and with mileage. Regular maintenance, specifically an ATF change, is vital. We highly recommend servicing your 096 transmission fluid every 20,000 miles for complete peace of mind, or even sooner if your vehicle primarily undertakes short journeys or experiences demanding driving conditions.

Identifying Your Transmission Type

Before proceeding, it's crucial to confirm you have the 096 transmission. The easiest way to identify it is the presence of a dipstick for checking the fluid level. The later 01M unit, which replaced the 096, does not have a conventional dipstick and requires a different, more complex procedure for fluid level checks and changes.

Key Indicators Your ATF Needs Attention

Your Golf's transmission often provides subtle, or not-so-subtle, clues when its fluid is past its prime. Ignoring these signs can lead to severe transmission damage. Here are the common indicators that suggest an ATF change is overdue:

• Sudden Lurches or Bangs: If your car momentarily feels like it's gone into neutral before abruptly engaging a gear, especially when cold or under load, this could indicate a dangerously low ATF level or degraded fluid. Check your ATF level immediately and top up if necessary to prevent further damage.
• Noticeable Lurch into 4th Gear: A distinct jolt or lurch when the transmission shifts into fourth gear is a strong sign that the fluid's lubricating and hydraulic properties have diminished significantly.
• Delayed Downshifts: When downshifting from 4th to 3rd gear under load, if the engine revs jump higher than they should momentarily, feeling like the transmission is "neutral" for too long, your fluid is likely contaminated or worn out.
• Burnt Odour: If the ATF on the dipstick smells distinctly burnt, resembling burnt toast, it's a clear indication of overheating and severe degradation. This fluid has lost its effectiveness and must be changed immediately.
• Fluid Colour Change: While VW's original fluid is typically yellow, and colours can vary, a significant change from its original appearance is a red flag. If your fluid was initially red but has lost its tint and now appears dirty brown or black, it's a strong sign it needs replacing. Be aware that fluid colour alone isn't always definitive, but combined with other symptoms, it's a strong indicator.

Understanding the ATF "Flush" Debate

Within the VW community, there's much discussion regarding transmission flushes. Many online sources suggest that machine-based flushing can potentially dislodge debris and cause internal transmission damage. This DIY guide advocates for a safer, more controlled method of "flushing" your 096 transmission, which effectively means performing the fluid change procedure twice. This approach significantly reduces the risk of disturbing sensitive internal components while ensuring a more thorough replacement of old, contaminated fluid.

Essential Parts and Tools for the Job

Before you begin, gather all necessary parts and tools. Safety should always be your top priority, so ensure you have appropriate safety gear and a secure workspace. If at any point you feel unsure, consult a qualified automotive technician.

Parts Required:

• Automatic Transmission Fluid (ATF): For the 096 transmission, you require a minimum of 3-4 litres for a standard change, or 7-8 litres if you plan to perform a full "flush" (a double change). Crucially, this transmission uses DEXRON specification ATF.
• Oil Strainer/Filter: Part number 095325429D. This is optional but highly recommended for comprehensive maintenance. An OEM strainer often includes the strainer gasket.
• Strainer Gasket: Part number 095325443A. Only needed if your new strainer doesn't come with one.
• Sump Pan Gasket: Part number 096321370. Optional. Many original gaskets remain in good condition; inspect yours before deciding to replace.
• RTV Gasket Sealer: A thin bead can be applied with a new pan gasket for extra security, though often not strictly necessary.

Tools Required:

• Hydraulic Jack and Safety Stands (essential for lifting and securing the vehicle)
• Safety Glasses (to be worn at all times)
• Gloves
• 3/8" Ratchet
• 10mm Socket
• 17mm Socket
• Accurate Torque Wrench (optional, but recommended for precise tightening)
• Fluid Extractor (highly recommended for initial fluid removal and correcting overfills)
• Suitable Container(s) for old ATF
• Secondary Hydraulic Jack (for carefully lowering the sump pan)
• Piece of Wood (to balance on the secondary jack)
• Funnel and Garden Hose (for refilling ATF through the dipstick tube)
• Penetrating Lubricant (e.g., WD-40)
• Brake Cleaner (for cleaning the pan and magnet)
• VAG-COM diagnostic tool, VAG1551, or an Infra-Red Thermometer (for checking ATF temperature)

The Detailed Automatic Transmission Fluid Change Procedure

This guide provides extreme detail, particularly useful for those new to automotive maintenance. If you're experienced, you can focus on the bolded instructions. Remember, the transmission is a highly sensitive component; cleanliness is paramount. Avoid dust, dirt, or debris contaminating the fluid or internal parts.

1. Warm the Car Up: Drive the vehicle for 10-15 minutes to bring the transmission fluid up to operating temperature. Warm fluid drains more completely and allows for accurate level checking later.
2. Raise Front of Vehicle Securely: Using a hydraulic jack, lift the front of your Golf Mk3. Immediately place sturdy safety stands under the designated jacking points and ensure the vehicle is stable before proceeding. Never work under a vehicle supported only by a jack.
3. Extract Fluid (Optional but Recommended): If you have a fluid extractor, insert its hose down the transmission dipstick tube and remove as much ATF as possible into a suitable waste container. This will significantly reduce spillage when the pan is removed.
4. Remove Protective Plate: Locate the sump pan protective plate (part number 357399291). It's secured by four 17mm bolts (N 10257501). Use your 3/8" ratchet with a 17mm socket to undo these bolts (remember: "righty tighty, lefty loosey"). Be aware this plate is surprisingly heavy.
5. Carefully Remove Sump Pan: With the protective plate removed, you'll see the transmission oil sump (096321359C), held by four small 10mm hexagon bolts (N 90533002). It's wise to spray a little penetrating lubricant around these bolts and let it soak, as they can be overtightened and prone to snapping.

   This next step is crucial for minimising mess: Position your secondary hydraulic jack with a piece of wood on top directly under the centre of the sump pan. Raise the jack almost to touch the pan, leaving a tiny gap. This will support the pan as you loosen the bolts. If you didn't extract fluid, it will pour out once the pan is loosened. In this case, slightly loosen the bolts furthest from you first to allow a controlled drip into your catch container for about 15 minutes. Do not let the pan hang by only two bolts for an extended period.

   Once ready, loosen all four 10mm bolts halfway, then fully. With the jack supporting the pan, slowly lower it. If done correctly, the pan will descend smoothly onto the jack. Be extremely careful not to lower the pan at an angle, as there's a delicate electrical ribbon and connectors inside that can easily be damaged.

   Even after the pan is lowered, ATF will continue to drip from the strainer. While it's dripping, take a moment to clean the protective plate you removed earlier, as it often accumulates leaves and debris.

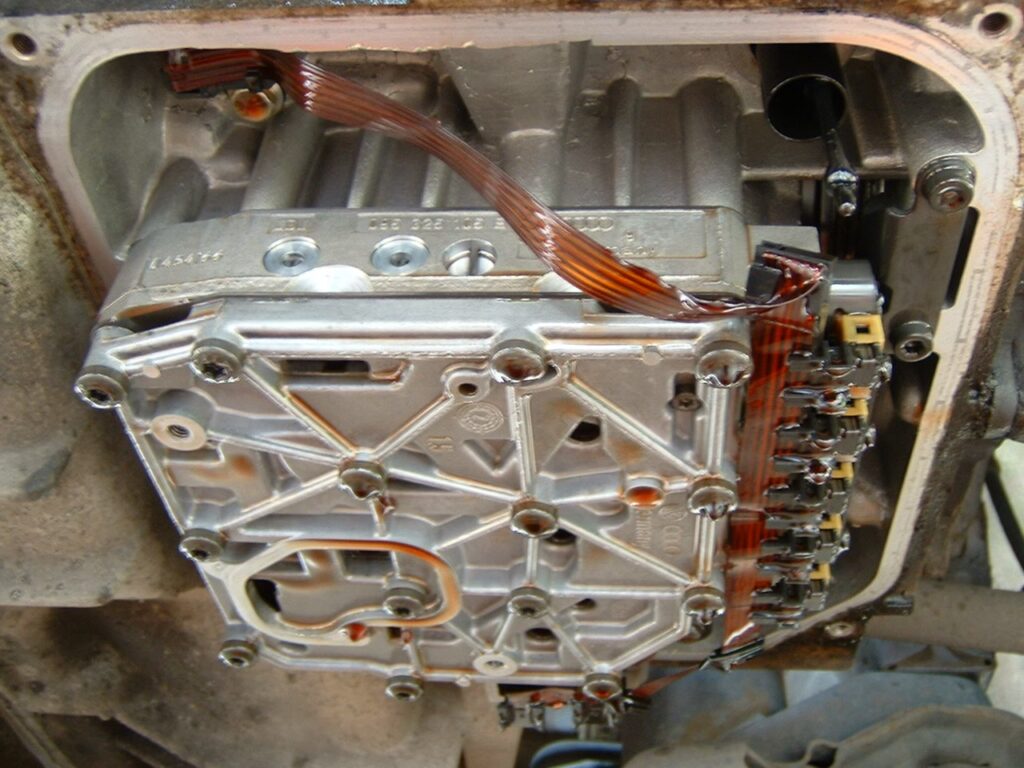

6. Remove Strainer (Skip for a "Flush"): Move the pan and secondary jack out of the way, placing another container to catch the remaining drips from the transmission. The strainer is held by two 10mm bolts (N 90440701). Slightly loosen one bolt to allow fluid to drain from the centre, then loosen the other. Fully undo both bolts and carefully lower the oil strainer. Dispose of it properly. You might notice the residual fluid from the strainer appears "different," forming droplets that float on the main ATF. This is likely condensation and a good indicator of why changing the strainer is beneficial.
7. Clean Pan and Magnet: Pour the old ATF from the pan into your designated waste container. Inside the pan, you'll find a magnet (097321368) designed to collect metallic wear particles. Wearing gloves, pinch the two metal prongs holding the magnet and pull it off. Clean both the pan and the magnet thoroughly using brake cleaner until they are spotless. Reinstall the magnet, ensuring its clips are pushed back open to secure it. If you are not replacing the pan gasket, do not attempt to remove it.
8. Install New Strainer: If you opted to replace the strainer, ensure the new strainer gasket is properly seated on the strainer. Install the new strainer, gently snugging down the two 10mm bolts. The official torque specification for these bolts is 8Nm. Do not overtighten, as stripping these threads can be problematic.
9. Install Clean Pan: Carefully align and install the clean sump pan. If you're replacing the pan gasket, ensure it's correctly seated. The official torque specification for the four 10mm pan bolts is 12Nm. After installation, do not reinstall the protective shield yet; it's wise to check for leaks first.
10. Lower Car (Do NOT Start Engine Yet): Carefully lower the vehicle from the safety stands and hydraulic jack.
11. Fill with ATF Through Dipstick Tube and Check Level: This is a critical step. Using a funnel attached to a piece of garden hose (to reach the dipstick tube), begin adding the new ATF.
    • For a standard fluid change (without strainer removal), start by adding approximately 2.2 litres of ATF.
    • If you removed and replaced the strainer, start with approximately 2.6 litres.

    After initial filling, thoroughly check for any leaks around the pan gasket. If no leaks are present, proceed to the next part of this step:

    Initial Level Check (Engine Running, Cold): Start the engine (with the selector lever in Park). Immediately pull out the dipstick, wipe it clean, reinsert it fully, and pull it out again. The fluid level should reach the 20C marking on the dipstick. If there's no fluid on the dipstick, immediately stop the engine, add 0.25 litres of ATF, wait a few minutes, restart, and recheck. Repeat until the fluid registers at the 20C mark.

    Final Level Check (Engine Running, Warm): With the engine running and your foot firmly on the brake, cycle the gear selector through all positions (P-R-N-D-3-2-1), pausing briefly in each. Return the selector to Park. Now, you need to bring the transmission fluid temperature up to 60C. You can monitor this using a VAG-COM diagnostic tool, a VAG1551, or by aiming an infra-red thermometer at the transmission sump pan. Once the temperature reaches 60C, cycle through P-R-N-D-3-2-1 again, then return to Park. With the engine still running and at 60C, check the fluid level on the dipstick. It must be precisely between the "min" and "max" marks for 60C. If the level is too high, use your fluid extractor to remove small amounts. If too low, add small amounts. Continuously recheck until the level is correct at 60C. Maintaining the 60C temperature throughout this checking process is vital for accuracy.

12. Go for a Short Drive: Take your Golf for a short, gentle drive to allow the new fluid to circulate fully and for the transmission to cycle through all gears under load.
13. Final Leak Check and Level Verification: After your drive, re-check underneath the vehicle for any signs of leaks. Re-check the ATF level on the dipstick. It may now be slightly above the "max" mark due to increased fluid temperature; this is acceptable.
14. Reinstall Protective Plate (Skip if doing a "Flush"): If you're not immediately performing a flush, reinstall the sump pan protective plate. Snug down the four 17mm bolts. There is no official torque specification for these, but ensure they are secure.

Performing a Full Transmission "Flush" (Double Change)

To perform a comprehensive "flush" using the safe double-change method, simply repeat the entire procedure outlined above. After completing step 14 (or 13 if you're doing the second flush immediately), drive the vehicle for a couple of minutes, ensuring all gears are engaged. Then, repeat steps 1 through 13. Remember that if you replaced the strainer during the first change, you will need to add slightly more fluid during the second fill as well, as the new strainer will absorb some volume. This double change ensures nearly all of the old, contaminated fluid is replaced with fresh ATF, providing superior protection and performance for your transmission.

Frequently Asked Questions (FAQs)

Q: Can I use any ATF for my VW Golf Mk3 096 transmission?

A: No, it's crucial to use ATF that meets the DEXRON specification for the 096 transmission. Using the wrong type of fluid can cause severe damage. While the special ATF for the later 01M transmission (VW G 052 162) is compatible with and exceeds the requirements for the 096, ensure you confirm the fluid type before purchase. Always consult your owner's manual or a reputable parts supplier.

Q: How do I know if I have an 096 or an 01M transmission?

A: The simplest way to tell is by checking for a transmission fluid dipstick. The 096 automatic transmission has a dipstick, whereas the later 01M unit does not. If you have no dipstick, you have an 01M, and this guide's fluid change procedure is not applicable to your vehicle.

Q: Why is checking the ATF temperature so important?

A: Automatic transmission fluid expands significantly with heat. Checking the fluid level at the specified operating temperature (60C for the 096) ensures an accurate reading. An incorrect level, either too high or too low, can lead to transmission problems. Too little fluid causes cavitation and wear, while too much can cause foaming and overheating.

Q: Can I just top up my ATF instead of changing it?

A: While topping up low fluid levels is essential to prevent immediate damage, it is not a substitute for a full fluid change. ATF degrades over time, losing its lubricating and cooling properties. Topping up only addresses the volume, not the quality of the fluid. If your fluid shows signs of degradation (burnt smell, colour change), a full change is necessary.

Q: How do I check a gearbox temperature if I don't have VAG-COM or an IR thermometer?

A: For the 096 transmission, the most accurate way to check the temperature for the final level adjustment is with an infra-red thermometer pointed at the transmission sump pan, or via a diagnostic tool like VAG-COM. Without these, it's very difficult to achieve the precise 60C required. While you can estimate after a certain drive time, it won't be as accurate. It's highly recommended to use one of the specified tools for optimal results. For other transmissions, like the 01M mentioned in some VW contexts, temperature monitoring is often done through diagnostic software via specific measuring blocks (e.g., Measuring Blocks 08, group 5 for the 01M) as there is no dipstick.

By following this detailed guide, you can confidently perform an automatic transmission fluid and filter change on your VW Golf Mk3 096, extending its life and ensuring many more miles of smooth, reliable driving. Happy motoring!
