Turbocharger Replacement: A Step-by-Step Guide

Turbocharger Replacement: A Comprehensive Guide

Embarking on a turbocharger replacement can seem like a daunting task, but with a methodical approach and the right guidance, it's an achievable DIY project for the reasonably handy individual. This guide will walk you through the process, from initial preparation to the final test drive, ensuring you can tackle this significant automotive maintenance with confidence. Whether you're upgrading or replacing a faulty unit, understanding each step is crucial for a successful outcome.

Preparation and Parts Required

Before diving in, it's essential to gather all the necessary parts and tools. Having spares on hand can prevent extended downtime if something unexpected occurs. This guide assumes a swap from a K03 to a K03s turbo on an AGU engine, but the principles are broadly applicable.

Essential Parts List:

It's always wise to have these readily available:

• Oil Filter: Essential for an oil change.
• Sump Plug: Essential for an oil change.
• Engine Oil: Approximately 5 litres, depending on your preference.
• Turbo Oil Return Gasket: Crucial for sealing the oil return line.
• Downpipe Gasket: For a secure connection to the downpipe.
• Exhaust Manifold to Turbo Gasket: Vital for sealing the manifold to the turbo.
• Coolant Sealing Washers: Typically 7 required for coolant banjo bolts.
• Oil Banjo Sealing Washers: Usually 6 required for oil banjo bolts.
• Downpipe Nuts: To secure the downpipe.
• Coolant Additive (e.g., G12): For topping up the cooling system.

Emergency/Recommended Parts:

While not always immediately necessary, having these can save a lot of hassle:

• Exhaust Manifold Gasket: Highly recommended for a proper seal.
• Exhaust Manifold to Turbo Bolts: May be required if old ones are damaged.
• Exhaust Manifold Nuts: Essential if the old ones are corroded or damaged.
• Turbo to Downpipe Studs: For securing the downpipe to the turbo.

Non-VW Specific Parts:

• Fuel Line Clamps: Useful for securing fuel lines if disturbed.
• Jubilee Clips: Various sizes for hoses and pipes.
• Syringe: Handy for priming the turbo oil feed.

Tools Required:

A comprehensive toolkit is a must. Key items include:

• 3/8" Socket Set: Including 10mm, 13mm, 14mm, 16mm, and 17mm sockets.
• Extension Bars: Both long and short 3/8" extensions.
• Universal Joint: For accessing awkward bolts.
• Hex Bit Set: With 3/8" holder, particularly 5mm-8mm bits. The 8mm hex bit is absolutely essential.
• 17mm Open-Ended Spanner: For specific bolts.
• Short Stubby Flatblade Screwdriver: For jubilee clips and tight spaces.

Step-by-Step Turbocharger Replacement

Step 1: Documentation

Before you begin dismantling, take clear digital photographs of the engine bay, particularly the plumbing around the turbo, diverter valve (DV), and any other critical components. This will serve as a valuable reference during reassembly, especially for pipe routing.

Step 2: Drain Fluids

Begin by draining the engine oil and replacing the oil filter and sump plug. Crucially, do NOT refill with oil at this stage, as it will be added after the turbo is secured.

Step 3: Access and Initial Disconnections

• Remove the offside inner CV joint heat/grease shield (secured by two 16mm bolts). Store this safely.
• Detach the downpipe from the turbo. This can be a challenging step, often requiring removal of the exhaust's middle section to gain sufficient clearance.
• Locate and remove the hidden bolt that braces the lower part of the turbo (typically a 13mm bolt). This bolt can be awkward to access but is manageable with the right tools and extensions.
• Slacken the jubilee clip on the TIP (Turbo Intake Pipe) at the turbo end using a flatblade screwdriver.

Step 4: Coolant and Oil Feed/Return Lines

• Remove the turbo oil return pipe at the sump end (secured by 10mm bolts). Be prepared for residual oil drips. It's good practice to leave the old bolts in place with the old gasket attached to help identify the correct gasket for reassembly.
• Carefully slacken the coolant return banjo bolt attached to the engine block (typically an 8mm hex). Have a suitable container ready, as approximately 4 litres of coolant will drain. Alternatively, drain the coolant from the radiator's drain tap.
• On the front of the block, remove the turbo oil feed banjo from the top of the oil filter housing (8mm hex). Be mindful of any loose washers.
• Next to the oil feed banjo, there's a support bracket welded to the oil feed pipe. Remove the hex bolt securing this bracket (often a 6mm). This can be a particularly tricky access point.

Step 5: Intake and Charge Pipes

• At the top of the engine, dismantle the TIP assembly. While not strictly necessary, you might choose to remove the DV and rebreather from the TIP. However, it's often easier to leave them attached and remove only other connections.
• Remove the N75 valve from the TIP, disconnecting its electrical connection but leaving other pipes attached.
• Extract the TIP from the car.
• Remove the heatshield blanket from the right-hand side of the charge pipe.
• Undo the jubilee clips on the charge pipe and the turbo outlet, then remove the hose.
• Remove the two charge pipe clamps (10mm) located behind coil pack 2 and near the brake servo.
• Undo the heatshield and charge pipe upper clamp holder. This typically involves one bolt on the clamp itself and another bolt towards the rear of the engine block.
• Accessing from underneath, remove the lower charge pipe heatshield blanket and undo its jubilee clip.
• Remove the charge pipe.

Step 6: Coolant Feed Line and Manifold Fixings

• Completely remove the coolant banjo bolt from the block, ensuring the old stuck washer is retrieved.
• Now, address the three manifold to turbo fixing bolts. You might be able to use a ratchet on the rear two bolts (17mm), but an open-ended spanner is often required for the bolt closest to the engine due to access restrictions.
• Locate the support bracket for the coolant feed line on the back of the block, secured by a short 10mm bolt. Remove this bolt. You may also wish to disconnect the coolant feed hose from the T-piece at this point.

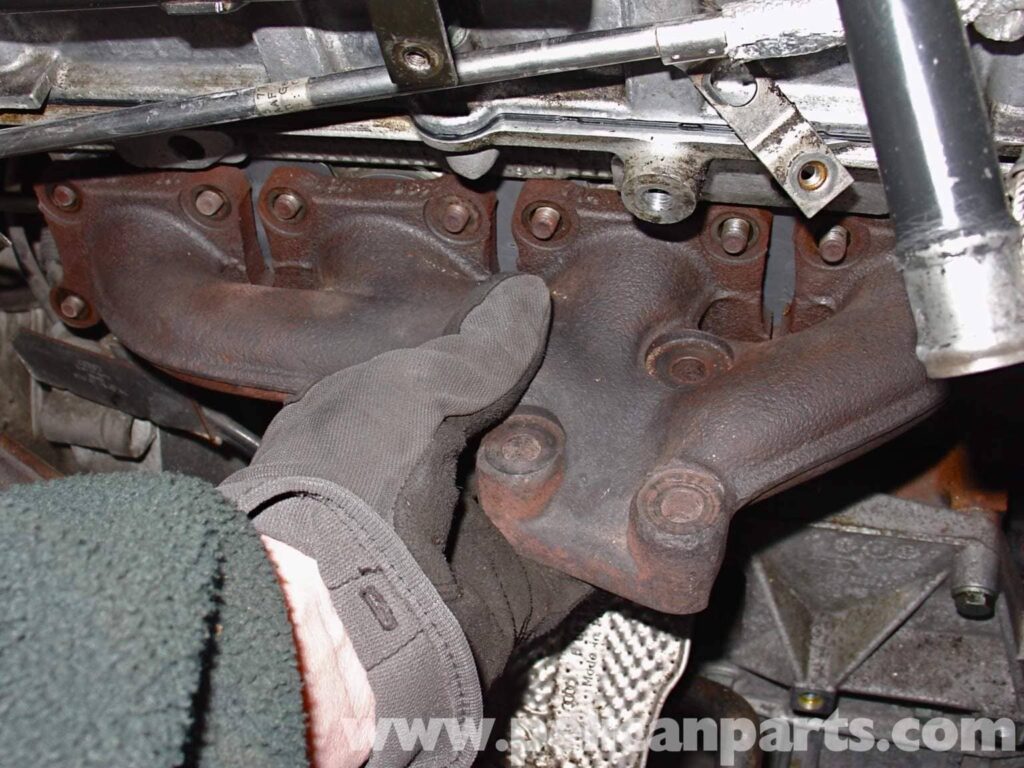

Step 7: Exhaust Manifold Removal (If Necessary)

If you haven't managed to get the downpipe out of the way sufficiently, you may need to remove the exhaust manifold. This is a time-consuming task involving around 13 nuts and often suffers from poor access.

Step 8: Turbo Oil Feed Pipe Support

On the oil feed pipe, there is a support bracket attached to the turbo near the inlet. Remove the hex bolt securing this bracket. Having a second person to support the turbo at this stage can be highly beneficial.

Step 9: Turbo Removal

With all connections and supports loosened or removed, the turbo should now be loose. Carefully maneuver the turbo out from the underside of the vehicle. It should squeeze through the gap between the subframe and the driveshaft. If the downpipe was left in place, you would need to remove the exhaust manifold first to extract the turbo from the top.

Step 10: Preparation for Refitting

• With the old turbo out, you can now compare it side-by-side with the new one. Note the differences in banjo bolt washer sizes, as they are not interchangeable.
• Protect the turbo's oil and coolant feed holes with suitable plugs to prevent dirt ingress. Avoid materials that can break apart.

Step 11: Refitting the New Turbo

This is the reverse of removal, with careful attention to detail:

• Prime the turbo's oil feed (the hole nearest the block) using a syringe with a small amount of oil.
• Manipulate the new turbo into its approximate position from underneath.
• Using new sealing washers, re-attach the oil feed banjo and refit the hex bracket support bolt near the turbo inlet. Getting the threads started can be tricky.
• Refit the coolant feed banjo. If you cannot remove the old washers, it's often best to leave them if they appear sound, though new washers are preferred. Again, getting the threads started can be challenging.
• Double-check the tightness of all banjos now (8mm hex). Tighten them by feel; avoid using a torque wrench here as over-tightening could strip the threads, which would be catastrophic. Trust your judgment.
• Refit the TIP while the turbo still has some movement. This can save significant frustration later. Remember the jubilee clip but do not tighten it fully yet.
• Re-slide the coolant feed support bracket onto its mounting on the engine block using the 10mm short bolt. Do not tighten this fully yet; it will help support the turbo.
• Reconnect the coolant feed hose to the T-piece at the top.

Step 12: Manifold and Pipework Reassembly

• Refit the exhaust manifold, using a new gasket and new nuts. This is often a fiddly and time-consuming process.
• Refit the three manifold to turbo bolts using the new gasket. Threading these can be difficult; a helper can be invaluable for manipulating the turbo into the precise position. Use a torch to aid visibility if necessary.
• Before fully tightening the three manifold bolts, go underneath and loosely fit the "hidden" turbo support bolt.
• Now, tighten the three topside manifold bolts, followed by the "hidden" support bolt.
• Tighten the coolant feed support bracket's 10mm short bolt.
• Refit the oil filter housing banjo loosely, using NEW washers.
• Refit the banjo support bracket on the oil filter housing, again loosely.
• Now, tighten the oil filter banjo and its support bracket. Be careful not to overtighten.
• Refit the coolant return pipe to the engine block using a new gasket.
• Refit the oil return pipe to the sump using a new gasket.
• Refit the heatshield and charge pipe upper clamp holder.
• Refit the charge pipe, loosely securing it with its clamps.
• Refit the lower charge pipe hose, tighten its jubilee clip, and restore the heat shield.
• Refit the upper charge pipe hose, tighten its jubilee clips, and restore its heat shield.

Step 13: Topside Reassembly and Final Checks

• Refit all components to the TIP, including DV pipes, oil breather, and the N75 electrical connection.
• Retighten all jubilee clips and clamps. Refer to your photographs if unsure about any connections.
• Ensure the sump plug has been refitted correctly.

Step 14: Refilling Fluids

• Fill the engine with approximately 4.5 litres of new engine oil.
• Remove the coolant expansion tank cap and fill the system to the 'Max' level with the appropriate coolant (e.g., G12).

Step 15: Exhaust Refitting

Refit the downpipe, ideally using new nuts and a new gasket. This can be more challenging than removal, especially if the exhaust system is corroded or seized. Consider replacing sections of the exhaust if necessary.

Step 16: Final Inspection

This is a critical stage. Meticulously inspect all your work. Ensure no parts are left over. Pay special attention to all banjo connections to confirm they are tight and properly sealed. If you detect any leaks or hear unusual engine noises, switch off the engine immediately and investigate.

Step 17: Starting and Testing

• Start the engine and let it idle for several minutes. Monitor the coolant level and top up as required. Once you've used the initial fill of coolant additive, top up with water until the system is correctly balanced. Replace the expansion tank cap once satisfied.
• Conduct a gentle test drive in a safe, local area. Listen carefully for any new or unusual noises.

Conclusion

Congratulations on successfully replacing your turbocharger! The satisfaction of completing this job yourself, coupled with the potential savings, is immense. Now you can enjoy your vehicle with its revitalised performance. Consider this an investment in your automotive knowledge and your wallet!

Frequently Asked Questions

Q1: How long does this process typically take?
For a reasonably handy person, this job can often be completed in a full day. Having a second person to assist can significantly reduce the time required.

Q2: What are the most common difficulties encountered?
Access to certain bolts, particularly the hidden turbo support bolt and some manifold bolts, can be very challenging. Corroded exhaust components can also add significant difficulty to the downpipe removal.

Q3: Is it essential to replace all gaskets and washers?
Yes, it is highly recommended to use new gaskets and sealing washers for all connections, especially the exhaust manifold, downpipe, and banjo fittings, to ensure a leak-free and reliable installation.

Q4: Can I use a torque wrench on the banjo bolts?
It's generally advised against using a torque wrench on banjo bolts in these locations. Overtightening can easily strip the threads, leading to a costly repair. Tightening them by feel is often the preferred method.

Q5: What is the purpose of priming the turbo oil feed?
Priming ensures that the turbocharger receives immediate lubrication upon startup, preventing damage to the bearings caused by oil starvation during the initial moments before oil pressure builds up throughout the system.
