Why Your Car's Alternator Isn't Charging

It's a frustrating situation: you turn the key, and your car's battery light illuminates on the dashboard, or perhaps your lights are dimming, and power windows are struggling. These are classic indicators that your alternator might be on its way out, specifically failing to charge the battery. The alternator is the unsung hero of your car's electrical system, responsible for converting mechanical energy from the engine into electrical energy to power everything from your headlights to your radio, and crucially, to keep the battery topped up. When it falters, your car's ability to function is severely compromised. Understanding why your alternator isn't charging is the first step towards diagnosing and rectifying the problem, potentially saving you a costly tow to the mechanic.

Understanding the Charging System

Before delving into alternator failures, it's essential to grasp the components that make up your car's charging system. This triumvirate consists of:

• The Alternator: As mentioned, this is the powerhouse, generating electricity.
• The Battery: This acts as a reservoir for electrical energy, providing the initial jolt to start the engine and storing the alternator's output.
• The Battery Light (or Warning Light): Located on your instrument cluster, this light is designed to alert you to issues within the charging system. It typically illuminates when the battery voltage is too low, often indicating an alternator problem.

Common Signs of a Failing Alternator

A failing alternator rarely goes unnoticed for long. Keep an eye out for these tell-tale signs:

• Battery Warning Light: This is the most direct indicator. If the light stays on after starting the engine, it signifies a problem with the charging system, most commonly the alternator.
• Dimming Lights: Notice your headlights or interior lights flickering or appearing dimmer than usual, especially at idle? This suggests the alternator isn't producing enough power to meet the electrical demands.
• Slow or Malfunctioning Electrical Accessories: Power windows moving sluggishly, the radio cutting out, or electric seats not working properly can all be symptoms of an undercharging alternator.
• Difficulty Starting or Engine Stalling: While a weak battery can cause starting issues, if the alternator isn't replenishing the battery, you'll eventually find yourself unable to start the car, or the engine may stall unexpectedly as the battery runs out of power.
• Strange Noises: A whining or grinding noise coming from the alternator unit itself can indicate worn bearings or other internal issues.

Types of Alternator Failure

Alternator failures generally fall into two main categories:

1. Insufficient Charging (Undercharging)

This is the most common scenario. The alternator is producing some power, but not enough to adequately charge the battery and run all the vehicle's electrical systems. Common culprits for insufficient charging include:

• A Snapped or Loose Serpentine Belt: The serpentine belt drives the alternator. If it's broken or slipping, the alternator won't spin effectively, leading to a lack of charging.
• Open Circuit in the Charging Circuit: This refers to a break in the wiring between the alternator's positive "BAT" terminal and the battery's positive terminal. A loose connection or a damaged wire can cause this.
• Open Circuit in the "Excitation Circuit": This circuit is responsible for initiating the alternator's charging process. A fault here, often a wiring issue or a problem with the warning light, can prevent the alternator from working.
• Internal Alternator Fault: Components within the alternator itself, such as the diodes or stator, can fail, leading to reduced output.
• Faulty Voltage Regulator: The voltage regulator controls the alternator's output voltage. If it fails, it can lead to undercharging.

Consequences of Undercharging: Running a car with an undercharging alternator can have detrimental effects over time. It can damage sensitive electrical components and ignition systems. Furthermore, allowing the battery to discharge completely will significantly shorten its lifespan and ability to hold a charge, so it's crucial to address this issue promptly.

2. Overcharging

Less common but potentially more damaging, overcharging occurs when the alternator produces too much voltage. This typically happens due to:

• Poor Battery Condition: A faulty battery may not accept a charge properly, leading the alternator to overcompensate.
• Failed Voltage Regulator: A malfunctioning voltage regulator can allow the alternator to overproduce voltage.

Consequences of Overcharging: Overcharging can cause irreversible damage to the battery. The battery can overheat, its internal structure can be compromised, and the electrolyte can evaporate, often producing a distinctive smell of "rotten eggs." This excessive voltage can also fry other electrical components in the vehicle.

How to Test Your Alternator

Fortunately, you can perform several tests to determine if your alternator is the culprit. You'll need a multimeter for most of these tests.

Step 1: Test Your Battery First

It's vital to ensure your battery is in good condition before blaming the alternator. A weak or faulty battery can mimic alternator problems.

• Check Battery Terminals: Ensure the battery terminals are clean and free from corrosion. Loose or dirty connections can impede electrical flow.
• Measure Static Voltage: With the ignition off, set your multimeter to DC Volts. Measure the voltage across the battery terminals. A fully charged battery should read between 12.3V and 12.6V. Anything below 12.3V could indicate a battery issue or an alternator problem.
• Perform a Load Test: This simulates the demand placed on the battery during starting.
  • Using a Battery Load Tester: Connect the tester and follow its instructions. A reading of 10.5V or below under load typically indicates a bad battery.
  • Using a Multimeter: Have an assistant crank the engine while you measure the battery voltage. If the voltage drops below 10.5V during cranking, the battery is likely faulty.

To accurately test the alternator, you need a good, fully charged battery.

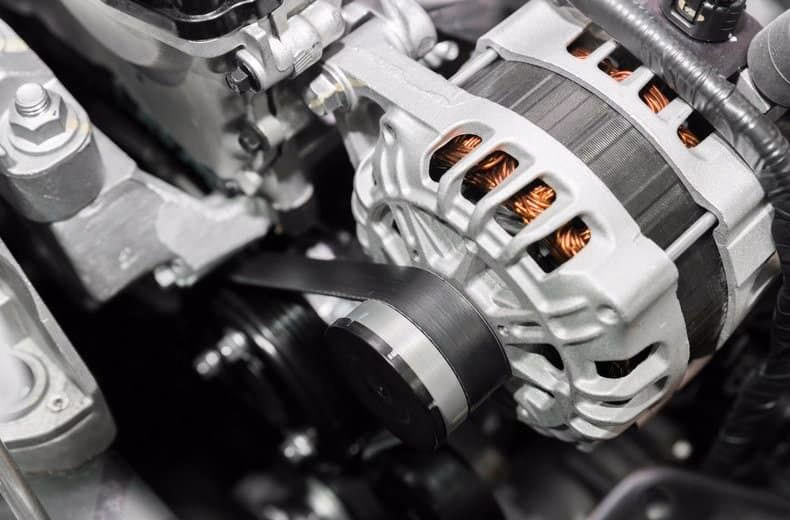

Step 2: Visual Inspection of the Alternator

Give the alternator a thorough visual check:

• Serpentine Belt: Is it tight and in good condition? Look for cracks, fraying, or excessive looseness.
• Connections: Ensure all wiring connectors to the alternator are secure and free from corrosion.

Step 3: The No-Load Test

This test assesses the alternator's output without significant electrical load.

1. Ensure all accessories (headlights, radio, blower motor, etc.) are turned OFF.
2. Have an assistant start the engine and maintain an engine speed of approximately 2000 RPM.
3. Using your multimeter set to DC Volts, measure the voltage across the battery terminals.
4. Expected Readings: A healthy alternator should produce between 13.0V and 14.8V under these conditions.
5. Diagnosis:
   • Voltage below 13.0V suggests a faulty alternator or a wiring issue.
   • Voltage above 14.8V might indicate a faulty voltage regulator or a battery that's struggling to accept a charge.

Step 4: The Loaded Test

This test pushes the alternator to its limits by adding electrical load.

1. With the engine still running at 2000 RPM, turn on all major electrical accessories: headlights, radio, wipers, air conditioning, heated seats, etc.
2. Measure the battery voltage again.
3. Diagnosis:
   • A voltage higher than 15.0V suggests a faulty voltage regulator, leading to overcharging.
   • A voltage that drops below 13.0V indicates an undercharging condition, pointing to a faulty alternator.

Will a Car Run With a Bad Alternator?

Technically, yes, a car can run with a faulty alternator, but it's a precarious and highly inadvisable situation. Here's why:

When the engine is running, the alternator is the primary source of electrical power for your car. The battery's role is primarily to start the engine; it's not designed to sustain the vehicle's electrical demands for an extended period. As the battery's charge depletes, your car will eventually sputter and stall. This can leave you stranded, often in an inconvenient or dangerous location.

Safety Concerns: Driving with a bad alternator is particularly dangerous in modern vehicles that rely heavily on electronics for critical functions like power steering, engine management, and safety systems. If your car has electric power steering, driving it with a failing alternator is a serious safety hazard, as the steering could become extremely heavy or fail entirely. In such cases, towing the vehicle is the only sensible option.

How Long Will a Car Run With a Bad Alternator?

The duration a car can run on a dying alternator depends on several factors, primarily the vehicle's engine type and the battery's state of charge, as well as the electrical accessories being used.

• Petrol (Gasoline) Engines: These engines require significant electrical energy for ignition. If most electrical consumers are turned off, a petrol car might run for anywhere from 5 to 60 minutes before the battery is depleted and the engine stalls.
• Diesel Engines: Diesel engines are generally more efficient and don't consume as much electrical power. They ignite fuel through compression rather than spark plugs. A diesel vehicle could potentially run for 30 minutes to a couple of hours on battery power alone, assuming minimal electrical load.

However, these are rough estimates. It's always best to assume the worst and seek professional help as soon as you suspect an alternator issue. Don't risk being stranded.

Troubleshooting Table

Frequently Asked Questions (FAQs)

Q1: Can I drive my car if the battery light is on?

While your car may run for a short time, it's strongly advised not to drive with the battery warning light illuminated. This indicates a problem with the charging system, and continuing to drive will drain the battery, eventually causing the engine to stall. It can also potentially damage other electrical components.

Q2: How much does it cost to replace an alternator?

The cost of replacing an alternator varies depending on the make and model of your car and whether you use genuine or aftermarket parts. Generally, you can expect to pay anywhere from £300 to £700 for parts and labour.

Q3: Is it possible to fix an alternator myself?

For those with good mechanical knowledge and the right tools, some alternator repairs, like replacing a faulty voltage regulator or worn brushes, might be possible. However, for most people, replacing the entire alternator unit is a more practical and reliable solution.

Q4: What happens if the serpentine belt breaks?

If the serpentine belt breaks, it will not only stop the alternator from charging but will also affect other components driven by the belt, such as the power steering pump and the water pump. This can lead to loss of power steering and engine overheating, making it unsafe to drive.

In conclusion, a malfunctioning alternator can leave you in a bind. By understanding the signs, performing basic tests, and acting promptly, you can diagnose the problem and get your vehicle back to optimal charging performance.
