Shimano Brake Pads Explained

When it comes to cycling, reliable and powerful braking is paramount for both safety and performance. Shimano, a name synonymous with quality bicycle components, offers a wide range of brake pads designed to cater to various riding styles, conditions, and bicycle types. Understanding these options can be the difference between a controlled stop and a heart-stopping skid. This article delves into the intricacies of Shimano brake pads, helping you make an informed decision for your cycling needs.

What Exactly Are Shimano Brake Pads?

At their core, Shimano brake pads are the crucial friction material that, when engaged by the brake lever and caliper, press against the braking surface of your wheel (either a disc rotor or a rim) to slow down or stop your bicycle. Shimano, being a leading manufacturer, designs these pads with specific compounds and backing plates to ensure optimal performance, durability, and compatibility with their braking systems.

The Two Main Types of Shimano Brake Pads

Shimano primarily categorises its brake pads into two main types, based on the braking system they are designed for:

1. Rim Brake Pads

These are designed to work with traditional rim brake calipers, where the pad presses against the metal or carbon surface of the wheel's rim. Shimano offers various rim brake pads, often distinguished by their compound and intended use:

• Standard Rubber Compounds: Typically found on entry-level to mid-range bikes, these offer a good balance of stopping power and durability in dry conditions. They are generally more affordable.
• Performance Compounds: These advanced rubber formulations provide enhanced grip and modulation, especially in wet or muddy conditions. They are designed for riders who demand superior braking in all weather.
• Disc Brake Pads: These are designed for disc brake systems, which have become increasingly popular due to their superior stopping power and all-weather performance. Disc brake pads are further divided into:


  2. Disc Brake Pads

  Disc brake pads are designed to work with disc brake calipers, where the pad presses against a metal rotor attached to the wheel hub. Shimano offers a wide array of disc brake pads, each with distinct characteristics:

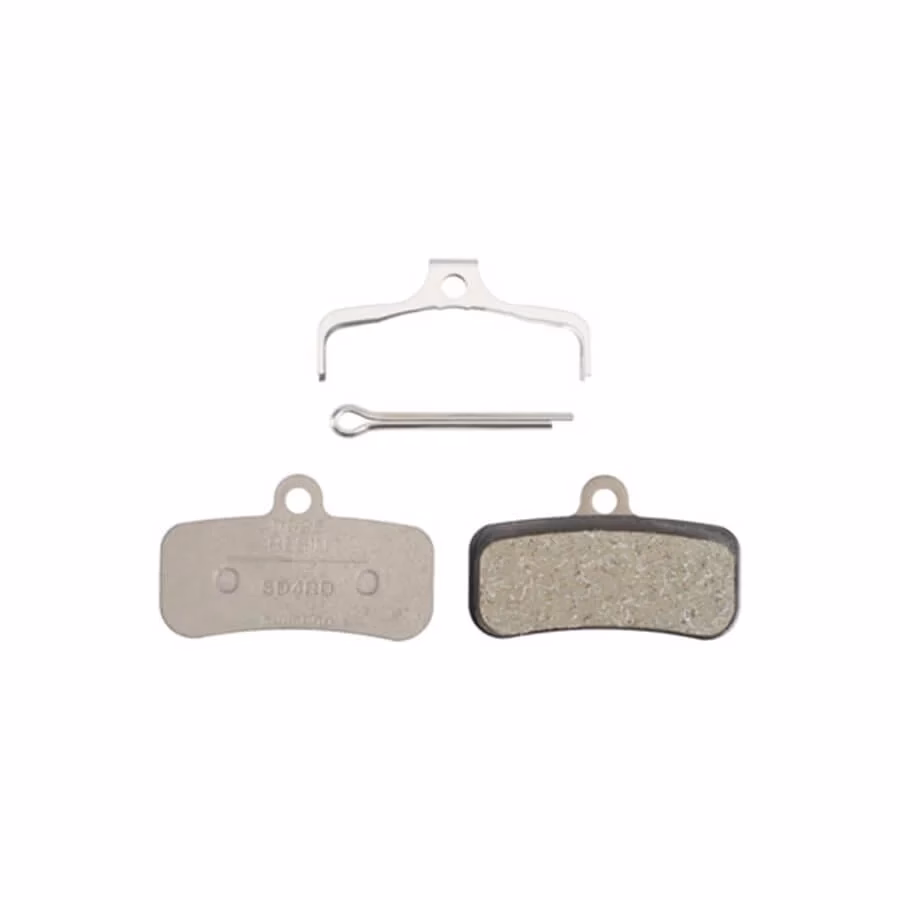

  • Resin (Organic) Pads: These pads use a softer organic compound bonded to a metal backing plate. They offer excellent initial bite and quiet operation, making them ideal for dry conditions and general trail riding. They tend to wear out faster than metallic pads and can be less effective in very wet or muddy conditions.
  • Metal (Sintered) Pads: These pads are made from metallic particles that are sintered (fused together at high temperatures). They are known for their exceptional durability, consistent performance in all weather conditions (including wet and muddy trails), and resistance to fading under heavy use. However, they can be noisier than resin pads and may require a longer break-in period.
  • Ice-Tech Pads: A hallmark of Shimano's advanced braking technology, Ice-Tech pads incorporate a special cooling fin system. These fins help dissipate heat generated during braking, preventing brake fade and maintaining consistent stopping power, especially on long descents. They often combine a metallic or resin compound with a steel backing plate and aluminium cooling fins.

  Understanding Shimano Pad Nomenclatures

  Shimano uses a specific naming convention to help identify their brake pads. While this can vary slightly over the years, generally:

  • 'F' Series: Often refers to pads for smaller, lighter bikes or specific caliper designs.
  • 'S' Series: Commonly associated with Shimano's higher-end components, offering enhanced performance.
  • 'M' Series: Often indicates metallic (sintered) compounds.
  • 'R' Series: Typically denotes resin (organic) compounds.
  • 'T' Series: May refer to specific compounds or technologies like Ice-Tech.

  For example, an 'M9100' designation might indicate a metallic pad for a high-end XTR (M9100) brake system, while an 'R8000' might be a resin pad for Ultegra (R8000) brakes.

  Shimano Brake Pad Compatibility

  Ensuring compatibility is crucial. While Shimano aims for some cross-compatibility, it's always best to check the specific model number of your Shimano brake caliper and consult Shimano's official documentation or a reputable bike shop. Generally:

  • Disc Brake Pads: Pads designed for a specific caliper series (e.g., Ultegra R8000) will usually fit other calipers within that same series or closely related series. However, there are also different pad shapes (e.g., 'K' type, 'J' type, 'D' type). Always match the pad shape to your caliper.
  • Rim Brake Pads: These are generally more standardized within their respective brake types (e.g., road caliper brakes, V-brakes). However, compound differences can affect performance.

  When to Replace Your Shimano Brake Pads

  Brake pads are a consumable item and will wear down over time. Here are some signs that indicate it's time for a replacement:

  • Visible Wear Indicator: Many Shimano brake pads have a visible wear line or indicator on the pad material. Once the pad material reaches this line, it needs to be replaced.
  • Reduced Braking Power: If you notice a significant decrease in your bike's stopping power, even after cleaning your rotors or rims, worn brake pads are a likely culprit.
  • Grinding or Squealing Noises: While some noise can be normal, a persistent grinding sound, especially when braking, can indicate that the pad material is completely worn away, and the metal backing is contacting the rotor or rim. A loud squeal that doesn't go away might also indicate worn pads or contamination.
  • Uneven Wear: If your pads are wearing unevenly, it could be a sign of caliper alignment issues, but it also means the remaining pad material is less effective.
  • Contamination: If your brake pads (especially resin ones) become contaminated with oil, grease, or certain cleaning fluids, their performance will be severely compromised. Contaminated pads often exhibit reduced power and increased noise. In some cases, they can be cleaned, but often replacement is the best solution.

  Choosing the Right Shimano Brake Pads for You

  The ideal Shimano brake pad for you will depend on several factors:

  Factor	Consideration	Recommendation
  Riding Style	Casual commuting, road cycling, mountain biking, downhill?	Resin for general use, Metal for aggressive riding and all-weather.
  Conditions	Dry, wet, muddy, dusty?	Resin for dry, Metal for wet/muddy. Ice-Tech for long descents and heat management.
  Brake System	Rim brakes or disc brakes? Specific Shimano caliper model?	Match pad type and shape to your caliper.
  Performance Priority	Quiet operation, initial bite, modulation, durability, heat resistance?	Resin for quiet & bite, Metal for durability & all-weather, Ice-Tech for heat.
  Budget	Entry-level, mid-range, or high-end?	Resin are generally cheaper, Metal and Ice-Tech are more premium.

  Frequently Asked Questions (FAQs)

  Q1: Can I use Shimano brake pads on non-Shimano brakes?

  For disc brakes, it's often possible if the pad shape is identical. However, Shimano designs their pads for optimal performance with their own calipers and rotors. For rim brakes, compatibility is generally higher, but always check the specific pad dimensions and type.

  Q2: How do I break in new Shimano brake pads?

  Proper bed-in (or break-in) is crucial, especially for disc brake pads. For disc brakes, find a gentle slope or have a friend help push you. Ride down and brake firmly but not to a complete stop, about 10-20 times. Repeat this process several times, gradually increasing the braking intensity. For rim brakes, a few firm stops should suffice.

  Q3: My new Shimano brake pads are noisy. What should I do?

  New pads, especially metallic ones, can be noisy initially. Ensure they are properly bedded in. If the noise persists, check for rotor/rim contamination or misalignment. For resin pads, noise is less common but can indicate contamination or wear.

  Q4: How often should I replace Shimano brake pads?

  This varies greatly depending on riding style, terrain, weather, and the type of pad. On average, you might replace disc brake pads every 1,000-3,000 miles, but this can be much sooner for aggressive mountain bikers in wet conditions. Rim brake pads may last longer but are also subject to wear from grit and debris.

  Conclusion

  Shimano brake pads are a vital component for any cyclist's setup. By understanding the different types, materials, and how to maintain them, you can ensure reliable and powerful braking performance. Whether you opt for the quiet efficiency of resin pads, the robust durability of metallic pads, or the heat-defying capabilities of Ice-Tech, choosing the right Shimano brake pads will undoubtedly enhance your confidence and enjoyment on every ride.
