Ford Disc Pads & Brake Shoes Explained

Your Ford's braking system is a complex assembly designed to bring your vehicle to a safe and timely halt. At the heart of this system, particularly in the way it interacts with the rotating wheel components, are the disc pads and brake shoes. While both serve the fundamental purpose of creating friction to slow down or stop the vehicle, they operate within different braking mechanisms – disc brakes and drum brakes, respectively. Understanding what these components are, how they work, and why their maintenance is crucial is paramount for any Ford owner concerned with safety and performance.

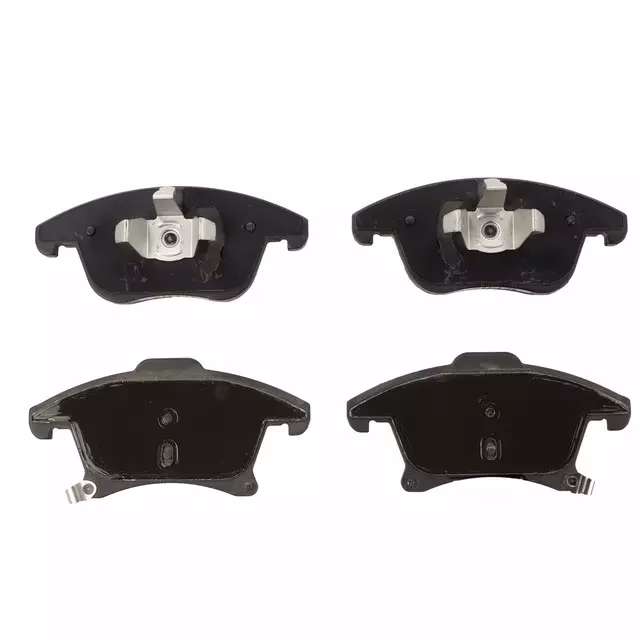

The Anatomy of a Ford Disc Pad

When you press the brake pedal in your Ford, a hydraulic system pushes fluid to the brake calipers. These calipers, positioned around the brake discs (rotors), are designed to house the Ford disc pads. Each caliper typically contains two pads, one on each side of the disc. When the brake pedal is activated, the caliper pistons force these pads to clamp down onto the rotating brake disc. The friction generated between the pad material and the disc surface is what converts the kinetic energy of the moving vehicle into heat, thus slowing it down.

Ford disc pads are typically made from a composite material designed to withstand high temperatures and provide consistent stopping power. The materials used can vary, influencing performance, durability, and noise levels. Common types include:

• Organic (Non-Asbestos Organic - NAO): These pads are made from a blend of materials such as rubber, carbon, and fiberglass. They are generally quieter and gentler on the brake discs, making them a good choice for everyday driving. However, they tend to wear out faster and may not perform as well under heavy braking or high temperatures.
• Semi-Metallic: As the name suggests, these pads contain a significant percentage of metal fibres, such as steel or iron, mixed with fillers and binders. They offer better heat dissipation and superior stopping power compared to organic pads, making them suitable for more demanding driving conditions. However, they can be noisier and may cause more wear on the brake discs.
• Ceramic: Ceramic pads are made from ceramic fibres, non-ferrous metals, and bonding agents. They are known for their quiet operation, minimal dust production, and excellent performance across a wide range of temperatures. Ceramic pads are generally more expensive but offer a good balance of durability and performance for most drivers.

The condition of your Ford's disc pads is critical. As they wear down, their ability to generate friction diminishes, leading to a longer stopping distance and potentially dangerous situations. Signs of worn disc pads include a squealing or grinding noise when braking, a spongy brake pedal, or a visible reduction in pad material when inspecting the wheels.

Understanding Ford Brake Shoes

While disc brakes are now the standard on the front wheels of most modern vehicles, including Fords, many vehicles still utilise drum brakes on the rear wheels, which employ Ford brake shoes. In a drum brake system, the brake shoes are curved, semi-circular components lined with friction material. These shoes are housed within a brake drum, which rotates with the wheel.

When you apply the brakes, a wheel cylinder within the drum brake assembly pushes the brake shoes outwards. The friction material on the outer surface of the shoes then presses against the inner surface of the rotating brake drum. This friction creates the necessary resistance to slow down or stop the vehicle.

Similar to disc pads, Ford brake shoes are available in different materials, each with its own advantages and disadvantages:

• Organic: These are the most common type, offering good initial bite and quiet operation. They are cost-effective but may not perform as well in wet conditions or under heavy load.
• Semi-Metallic: These shoes incorporate metallic fibres for improved heat resistance and durability. They offer more consistent performance but can be noisier and generate more dust than organic shoes.
• High-Performance: Designed for more demanding applications, these shoes often use advanced materials and compounds to provide superior stopping power and heat management, often at the expense of increased noise and wear.

The wear on brake shoes is also a significant safety concern. As the friction material wears away, the shoes may need to be adjusted (in older systems) or replaced. Symptoms of worn brake shoes can include a decrease in braking effectiveness, a spongy or soft brake pedal, and unusual noises coming from the rear wheels during braking.

Disc Pads vs. Brake Shoes: A Comparison

It's important to distinguish between these two crucial braking components. While both create friction, their operational mechanisms and typical applications differ:

When to Replace Your Ford's Brake Pads and Shoes

Regular inspection and timely replacement of your Ford's brake pads and shoes are non-negotiable for your safety. As a general guideline, you should consider replacement when:

• You hear unusual noises: Squealing, grinding, or clicking sounds during braking are strong indicators that your pads or shoes are worn or improperly seated.
• Your brake pedal feels different: A spongy, low, or pulsating brake pedal can signal worn pads, low brake fluid, or other issues within the braking system.
• Your vehicle pulls to one side: This could indicate uneven wear on the brake pads or shoes on one side of the vehicle.
• The brake warning light illuminates: Modern Fords often have sensors that trigger a warning light when brake pad material is critically low.
• Visual inspection reveals wear: Most disc brake pads have a minimum thickness specification (often around 3mm). If your pads are at or below this, they need replacing. Similarly, brake shoes have a limited amount of friction material before they need replacement.

The lifespan of brake pads and shoes can vary significantly depending on your driving habits, the type of materials used, and the specific Ford model. Aggressive driving, frequent stop-and-go traffic, and towing can all accelerate wear.

Maintaining Your Ford's Braking System

Proactive maintenance is key to ensuring your Ford's braking system remains in optimal condition. Here are some essential tips:

• Regular Inspections: Have your brake pads and shoes inspected at every service interval, or at least once a year. Your mechanic can assess their condition and recommend replacement if necessary.
• Keep Brake Fluid Clean: Brake fluid is hygroscopic, meaning it absorbs moisture over time, which can reduce its effectiveness and lead to corrosion. Follow your Ford's service schedule for brake fluid flushes and replacements.
• Check Brake Discs and Drums: While replacing pads and shoes, it's also wise to inspect the brake discs and drums for signs of wear, scoring, or warping. These components may need to be resurfaced or replaced along with the friction material.
• Listen to Your Car: Pay attention to any changes in how your brakes feel or sound. Early detection of issues can prevent more costly repairs and ensure your safety.

Frequently Asked Questions

Q1: How often should I replace my Ford's brake pads and shoes?

A1: There's no fixed mileage, as it depends heavily on driving style and conditions. However, a general guideline is to have them inspected every 10,000-15,000 miles and replaced when they reach their minimum thickness.

Q2: Can I replace Ford brake pads and shoes myself?

A2: While it's possible for experienced DIY mechanics, brake systems are critical safety components. If you're not confident in your abilities, it's best to have them replaced by a qualified technician.

Q3: What's the difference between genuine Ford parts and aftermarket brake components?

A3: Genuine Ford parts are designed and manufactured to meet the specific standards of your Ford vehicle, often offering a balance of performance and longevity. Aftermarket parts can vary widely in quality and performance. It's advisable to research reputable aftermarket brands if you choose that route.

Q4: Will replacing my brake pads and shoes improve my car's braking performance?

A4: Yes, worn brake pads and shoes significantly reduce braking effectiveness. Replacing them with new ones, especially with a higher-quality material, can restore and even improve your Ford's stopping power.

In conclusion, your Ford's disc pads and brake shoes are unsung heroes of your vehicle's safety. Understanding their function, knowing the signs of wear, and committing to regular maintenance will ensure that your Ford stops as reliably and safely as it was designed to. Don't compromise on your braking system; it's your most important safety feature.
