Fuel Injector Coding: Your Essential Guide

When it comes to maintaining modern vehicles, particularly those with advanced engine management systems, simply replacing a component isn't always the end of the job. This is especially true for fuel injectors, which are critical for delivering the precise amount of fuel into your engine's combustion chambers. On many vehicles, particularly diesel trucks, a new fuel injector isn't just a 'plug and play' part; it often requires a specific programming or 'coding' procedure to communicate correctly with the vehicle's engine control unit (ECU). Failing to properly code a new injector can lead to a host of problems, from poor performance to significant engine damage. This guide will walk you through the necessity and process of programming fuel injectors, ensuring your vehicle runs as it should.

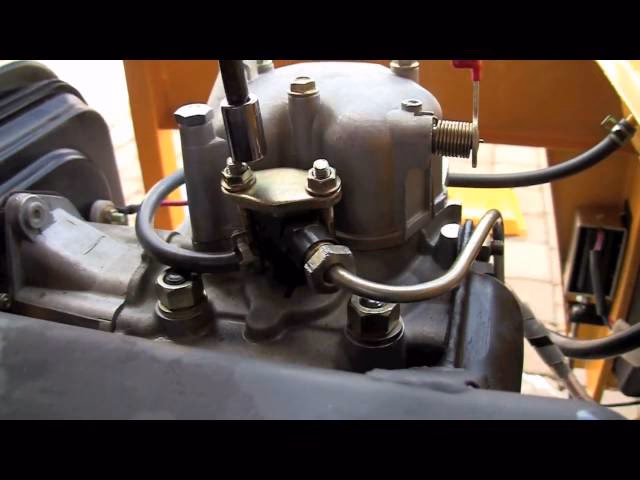

Understanding the Fuel Injector's Role

Before delving into programming, it's essential to understand what a fuel injector does. In essence, it's an electronically controlled valve that sprays fuel into the engine's intake manifold or directly into the combustion chamber. The ECU dictates precisely when and for how long the injector opens, controlling the amount of fuel delivered. This precision is vital for optimal engine performance, fuel efficiency, and emissions control. Modern injectors are incredibly sophisticated, capable of multiple injections per combustion cycle, atomising fuel into a fine mist for efficient burning.

Why Fuel Injectors Require Programming (Coding)

You might wonder why a new injector needs to be 'told' what to do if it's designed for a specific engine. The answer lies in manufacturing tolerances and the intricate calibration required for each individual injector. Despite stringent quality control, every fuel injector will have slight variations in its flow characteristics – how much fuel it delivers per unit of time and electrical pulse. These minuscule differences, if not accounted for, can throw off the engine's delicate balance. The coding process, often referred to as Injector Quantity Adjustment (IQA) or similar, tells the Engine Control Unit (ECU) the exact flow rate characteristics of that specific injector. This allows the ECU to precisely adjust its commands to ensure each cylinder receives the correct and consistent amount of fuel, regardless of the individual injector's quirks.

When is Fuel Injector Programming Necessary?

The most common scenario requiring fuel injector programming is, naturally, the replacement of an injector. Whether you're fitting a brand-new unit or a reconditioned one, it will come with a unique calibration code. Other instances where programming might be necessary include:

• Replacing the vehicle's Engine Control Unit (ECU).
• After certain engine rebuilds or major component replacements that could affect fuel delivery or combustion.
• Sometimes, even after extensive software updates to the ECU, though this is less common for individual injector coding.

The Risks of Neglecting Fuel Injector Programming

Ignoring the programming step after replacing a fuel injector can lead to a cascade of undesirable outcomes. The ECU will operate under the assumption that the new injector behaves identically to the old one or a generic specification, which is rarely the case. This mismatch can result in:

• Poor Engine Performance: Rough idling, misfires, hesitation, reduced power, and general sluggishness.
• Increased Fuel Consumption: The engine may run too rich or too lean, wasting fuel and impacting your wallet.
• Higher Emissions: Inefficient combustion leads to increased pollutants, potentially causing your vehicle to fail its MOT emissions test.
• Engine Damage: In severe cases, an improperly programmed injector can cause excessive fuel wash on cylinder walls, diluting engine oil, or lead to overheating and piston damage, particularly in diesel engines. Diesel Particulate Filter (DPF) issues are also common due to incomplete combustion.

The table below highlights some common symptoms associated with unprogrammed injectors versus a properly calibrated system:

The Programming Process: A Step-by-Step Guide

The specific steps for programming a fuel injector can vary slightly between vehicle manufacturers and diagnostic tools, but the underlying principle remains the same. The process typically involves using a specialised diagnostic scanner to communicate with the vehicle's ECU. Here's a general overview, often mirroring the procedure for vehicles like a Ford truck:

1. Preparation and Safety

Ensure the vehicle's ignition is on (engine off, unless specified otherwise by the procedure). Connect your diagnostic scanner to the vehicle's OBD-II port. Ensure the vehicle's battery is fully charged or connected to a battery maintainer, as voltage drops during programming can corrupt the ECU.

2. Identifying the Injector Code

Each new fuel injector will have a unique, often 10-digit, calibration code printed on its body – usually on the top or side. It's crucial to write this code down accurately. Be extremely careful not to confuse similar-looking characters, such as '8' and 'B', or 'D' and '0'. This code is the vital piece of information the ECU needs to understand the injector's specific flow characteristics.

3. Navigating the Diagnostic Tool

Once the scanner is connected and communicating with the vehicle, you'll need to navigate its menus. For many Ford vehicles, as per the transcript, you would typically follow a path like: 'Engine System' > 'Functional Tests' > 'Fuel Injector, Quantity Adjustment'. Other vehicles might have similar options under 'Special Functions', 'Adaptations', or 'Coding'.

4. Recording Existing Codes (If Applicable)

The diagnostic tool may prompt you to record the current IQA codes stored in the ECU for your records. This is a good practice, especially if you're replacing only one injector, as it allows you to see which injector position corresponds to which code. You might see a 'zero' or default code for an injector that hasn't been programmed yet or one that has been replaced but not coded.

5. Inputting the New Code

Select the specific injector position you are programming (e.g., 'Injector 1', 'Cylinder 3'). The scanner will then typically present an option to 'Edit' or 'Program New ID'. Carefully input the 10-digit code you noted from the new injector. Double-check every character for accuracy. Once entered, confirm the new ID.

6. Executing the Programming

After inputting the new code, you'll usually select 'Program' or 'Write'. The scanner will send the new calibration data to the ECU. This process is usually very quick. The scanner will then confirm if the 'Program New ID is successful'.

7. Verification

Once the programming is complete, it's good practice to go back into the 'Fuel Injector, Quantity Adjustment' screen to visually confirm that the new code is now correctly displayed for the programmed injector position. You might also want to clear any existing diagnostic trouble codes (DTCs) that may have been set due to the injector replacement or prior issues. Finally, start the engine and listen for a smooth idle, and ideally, perform a short test drive to confirm proper operation.

Understanding Injector Quantity Adjustment (IQA) Codes

IQA codes are unique identifiers assigned to each fuel injector during its manufacturing and calibration process. These codes encapsulate detailed information about the injector's precise flow characteristics across its operational range. When the ECU receives this code during programming, it integrates this data into its fuel delivery algorithms. This allows the ECU to make microscopic adjustments to the injector's opening time and pulse width, compensating for the individual injector's variations and ensuring that each cylinder receives an identical, optimal fuel charge. Without this precise calibration, the engine's combustion will be uneven, leading to the issues previously mentioned.

Tools Required for Programming

To successfully program fuel injectors, you'll need access to a professional-grade diagnostic scanner. Generic OBD-II scanners typically only read and clear basic engine codes and will not have the advanced 'functional test' or 'coding' capabilities required for injector programming. Examples of suitable tools include:

• Dealer-level diagnostic systems (e.g., Ford IDS, VCDS for VW/Audi/Skoda/Seat, Tech2 for GM).
• High-end aftermarket diagnostic tools (e.g., Autel MaxiSys, Launch X431, Snap-On Verus).

These tools are capable of deep communication with the ECU and have the necessary software functions to perform such specific programming tasks.

Common Issues and Troubleshooting

While generally straightforward, issues can arise during programming:

• Incorrect Code Entry: The most common mistake. Always double-check the 10-digit code. Even one wrong character can cause the programming to fail or lead to new problems.
• Scanner Communication Issues: Ensure the scanner is properly connected and that the vehicle's ignition is in the correct position. Check for low battery voltage, which can disrupt communication.
• Injector Not Accepting the Code: In rare cases, a new injector might be faulty, or there could be an underlying ECU issue preventing successful programming. Diagnostic trouble codes might offer clues.
• Software Glitches: Ensure your diagnostic scanner's software is up-to-date.

Diesel vs. Petrol Injectors

While both petrol and diesel engines use injectors, the need for programming is often more critical and common for diesel fuel injectors. Diesel engines operate under much higher injection pressures, and the precision of fuel delivery profoundly impacts combustion efficiency, emissions (especially DPF regeneration), and engine longevity. Petrol injectors, while also benefiting from coding, often have a wider tolerance for slight variations before major issues arise.

Frequently Asked Questions About Fuel Injector Programming

Q1: Can I program fuel injectors myself?

A1: If you have access to a professional diagnostic scanner with coding capabilities and are comfortable following technical procedures, then yes, it is possible. However, due to the cost of these tools and the potential for costly errors, many vehicle owners opt to have this procedure performed by a qualified mechanic or specialist garage.

Q2: What happens if I don't program a new fuel injector?

A2: As detailed above, neglecting programming can lead to rough idling, poor fuel economy, increased emissions, engine misfires, and potentially long-term engine damage due to incorrect fuel delivery. The ECU will not be able to precisely control the new injector.

Q3: How long does fuel injector programming take?

A3: The actual programming process itself is very quick, often just a few minutes once the diagnostic tool is connected and navigated to the correct function. The overall time will depend on preparation, accessing the codes, and initial setup.

Q4: Do reconditioned fuel injectors need programming?

A4: Yes, absolutely. Reconditioned or remanufactured injectors undergo a calibration process after rebuilding, and they will be issued with a new, unique calibration code that must be programmed into the ECU, just like a brand-new injector.

Q5: Where can I find the 10-digit code on my new injector?

A5: The code is typically laser-etched or printed directly onto the body of the fuel injector, often on the top plastic cap or the metal body. Always check the packaging or accompanying documentation as well.

Conclusion

Programming fuel injectors is a crucial step in modern vehicle maintenance, especially when replacing these vital components. It ensures that your engine's fuel efficiency, performance, and emissions remain at optimal levels. While it requires specialised tools and a meticulous approach, understanding this process can save you from significant headaches and costly repairs down the line. Always remember the importance of accuracy when inputting the unique injector codes – it's the key to a smooth-running and reliable vehicle.
