Understanding Pressure Washer Pump Maintenance
Keeping your pressure washer in top condition is crucial for effective and efficient cleaning. A key component that often requires attention is the pump. This article delves into the essential maintenance practices for pressure washer pumps, focusing on critical aspects like oil changes and the proper functioning of unloaders. By understanding these elements, you can significantly extend the lifespan of your equipment and ensure optimal performance.

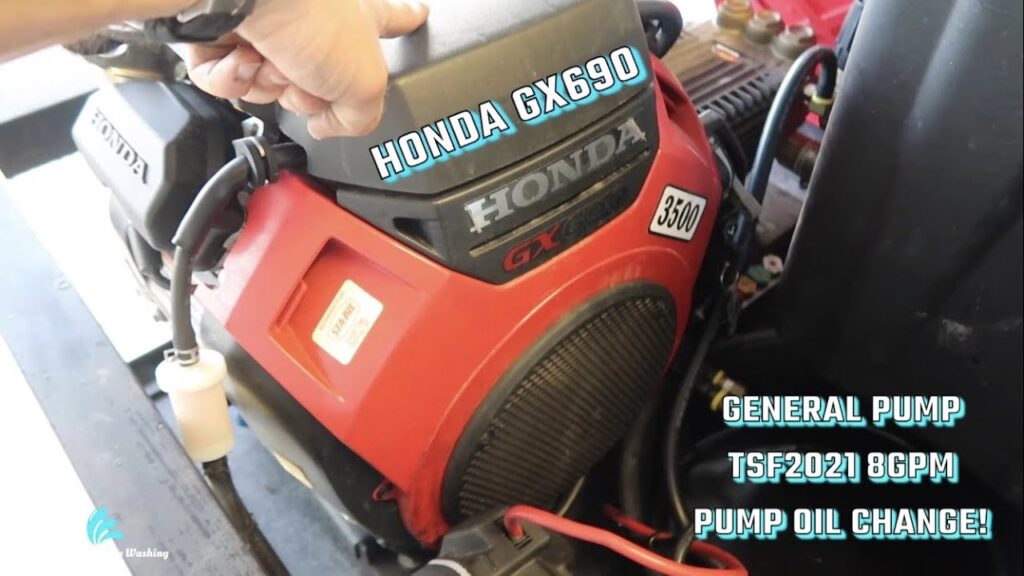

The Importance of Regular Oil Changes
Much like the engine in your car, the pump in your pressure washer relies on clean oil for lubrication and cooling. Neglecting oil changes can lead to increased wear, overheating, and eventual pump failure. The frequency of these changes is vital for longevity. While specific recommendations can vary depending on the pump model and manufacturer, a general guideline is essential. Initial break-in oil changes are particularly critical. For many pumps, an initial oil change is recommended after the first 50 hours of operation. Following this initial service, subsequent oil changes are typically advised every three months or after a set number of operating hours, whichever comes first. Always refer to your pump's manual for precise intervals, as neglecting these requirements can void your warranty.
How Does a Positive Displacement Pump Work?
Understanding the basic operation of a positive displacement pump is key to appreciating why maintenance is so important. These pumps work by trapping a fixed amount of fluid and forcing (displacing) that trapped fluid into the discharge pipe. Unlike centrifugal pumps, positive displacement pumps deliver a relatively constant flow regardless of discharge pressure. This is achieved through the precise movement of internal components, such as pistons, gears, or vanes, which create expanding and contracting cavities. The sealed nature of these cavities ensures that the fluid is physically moved from the inlet to the outlet. Any wear or damage to these internal components, often exacerbated by poor lubrication or debris, can compromise the pump's ability to displace fluid efficiently, leading to reduced pressure and flow.
Choosing the Right Unloader/Pressure Regulator
The unloader, often referred to as a pressure regulator, is a critical safety and control device in a pressure washer system. Its primary function is to manage the water pressure and flow, preventing damage to the pump and other components when the trigger gun is released. The unloader acts as a 'traffic cop' for the water, directing it either to the nozzle for cleaning or to a bypass loop when the trigger is off. The pressure setting of the unloader is governed by two main factors: the available horsepower and the lowest pressure rating of any component within the system. To ensure optimal performance and longevity, selecting the correct unloader and setting it appropriately is paramount.
Factors Influencing Unloader Selection
Several factors come into play when choosing an unloader for your pressure washer. These include:
- Intended Purpose: What will the pressure washer be used for? Heavy-duty industrial cleaning may require a different unloader than occasional domestic use.
- Operating Conditions: Water quality, temperature, and how often the system operates in bypass mode can all affect unloader life.
- Additional Accessories: The use of items like longer hoses, chemical injectors, or specialized nozzles can influence the unloader's performance and require specific settings.
Understanding Unloader Operation
A basic pressure washer system comprises a drive unit (motor or engine), a pump, the unloader, a hose, a gun, a wand, and a nozzle. The drive unit powers the pump, which converts this power into water flow. The pressure is ultimately generated at the nozzle as water is forced through a small orifice. The unloader regulates this pressure by diverting water flow either to the nozzle or into a bypass line when the trigger gun is closed. When the trigger is released, the unloader effectively closes off the path to the nozzle, rerouting the water through the bypass. Water circulating in bypass can heat up if left for extended periods, potentially damaging the unloader and pump seals.
Setting the Unloader Pressure
Setting the unloader pressure involves understanding the relationship between spring tension, nozzle wear, and pressure spikes. A lower spring tension on the unloader results in more water bypassing the nozzle, thus lower operating pressure. Conversely, increasing the spring tension directs more flow to the nozzle, increasing pressure until all flow is directed through the nozzle. As a nozzle wears, its orifice enlarges, causing a drop in pressure. If you try to compensate for a worn nozzle by increasing the unloader's pressure setting, the operating pressure won't increase, but the pressure at which the unloader diverts flow (unloads) will. This can lead to significant pressure spikes.
Pressure Spikes and Their Impact
A pressure spike occurs when the unloader rapidly shifts the water flow from the nozzle to bypass. The magnitude of this spike increases with the unloader's pressure setting. Imagine trying to stop a small car versus a freight train – the latter requires significantly more effort. Similarly, high-pressure spikes can cause damage to hoses, seals, and other system components. A proper unloader setting includes a small amount of continuous bypass (around 5% of total flow). This minimal bypass helps to minimise pressure spikes and compensates for nozzle wear. As the nozzle wears, this bypass flow is gradually redirected to the nozzle, maintaining optimal pressure for a longer period. Once a pressure drop is noticed, the nozzle should be replaced. An unloader, once correctly set, should ideally not require further adjustment unless system modifications are made.
Types of Unloaders
There are two primary types of unloaders used in pressure washing equipment:
- Pressure-Trapping Unloaders: These react solely to system pressure. When you open the trigger gun, you get instant pressure.
- Flow-Actuated Unloaders: These respond to both flow and pressure, providing a gradual build-up of pressure, often referred to as a 'soft start.'
Pressure-Trapping vs. Flow-Actuated Unloaders
| Feature | Pressure-Trapping Unloader | Flow-Actuated Unloader |
|---|---|---|
| Pressure Response | Instantaneous | Gradual ('soft start') |
| Ideal For | Durable surfaces (metal, concrete, brick, asphalt) | Delicate surfaces (glass, wood, plastic) and precarious locations |
| Cost (Repair/Replace) | Approximately 1/4 the cost of flow-actuated | Higher |
| Wear Tolerance | More forgiving; often continues to operate with wear | More sensitive; may cease function if worn significantly |
| Effect of Accessories | Bypasses more water to regulate pressure | System changes can affect operation (e.g., line restriction) |
Considerations for Operation and Accessories
Operating Conditions: Water quality, temperature, and the amount of time the system spends in bypass mode can significantly impact the lifespan and reliability of both types of unloaders. Poor water quality and prolonged bypass periods will accelerate wear on any unloader. It's worth noting that pressure-trapping unloaders are generally less expensive to repair or replace compared to flow-actuated models and tend to be more robust when experiencing wear. Flow-actuated unloaders, while offering a gentler start, can be more sensitive to wear and may fail more abruptly.
Additional Accessories: The inclusion of accessories like longer discharge hoses, chemical injectors, speed controllers, burners, or specialized nozzles can alter how the unloader functions. Pressure-trapping unloaders will simply bypass more water to maintain the set pressure when system resistance increases due to accessories. However, flow-actuated unloaders can have their operating characteristics changed by system modifications, especially any restrictions downstream of the unloader.
Which Unloader is Better?
While flow-actuated unloaders are often considered easier on the overall system and provide a safer 'soft start,' pressure-trapping unloaders can offer a slight edge in reliability, particularly in terms of wear tolerance and cost of repair. Once a pressure washer system is correctly set up, a flow-actuated unloader can be just as reliable, if not more so, than a pressure-trapping one. The choice often comes down to the specific application and user preference for the pressure delivery characteristics.
Frequently Asked Questions
Q1: How often should I change the oil in my pressure washer pump?
A1: An initial oil change is typically recommended after 50 hours of operation. Thereafter, change the oil every three months or at the recommended hour intervals specified by the manufacturer, whichever comes first. Always consult your pump's manual.
Q2: What happens if I don't change the oil in my pressure washer pump?
A2: Failure to change the oil can lead to insufficient lubrication and cooling, causing increased wear on internal pump components, overheating, reduced performance, and ultimately, premature pump failure. It may also void your warranty.
Q3: How do I set the pressure on my pressure washer's unloader?
A3: The pressure setting is limited by the system's horsepower and the lowest pressure rating of any component. Adjust the spring tension on the unloader to achieve the desired pressure, ensuring a small amount of continuous bypass (approx. 5%) to minimize pressure spikes and compensate for nozzle wear. Once set, it should ideally not need further adjustment unless system components are changed.
Q4: What is a pressure spike?
A4: A pressure spike is a sudden, temporary increase in system pressure that occurs when the unloader shifts from directing water to the nozzle to diverting it to bypass. Higher unloader settings and worn components can increase the severity of these spikes, potentially damaging the system.
Q5: Should I use a pressure-trapping or flow-actuated unloader?
A5: Pressure-trapping unloaders are best for durable surfaces and offer instant pressure. Flow-actuated unloaders provide a 'soft start,' making them suitable for delicate surfaces and precarious situations. Consider your primary use and desired pressure delivery characteristics.
Conclusion
Proper maintenance, particularly regular oil changes and the correct selection and setting of your unloader, is fundamental to the longevity and effective operation of your pressure washer pump. By understanding how these components work and adhering to best practices, you can ensure your equipment performs reliably for years to come. Always prioritise consulting your equipment's manual for specific maintenance schedules and guidelines.
