Advanced ECUs & ECU Mapping Explained

In the realm of modern automotive engineering, the Engine Control Unit (ECU) stands as the brain of your vehicle, orchestrating a symphony of operations to ensure optimal performance, fuel efficiency, and emissions control. While standard ECUs are highly sophisticated, the world of advanced ECUs and ECU mapping takes this control to an entirely new level, offering enthusiasts and performance-minded drivers the ability to fine-tune their vehicle's characteristics for unparalleled results. This comprehensive guide will delve into what advanced ECUs are, how ECU mapping works, and the benefits it can bring to your driving experience.

What is an ECU?

Before we explore the advanced aspects, it's crucial to understand the fundamental role of a standard ECU. The ECU, often referred to as the car's computer, is a small electronic device responsible for managing a wide array of engine functions. It receives data from various sensors throughout the vehicle – such as oxygen sensors, throttle position sensors, crankshaft position sensors, and knock sensors – and processes this information to control critical systems like fuel injection, ignition timing, idle speed, and variable valve timing. The primary goal of the ECU is to maintain the engine's operation within its designed parameters, ensuring reliability, efficiency, and compliance with emissions regulations.

The Evolution to Advanced ECUs

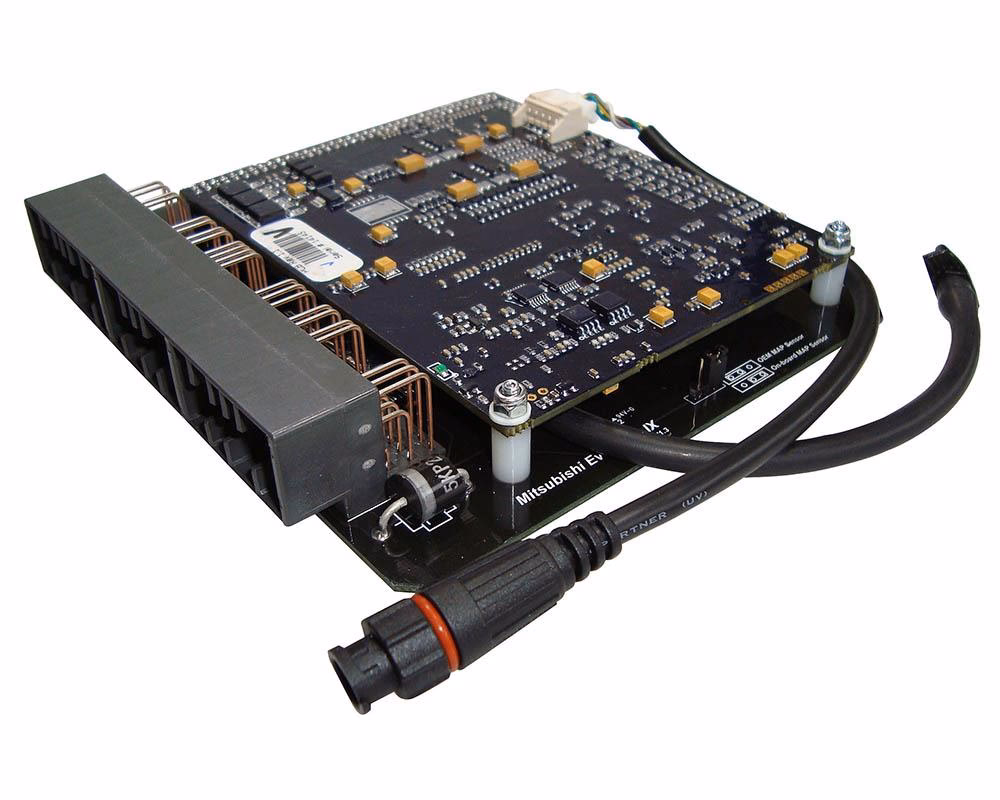

Advanced ECUs represent a significant leap forward from their predecessors. These units are typically designed with more powerful processors, increased memory, and enhanced connectivity options. This allows them to handle more complex algorithms, process data at higher speeds, and accommodate a greater number of input and output signals. The key characteristics of advanced ECUs include:

• Increased Processing Power: Faster processors enable the ECU to react more swiftly to changing engine conditions and execute more sophisticated control strategies.
• Expanded Memory: More memory allows for larger and more complex software programs, enabling finer control over various engine parameters and the storage of more detailed diagnostic data.
• Enhanced Input/Output Capabilities: Advanced ECUs can interface with a wider range of sensors and actuators, providing more granular control over engine functions.
• Flexibility and Programmability: Unlike many factory-fitted ECUs which are locked down, advanced ECUs are designed to be reprogrammed, allowing for customisation and optimisation.
• Advanced Diagnostic Features: They often possess more sophisticated self-diagnostic capabilities, providing deeper insights into engine performance and potential issues.

Understanding ECU Mapping (Remapping)

ECU mapping, often referred to as ECU remapping or simply 'remapping,' is the process of altering the software within the ECU to change the way the engine operates. This is achieved by modifying the pre-programmed maps, which are essentially data tables that dictate how the ECU responds to different sensor inputs. These maps control crucial parameters such as:

The original factory ECU map is a compromise, designed to balance performance, fuel economy, emissions, and longevity across a wide range of driving conditions and fuel qualities. ECU mapping allows a specialist tuner to override these factory settings and create a bespoke map tailored to specific goals, such as:

• Increased Horsepower and Torque: By optimising fuel and ignition maps, a tuner can extract more power from the engine.
• Improved Fuel Efficiency: In some cases, a carefully crafted map can lead to better fuel economy, especially during cruising.
• Enhanced Throttle Response: A sharper throttle map can make the car feel more immediate and engaging to drive.
• Removal of Speed Limiters: For track use or specific applications, the electronically limited top speed can be removed.
• Adaptation for Modifications: If you've upgraded components like exhaust systems, air intakes, or turbochargers, remapping is essential to ensure these parts work harmoniously with the engine.

The Process of ECU Mapping

ECU mapping is a specialised process that requires expertise and the right equipment. The general steps involved are:

1. Diagnostic Scan: The vehicle is connected to diagnostic equipment to read the original ECU software and assess the current engine condition.
2. Data Extraction: The existing ECU map is downloaded from the unit. This is often done via the vehicle's OBD-II port, though in some cases, the ECU may need to be physically opened.
3. Map Analysis and Modification: A skilled tuner will analyse the extracted data and make precise adjustments to the various maps based on the desired outcome. This is where the expertise of the tuner is paramount, as incorrect modifications can lead to engine damage.
4. Software Upload: The modified map is uploaded back into the ECU.
5. Testing and Refinement: The vehicle is then typically put on a dynamometer (dyno) for testing. This allows the tuner to measure power output, torque, and monitor engine behaviour under load, making further fine-tuning adjustments as needed to achieve the optimal result. Road testing is also a crucial part of the process.

Types of ECU Mapping

While the core principle remains the same, there are different approaches to ECU mapping:

• Stage 1 Remap: This is the most common and typically involves software adjustments only, assuming the vehicle is in standard, good working order. It aims to improve performance without requiring hardware modifications.
• Stage 2 Remap: This usually accompanies minor hardware upgrades, such as a performance exhaust system or a high-flow air filter. The ECU map is then adjusted to take advantage of these hardware changes.
• Stage 3 and Beyond: These stages involve more significant hardware modifications, such as larger turbochargers, upgraded intercoolers, and stronger internal engine components. The ECU map becomes increasingly complex to manage these substantial changes.
• Custom Mapping: This is a bespoke approach where the map is tailored specifically to a unique set of modifications or a particular driving style, often developed on a dyno.

Benefits of Advanced ECUs and ECU Mapping

The advantages of upgrading to an advanced ECU or undertaking professional ECU mapping are:

• Performance Gains: The most sought-after benefit is a noticeable increase in horsepower and torque, leading to quicker acceleration and a more responsive driving feel.
• Improved Fuel Economy: When tuned for efficiency, your vehicle can achieve better miles per gallon, saving you money on fuel.
• Enhanced Drivability: Smoother power delivery, better throttle response, and improved torque across the rev range can make the car more pleasant and engaging to drive.
• Optimisation for Modifications: If you've invested in performance parts, remapping ensures you're getting the most out of them.
• Troubleshooting and Diagnostics: Advanced ECUs can provide more detailed diagnostic information, helping to identify and resolve issues more effectively.

Potential Downsides and Considerations

While the benefits are significant, it's important to be aware of potential downsides:

• Warranty Concerns: Modifying your ECU can potentially void your vehicle's manufacturer warranty. Always check with your dealer or tuner.
• Emissions Compliance: Improperly mapped ECUs can lead to increased emissions, potentially failing emissions tests and harming the environment. Reputable tuners will ensure compliance.
• Engine Longevity: Pushing an engine beyond its designed limits without appropriate supporting modifications or expert tuning can lead to premature wear and potential damage.
• Cost: Professional ECU mapping and advanced ECU hardware can be a significant investment.
• Legality: Certain modifications and tuning practices may not be legal for road use in all regions.

Frequently Asked Questions

Q1: Is ECU mapping safe for my car?

When performed by a reputable and experienced tuner using quality equipment, ECU mapping is generally safe and can even improve engine longevity by optimising its operation. However, poorly executed remapping can lead to severe engine damage.

Q2: How much extra power can I expect from ECU mapping?

The amount of power gain varies significantly depending on the vehicle, the engine, and the type of remap. A typical Stage 1 remap on a modern turbocharged car might add anywhere from 15-30% more horsepower and torque.

Q3: Can ECU mapping improve fuel economy?

Yes, in many cases, a remap can improve fuel economy, particularly during steady-state driving. However, if the remap is focused purely on maximum power, fuel economy may decrease, especially under hard acceleration.

Q4: Do I need to upgrade other parts of my car for ECU mapping?

For a Stage 1 remap, no hardware upgrades are usually necessary. However, for more aggressive tuning (Stage 2 and beyond), upgrades such as a performance exhaust, intake, or intercooler become beneficial, and often necessary, to support the increased power output.

Q5: Can I revert to the original ECU map?

Yes, in most cases, the original ECU map can be backed up before modification and can be restored if necessary. This is often a good idea before selling the car or if you encounter issues.

Conclusion

Advanced ECUs and the art of ECU mapping offer a compelling pathway for automotive enthusiasts to unlock the hidden potential within their vehicles. By precisely calibrating engine parameters, tuners can enhance performance, improve efficiency, and tailor the driving experience to individual preferences. However, it is paramount to approach this process with informed caution, choosing reputable specialists and understanding the potential implications. With the right expertise, ECU mapping can transform your car into a more potent and engaging machine, delivering a truly exhilarating driving experience.
