R65 vs. IB5 Gearboxes: A UK Driver's Guide

In the world of manual transmissions, understanding the nuances between different gearbox types is crucial for any car enthusiast or owner looking to maintain their vehicle effectively. Two names that frequently surface in discussions, particularly among owners of certain popular European marques, are the R65 and the IB5 gearboxes. While both serve the fundamental purpose of transmitting power from the engine to the wheels, they come from different design philosophies and are typically found in distinct vehicle applications. This article delves deep into the characteristics of each, highlighting their key differences, common applications, and vital maintenance considerations, including a practical guide to changing your IB5 gearbox oil.

Understanding the IB5 Gearbox

The IB5 gearbox is a manual transmission predominantly associated with Ford vehicles, widely used across various models such as the Fiesta, Focus, Ka, and Puma, particularly in the UK and European markets. Its 'IB' designation stands for 'Integrated Bellhousing', indicating that the bellhousing (the part connecting the gearbox to the engine) is an integral part of the main gearbox casing. This design contributes to its compact size and lighter weight, making it a popular choice for smaller, front-wheel-drive cars where space and efficiency are at a premium.

Known for its relatively smooth operation and decent reliability, the IB5 is generally well-suited for the torque outputs of the engines it's paired with. However, like any mechanical component, it requires proper maintenance to ensure longevity. One of the most critical aspects of this maintenance is ensuring the gearbox is filled with the correct type and amount of oil.

IB5 Gearbox Oil Specification and Maintenance

For the IB5 gearbox, the correct oil specification is paramount. As per manufacturer guidelines, a common recommendation is BOT 130M, which is essentially a Castrol gear oil with the specification SAE 75W90 API GL-4 Fully Synthetic. This specific type of oil ensures optimal lubrication, protection against wear, and efficient operation across varying temperatures. Using an incorrect oil can lead to premature wear, difficult gear changes, and even gearbox failure.

Changing the gearbox oil is a maintenance task that can significantly extend the life of your transmission. Based on practical experience, the process for an IB5 gearbox typically involves:

• Preparation: Ensuring the vehicle is on a level surface, securely raised (e.g., using a jack and axle stands on the front passenger side to gain access), and the airbox assembly is removed for easier access to the fill plug.

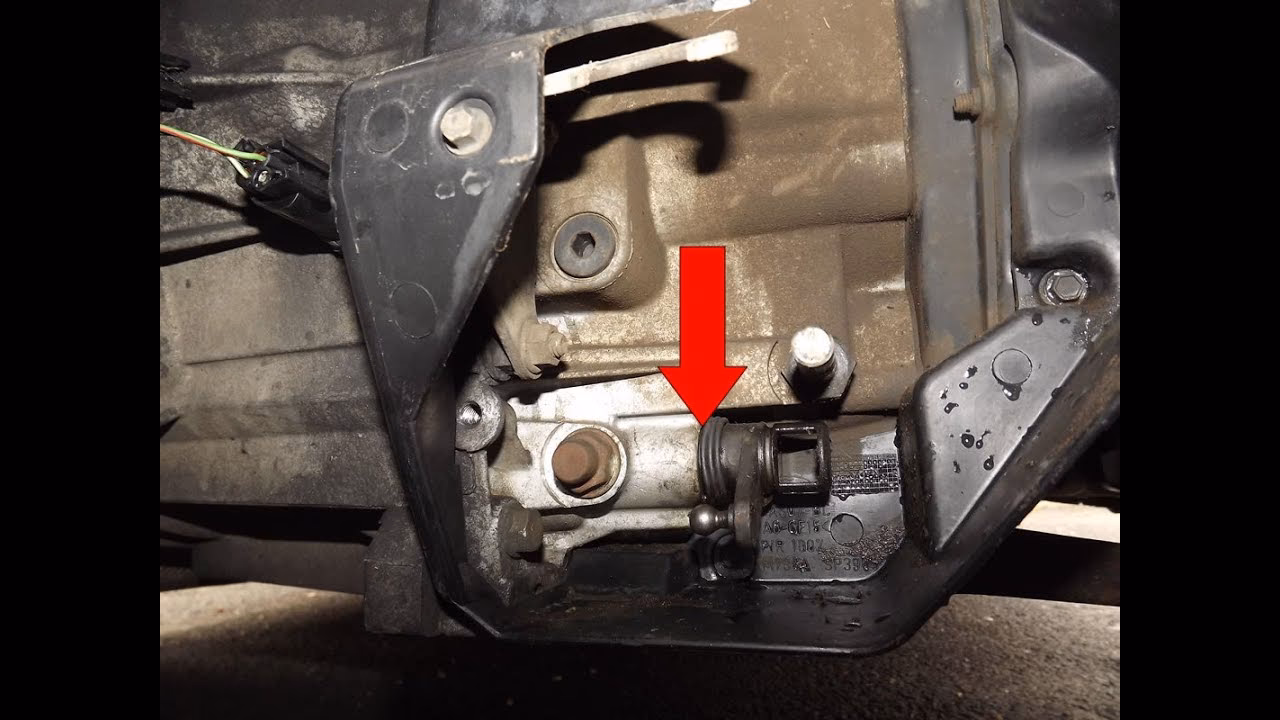

• Draining the Old Oil: Locating and carefully undoing the 17mm drain bolt. Be prepared for the oil to be 'extremely smelly' – a common characteristic of used gearbox oil due to sulphur compounds. Allow ample time for all the old oil to drain out completely.
• Refilling with New Oil: Once drained, tighten the drain bolt securely. The filler plug is often an 8mm Allen nut situated just above the drain plug. Using a funnel with an attached hose can make refilling much easier. The IB5 gearbox typically takes around 1.8 litres of the correct oil before it starts to pour back out, indicating it's full. It's crucial to let any excess oil drain out and allow the level to settle before replacing the filler plug. Always have a large rag handy, as oil can easily spill.

Regular oil changes, though often overlooked, are a vital part of proactive vehicle care. They help to remove metallic particles and sludge that accumulate over time, which can cause abrasive wear to the internal components.

Exploring the R65 Gearbox

The R65 gearbox, in contrast to the IB5, is primarily associated with Rover Group vehicles, including various models from Rover and the classic Mini. Its designation often refers to 'Rover 65mm' centre distance, indicating the distance between the main shaft and the layshaft, which is a key internal dimension. The R65 was designed to be a more robust unit compared to some of its predecessors, aiming for improved durability and reliability.

These gearboxes are generally known for their sturdy construction and capability to handle a reasonable amount of torque. However, like any mechanical design, they have their own set of common wear points, with differential bearing wear being a frequently cited issue, particularly in higher mileage examples or those that have been subjected to hard driving.

R65 Gearbox Oil Specification and Maintenance

The oil specification for an R65 gearbox is equally important. While specific recommendations can vary slightly depending on the exact variant and year, a common requirement is an API GL-4 specification oil, often in a 75W80 or 75W90 viscosity. It's always best to consult the vehicle's handbook or a reputable specialist for the precise recommendation for your specific R65 unit. Ensuring the correct oil is used helps to protect the internal gears and bearings, which are critical for the gearbox's smooth operation and longevity.

Maintenance for the R65, like the IB5, involves periodic oil checks and changes. While the specific drain and fill plug locations might differ, the principle remains the same: drain old, contaminated oil and refill with fresh, specified lubricant. Addressing any oil leaks promptly is also crucial, as running a gearbox low on oil is a fast track to catastrophic failure.

Key Differences: R65 vs. IB5 Gearboxes

While both are manual transmissions, the R65 and IB5 gearboxes exhibit several distinct differences that are important for vehicle owners and mechanics to understand. These differences stem from their design philosophies, intended applications, and the manufacturers that developed them.

Application and Vehicle Compatibility

• IB5: Primarily found in Ford vehicles such as the Ford Fiesta, Ford Focus (Mk1, Mk2), Ford Ka, Ford Puma, and some Mazda models that shared Ford platforms. It's widely adopted due to its compact nature and suitability for small to medium-sized engines.
• R65: Predominantly used in Rover Group vehicles, including the Rover 25, Rover 45, MG ZR, MG ZS, and classic Mini models (post-1996, specifically the Cooper and Cooper S models with the MPi engine). It replaced earlier Rover gearbox designs and was intended for a slightly different range of vehicle weights and engine outputs.

Design and Construction

• IB5: Features an 'Integrated Bellhousing', meaning the bellhousing is cast as part of the main gearbox casing. This contributes to its compact size and potentially lighter weight. It's generally designed for efficiency in smaller FWD applications.
• R65: While also a compact front-wheel-drive transaxle, its design principles originate from Rover. It's often perceived as a more robust unit for the applications it served, with a focus on durability. Internal design differences, such as bearing types and gear sets, contribute to their unique characteristics.

Performance Characteristics and Torque Handling

• IB5: Generally known for smooth, light shifts. Its torque handling capacity is suitable for the engines it's typically paired with (up to around 1.8-litre naturally aspirated or smaller turbocharged engines). Pushing significantly beyond its design torque limits, common in engine tuning, can lead to premature wear or failure.
• R65: Offers a solid feel during gear changes. It's generally capable of handling the torque from the engines it was designed for, including some of Rover's more potent K-series engines. However, specific weaknesses, such as differential bearings, can limit its ultimate performance potential in highly tuned applications.

Common Issues and Longevity

• IB5: While generally reliable, common issues can include worn synchronisers leading to crunching gears, particularly 1st and 2nd. Bearing wear can also occur, leading to whine or rumble, especially if oil changes are neglected or incorrect oil is used.
• R65: A well-known Achilles' heel for the R65 is the differential bearings. These can wear out, leading to a characteristic whine or rumble, especially on deceleration. Early detection and replacement are crucial to prevent more extensive damage. Input shaft bearing wear can also occur.

Oil Specifications

• IB5: Typically requires SAE 75W90 API GL-4 Fully Synthetic oil (e.g., Castrol BOT 130M). The fully synthetic nature is important for its performance and longevity.
• R65: Often specifies an API GL-4 oil, commonly 75W80 or 75W90. While some variants might tolerate mineral or semi-synthetic, it's always best to adhere to the manufacturer's specific recommendation for optimal performance and protection.

Comparative Table: R65 vs. IB5 Gearboxes

Frequently Asked Questions About Gearboxes

How often should I change my gearbox oil?

Unlike engine oil, gearbox oil generally doesn't require changing as frequently. Many manufacturers consider it 'sealed for life', but this often means 'sealed for the life of the warranty'. For optimal longevity, particularly in older vehicles or those with higher mileage, changing gearbox oil every 50,000 to 100,000 miles, or every 5-10 years, is a good preventative measure. If you notice any issues like difficult shifts or unusual noises, checking and changing the oil should be one of your first steps.

Can I use any 75W90 GL-4 oil in my gearbox?

While a 75W90 GL-4 oil might seem generic, it's crucial to check for specific manufacturer recommendations. For the IB5, for instance, the 'Fully Synthetic' aspect and the specific BOT 130M equivalent are important. Different oils have different additive packages and friction modifiers that are tailored to specific gearbox designs. Using the wrong oil can lead to premature wear, poor shift quality, and even damage to synchronisers or bearings. Always consult your vehicle's manual or a reputable parts supplier for the exact specification.

What are the signs of a failing gearbox?

Common signs of a failing gearbox include:

• Difficulty shifting gears: Gears grinding, slipping out of gear, or resistance when trying to select a gear.
• Unusual noises: Whining, clunking, humming, or grinding sounds, especially when in gear or during gear changes.
• Burning smell: Overheated gearbox oil can emit a distinct burning odour.
• Leaking fluid: Puddles or drips of oil under the car, indicating a seal or casing leak.
• Loss of power: The engine revs but the car doesn't accelerate as it should, indicating clutch slip or internal gearbox issues.

Is it difficult to change gearbox oil myself?

For mechanically inclined individuals with the right tools, changing gearbox oil can be a straightforward DIY task. As demonstrated with the IB5, it typically involves draining the old oil and refilling with new. However, it requires safe vehicle lifting, correct identification of drain and fill plugs, and the ability to work in confined spaces. If you're unsure, it's always best to consult a professional mechanic. The cost of a professional oil change is far less than a gearbox repair or replacement.

Can I swap an R65 gearbox for an IB5, or vice versa?

Generally, no. These gearboxes are designed for specific vehicle platforms and engine combinations. They have different bellhousing patterns, input shaft lengths, output shaft spline counts, and mounting points. Attempting to swap them would require significant fabrication, custom parts, and potentially modifications to the clutch, driveshafts, and vehicle chassis, making it impractical and often impossible for a standard road car.

Conclusion

The R65 and IB5 gearboxes, while both integral components of manual vehicles, represent different eras and design philosophies from their respective manufacturers, Rover Group and Ford. Understanding their individual characteristics, common applications, and specific maintenance requirements is key to ensuring the longevity and optimal performance of your vehicle's transmission. Whether you own a classic Mini with an R65 or a Ford Fiesta with an IB5, adherence to proper oil specifications and timely maintenance, including oil changes, is paramount. Remember, the gearbox is a complex and vital part of your car; looking after it diligently will save you significant headaches and expenses down the line. Keep those gears turning smoothly!
