Understanding the Z1 Brake Upgrade

When it comes to automotive performance, few areas are as critical as the braking system. A robust and responsive braking system is paramount for both safety and driving enjoyment. For enthusiasts looking to elevate their vehicle's stopping capabilities, aftermarket brake upgrade packages are a popular choice. Among these, the Z1 brake upgrade package has garnered attention for its purported benefits. This article aims to demystify what exactly is included in such a package, detailing the components and the advantages they offer to your vehicle's braking performance.

The Importance of Brake Upgrades

Standard factory brakes are designed to meet the average driving demands of most users. However, for those who frequently push their vehicles to the limit, engage in spirited driving, or simply desire a higher level of confidence in their stopping power, an upgrade is often necessary. Increased horsepower, heavier loads, or track day use can all place excessive stress on standard brake components, leading to reduced effectiveness, premature wear, and even brake fade – a dangerous phenomenon where braking performance diminishes significantly under heavy use.

Brake upgrades typically focus on improving several key aspects:

• Stopping Power: The ability to decelerate the vehicle more rapidly.
• Heat Dissipation: The capacity to manage the immense heat generated during braking, preventing fade.
• Brake Feel and Modulation: Providing a more consistent and predictable pedal response.
• Durability and Longevity: Using higher-quality materials for extended service life.

Components of a Z1 Brake Upgrade Package

While specific configurations can vary depending on the exact Z1 package and the vehicle it's designed for, a comprehensive Z1 brake upgrade typically includes a selection of high-performance components. The goal is to create a synergistic system where each part contributes to superior overall braking performance. Let's break down the common inclusions:

1. Larger Brake Rotors

A cornerstone of most brake upgrades, larger brake rotors offer several advantages. The increased surface area allows for better contact with the brake pads, and the larger diameter provides greater leverage, translating to more stopping force. Crucially, larger rotors also have a greater mass, which helps in absorbing and dissipating heat more effectively. This is vital for preventing brake fade during prolonged or aggressive braking.

Z1 packages often feature cross-drilled or slotted rotors, or a combination of both.

• Cross-drilled rotors: Feature holes drilled through the rotor surface. These holes help to vent gases and heat away from the pad surface, particularly in the initial stages of braking.
• Slotted rotors: Have grooves machined into the rotor surface. These slots help to sweep away dust and gas build-up, maintaining a cleaner contact patch between the pad and rotor, and also aid in heat dissipation.

The materials used are also typically of a higher grade, often incorporating a better cast iron alloy for improved thermal stability and crack resistance. The importance of rotor quality cannot be overstated.

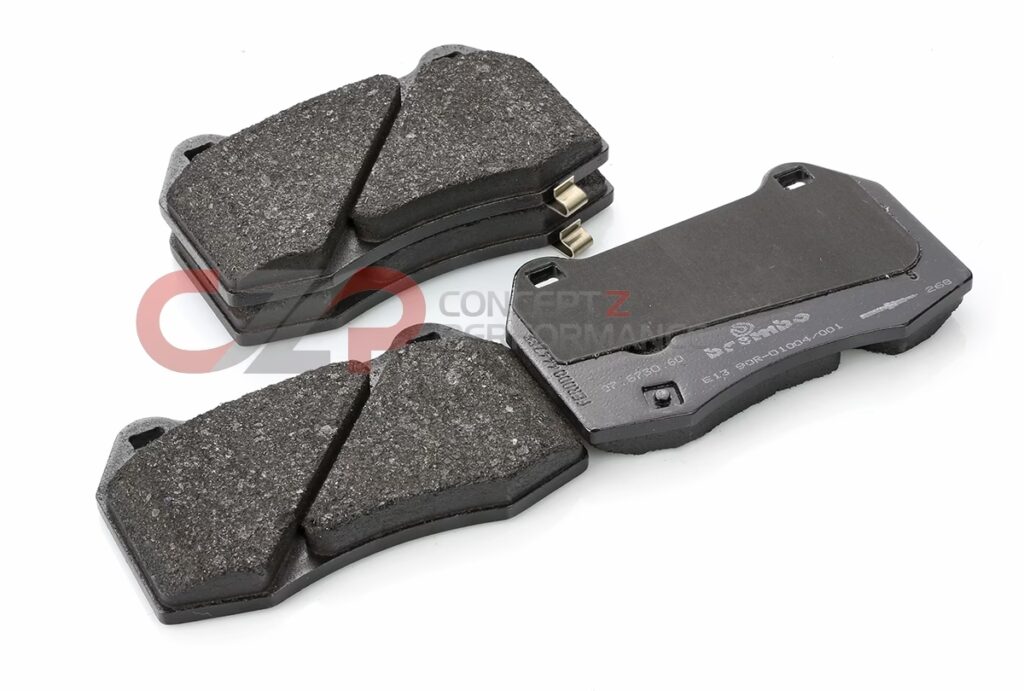

2. High-Performance Brake Pads

Brake pads are the friction material that, when pressed against the rotor, slows the vehicle. Standard pads can be made from organic compounds, which are quiet and gentle on rotors but can wear quickly and fade under heat. Performance brake pads, often included in Z1 packages, are formulated from more robust materials like semi-metallic or ceramic compounds.

These compounds offer:

• Higher Friction Coefficient: Providing more initial bite and stopping power.
• Greater Heat Tolerance: Resisting fade even under extreme temperatures.
• Improved Durability: Lasting longer under demanding conditions.

It's important to note that performance pads can sometimes be noisier and may produce more dust than their standard counterparts, a trade-off for their enhanced capabilities. Choosing the right pad compound is key.

3. Upgraded Calipers

Calipers are the devices that house the brake pads and pistons. When you press the brake pedal, hydraulic pressure forces the pistons to push the pads against the rotor. Performance calipers are often larger and feature more pistons (e.g., 4-piston, 6-piston) compared to standard single-piston calipers.

The benefits of multi-piston calipers include:

• Even Pressure Distribution: More pistons ensure a more uniform application of force across the brake pad.
• Increased Clamping Force: The larger surface area of multiple pistons can generate greater clamping force.
• Reduced Flex: Performance calipers are typically constructed from stiffer materials, such as billet aluminium, which reduces caliper flex under heavy braking. This leads to a firmer pedal feel and more consistent performance.

Z1 packages might offer direct bolt-on upgrades or require minor modifications, depending on the specific application. The caliper design is crucial for translating hydraulic force into braking action.

4. Braided Stainless Steel Brake Lines

Standard rubber brake lines can expand slightly under the high hydraulic pressures generated during hard braking. This expansion can lead to a less direct and sometimes spongy brake pedal feel. Braided stainless steel brake lines, often included in Z1 upgrades, are constructed with an inner lining of PTFE (Teflon) surrounded by a layer of braided stainless steel, and then an outer protective sheath.

These lines offer:

• Reduced Expansion: The stainless steel braiding prevents the line from expanding under pressure, resulting in a firmer, more responsive pedal.
• Increased Durability: They are far more resistant to abrasion and damage than rubber lines.
• Improved Heat Resistance: Less susceptible to heat damage.

This seemingly small upgrade can make a significant difference in the overall pedal feel and responsiveness of your braking system.

5. High-Temperature Brake Fluid

Brake fluid is the hydraulic medium that transmits force from the master cylinder to the calipers. During hard braking, the fluid can reach high temperatures, and standard brake fluid can boil. When brake fluid boils, it creates gas bubbles, which are compressible. This compressibility leads to a spongy pedal and significantly reduced braking performance – a clear sign of brake fade.

Performance brake fluid, often part of a Z1 package, has a higher boiling point (both dry and wet) than standard DOT 3 or even DOT 4 fluid. This ensures that the fluid remains effective even under extreme thermal conditions, maintaining consistent braking performance. It's also crucial to ensure that the brake fluid is flushed and replaced with the new fluid during the upgrade process.

Potential Additional Components

Depending on the specific Z1 package, you might also find:

• Brake Master Cylinder Upgrade: In some cases, a larger or higher-performance master cylinder might be recommended or included to ensure proper fluid displacement for the larger caliper pistons.
• Brake Ducts: For track-focused applications, dedicated brake ducting can be integrated to channel cool air directly to the rotors and calipers, further enhancing cooling.
• Brake Caliper Spacers/Adapters: If the upgrade involves fitting calipers designed for a different vehicle or hub offset, specific adapters might be included to ensure correct fitment.

Benefits of a Z1 Brake Upgrade

The cumulative effect of these components is a dramatically improved braking system. You can expect:

• Shorter Stopping Distances: The primary goal of any performance brake upgrade.
• Reduced Brake Fade: More consistent performance during repeated braking.
• Enhanced Pedal Feel: A firmer, more predictable brake pedal.
• Increased Durability: Components designed to withstand greater stress and last longer.
• Improved Aesthetics: Larger rotors, multi-piston calipers, and braided lines can significantly enhance the visual appeal of your wheels.

Installation Considerations

While the specific components are designed to be a cohesive package, proper installation is critical. It is highly recommended to have a qualified mechanic perform the installation, especially if modifications beyond direct bolt-on are required. They will ensure correct torque settings, proper bleeding of the hydraulic system, and overall safety of the installation. Professional installation is often worth the investment.

Frequently Asked Questions

Q1: Will a Z1 brake upgrade fit my specific vehicle?
A: Z1 brake upgrade packages are usually vehicle-specific. It's essential to confirm the compatibility with your car's make, model, and year before purchasing.

Q2: Do I need to upgrade my master cylinder?
A: This depends on the caliper piston volume. Larger calipers often require a master cylinder with a larger bore to provide adequate fluid volume and maintain proper pedal height. Check the package details or consult with the supplier.

Q3: Can I mix and match components from different brake upgrade kits?
A: While possible, it's generally recommended to use components from a matched kit to ensure optimal performance and compatibility. Mixing brands or types can sometimes lead to unforeseen issues.

Q4: How often should I replace brake fluid after an upgrade?
A: It's good practice to flush and replace brake fluid every 2-3 years, regardless of an upgrade, as it absorbs moisture over time. For performance systems, adhering to the manufacturer's recommendations is advisable.

Q5: Will a Z1 brake upgrade affect my ABS system?
A: Most modern brake upgrade kits are designed to be compatible with the vehicle's existing ABS system. However, it's always wise to confirm this with the manufacturer or supplier.

Conclusion

A Z1 brake upgrade package is a comprehensive solution for drivers seeking to significantly enhance their vehicle's braking performance. By incorporating larger rotors, performance pads, upgraded calipers, braided lines, and high-temperature fluid, these packages address the limitations of standard braking systems. The result is improved stopping power, greater heat resistance, and a more engaging driving experience. Understanding the individual components and their roles is key to appreciating the value and effectiveness of such an upgrade. Prioritising safety and performance through a well-engineered brake system is a smart investment for any car enthusiast.
