Understanding the G201 Brake Pressure Sensor

The Vital Role of the G201 Brake Pressure Sensor

Modern vehicles are equipped with sophisticated systems designed to enhance safety and driving dynamics. Among these, the Electronic Stability Programme (ESP) plays a critical role in preventing skids and maintaining control, especially during challenging driving conditions. At the heart of the ESP system's ability to interpret your braking inputs lies a crucial component: the G201 brake pressure sensor. Understanding its function, potential issues, and how to address them is paramount for any vehicle owner looking to ensure their car operates at peak performance and safety.

The G201 sensor, often referred to as Brake Pressure Sensor 1, is a sophisticated piece of technology. It's typically a thin-film piezo-resistive pressure sensor, meaning it uses the principle of resistance change in semiconductor materials under pressure to measure. This measurement is not arbitrary; it directly translates the hydraulic pressure within the braking system into an electrical signal. This signal is then relayed to the vehicle's control units, most notably the ESP module. Without accurate pressure readings, the ESP system cannot effectively modulate individual wheel brakes to correct a loss of traction, potentially leaving you vulnerable.

Is the G201 Sensor Removable? The Facts

A common question that arises when discussing brake system maintenance is the removability of specific components. Regarding the G201 sensor, the answer is nuanced but leans towards a straightforward replacement of a larger assembly. The G201 sensor is integrated directly into the hydraulic block. This means it is not a standalone component that can be easily unscrewed and replaced in isolation like a traditional bolt or switch. Instead, due to its integrated nature, if the G201 sensor itself fails or is suspected of failing, the repair typically involves replacing the entire hydraulic block assembly. This block comes complete with a new, factory-fitted G201 sensor, ensuring proper integration and function. While this might sound like a more extensive repair, it guarantees that the new sensor is correctly seated and calibrated within its housing, minimising potential installation issues.

Understanding the G201 and G214 Sensors

It's important to note that many vehicles, particularly those from the Volkswagen Group (VW, Audi, SEAT, Skoda), utilise not just one, but two brake pressure sensors. These are typically designated as G201 and G214. Both sensors are identical in their design, function, and part number. They are strategically placed to provide redundant data to the ESP control unit. This redundancy is a key safety feature. By having two sensors measuring the same hydraulic pressure, the system can cross-reference the data. If one sensor provides an implausible signal or fails entirely, the system can rely on the data from the other, or at least detect the discrepancy and alert the driver.

The primary function of both the G201 and G214 sensors is to measure the braking force applied by the driver. This information is critical for the ESP system's operation. The ESP control unit uses these readings to understand how aggressively the driver is braking and to manage the vehicle's stability accordingly. For example, during hard braking or in a situation where traction is lost, the ESP might need to apply braking force to individual wheels to prevent a spin or to help the driver regain control. The brake pressure sensors provide the essential data to make these calculations.

Symptoms of a Failing G201 Sensor

A faulty G201 or G214 sensor can manifest in several ways, all pointing towards a disruption in the ESP system. The most common and immediate symptom is the illumination of the ESP warning light on the dashboard instrument cluster. This light serves as a universal indicator that the stability control system is not functioning correctly. You might also notice the ABS warning light illuminating, as the ABS and ESP systems are closely linked and often share components or data.

Beyond the warning lights, you might experience a direct impact on the car's behaviour. If one of the sensors fails, or if there is a poor electrical connection or a break in the wiring leading to the sensor, the ESP system will typically be disabled. This means that in situations where the ESP would normally intervene to help you maintain control, it will not be able to do so. This can be particularly dangerous in adverse weather conditions or during emergency manoeuvres. You may also notice that the car feels less stable or predictable during braking.

Diagnostic trouble codes (DTCs) read via an OBD-II scanner will often confirm a problem with the brake pressure sensors. Common error codes include:

• 01435 - Brake Pressure Sensor 1 (G201): This code indicates a fault specifically related to the G201 sensor. It can be further specified with sub-codes like '012 - Electrical Fault in Circuit' or '008 - Implausible Signal', suggesting issues with the wiring or the sensor's internal readings.
• 00810 - Sensor 1/2 for Brake Pressure: This is a more generic code that can refer to either sensor (G201 or G214) or the system as a whole, again often indicating an 'Implausible Signal'.

Experiencing these codes, especially if they are intermittent, strongly suggests an issue with one or both of the brake pressure sensors or their associated wiring.

The Replacement Procedure: A Step-by-Step Guide

Replacing the G201 and G214 sensors, or more accurately, the hydraulic block containing them, is a task that requires a certain level of mechanical aptitude and the right tools. While it can be a DIY job for experienced individuals, many prefer to entrust this to a professional mechanic.

Materials Needed:

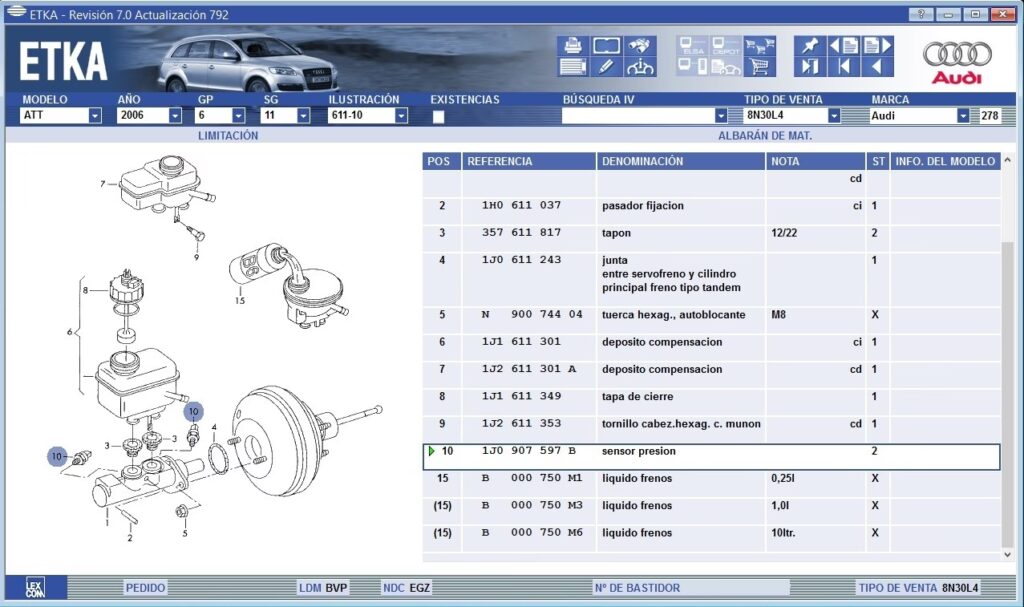

The correct part number for the brake pressure sensor (which is the same for both G201 and G214) is crucial. A common part number is 1JN 907 597 B. Always verify the correct part number for your specific vehicle make, model, and year. In addition to the new sensor assembly, you will need:

• New brake fluid (e.g., Necto DOT 4 or the manufacturer's recommended type).
• Basic hand tools (spanners, sockets, screwdrivers).
• A brake fluid bleeder kit (vacuum or pressure bleeder recommended).
• Protective gear (gloves, eye protection).
• Rags and a container for draining old brake fluid.
• A diagnostic tool (like VAG-COM) for clearing fault codes and potentially performing a basic setting.

Step-by-Step Process:

1. Accessing the Components: Begin by safely jacking up the vehicle and removing the front wheels. This provides better access to the brake master cylinder area. You may also need to remove the engine protection under tray and the air filter box to gain sufficient access to the hydraulic block and sensors.
2. Locating the Sensors: The G201 and G214 sensors are bolted directly onto the brake master cylinder. They are typically positioned close to each other.
3. Draining Brake Fluid: Before attempting to unscrew the old sensors, it's essential to drain as much brake fluid as possible from the system. This minimises mess and prevents fluid from spraying onto painted surfaces, which can cause damage. You can use a suction pump to remove fluid from the reservoir. It's also wise to place rags or absorbent material around the base of the master cylinder to catch any residual fluid when the sensors are removed.
4. Removing Old Sensors: Carefully unscrew the old G201 and G214 sensors from the hydraulic block. Note the exact position and orientation of each sensor.
5. Installing New Sensors: Screw the new sensors into their respective positions on the hydraulic block. Ensure they are tightened to the manufacturer's specified torque.
6. Reassembly: Once the new sensors are in place, reassemble any components that were removed for access, such as the air filter box and engine protection. Reinstall the wheels.
7. Filling and Bleeding the Brake System: This is a critical step. Refill the brake fluid reservoir with the correct type of brake fluid. Now, you must bleed the brake system to remove any air that has entered. This is typically done by opening bleed nipples on the brake calipers, one by one, and either pumping the brake pedal or using a pressure/vacuum bleeder to force fluid through the system until all air is expelled. A thorough bleed is essential for proper brake function.
8. Clearing Fault Codes: After bleeding the system, use a diagnostic tool (e.g., VAG-COM) to connect to the vehicle's ECU. Clear any stored fault codes related to the brake pressure sensors or the ESP system.

Basic Setting and Calibration

In some cases, particularly if the fault codes indicated an implausible signal or if the ESP warning light reappears after clearing codes, a 'basic setting' or calibration procedure for the G201 sensor may be required. This procedure essentially 'teaches' the ESP control unit the correct pressure readings from the new sensor. Without this calibration, the ESP system might not function correctly, and the warning lights could remain illuminated.

The specific procedure for the basic setting varies depending on the vehicle manufacturer and the ESP control unit. It often involves using diagnostic software to initiate a calibration sequence, which might require the engine to be running, the brake pedal to be pressed or released in a specific sequence, and for the vehicle to be stationary. Consulting the manufacturer's technical documentation or reputable diagnostic software resources (like Ross-Tech for VAG vehicles) is essential for performing this correctly. An error due to a lack of basic setting will typically be indicated by specific fault codes or persistent warning lights.

Conclusion: Maintaining Your Vehicle's Safety

The G201 brake pressure sensor is an indispensable component for the proper functioning of your vehicle's ESP system. While its integrated nature means replacement often involves the hydraulic block, understanding the process and potential issues empowers you to address problems effectively. Whether you choose to tackle this yourself or consult a professional, ensuring the G201 sensor and the entire braking system are in good working order is fundamental to your safety on the road. Regular checks and prompt attention to warning lights will help maintain your vehicle's optimal performance and protect you and others.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car if the ESP light is on due to a G201 sensor fault?
While the car will still brake, the ESP system will be disabled. This means the car will not have electronic stability control to help prevent skids or regain control during sudden manoeuvres or in slippery conditions. It is advisable to get the issue resolved as soon as possible, especially if you frequently drive in challenging weather.

Q2: Are the G201 and G214 sensors the same part?
Yes, in most applications where both are fitted, the G201 and G214 brake pressure sensors are identical in terms of design, function, and part number.

Q3: How long does it take to replace the G201 sensor?
For an experienced mechanic, the replacement of the hydraulic block containing the sensors, including bleeding the system and clearing codes, can take anywhere from 1 to 3 hours, depending on the vehicle and workshop efficiency.

Q4: Do I need to replace both G201 and G214 sensors if only one is faulty?
While you could technically replace only the faulty sensor (as part of the hydraulic block), it is often recommended to replace both. This is because they are identical components that have been in service for the same amount of time. If one has failed, the other may not be far behind. Replacing both ensures greater long-term reliability.

Q5: What happens if the brake fluid is not bled properly after replacement?
Improper bleeding will result in air in the brake lines. This leads to a spongy brake pedal, reduced braking efficiency, and potentially a complete loss of braking power. It is crucial to ensure the system is thoroughly bled.
