For any motorcyclist, the braking system is paramount. It’s not just about stopping; it’s about control, confidence, and ultimately, safety. On a Yamaha, known for its precision engineering and dynamic performance, maintaining your brakes to the highest standard is non-negotiable. This guide delves into everything from understanding brake pad compatibility to the detailed process of replacing them, ensuring your Yamaha remains a joy to ride and, crucially, a safe one.
While many riders focus on engine performance, neglecting your brakes can have dire consequences. Regular inspection and timely replacement of components like brake pads and proper caliper maintenance are essential for optimal stopping power and responsive handling. Let's explore how to keep your Yamaha's braking system in prime condition.
Understanding Yamaha Brake Pad Sizing and Compatibility

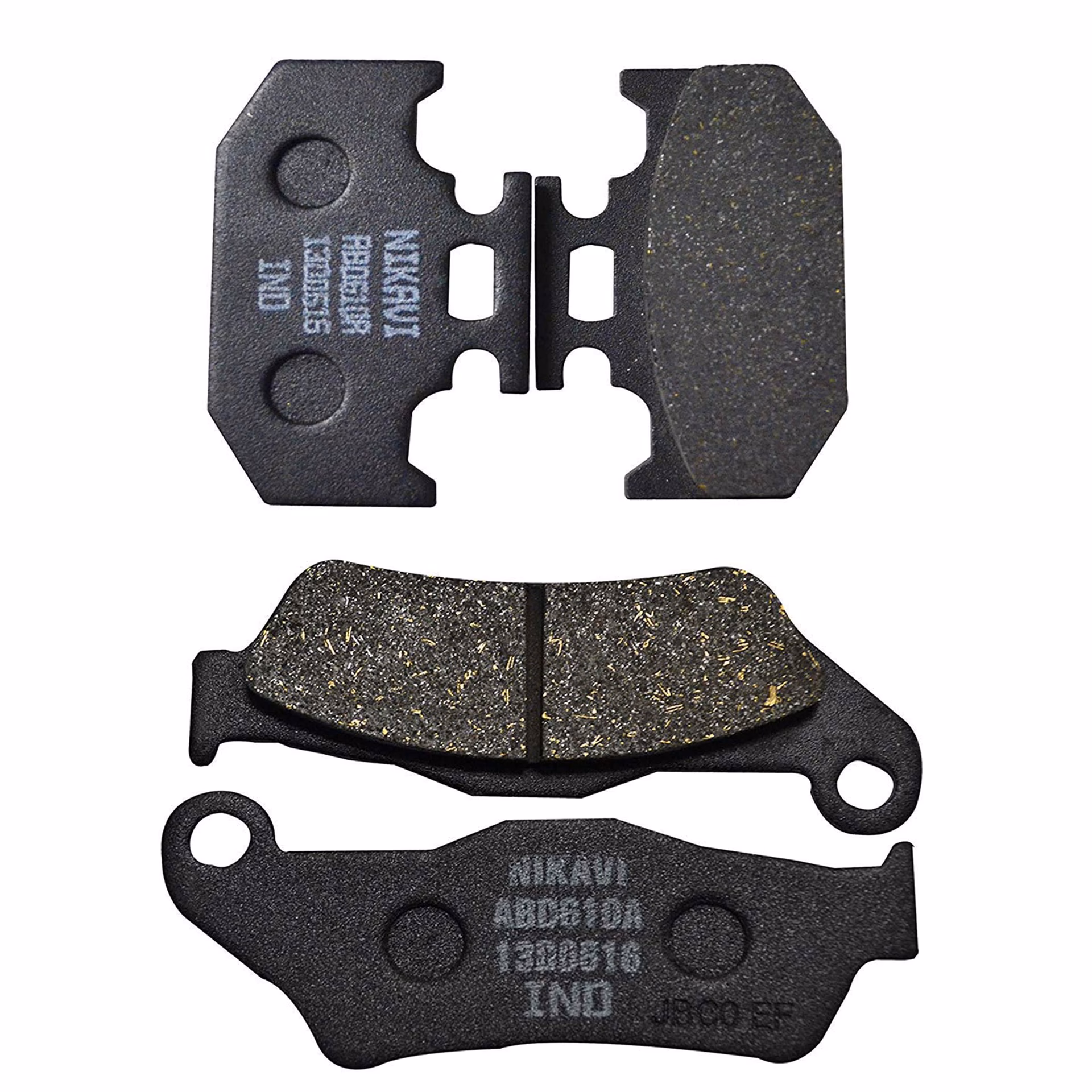

One of the most common questions riders ask is, "How big is a Yamaha brake pad?" The simple answer is there isn't a universal size. Yamaha produces a vast range of motorcycles, from nimble scooters to powerful sports bikes and robust cruisers. Each model is engineered with a specific braking system tailored to its weight, speed capabilities, and intended use. Therefore, the size, shape, and compound of brake pads vary significantly across the Yamaha catalogue.
This is why it is absolutely critical to ensure compatibility when purchasing new brake pads. Relying on a generic "Yamaha brake pad" description without checking against your specific bike's model and year is a recipe for disaster. Genuine Yamaha Parts, as noted by the manufacturer, are designed to perfectly fit and perform with your bike's original specifications. While aftermarket options exist, always verify their compatibility using your bike's catalogue or a reputable parts finder.
Key factors influencing brake pad size and design include:
- Motorcycle Type: Sportbikes demand high-performance pads that can withstand extreme heat and provide aggressive stopping power. Cruisers might use pads designed for smooth, progressive braking over longer distances.
- Caliper Design: Different calipers (e.g., radial-mount, axial-mount, single-piston, multi-piston) require pads of specific dimensions and mounting configurations.
- Rotor Size: The brake pad must correspond to the diameter and thickness of your bike's brake discs.
Always consult your Yamaha owner's manual or a trusted parts supplier with your bike's VIN (Vehicle Identification Number) or exact model and year to guarantee you purchase the correct brake pads. Incorrect pads will not only fail to fit but could also compromise your braking efficiency and safety.
The Vital Role of Brake Pads and Signs of Wear
Brake pads are friction materials that convert kinetic energy into thermal energy, slowing your motorcycle down when pressed against the brake discs. Over time, this friction causes them to wear down. Recognising the signs of worn brake pads is crucial for timely replacement and maintaining safety.
Look out for these indicators:
- Reduced Braking Performance: If your bike takes longer to stop or requires more lever pressure than usual, your pads might be worn thin.
- Squealing or Grinding Noises: A high-pitched squeal often indicates the wear indicators on your pads are touching the rotor. A metallic grinding sound means the friction material is completely gone, and the pad's backing plate is contacting the disc, which can cause severe damage to your rotors.
- Visual Inspection: Most pads have grooves that indicate wear. If these grooves are gone, or the pad material is less than 2mm thick, it's time for replacement.
- Spongy Brake Lever: While often a sign of air in the brake lines, it can also be exacerbated by extremely worn pads.
- Uneven Pad Wear: This can point to issues with your brake caliper, such as sticking pistons.
Ignoring these signs can lead to reduced stopping power, increased stopping distances, damage to expensive brake discs, and ultimately, a dangerous riding situation.
DIY Yamaha Front Brake Pad Replacement Guide
Replacing front brake pads on many Yamaha models, such as the FZ-09 mentioned, is a straightforward procedure for the competent DIY mechanic. This guide will walk you through the process, ensuring a safe and effective replacement.
Tools and Parts You'll Need:
Before you begin, gather all necessary tools and parts. Having everything to hand will make the process smoother and more efficient.
- Ratchet and 12mm socket
- Torque wrench (essential for correct reassembly)
- Needle-nose pliers
- Scouring pad (e.g., Scotch-Brite)
- Brake cleaner (aerosol spray)
- A non-metallic prying instrument (e.g., plastic spatula, piece of wood)
- A pig mat or oil drain pan (to catch brake fluid overspray)
- Two sets of new brake pads (one for each caliper, ensuring they are the correct genuine Yamaha parts or equivalent high-quality aftermarket pads like EBC Double-H Sintered pads, known for their superior stopping performance).
Step 1: Preparing Your Bike and Removing Calipers
Firstly, ensure your motorcycle is stable. If you have a paddock stand, use it to lift the rear wheel, allowing for better access and stability. If not, the side stand is acceptable. Locate the two 12mm bolts (typically top and bottom) that secure the caliper to the fork. Using your ratchet and 12mm socket, carefully remove these bolts.
Once the bolts are out, gently pull the caliper rearward, away from the brake disc. Take your time during this step to prevent any metal-on-metal contact between the caliper and your front rim, which could cause scratches. There should be adequate clearance, but if it feels snug, firmly grip the caliper and press the old pads against the rotor. This action will drive the pistons back into the caliper, creating extra room to manoeuvre. Repeat this process for the caliper on the other side.
Step 2: Removing Old Brake Pads
With the caliper removed from the fork, you can now access the brake pads. Locate the two small cotter pins that secure the pads in place. Use your needle-nose pliers to carefully pull them out. Once the cotter pins are removed, the metal dowel (or pin) that holds the pads can be slid out. If it’s stubborn, a little brake cleaner can help loosen any grime, and a gentle tap with a mallet and a drift or punch can help persuade it out.
Before completely removing the old pads, take a moment to inspect their wear pattern. Note any abnormalities such as uneven wear across the pad surface or significant tapering. Uneven wear can be a tell-tale sign of deeper issues within your braking system, such as sticking pistons, worn caliper seals, or even problems with the master cylinder. Addressing these underlying issues now will prevent premature wear of your new pads.
Step 3: Inspecting and Cleaning Calipers
With the old brake pads out, it’s the perfect opportunity to inspect and thoroughly clean the calipers. It’s normal to find an accumulation of brake dust, road grime, and general debris inside and outside the caliper. This step is crucial for the longevity and performance of your new pads.
Liberally spray brake cleaner onto both the inside and outside of the caliper. This will help dislodge stubborn brake dust and grime. Pay particular attention to the brake pistons. Gently work the pistons back and forth with your fingers (or a non-metallic tool if they are stiff) while applying more brake cleaner to ensure they move smoothly. Use your pig mat or drain pan to catch the overspray. For a truly meticulous clean, you can use rags and an old toothbrush to remove every last bit of debris. The brake cleaner will evaporate naturally, but you can accelerate the process with a clean shop towel.
Important: Ensure the pistons retract fully and smoothly. If they are sticky or corroded, they may need further attention, potentially requiring a caliper rebuild kit.
Step 4: De-Glazing Rotors
An often-overlooked but vital step in brake pad replacement is the de-glazing of your brake rotors. Over time, the surface of your brake discs can become "glazed" with old brake pad material, reducing the friction capabilities of new pads. Using a scouring pad (like a Scotch-Brite pad), gently scrub the inside and outside surfaces of each brake disc. This removes the accumulated old braking material and prepares a fresh surface for the new pads to bed into.
This step is significantly easier if you have a front-end stand (also known as a "headlift stand") as it allows you to spin the wheel freely. If you don't have one, you can simply rotate the wheel manually and de-glaze the rotor in sections. The goal is to create a slightly dull, uniform finish across the rotor surface, not a mirror shine.
Step 5: Installing New Brake Pads
Now that everything is clean and prepared, you can install your new brake pads into the calipers. Most brake pads are identical, so it doesn't matter which side goes where. Carefully slide the new pads into their slots. Once they are seated, reinsert the metal dowel (or pin) that holds them in place, ensuring it passes through the designated holes in both pads and any protector plates.
Finally, secure the metal dowel by reinserting the cotter pins. Make sure these pins are correctly bent or secured to prevent the dowel from sliding out during operation.
Step 6: Reinstalling Calipers
Installing the calipers back onto the forks is relatively straightforward, but there's a crucial consideration. Since your new pads are significantly thicker than the outgoing worn pads, you will need to gently pry them apart so that they can slide over the brake discs. It is paramount that you use a non-metallic, soft instrument for this step – a plastic spatula or a small piece of wood will work perfectly. Never use anything hard or sharp, as this could score or damage your brand-new brake pads.
Gently push the pads back into the caliper, retracting the pistons fully. Once the pads are wide enough, carefully slide the caliper back over the brake disc. Align the caliper with the mounting points on the fork and hand-tighten the two 12mm bolts that hold the caliper in place. Once hand-tight, use your torque wrench to tighten these bolts to the manufacturer's recommended specification. For the FZ-09, this is typically 34Nm. Correct torque is vital; overtightening can strip threads or damage components, while undertightening can lead to bolts loosening, which is extremely dangerous.
Step 7: Bedding and Testing New Brakes
This is arguably the most important step after pad replacement. Before even thinking about riding, you MUST pump the front brake lever several times until you feel the pads make firm contact with the rotors and the lever becomes firm. Failure to do this will result in no front brakes when you first try to ride, potentially leading to a serious accident.
Once the lever is firm, stand beside your bike and roll it forward slowly, applying the front brake a few times. If the lever remains firm and the brakes are engaging properly, you can suit up and go for a short, cautious ride.
The objective of "bedding new brake pads" is to achieve a consistent, uniform mating surface between the new pads and the discs, thereby maximising their efficiency and lifespan. To bed the brakes properly, find a safe, open area.
Accelerate to a modest pace (e.g., in 2nd gear) and gently apply the front brake, using even pressure, to slow down but not stop completely. Pay close attention to the feel of the lever; it should be firm and consistent. Any pulsing or fading can be a sign of other issues within the brake system, such as warped rotors or air in the brake lines. Repeat this process 7-10 times, gradually increasing the speed and braking pressure slightly with each repetition, until you are comfortable with the feel of the new brakes and have generated some heat in the pads.
Conclude the bedding-in process by accelerating to a cruising speed (e.g., 3rd gear) and braking progressively to a complete stop. After a few repetitions of this full cycle, your new brakes should perform equally well, or even better, than before. Avoid harsh, emergency stops during the initial bedding-in period, as this can glaze the pads prematurely.
Choosing the Right Brake Pads: Organic vs. Sintered
When selecting new brake pads, you'll generally encounter two main types: organic and sintered. The choice often depends on your riding style, bike type, and budget.
| Feature | Organic Brake Pads | Sintered Brake Pads |
|---|---|---|
| Material | Resins, fibres (glass, aramid), carbon, rubber | Metallic particles fused under high heat and pressure |
| Performance | Softer initial bite, quieter, less rotor wear, good for street riding | Stronger initial bite, higher friction, better in wet, excellent heat resistance, ideal for aggressive/track riding |
| Durability | Generally wear faster | Much more durable, longer lifespan |
| Noise | Quieter operation | Can be noisier, especially when cold or wet |
| Rotor Wear | Gentler on rotors | Can cause more rotor wear over time |
| Heat Resistance | Can fade under extreme heat | Excellent heat resistance, consistent performance |
EBC Double-H Sintered pads, as mentioned earlier, are a popular choice for their high performance and suitability for spirited riding, offering superior stopping power compared to many OEM organic pads. Always consider your specific needs before making a choice.
Common Brake System Issues and Troubleshooting
Even after new pad installation, sometimes issues can arise. Here are a few common problems:
- Spongy Brake Lever: Often indicates air trapped in the brake lines. This requires bleeding the brake system to remove the air.
- Pulsing Brake Lever: Typically a sign of warped brake rotors. This occurs when the discs are no longer perfectly flat, causing the pads to make inconsistent contact. Warped rotors usually need to be replaced.
- Squealing After Pad Replacement: Can be due to improper bedding-in, glazed rotors (if not de-glazed), or sometimes just the nature of new pads until they fully bed in. Ensure proper cleaning and bedding procedures are followed. If persistent, check for loose caliper bolts or contamination.
- Brake Drag: If the brakes feel like they're constantly on, even slightly, it could be sticky caliper pistons not fully retracting, or an issue with the master cylinder.
Frequently Asked Questions
Can I use non-genuine Yamaha brake pads?
Yes, you can use high-quality aftermarket brake pads provided they are compatible with your specific Yamaha model. Many reputable brands offer pads with different compounds for various riding styles. While genuine parts ensure perfect fit and performance as designed by Yamaha, aftermarket options can sometimes offer superior performance characteristics (e.g., for track use) or be more cost-effective. Always research and choose a trusted brand.
How often should I replace my Yamaha brake pads?
There's no fixed interval. It depends heavily on your riding style, the type of riding (city, touring, track), and the brake pad compound. Aggressive riding wears pads faster. Generally, front pads might need replacing every 10,000-20,000 miles, but regular visual inspection is the best guide. Replace them when the friction material is less than 2mm thick or if you notice any of the warning signs.
What's the torque spec for Yamaha calipers?
Torque specifications vary significantly by Yamaha model and even by specific caliper bolt. Always refer to your bike's service manual for the exact torque values. For the FZ-09 calipers holding them to the fork, the example given was 34Nm, but this is not universal. Using a torque wrench is essential to prevent damage or unsafe conditions.
Why are my new brakes noisy?
New brakes can sometimes be noisy for a few reasons: they might not be fully bedded-in yet, there could be some brake dust or contamination on the pads/rotors (ensure thorough cleaning), or some pad compounds (especially performance-oriented sintered pads) are inherently noisier than others. Ensure proper installation and bedding-in. If the noise persists and is a grinding sound, stop riding immediately and inspect for severe issues.
What is brake pad bedding-in?
Brake pad bedding-in is the process of gently heating and cooling new brake pads and rotors through a series of controlled stops. This process transfers a thin, even layer of friction material from the pads onto the rotor surface, creating an optimal mating surface. Proper bedding-in ensures maximum braking performance, reduces noise, and extends the life of both pads and rotors.
Maintaining your Yamaha's braking system is a critical aspect of motorcycle ownership. By understanding the nuances of brake pad compatibility, diligently following replacement procedures, and consistently monitoring for signs of wear, you ensure not only the longevity of your bike but, most importantly, your safety on every journey. Happy riding!
