The Unsung Hero: Understanding Your Car's Fuel Pressure Regulator

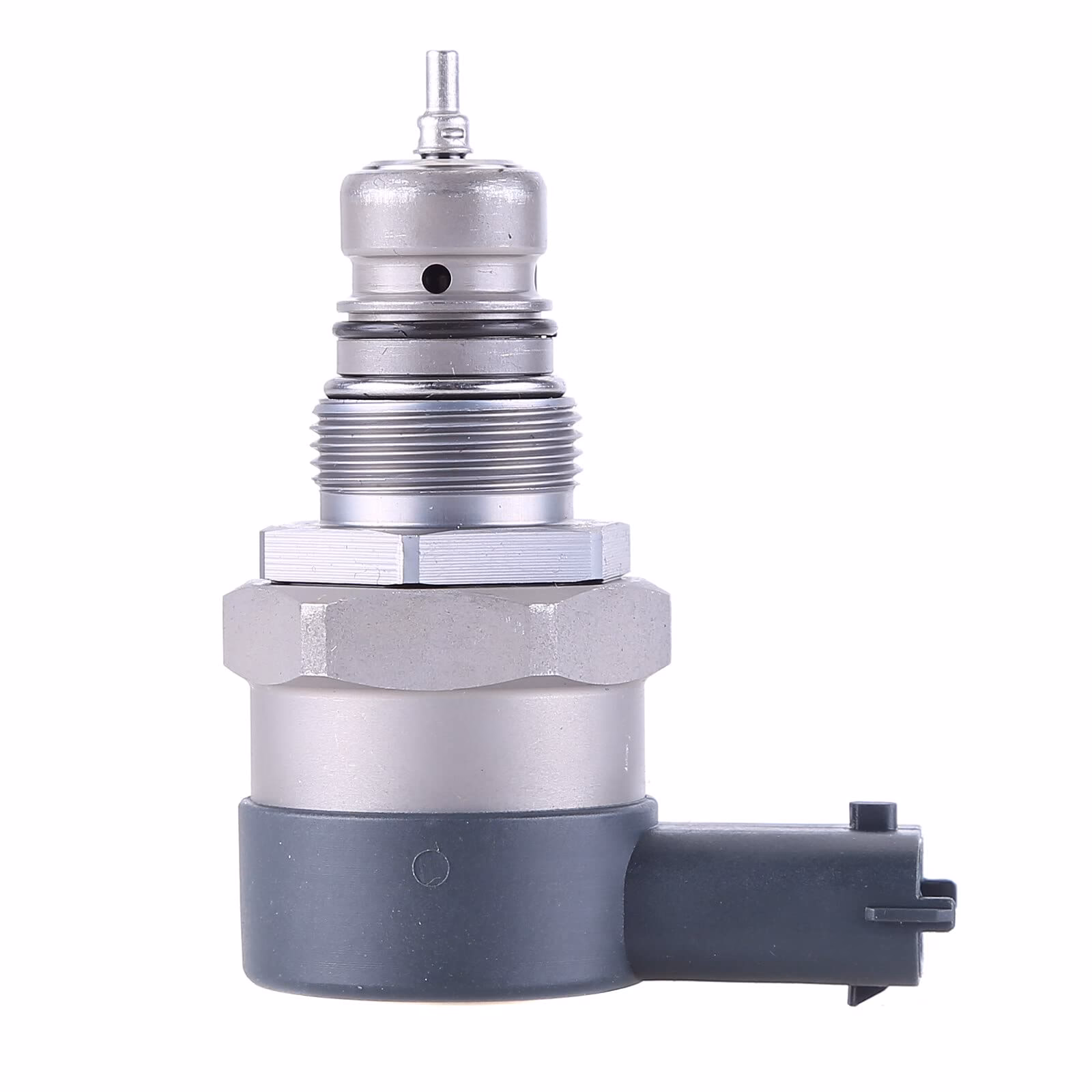

In the intricate world of automotive engineering, certain components operate with quiet efficiency, their importance often overlooked until a problem arises. The Fuel Pressure Regulator (FPR) is one such vital part of your vehicle's Electronic Fuel Injection (EFI) system. It's the unsung hero that ensures your engine receives the precise amount of fuel it needs to perform optimally, whether you're cruising down the motorway or accelerating hard. Without a properly functioning FPR, you could experience a host of performance issues, from rough idling to a complete loss of power. This article delves into the fascinating mechanics of fuel pressure regulators, exploring their function, the different types of fuel systems they operate within, and what you need to know for proper maintenance and troubleshooting.

The Fundamentals of Fuel Pressure Regulation

To truly appreciate what an FPR does, we first need to understand the concept of pressure within a fuel system. In an EFI setup, it's not simply about pushing fuel towards the injectors; it's about maintaining a consistent and controlled fuel delivery under all operating conditions. This control is achieved through precise pressure management, and two key pressure measurements are crucial: Rail Pressure and Effective Pressure.

Rail Pressure vs. Effective Pressure

Rail pressure is the absolute pressure measured within the fuel rail, which is the distribution pipe that feeds fuel to all the injectors. However, the more critical measurement for engine performance is effective pressure, also known as differential pressure. This refers to the actual pressure difference across the injector itself. It's calculated by subtracting the intake manifold pressure from the rail pressure. The effective pressure is what ultimately dictates how much fuel the injector sprays into the engine cylinder.

Consider this practical example: If your fuel rail pressure gauge reads 43.5 PSI at idle, and your intake manifold has a vacuum of 10.7 PSI, the effective pressure across your injectors is actually 54.2 PSI (43.5 PSI + 10.7 PSI). This understanding is paramount for anyone involved in tuning or diagnosing fuel system issues.

System Architectures: Return vs. Returnless

Modern vehicles utilise two main fuel system architectures, each with a different approach to managing fuel pressure:

Return-Style Systems

In a return-style system, there's a dedicated return line that channels any excess fuel back to the fuel tank. The FPR is typically located at the end of the fuel rail. This design offers several significant advantages:

• More consistent pressure control: Especially during rapid changes in engine load, the system can react quickly to maintain the desired pressure.
• Easier integration with forced induction: The vacuum/boost reference port on the regulator allows it to adjust fuel pressure in sync with changes in intake manifold pressure (vacuum or boost), ensuring optimal fuel delivery under all conditions.

The system maintains optimal effective pressure by adjusting the rail pressure in response to manifold pressure. During idle conditions with manifold vacuum, the FPR reduces rail pressure. Conversely, under boost conditions (where manifold pressure increases), it proportionally increases rail pressure to maintain the correct effective pressure across the injectors.

Returnless (Dead-End) Systems

As the name implies, returnless systems eliminate the return line to the fuel tank. In these systems, the FPR is often integrated directly with the fuel pump assembly, usually located within the fuel tank. These systems often rely on electronic control to modulate the fuel pump's output to regulate pressure and flow. While this design simplifies the overall plumbing, it can present challenges in maintaining consistent effective pressure, particularly during rapid load changes or in high-performance applications.

A key difference is that returnless fuel systems typically lack a vacuum reference to compensate for changes in manifold vacuum or boost. This is because the regulator is usually located a significant distance away from the intake manifold, making a direct reference line impractical or ineffective.

The Physics of Pressure Regulation

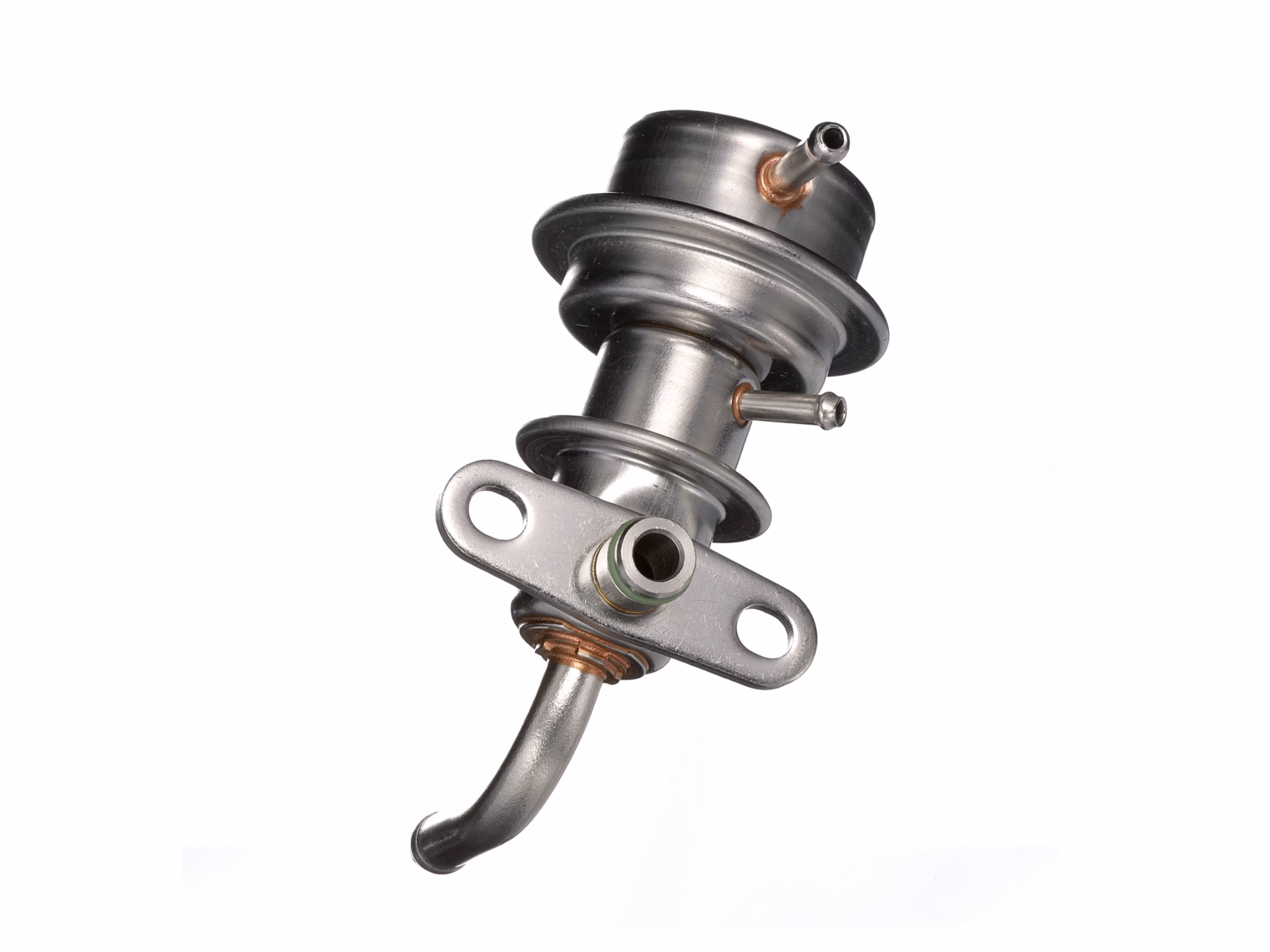

At its core, an FPR is a pressure-sensitive valve. Its operation is governed by two opposing forces:

1. Spring Pressure: An internal spring provides a baseline pressure setting.
2. Vacuum/Boost Reference: A diaphragm connected to the intake manifold (via a vacuum/boost reference line) exerts force on the valve. This force varies with engine load – it's a vacuum at idle and light load, and it becomes positive pressure (boost) under heavy load or acceleration in turbocharged/supercharged engines.

The regulator achieves pressure control through a process known as 'bleed-off'. When the fuel pressure exceeds the setpoint (determined by the spring pressure and the vacuum/boost reference), the valve opens, allowing excess fuel to flow back to the tank (in a return system) or signalling the pump to reduce its output (in some returnless systems). This continuous adjustment ensures stable fuel pressure across varying engine conditions.

The Importance of the 1:1 Ratio

In many forced induction applications, performance FPRs are designed to operate on a 1:1 ratio. This means that for every 1 PSI increase in boost pressure, the fuel pressure also increases by 1 PSI. This crucial relationship ensures that the effective pressure across the injectors remains constant, regardless of changes in manifold pressure, leading to predictable and consistent fuel delivery.

Critical Design Considerations for FPRs

Selecting the right FPR involves more than just matching a part number. Several design factors are critical for optimal performance:

Flow Capacity

An often-overlooked aspect is the regulator's flow capacity. The FPR must be capable of handling the maximum fuel output from your fuel pump, especially during idle conditions when engine fuel demand is low, but the pump is still operating at a high rate. An undersized regulator can lead to pressure spikes and erratic fuel delivery, potentially causing engine misfires or damage.

Material Compatibility

Modern fuels, including high-performance blends and alternatives like E85, can be aggressive and corrosive. The materials used in the FPR must be able to withstand this chemical attack:

• Diaphragms: Must be made from materials resistant to fuel degradation.
• Metal Components: Require appropriate plating or selection of corrosion-resistant alloys.
• Seals: Need to maintain their integrity and sealing properties across a wide range of fuel compositions and temperatures.

Base Pressure Adjustability

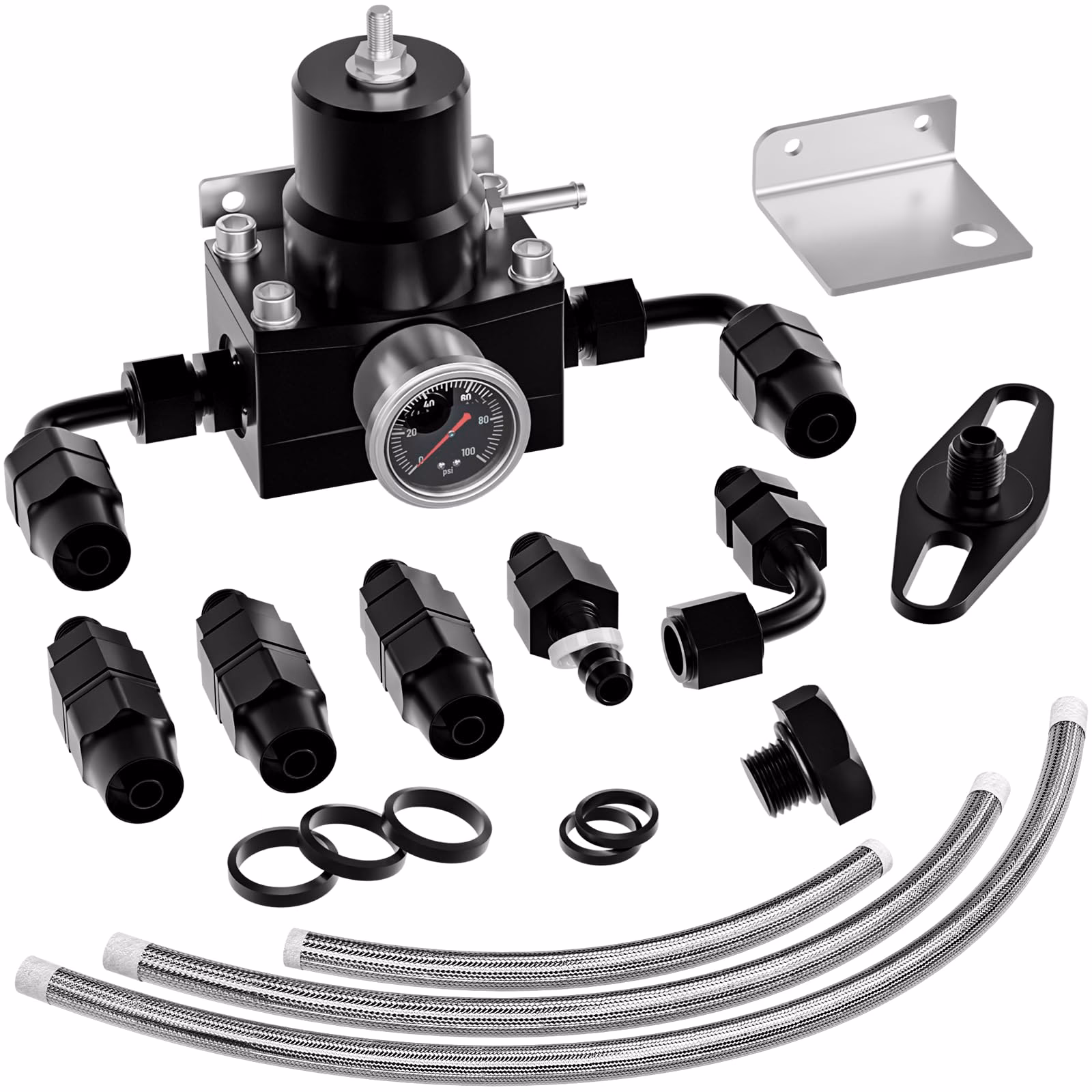

Different fuel injectors are designed to operate most efficiently at specific fuel pressures. Many aftermarket FPRs offer adjustable base pressure settings, typically ranging from 30 to 70 PSI. This adjustability allows tuners to fine-tune the fuel system to match the requirements of various injector sizes and engine modifications.

Advanced Applications and Special Considerations

E85 Compatibility

The increasing popularity of E85 (an 85% ethanol blend) presents unique challenges for fuel system components. The higher alcohol content makes E85 more corrosive and can also affect the fuel's lubricity. FPRs intended for use with E85 must feature:

• Alcohol-resistant diaphragms
• Corrosion-resistant internal components
• Enhanced sealing capabilities to prevent leaks

High-Performance Applications

Engines built for high performance, especially those with forced induction, place much greater demands on the fuel system. For these applications, it's essential to choose an FPR that offers:

• Higher flow capabilities: To support the increased fuel demands under high load.
• More precise pressure control: To ensure accurate fuel delivery for optimal combustion.
• Robust construction: To withstand higher system pressures and operating temperatures.
• Enhanced vacuum/boost reference sensitivity: For accurate and responsive pressure adjustments in turbocharged or supercharged engines.

Troubleshooting and Maintenance

Like any component, FPRs can fail or degrade over time. Here are some common issues and maintenance tips:

Common FPR-Related Issues:

• Inconsistent Fuel Pressure: Often a sign of a failing diaphragm that is no longer properly sealing or responding to pressure changes.
• Pressure Creep: If fuel pressure remains elevated or continues to rise when it shouldn't, it could indicate wear in the internal valve seat or a partially restricted return line.
• Slow Pressure Response: A sluggish reaction to changes in manifold pressure might point to a restricted or blocked vacuum/boost reference line.
• Fuel Leaks: Leaks around the FPR housing or fittings usually indicate degraded seals or improperly tightened connections.

Maintenance and Inspection:

Regularly inspecting your fuel system components, including the FPR, can prevent costly repairs. Here's what to look for:

• Check for Fuel Leaks: Visually inspect the FPR and its associated fittings and lines for any signs of fuel seepage.
• Verify Vacuum/Boost Reference Line Condition: Ensure the line is securely connected, free from cracks, kinks, or blockages.
• Monitor Pressure Gauge Readings: If you have a permanently installed fuel pressure gauge, pay attention to the stability and accuracy of the readings during different engine operating conditions.
• Inspect Electrical Connections: For electronic FPRs, check that all electrical connectors are clean, secure, and free from corrosion.

Summing Up

Fuel pressure regulators are critical components that ensure the precise fuel delivery essential for optimal engine performance in modern EFI systems. Understanding their operation, the differences between return and returnless systems, and the critical factors for selection and maintenance empowers you to make informed decisions for your vehicle. Whether you're undertaking a performance build, converting to alternative fuels, or simply performing routine maintenance on your daily driver, ensuring your FPR is in good working order is paramount for reliable and efficient engine operation. As automotive technology continues to evolve, so too will the design of FPRs, adapting to meet the demands of new fuels and increasingly sophisticated engine management systems.

Frequently Asked Questions (FAQs)

Q1: What is the primary function of a fuel pressure regulator?
A1: Its primary function is to maintain a consistent and correct fuel pressure within the fuel rail, ensuring optimal fuel delivery to the injectors under all engine operating conditions.

Q2: What's the difference between a return-style and a returnless fuel system?
A2: A return-style system has a return line that sends excess fuel back to the tank, often allowing for easier boost referencing. A returnless system lacks this return line, with pressure regulation typically managed by controlling the fuel pump's output.

Q3: Can I use a standard FPR with E85 fuel?
A3: It is strongly recommended to use FPRs specifically designed for E85 compatibility, as standard materials may degrade due to the corrosive nature of ethanol.

Q4: How does boost pressure affect fuel pressure in a return-style system with a 1:1 regulator?
A4: In a 1:1 system, for every 1 PSI of boost pressure, the fuel pressure increases by 1 PSI, maintaining a consistent effective pressure across the injectors.

Q5: What are the signs of a failing fuel pressure regulator?
A5: Signs include inconsistent fuel pressure, rough idling, poor acceleration, fuel leaks around the regulator, or a noticeable drop in fuel economy.
