Diesel Engine Fuel Injection Systems Explained

The fuel injection system stands as a cornerstone in the architecture of any diesel engine. It is the sophisticated mechanism responsible for precisely metering and delivering fuel into the combustion chamber at the exact right moment. This critical process is paramount for achieving optimal engine performance, maximising fuel efficiency, and significantly reducing harmful emissions. For any diesel engine owner or professional mechanic, a thorough understanding of this system's operation and proper maintenance procedures is absolutely essential.

In this comprehensive guide, we will embark on a detailed exploration of the fuel injection system. We will delve into its various components, understand their individual functions, and identify common issues that can arise. Furthermore, we will examine the different types of fuel injection systems prevalent today, highlighting the distinct advantages and disadvantages of each. Whether you're a seasoned diesel engine enthusiast or a professional mechanic looking to deepen your expertise, this article promises to provide invaluable insights into one of the most critical aspects of diesel engine performance.

Understanding the Heart of Your Diesel: The Fuel Injection System

The core principle behind the diesel engine's fuel injection process lies in the immense compression pressure generated by tightly fitted pistons within the cylinder liners. The Fuel Injection Pump (FIP) meticulously delivers a metered quantity of fuel, ensuring the precise air-to-fuel ratio required for efficient combustion. Fuel is then forced into the cylinders at exceptionally high pressure, where Fuel Injectors break it down into an incredibly fine spray, with droplets often measuring just a few microns in size.

This remarkable atomisation is achieved by forcing fuel through tiny orifices at very high pressures. Modern diesel engines tend to employ an increasing number of smaller orifices to further enhance pressure and improve spray quality. In some contemporary diesel engines, injection pressures can reach as high as 375 bar.

Principles and Operation for Complete Combustion

For complete and efficient combustion to occur within a diesel engine, three fundamental elements are indispensable:

• Fuel: The fuel for the combustion process is supplied by the Fuel Injection Pumps at the precise pressure required by the nozzles. These nozzles further atomise the fuel into minute droplets, facilitating the formation of a homogeneous mixture within the combustion chamber.
• Heat: Sufficient heat for the fuel to ignite is generated within the combustion chamber during the compression stroke of the engine's working cycle. This is a key distinction from petrol engines, which rely on a spark plug.
• Air: Air is supplied either through a natural induction process in naturally aspirated engines or under pressure by a turbocharger in turbocharged engines during the suction stroke. This air is crucial for ensuring the complete burning of the air-fuel mixture.

All three of these elements are vital for achieving complete combustion. Any deficiency or problem with one of these elements will inevitably lead to a reduction in the efficiency of any internal or external combustion engine.

The Fuel Oil System: Ensuring a Clean Supply

The fuel oil system in a marine diesel engine, which is analogous to land-based heavy-duty diesel applications, is typically categorised into two main parts: the Fuel Supply System and the Fuel Injection System.

The Fuel Supply System

The fuel supply system is specifically designed to prepare and deliver suitable fuel to the fuel injection system. This elaborate system comprises several interconnected sub-systems:

• Piping system for bunkering purposes (receiving fuel).
• Fuel storage system (maintains reserves).
• Fuel transfer system (moves fuel within the vessel/plant).
• Fuel offloading system (for removing fuel).
• Fuel Treatment system (purifies the fuel).

Within the fuel transfer system, fuel is initially received and stored in large storage tanks. For Heavy Fuel Oil (HFO), heaters are often provided in these tanks to maintain the correct pour point, ensuring the fuel remains fluid. From these storage tanks, fuel continuously circulates. It is then transferred to fuel settling tanks through a controlled valve, which regulates the supply based on demand. In the settling tank, heavier contaminants like gross water and solid particles are allowed to settle at the bottom due to gravity.

Following the settling process, fuel is supplied to fuel treatment units, typically centrifuges, which remove finer impurities and water. The purified, or 'centrifuged', oil is then passed to daily service tanks. From the daily service tank, fuel flows to a mixing unit via a three-way valve. The consumption of fuel is precisely monitored by a flow meter integrated into the system. Fuel supply pumps deliver this conditioned fuel to the engine-driven fuel pump. Finally, from the engine-driven pump, the fuel passes through fuel filters before reaching the fuel injection system.

A viscosity meter installed in the system plays a crucial role in controlling the fuel temperature to maintain the optimal viscosity for efficient combustion. Additionally, a pressure regulating valve ensures that fuel is supplied at a constant pressure to the engine-driven pump. A diesel tank is also incorporated into the system, connected via a three-way cock, primarily to collect circulated fuel and provide an alternative supply if the main day tank becomes empty. Various remote-operated safety devices, such as low-level alarms and remotely operated tank valves (for fire safety), are integral to the system's design.

Core Components of Fuel Injection

At the very heart of the diesel engine's fuel injection are two essential pieces of equipment:

• Fuel Injection Pump (FIP)
• Fuel Injector (or Fuel Valve)

The Fuel Injection Pump (FIP)

The Fuel Injection Pump (FIP) performs several critical functions to ensure the engine runs smoothly and efficiently:

• It supplies and injects the metered quantity of fuel to individual cylinders, precisely matching the engine's load requirements.
• It delivers the fuel at the correct time, strictly adhering to the engine's firing order.
• The FIP generates extremely high pressure, exceeding the injection pressure, to force the metered fuel into the injectors.

Types of Fuel Injection Systems

Modern diesel engines primarily utilise two main types of fuel injection systems:

Jerk Type Pump

The jerk-type pump is a traditional system used to inject fuel into the combustion chamber via a fuel valve. The pump consists of a plunger precisely fitted within a barrel. An engine-driven cam pushes the plunger upwards with the aid of a roller, while a spring facilitates its downward movement, ensuring constant contact between the cam follower and the cam profile. A unique design feature includes a rectangular vertical slot extending from the top of the plunger, connected to a helical groove. This helical groove is instrumental in controlling the amount of fuel injected, as regulated by the engine's governing system via a fuel control rod.

During the plunger's downward movement, both the suction and spill ports are open, allowing the barrel to fill with fuel. As the plunger moves upwards, pressure begins to build as soon as it covers these ports. The delivery valve, subjected to this rising fuel pressure, lifts from its seat against spring tension, allowing fuel to pass through a high-pressure fuel pipe to the fuel valve. Fuel injection continues until the plunger uncovers the spill cut-off port during its downward stroke, causing a sudden drop in pressure. The precise amount of fuel injected is controlled by the radial rotation of the plunger relative to the barrel, typically achieved through a rack and pinion arrangement.

The distance between the point at which the pump plunger begins discharge and the point at which discharge ends is known as the Effective Delivery Stroke. This stroke determines the volume of fuel injected.

The injection timing can be fine-tuned by adding or removing shims beneath the thrust piece above the roller guide. Increasing the shim thickness will advance the fuel timing, meaning fuel is injected earlier in the compression stroke. Conversely, decreasing the shim thickness will retard the fuel injection timing, causing it to occur later.

Advancing the fuel timing can yield several advantageous changes:

• Increase in peak pressure within the cylinder.
• Increase in thermal efficiency of the engine.
• Overall improvement in fuel efficiency.

However, excessive advanced timing can have negative effects, such as:

• Excessive engine vibrations.
• Shock engine loading.

Conversely, retarding the fuel timing generally leads to negative outcomes:

• Increased corrosion within the cylinder.
• High exhaust temperatures.
• After-burning, where combustion extends into the exhaust stroke.
• Lower thermal efficiency.

Common Rail Injection System

The common rail fuel injection system represents a more modern approach, operating as a solid injection system. In this setup, a constant high pressure, typically ranging from 300 bar to 500 bar, is maintained within a main fuel header by a bypass valve. Any excess fuel is returned to the main fuel supply tank.

High-pressure fuel is supplied to this common fuel header by a dedicated pump. From this header, the high-pressure fuel is then directed to each injector fitted in the cylinder heads. Fuel enters the cylinders at the appropriate time, controlled by a sophisticated, often electronically operated, mechanism. The pressure within the common rail header is meticulously designed to ensure that fuel droplets can penetrate deeply into the combustion chamber, effectively overcoming the high compression pressure.

The amount of fuel entering each cylinder is precisely regulated by a solenoid valve, which is operated by the Engine Control Unit (ECU). The ECU, a sophisticated computer, transmits a signal to the injector to initiate fuel injection after receiving critical data from various sensors, including the crank angle sensor, scavenge air temperature, engine speed, jacket water temperature, and engine load. The common rail system offers significant advantages, including reduced emissions, lower fuel consumption, and improved performance at lower engine speeds. It plays a pivotal role in enhancing overall combustion efficiency.

Jerk Pump vs. Common Rail: A Comparison

Mastering Injection Timing

The precise timing of fuel injection is a critical parameter that profoundly influences engine performance, efficiency, and emissions. As discussed, injection timing can be altered by adding or removing shims from the bottom of the thrust piece, situated above the roller guide in jerk-type pumps. The measurement of an 'X' dimension (specific to engine design) will change accordingly, indicating the timing adjustment.

Effects of Timing Adjustment

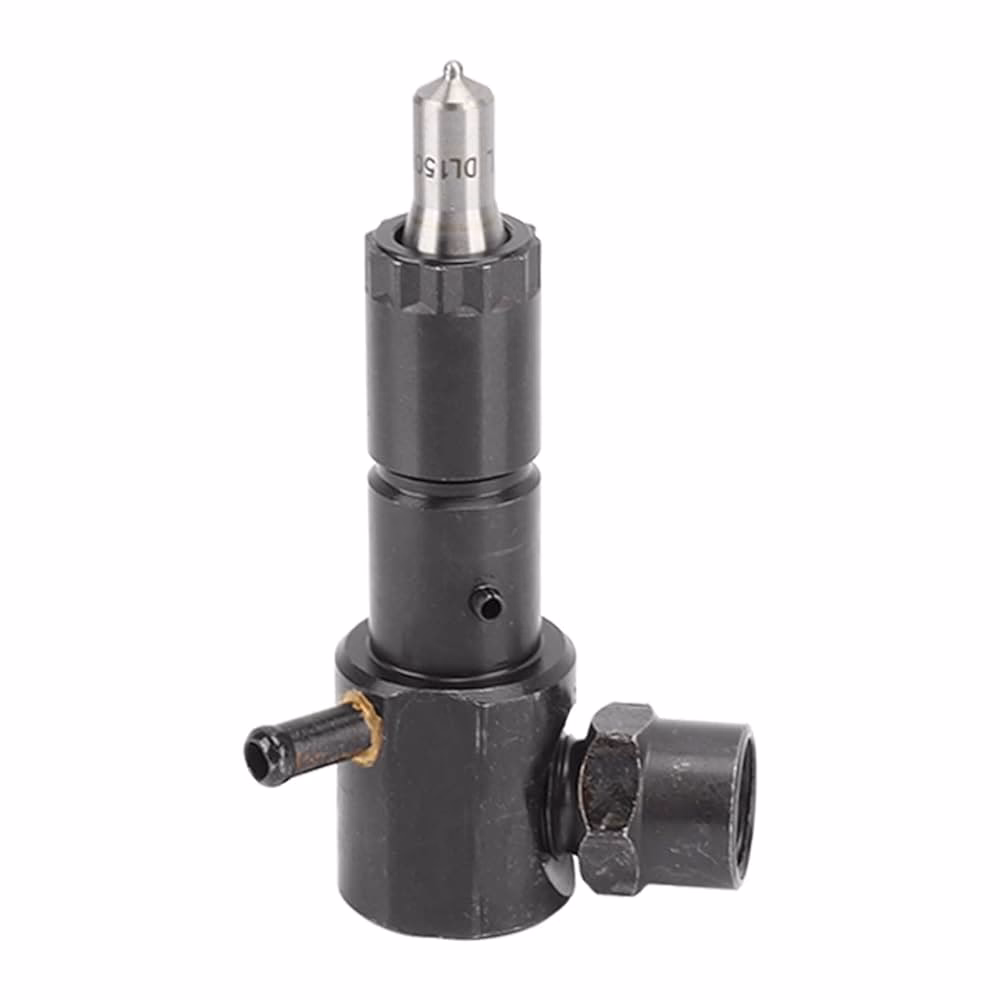

Fuel Injector: The Precision Sprayer

The fuel valve, commonly known as the fuel injector, is installed directly in the cylinder head. In jerk-type systems, a high-pressure fuel injection pipe connects the injector to the high-pressure fuel pump. In common rail systems, it connects to the accumulator (the common rail itself). The injector features a nozzle with multiple fine holes, which operates against a pre-adjusted spring tension to achieve the correct injection pressure. These holes are sealed by a needle valve, held firmly against its seat by spring pressure. A well-matched seating angle and good bearing surface ensure proper sealing of the holes.

During the delivery stroke of the fuel injection pump (or when the solenoid opens in common rail), high-pressure fuel is delivered to the injector chamber. As the pressure within this chamber increases and overcomes the spring pressure, the injector needle valve lifts from its seat, allowing fuel to be injected into the combustion chamber. Once the fuel injection is complete, the pressure in the fuel chamber rapidly decreases, and the spring forces the needle back onto its seat, shutting off the fuel flow. This sudden pressure drop is often linked to the spill cut-off mechanism of the high-pressure fuel pump.

Fuel Valve Tests: Ensuring Peak Performance

The excellent performance of fuel valves is verified through a series of critical tests:

• Good Atomisation: The fuel must be broken down into incredibly fine droplets.
• Correct Spray Pattern: The spray must match the design of the combustion chamber (often shaped by the piston crown).
• No Dribbling: Absolutely no fuel leakage should occur before or after injection.
• No Leakage at the Tip: The nozzle tip must remain dry.
• Correct Opening Pressure: The injector must open at its specified pressure.

Atomisation: The Key to Efficient Combustion

Fuel atomisation is the process where high-pressure injection transforms fuel into a fine mist of droplets. This process is crucial for mixing these droplets thoroughly with the compressed air in the combustion chamber, ensuring complete combustion. By increasing the surface area of the fuel droplets, atomisation facilitates better and faster mixing of air and fuel within the short combustion period.

In modern engines with high injection pressures, there is a clear trend towards using smaller droplets and a finer spray. During efficient combustion, these fine droplets burn out perfectly before they can reach the cylinder liner walls. The fuel is sprayed into the combustion chamber, typically formed between the piston crown and the cylinder cover. As the piston moves downwards, the spray penetrates further into the combustion chamber, burning completely before any droplet makes contact with the cylinder walls.

However, if the spray pattern produced by the fuel injector is not uniform or the droplets are too large, they will take longer to burn out. This can have severe consequences:

Effects of Poor Spray Pattern

A poor spray pattern can lead to several detrimental phenomena:

• The protective oil film on the working surface of cylinder liners can be destroyed, leading to dry rubbing of pistons and piston rings against the cylinder walls.
• The absence of lubricating oil increases the coefficient of friction, generating excessive heat.
• Excessive heat can cause piston seizures, ultimately leading to catastrophic engine failure.

Dribbling: A Silent Killer

A perfectly functioning nozzle should have a dry tip. No leakage is acceptable either before or after the injection event. Dribbling can be checked by manually performing several quick injections and then inspecting the nozzle tip for any leakage. Raising the pressure to within 10 to 15 bar of the opening pressure and holding it for approximately 10 seconds should also provide a clear indication.

If the needle tip does not seat properly, fuel will drip from the nozzle tip, wetting the surface of the piston crown. In such a situation, combustion will occur directly and locally at the crown, potentially causing the piston crown to melt away. The common reasons for nozzle dribbling include:

• Improper pressure setting.
• Dirt or carbon deposits stuck between the needle and the valve seat.
• Inappropriate contact or wear between the needle and its seat.
• The needle sticking within the injector body.

Nozzle Leak-off Rate

A very small amount of fuel is designed to pass between the needle and the valve body for lubrication. However, excessive clearance between the needle and the valve body will result in an increased leak-off rate, which reduces the effective amount of fuel supplied for combustion, thereby impacting engine power and efficiency.

Servicing of Fuel Valve

Dismounting and Cleaning

To service a fuel injection valve, first carefully remove it from the cylinder head, typically using a special tool. Mount the injector in a clamping bracket and loosen the locknut (B). Before dismantling the nozzle nut (H), release the tension of the nozzle spring by fully unscrewing the adjusting screw (D). Thoroughly clean any carbon deposits from the lower part of the nozzle (J). Remove the nozzle spring and the spring spindle. All parts should be cleaned with kerosene or gas oil and a stiff brush (avoid steel brushes). Use a specialised drill with a holder to clean the nozzle holes of any coke deposits. Clean the cooling space within the injector body and nozzle guide, then blow them dry with compressed air. Insert the nozzle needle into the needle guide with a small amount of gas oil; it should slide down smoothly under its own weight. Finally, inspect the nozzle holes for any oval wear using a magnifying glass. Any defective parts found during this inspection, particularly those showing heavy abrasion or damage, must be replaced.

Reassembling

After careful cleaning, inspection, and overhaul, and once all parts are confirmed to be in good order, the fuel injection valve can be reassembled. The reassembly process should be carried out in the reverse order of disassembly. Pay close attention to the following details:

• Lubricate the threads on the adjusting screw (D) with lubricating oil.
• Lubricate the threads of the nozzle holder for the nozzle nut.
• Apply an anti-seize product to the shoulder of the nozzle that contacts the nozzle nut.
• Ensure the plane sealing surfaces of the body and nozzle are wiped dry with paper.
• Always renew the sealing rings (C) and (E) during reassembly.
• Tighten the nozzle nut to the manufacturer's prescribed torque setting.

Pressure Testing of the Fuel Injection Valve

Effective checking of the fuel valve's performance is achieved through pressure testing using a dedicated pressure testing apparatus. The procedure is as follows:

• Mount the fuel injection valve in the test bracket, ensuring the nozzle is in a downward position.
• If applicable, mount the test pipe for testing the cooling oil system and apply pressure to it after venting the system. Check the sealing tightness of the O-rings.
• Mount the test pipe specifically for testing injection pressure and atomising quality.
• Increase the pressure gradually using the lever on the test apparatus.
• Adjust the opening pressure to the specified value (e.g., 320 bar) using the adjusting screw (D), then tighten the locknut (B). Recheck the opening pressure to confirm.
• While testing, observe the spray pattern. Do not necessarily expect a 'chatter' sound, but ensure that the nozzle sprays uniformly from all holes at the same angle.
• Raise the pressure to a slightly lower value (e.g., 300 bar) and slowly move the lever handle downwards to hold the pressure. There should be no more than one drip from the nozzle tip for a period of 3 to 5 seconds at this pressure.

Further tests conducted on fuel valves for optimal performance include:

• Spray Pattern Test: This test confirms a uniformly and properly atomised spray of fuel through all the holes. The quality of atomisation can be assessed by observing the impression left on blotting paper held at a specified distance, correlating to the height and crank angle of injection in the combustion chamber.
• Spray Pressure: The spray should occur within the specified pressure range (e.g., 320 to 350 bar). If the pressure is below the specified limit, the nozzle should be readjusted or replaced. Pressure adjustment is typically done by increasing or decreasing the tension of the nozzle spring.

When fuel is injected as a fine mist, the oxidation of these small droplets begins almost immediately. This rapid and efficient combustion, facilitated by smaller droplets, ensures optimal energy release. In modern engines, the trend is towards higher injection pressures to achieve even finer sprays and smaller droplets. During efficient combustion, these droplets burn out completely before they can reach the cylinder liner. The fuel is sprayed into the combustion chamber, which is typically formed between the piston crown and the cylinder cover. As the piston moves downwards, the spray penetrates further into this chamber, ensuring complete combustion before any droplets make contact with the cylinder walls.

However, if the spray pattern produced by the fuel injector is not uniform or consistent with the design, the droplets may be larger, leading to delayed combustion and the issues described under 'Effects of Poor Spray Pattern'.

Adjusting Maximum Combustion Pressure (Pmax)

Assuming that the fuel injector, inlet and exhaust valves, piston, turbocharger, and charge air cooler are all in perfect working condition, and the compression pressure (Pcomp) is well within normal limits, the Maximum Combustion Pressure (Pmax) can serve as a reliable indicator of the injection timing. This is particularly relevant for engines where Pmax is monitored.

• A low Pmax reading typically indicates delayed injection timing.
• A high Pmax reading usually suggests advanced injection timing.

As previously mentioned, injection timing is primarily changed by adding or removing shims from the bottom of the thrust piece located above the roller guide. Adjusting these shims directly alters the 'X' dimension, thereby modifying the injection timing.

Frequently Asked Questions (FAQs)

What is the primary function of a diesel fuel injection system?

The primary function is to precisely meter and deliver fuel into the combustion chamber at high pressure and at the correct time, ensuring optimal atomisation for efficient combustion, engine performance, and reduced emissions.

Why is 'atomisation' so important in diesel engines?

Atomisation is crucial because it breaks fuel into incredibly fine droplets, increasing their surface area. This allows for rapid and thorough mixing with compressed air, leading to more complete and efficient combustion within the very short timeframe available in the cylinder.

What are the main differences between a Jerk Type Pump and a Common Rail system?

The Jerk Type Pump uses individual mechanical pumps for each cylinder, generating pressure per injection. The Common Rail system uses a single pump to maintain constant high pressure in a shared rail, with electronic control for highly flexible and precise injection events, leading to better emissions and efficiency.

What are the potential consequences of a 'dribbling' fuel injector?

A dribbling injector means fuel leaks from the nozzle tip before or after injection. This can lead to localised combustion on the piston crown, potentially causing the piston to melt, as well as poor combustion, increased emissions, and reduced engine efficiency.

How does injection timing affect engine performance?

Advancing timing generally increases peak pressure, thermal efficiency, and fuel efficiency. However, excessive advance can cause vibrations and shock loading. Retarding timing typically leads to lower efficiency, higher exhaust temperatures, and potential corrosion due to incomplete combustion.

Understanding the intricacies of the diesel engine fuel injection system is fundamental to ensuring the longevity and efficient operation of any diesel-powered machinery. From the meticulous fuel supply system to the precision of the injectors and the critical role of timing, each component plays a vital part in the combustion process. Regular maintenance, adherence to inspection criteria, and prompt attention to any signs of malfunction are key to preventing costly repairs and maintaining peak performance. Mastering this complex system empowers owners and mechanics alike to keep diesel engines running smoothly and efficiently for years to come.
