Mastering EFI Tuning: Power and Precision

In the world of automotive performance, achieving optimal engine operation is a blend of art and science. At the heart of modern vehicle efficiency and power delivery lies Electronic Fuel Injection (EFI). But what if you could go beyond the factory settings and truly unlock your engine's hidden potential? Learning EFI tuning is your gateway to this enhanced performance, offering greater control, improved efficiency, and a deeper understanding of your vehicle's mechanics. Whether you're looking to fine-tune a street car, prepare a track machine, or simply gain invaluable skills, delving into EFI tuning is a rewarding endeavour.

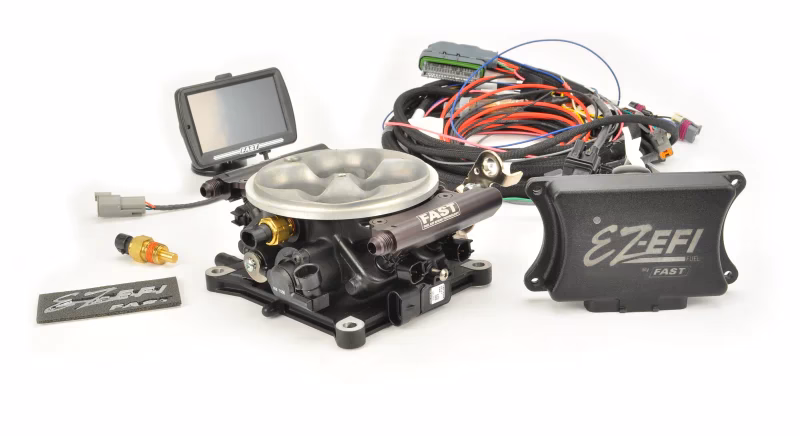

Why Embark on the EFI Tuning Journey?

Understanding the core fundamentals of EFI is the first step, but applying them is where the magic happens. EFI tuning allows you to tailor your engine's fuel and ignition maps to specific modifications, driving conditions, and performance goals. This process moves beyond generic factory settings, enabling you to:

• Maximise Power Output: By optimising the air-fuel ratio and ignition timing, you can extract more horsepower and torque from your engine.
• Improve Fuel Efficiency: A well-tuned engine burns fuel more effectively, potentially leading to better miles per gallon.
• Enhance Drivability: Smoother acceleration, better throttle response, and a more consistent idle are all achievable through careful tuning.
• Adapt to Modifications: When you upgrade components like camshafts, exhaust systems, or forced induction, EFI tuning is crucial to ensure the new parts work harmoniously with the rest of the engine.
• Diagnose and Solve Issues: A solid understanding of EFI allows you to troubleshoot performance problems more effectively.

Standalone vs. Reflash Tuning: A Comparative Look

When discussing EFI tuning, two primary approaches are commonly encountered:

Tuning on the Dyno: Essential Techniques

Whether you're using an engine dyno or a chassis dyno, precise tuning requires careful observation and technique. Here are some key considerations:

1. Chassis Dyno Dynamics and Pitfalls

Tuning an engine within a vehicle on a chassis dyno presents unique challenges. It's vital to maintain perspective on multiple parameters simultaneously – engine temperature, manifold pressure, air-fuel ratios, torque, and horsepower. This requires practice to become comfortable while the wheels are actively spinning.

Tire Traction: A critical factor is ensuring adequate tire adhesion to the rollers. High-powered vehicles can easily overpower the available grip, leading to wheelspin. When this occurs, the dyno cannot accurately measure the engine's true power output. On a dyno graph, this often manifests as an abnormal spike in engine speed accompanied by a drop in power and torque readings.

Air-Fuel Ratio (AFR) Readings: When using exhaust gas analysers, especially during rapid acceleration, false AFR readings can occur. This is because the sensor's sampling rate may not keep pace with the rapid changes in engine speed and exhaust gas composition. By the time a reading is processed and displayed, the engine might be operating in a different state, potentially leading to dangerous lean conditions or excessive fuelling. This makes accurate data acquisition and calibration adjustments difficult.

Tyre Preparation: For optimal results, use a good radial street compound tyre with appropriate pressure. Soft compound racing slicks or excessively low tyre pressure can cause the tyre to deform on the rollers, reducing the contact patch and leading to inaccurate power readings. Secure the vehicle tightly against the rollers to maximise the transfer of power.

2. Optimising Ignition Timing Tables

Ignition timing is a cornerstone of EFI tuning, directly influencing power output and engine health. The goal is to find the sweet spot that maximises power without inducing detonation.

Steady State Tuning: A common method involves using the dyno to hold the engine at a specific RPM. With the engine under a controlled load, you can then make incremental adjustments to ignition timing and observe the instantaneous power readings. Advancing the timing typically increases power, up to a certain point.

Identifying Maximum Advance: The most reliable way to determine the maximum allowable ignition advance is by using an onboard or aftermarket knock sensor. This sensor detects the tell-tale pinging of detonation, allowing you to back off the timing until it's no longer present. However, if a knock sensor isn't available, a visual inspection of spark plugs can provide valuable clues.

Spark Plug Inspection: After making several hard pulls with a particular timing setting, shut down the engine and remove the spark plugs. Inspect the ground strap for colour changes. Ideally, the hottest part of the combustion cycle, indicated by a colour change, should be around the centre of the J-shaped ground strap. If the colour change is further down towards the base, it suggests insufficient heat and the need for more ignition advance. Conversely, if the colour change is near the tip, it indicates too much heat and potentially pre-ignition, requiring a reduction in ignition advance.

Advanced Tuning Strategies and Considerations

3. Stabilising Idle with Ignition Timing

When dealing with small displacement engines equipped with large injectors, achieving a stable idle can be challenging. This is often due to the ECU's inability to precisely control the injector opening and closing times for such large injectors, especially at low pulse widths.

ECU Voltage: Ensure your ECU is receiving optimal battery voltage from the alternator. Inconsistent voltage can impair the ECU's ability to maintain stable injector control.

Idle Timing Advance: Employing a slightly more advanced ignition timing at idle can help the engine generate more torque, aiding in a smoother and more consistent idle.

Fuel Pressure Adjustment: A subtle reduction in base fuel pressure can alleviate the strain on the injector's solenoid. Less pressure to overcome means the injector driver has an easier time opening and closing the injector accurately. However, be cautious not to lower the pressure too much, as this can lead to poor fuel atomisation, exacerbating idle issues.

High-Quality ECUs: Brands like MoTeC, Autronic, and EFI Technology are known for their robust injector control capabilities, even with large injectors on smaller engines. When selecting an EFI system, consider these factors alongside initial cost if idle quality is a primary concern.

4. The Crucial Role of Oxygen Sensors

Tuning a modern fuel-injected engine without an oxygen sensor is akin to flying blind. The O2 sensor provides real-time feedback on the air-fuel ratio, enabling precise adjustments.

Sensor Placement: Mount the O2 sensor in a location that captures exhaust data from as many cylinders as possible. In V-configured engines (V6, V8), the ideal spot is often the exhaust collector where exhaust gases from multiple cylinders merge. For turbocharged four-cylinder engines, placement just before the turbo inlet is common, but be mindful of potential sensor overheating, as exhaust gas temperatures can easily exceed the sensor's limits (typically around 800°C).

Exhaust System Integrity: Ensure there are no leaks or cracks in the exhaust system upstream of the O2 sensor. Leaks can introduce fresh air, leading the sensor to report a leaner mixture than is actually present.

Air Injection Systems: Be aware of and disable any secondary air injection systems that introduce fresh air into the exhaust stream for emissions control. This air can also trick the O2 sensor into reading falsely lean conditions.

Sensor Protection: Protect your O2 sensor from sealants and chemicals. Furthermore, using leaded fuel will significantly reduce the lifespan of the sensor.

5. Back to Basics: Ignition System Health

Often, performance issues attributed to the fuel system can actually stem from the ignition system. A wise old tuner once noted that "ninety percent of all your carburetor problems will be found in the distributor." This adage holds true for EFI systems as well.

Misfire Detection: An engine misfire can lead to erroneous O2 sensor readings. When an ignition event fails, unburned fuel exits the cylinder, and the O2 sensor, which only reads burned hydrocarbons, interprets this as a lean condition. Novice tuners might incorrectly add fuel to compensate, often worsening the problem.

Ignition System Inspection: Always ensure your ignition system is in optimal working order. This includes:

• Spark Plugs: Visually inspect spark plugs for damage and ensure their gaps are set according to manufacturer specifications.
• Spark Plug Wires: Check for signs of wear, burning, or melting, particularly where they are routed near hot exhaust components.
• Wiring and Connections: Inspect all power and ground supply wires to the ignition system and the high-voltage leads to the ignition coils for any damage or loose connections.

Thoroughly inspecting and rectifying any issues within the ignition system is often the quickest and most effective way to resolve many tuning-related problems.

Understanding Injection Timing

The precise moment fuel is injected relative to the engine cycle can significantly impact atomisation, combustion efficiency, and idle quality. While ignition timing is often discussed in terms of advance (before Top Dead Centre), injection timing is typically set in true crankshaft degrees.

Valve Overlap: The general consensus among tuners is to aim for fuel injection to occur while the intake valve is open. This promotes better atomisation as the fuel is drawn into the cylinder.

High Load/RPM Scenarios: At higher engine loads and RPMs, where injector duty cycles are extended, injecting fuel onto the closed intake valve can be beneficial. This technique helps atomise the fuel and simultaneously cools the intake valve, potentially preventing pre-ignition.

Crankshaft Degrees Reference:

• 0°: Start of Power Stroke
• 180°: Exhaust Stroke
• 360°: Intake Stroke
• 540°: Compression Stroke

Adjusting the injection angle correctly, especially with large injectors and fully sequential injection, can make the difference between a smooth-running engine and one plagued by rough idling and poor low-load operation.

Frequently Asked Questions

Can I tune a fuel-injected engine without an oxygen sensor?

While it's technically possible to make basic fuel adjustments without an O2 sensor, it is highly discouraged for optimal tuning. An O2 sensor provides critical real-time feedback on the air-fuel ratio, allowing for precise adjustments. Tuning without one is largely guesswork and can lead to suboptimal performance or even engine damage.

How do I set a fuel injection angle?

The process for setting the fuel injection angle varies depending on the ECU. Generally, you will access a table within the ECU's tuning software (e.g., 'Fuel Injection Angle'). The goal is typically to inject fuel during the intake stroke when the intake valve is open. Advanced tuners may strategically inject fuel onto a closed intake valve at higher loads for better atomisation and cooling. Always refer to your specific ECU's manual for detailed instructions and best practices.

What are the signs of detonation?

Detonation, or engine knock, is a harmful condition where the fuel-air mixture ignites prematurely and uncontrollably. Audible signs include a metallic pinging or rattling sound from the engine, particularly under load. On a dyno, it can manifest as a sudden drop in power. Spark plug inspection, as described earlier, can also reveal signs of detonation through discolouration or damage to the ground strap.

Is EFI tuning only for performance cars?

While EFI tuning is strongly associated with performance enhancements, its principles can be applied to any fuel-injected vehicle. Improving fuel efficiency, tidying up drivability issues, and adapting to modifications are benefits that apply to a wide range of vehicles, not just dedicated performance machines.

By dedicating time to understanding and practicing EFI tuning techniques, you can transform your vehicle's performance and gain a deeper appreciation for the intricate workings of modern engines. The journey from fundamental knowledge to expert calibration is a rewarding one, opening doors to a world of enhanced power and precision.
