High Pressure Diesel Fuel Tubes Explained

In the intricate world of diesel engine technology, precision and resilience are paramount. At the heart of the fuel delivery system lies a critical component: the high pressure diesel fuel injection tube. These robust conduits are responsible for transporting atomised fuel from the injection pump or common rail to the injectors, operating under immense pressures to ensure efficient combustion. Understanding their construction, the materials used, and the rigorous manufacturing processes involved is key to appreciating their contribution to the power, economy, and emissions control of diesel vehicles and machinery.

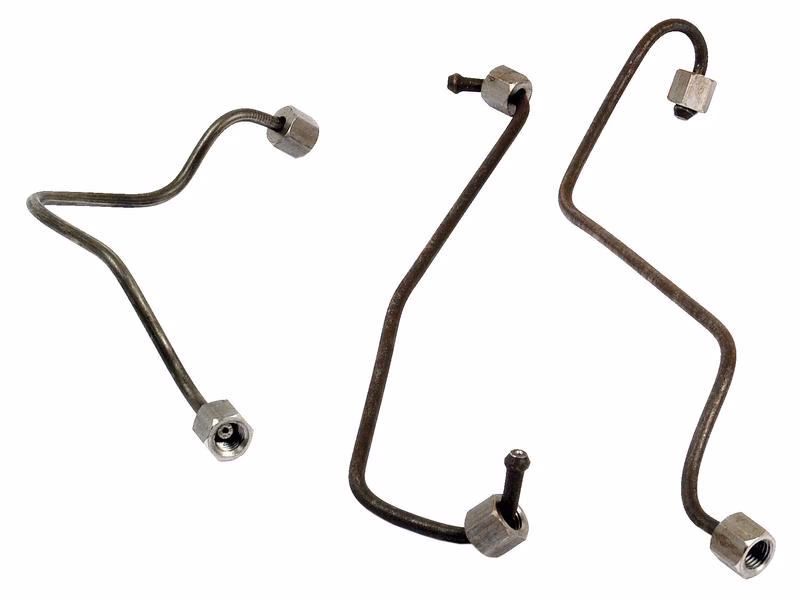

What are High Pressure Diesel Fuel Injection Tubes?

High pressure diesel fuel injection tubes are specialised metal pipes designed to withstand the extreme pressures generated within a diesel engine's fuel injection system. These pressures can range from several hundred to over two thousand bar (approximately 30,000 to 30,000 psi or more), depending on the engine's design and operating conditions. Their primary function is to deliver a precisely metered and atomised spray of diesel fuel directly into the combustion chamber, or into the pre-combustion chamber in older indirect injection systems. The integrity and performance of these tubes are directly linked to the engine's overall efficiency, power output, and emissions.

The Crucial Role in Diesel Engines

Diesel engines rely on a high-pressure fuel injection system to achieve efficient combustion. Unlike petrol engines that often use lower-pressure port injection or direct injection, diesel engines require significantly higher pressures to overcome the resistance of the air charge within the cylinder and to ensure that the fuel is atomised into extremely fine droplets. This fine atomisation is crucial for rapid evaporation and mixing with the hot compressed air, leading to efficient and clean combustion. The fuel injection tubes are the arteries that carry this high-pressure fuel, and any compromise in their structure or material integrity can lead to:

• Reduced engine power and torque
• Poor fuel economy
• Increased exhaust emissions (particulates, NOx)
• Rough idling and poor throttle response
• Potential for catastrophic engine failure due to fuel leaks or component rupture

Therefore, the quality and reliability of these tubes are non-negotiable for any diesel engine manufacturer.

Construction and Materials: The Backbone of Durability

The construction of high pressure diesel fuel injection tubes is a testament to engineering excellence, focusing on materials that can endure extreme stress and corrosive environments. The provided information highlights a key aspect of their manufacturing: the use of Aluminium killed steel. This specific type of steel is treated with aluminium during its production process. This treatment serves a crucial purpose in preventing the phenomenon known as 'ageing'.

Preventing Ageing and Embrittlement

Ageing in steel refers to a process where the material becomes progressively harder and more brittle over time, especially when exposed to elevated temperatures. This embrittlement can lead to the formation of cracks, particularly at stress concentration points, which are inevitable in a high-pressure fuel system. By using Aluminium killed steel, manufacturers effectively mitigate this risk. The aluminium reacts with nitrogen in the steel, forming stable aluminium nitrides. These nitrides prevent the migration of interstitial nitrogen atoms, which are the primary cause of strain-age embrittlement. This ensures that the tubes maintain their ductility and mechanical properties throughout their service life, even under constant thermal and mechanical cycling.

Material Purity and Trace Elements

Beyond the primary material composition, the meticulous control over dissolved gas content and trace elements in the raw material is another critical factor. Impurities or variations in the elemental composition can significantly affect the steel's performance, leading to unpredictable failure modes. Manufacturers who closely monitor and control these aspects are able to guarantee a consistent and superior product. This attention to detail ensures that the tubes are free from internal defects that could initiate cracks under pressure.

Surface Finish: A Matter of Microns

The internal surface finish of a fuel injection tube is surprisingly important. The specification of a surface roughness of well below 2 Microns Ra (Roughness Average) is a key indicator of the precision involved. A smoother internal surface offers several benefits:

• Reduced Fuel Flow Restriction: A smoother bore minimises turbulence and resistance to fuel flow, ensuring that the fuel reaches the injector with the intended pressure and volume.
• Minimised Wear: It reduces the potential for abrasive particles within the fuel to cause wear on the tube's inner surface.
• Improved Sealing: A finer finish contributes to better sealing at the connection points, preventing leaks.

The mention of bore grade "R" according to ISO 8535, with the option for grade "P", indicates adherence to international standards for dimensional accuracy and surface quality. ISO 8535 specifically deals with requirements for seamless steel tubes for hydraulic and pneumatic power systems, which are directly applicable to fuel injection systems due to the high pressures involved.

Heat Treatment: Enhancing Ductility and Strength

The heat treatment process is vital in imparting the desired mechanical properties to the fuel injection tubes. Heating the tubes above the upper critical transformation temperature and then carefully controlling the cooling process results in several desirable characteristics:

• Bright Finish: The absence of scale on the surface indicates a clean and controlled heat treatment process, often achieved in a controlled atmosphere furnace.
• Scale-Free: Scale formation can create surface defects and reduce the material's toughness. A scale-free finish is a sign of quality.
• Soft and Ductile: The heat treatment is optimised to achieve a soft and ductile state in the steel. This is crucial for the subsequent manufacturing processes the tubes will undergo.

Forming Operations: Bending, Flaring, and More

The exceptional reliability and ductility achieved through the manufacturing process are essential for the various forming operations required to install these tubes within an engine. These operations include:

• Bending: Tubes must often be precisely bent to route them through the engine bay without kinking or creating excessive stress concentrations.
• Flaring: The ends of the tubes are typically flared to create a seal with fittings, ensuring a leak-proof connection.
• Fluting: In some systems, the ends of the tubes may be fluted or grooved to improve grip with ferrule fittings.
• Soldering: While less common in modern high-pressure systems, some older or specialised applications might involve soldering.
• Ferrule Biting: This is a common method where a ferrule (a metal ring) is compressed onto the tube and fitting, creating a strong and reliable seal.

The ability of the tubes to withstand these forming operations without compromising their structural integrity or developing internal flaws is a direct result of the careful material selection and heat treatment. This ensures that when installed, they can reliably handle the dynamic loads and pressures of engine operation.

Applications: Where These Tubes Excel

The robustness and precision of these high pressure fuel injection tubes make them indispensable in a wide range of diesel-powered applications. As mentioned, the primary applications include:

Automotive Diesel Engines

This is perhaps the most widespread application, covering everything from passenger cars, SUVs, and light commercial vehicles to heavy-duty trucks and buses. Modern diesel engines in these vehicles often utilise common rail direct injection (CRDI) systems, which operate at the highest pressures, demanding the utmost reliability from the fuel lines.

Construction Equipment

The demanding environment in which construction equipment operates requires highly durable and reliable components. Excavators, bulldozers, loaders, cranes, and other heavy machinery are typically powered by robust diesel engines. These engines often operate under heavy load for extended periods, making the integrity of the fuel injection system, including the high-pressure tubes, absolutely critical for uptime and performance.

Agricultural Machinery

Tractors, harvesters, and other agricultural equipment also rely heavily on diesel power. These machines often work in remote locations and under challenging conditions, where component failure can lead to significant delays and financial losses. The fuel injection tubes must be built to withstand vibration, dust, and continuous operation.

Marine Diesel Engines

From small fishing boats to large cargo ships and ferries, diesel engines are a common power source. Marine environments can be corrosive, and the engines may operate for long durations, underscoring the need for high-quality fuel lines that can resist fatigue and corrosion.

Industrial Generators and Power Units

Many industrial applications utilise diesel engines for backup power generation or primary power in off-grid locations. Reliability is paramount in these scenarios, and the fuel delivery system must be faultlessly consistent.

Manufacturing Flexibility: Meeting Diverse Needs

A key feature highlighted is the flexible manufacturing options. This means that suppliers can cater to a wide spectrum of customer needs, from small, specialised batches for niche applications or prototyping, to large-scale production runs for major Original Equipment Manufacturers (OEMs). This adaptability ensures that whether a customer requires a few hundred tubes or hundreds of thousands, they can be supplied efficiently and on time. This responsiveness is crucial in the fast-paced automotive and industrial sectors.

Quality Assurance: The Ultimate Guarantee

The commitment to quality is evident throughout the description. Catering to the requirements of major Diesel Engine manufacturers and auto ancillaries signifies an adherence to stringent industry standards. The emphasis on material control, surface finish, and heat treatment, all monitored and controlled, provides assurance of performance and longevity. This meticulous approach ensures that the tubes not only meet but often exceed the demanding expectations of the diesel engine industry.

Frequently Asked Questions

Q1: What is the main purpose of high pressure diesel fuel injection tubes?

A1: Their main purpose is to safely and reliably transport diesel fuel at very high pressures from the fuel pump or common rail to the engine's fuel injectors, ensuring precise fuel delivery for efficient combustion.

Q2: Why is Aluminium killed steel used for these tubes?

A2: Aluminium killed steel is used to prevent 'ageing', a process that makes steel brittle over time. This ensures the tubes remain ductile and resistant to cracking under pressure and thermal stress.

Q3: What does a surface roughness of less than 2 Microns Ra mean for the tube?

A3: It means the internal surface of the tube is extremely smooth. This reduces fuel flow restrictions, minimises wear, and contributes to better sealing at connection points.

Q4: Can these tubes be bent or shaped?

A4: Yes, the tubes are manufactured to be highly ductile and reliable for various forming operations like bending and flaring, allowing them to be installed correctly in complex engine layouts.

Q5: What types of vehicles use these high pressure fuel tubes?

A5: They are used in virtually all diesel-powered vehicles and machinery, including cars, trucks, buses, construction equipment, agricultural machinery, and marine engines.

Conclusion

High pressure diesel fuel injection tubes are unsung heroes of the diesel engine. Their design, material selection, and manufacturing precision are critical for delivering the power, efficiency, and reliability that diesel engines are known for. The commitment to using quality materials like Aluminium killed steel, controlling surface finishes to the micron level, and employing precise heat treatments ensures that these components can withstand the incredibly harsh operating conditions within a fuel injection system. Whether in a passenger car or a colossal piece of construction equipment, these tubes play an indispensable role, ensuring that every drop of fuel is delivered exactly when and where it's needed for optimal performance.
