Pulsejet Performance: Fuel Injection Explained

Pulsejet engines, often recognised for their distinctive 'buzz', are remarkable for their sheer simplicity and cost-effectiveness. While their operational principles are relatively straightforward, the quest for enhanced performance has led to various design refinements. One significant area of development centres around the method of fuel delivery, specifically the impact of pressurized fuel injection. This article delves into how this technique, when applied strategically within the engine's cycle, can elevate a pulsejet's capabilities, potentially rivaling those of more complex turbojet engines.

Understanding the Pulsejet Engine

At its core, a pulsejet engine operates on the Lenoir cycle. Unlike engines that rely on external mechanisms for compression, such as pistons in an Otto cycle or turbines in a Brayton cycle, the pulsejet achieves compression through acoustic resonance within a tube. This inherent characteristic limits the pre-combustion pressure ratio to a modest range of approximately 1.2 to 1. The consequence of this process is a characteristic high noise level, which has historically restricted their application to military and specialised uses. Despite this, pulsejets possess an excellent thrust-to-weight ratio, though their specific fuel consumption is notably poor.

A Brief History and Evolution

The journey of the pulsejet engine is as fascinating as its operation. Initially conceived for applications where noise was a secondary concern, their simplicity made them attractive for various uses. From powering experimental helicopters, where their direct thrust on rotor tips eliminated the need for complex torque-compensating tail rotors, to their iconic role in the V-1 flying bomb, pulsejets have carved a unique niche in aviation history. Early helicopters like the American Helicopter Company's XA-5 Top Sergeant and the Hiller Powerblade demonstrated the potential of rotor-tip propulsion. However, issues like extreme noise and problematic autorotation landings due to drag led to the cancellation of some ambitious projects, such as the XH-26 Jet Jeep.

The evolution continued with advancements in control-line and radio-controlled model aircraft, pushing the boundaries of speed. Designs evolved to overcome limitations imposed by ram air pressure at high velocities. Valveless designs, in particular, showed an advantage as they were less susceptible to performance degradation caused by ram air, with some even experiencing power increases at speed. The integration of an 'augmentor' or specially shaped duct behind the engine also emerged as a method to even out the pulsating thrust and significantly increase overall thrust with no additional fuel cost, though this came with the trade-off of increased drag at certain speeds.

How Pulsejets Work: The Cycles of Operation

Pulsejet engines can be broadly categorised into two main types: valved and valveless. Both rely on a cyclical process of fuel ignition, expansion, and expulsion of gases to generate thrust.

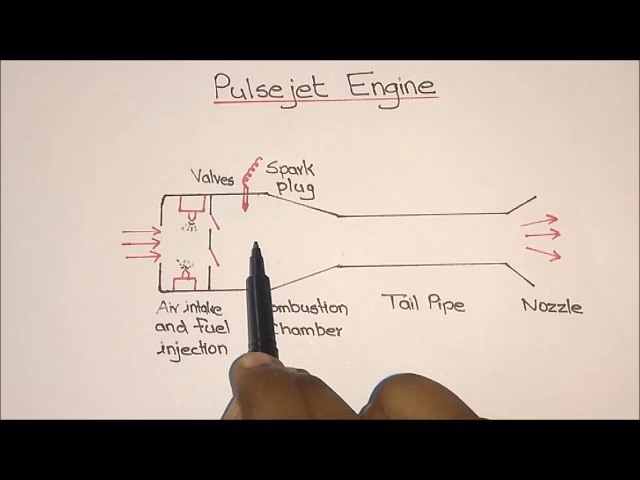

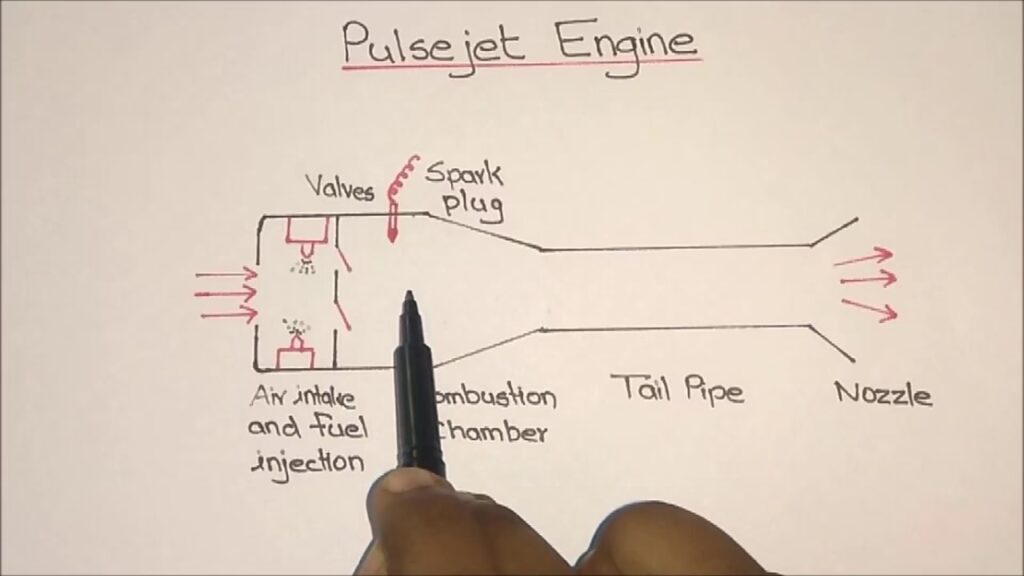

Valved Pulsejet Operation

Valved pulsejets employ a mechanical valve, typically a one-way reed valve, at the intake. The process begins with air entering the intake and mixing with fuel. Upon ignition, the expanding gases create high pressure, which forces the hot gases out through the exhaust. Crucially, this expansion also serves to close the intake valve, preventing blowback and directing the thrust rearward. The inertia of the exiting exhaust gases then creates a partial vacuum, drawing in fresh air and fuel for the next cycle. The frequency of these pulses is largely determined by the engine's length, with smaller engines pulsing hundreds of times per second, while larger ones, like the V-1's engine, operated at lower frequencies, earning them the moniker 'buzz bombs'.

Common valve configurations include the 'daisy valve', a simpler design for smaller engines, and the more efficient 'valve grid'. Despite their effectiveness, valved designs can suffer from some gas leakage through the intake valves, especially at lower speeds or when static.

Valveless Pulsejet Operation

Valveless pulsejets, as the name suggests, eschew moving parts. Their operation relies entirely on the engine's geometry to manage airflow and exhaust. In these designs, exhaust gases are expelled through both the intake and the exhaust outlets. However, the larger cross-section of the exhaust directs the majority of the mass, creating a more significant inertial effect. This effect generates a partial vacuum after combustion, which reverses the flow at the intake, drawing in fresh air and fuel. This self-regulating process occurs dozens of times per second.

Fuel can be mixed with air in the intake or injected directly into the combustion chamber. While starting often requires an external ignition source and forced air, many modern designs can achieve self-starting with just fuel and a spark. The combustion cycle typically involves induction, compression, fuel injection (if applicable), ignition, combustion, and exhaust. The key advantage of valveless designs lies in their robustness; with no valves to wear out or fail, they are simpler to maintain and more resilient to high-speed operation where ram air can hinder valved engines. This resilience allows them to achieve higher top speeds, with some advanced configurations capable of operating at or beyond Mach 0.7.

The Impact of Pressurized Fuel Injection

The claim that pressurized fuel injection, delivered within a shorter, strategically timed window, can significantly improve pulsejet performance is a compelling one. This method aims to optimise the fuel-air mixture and its introduction into the combustion chamber.

Optimised Combustion: By injecting fuel under pressure and timing it precisely with the low-pressure phase (the vacuum created after exhaust), the fuel can be atomised more effectively and mix more thoroughly with the incoming air. This leads to a more complete and efficient combustion process.

Increased Pressure Ratios: While inherent limitations exist, precise fuel injection might allow for slightly higher effective pressure ratios during the combustion phase. A more forceful and controlled combustion event directly translates to greater thrust.

Reduced Fuel Consumption: A more efficient combustion process inherently leads to better fuel economy. By ensuring that more of the injected fuel is burned effectively during each pulse, the specific fuel consumption can be improved.

Comparable Performance: The assertion that this can bring pulsejet performance levels comparable to turbojets is ambitious. Turbojets benefit from continuous, highly compressed airflow and sophisticated fuel management. However, by maximising the efficiency of each pulse and optimising the fuel delivery, the overall thrust and efficiency of a pulsejet can be substantially enhanced, narrowing the performance gap, especially in specific operating regimes.

Fuel Options and Versatility

A notable characteristic of pulsejet engines is their remarkable fuel flexibility. They can operate on a wide range of combustible materials, including conventional fuels like gasoline and jet fuel, as well as alternative sources such as E85 bioethanol and even particulate fuels like sawdust or coal powder. This versatility makes them attractive for applications where fuel availability might be a concern or where utilising waste materials is desirable.

Modern Applications and Future Prospects

While not mainstream for passenger aircraft due to noise and vibration, pulsejets continue to find utility in various sectors:

• Target Drones: Their simplicity and low cost make them ideal for uncrewed aerial vehicles used for training and testing.
• Model Aircraft: They remain popular in control-line and radio-controlled model aviation, offering high speeds and a unique operational experience.
• Industrial Drying: Their ability to efficiently convert fuel into heat makes them suitable for industrial drying processes.
• Heating Systems: Experimenters are exploring their use in home heating and boiler systems, leveraging their fuel versatility.
• Biomass Conversion: The capability to run on materials like sawdust opens avenues for biomass energy conversion.

Proposed Enhancements and Innovations

Research into pulsejet technology is ongoing, with a focus on overcoming existing limitations and exploring new applications. The development of Pulse Detonation Engines (PDEs) represents a significant step forward, promising higher fuel efficiency even when compared to turbofan engines, particularly at very high speeds. Major aerospace companies are investing in PDE research. Furthermore, concepts like Boeing's Pulse Ejector Thrust Augmentor (PETA) explore using pulsejet technology for vertical lift in VTOL aircraft, highlighting the continued innovation in this field.

Table 1: Pulsejet vs. Turbojet - A General Comparison

Frequently Asked Questions

Q1: Can a pulsejet really perform like a turbojet?
While a standard pulsejet is significantly less efficient and more limited in speed and noise than a turbojet, advanced pulsejet designs, particularly those incorporating optimised fuel injection and potentially pulse detonation principles, can achieve performance metrics that approach or even exceed certain aspects of turbojet performance in specific niche applications or speed ranges.

Q2: Why are pulsejets so noisy?
The noise is a direct result of the rapid, intermittent combustion process. Each explosion within the combustion chamber creates a pressure wave, and the rapid succession of these waves generates the characteristic loud, pulsating sound.

Q3: What are the main advantages of a valveless pulsejet?
The primary advantages are their extreme simplicity, lack of moving parts leading to higher reliability and easier maintenance, and their superior performance at high speeds compared to valved designs, as they are not adversely affected by ram air pressure.

Q4: How does fuel injection improve pulsejet performance?
Pressurized fuel injection allows for better atomisation and more precise timing of fuel delivery into the combustion chamber. This leads to more efficient mixing with air, more complete combustion, potentially higher pressures during the power stroke, and ultimately, increased thrust and improved fuel efficiency.

Q5: Are pulsejets suitable for manned aircraft?
Generally, no. The extreme noise levels and significant vibration produced by pulsejets make them unsuitable for passenger comfort and safety in manned aircraft. Their applications are typically limited to uncrewed vehicles or specialised industrial equipment.

In conclusion, while the fundamental design of the pulsejet engine presents inherent limitations, particularly concerning noise and fuel efficiency, advancements in fuel delivery systems, such as pressurized injection, offer a tangible pathway to significantly enhance its performance. The ongoing research and development in this area suggest that the humble pulsejet, with its unparalleled simplicity, may yet find new and exciting applications in the future of propulsion.
