The Evolution of Fuel Delivery: A Look at Throttle Body Injection (TBI)

The hum of an engine is a symphony of precisely timed events, and at its heart lies the crucial task of delivering fuel to be mixed with air for combustion. For decades, carburetors reigned supreme, a mechanical marvel that used the venturi effect to draw fuel into the airstream. However, as emissions regulations tightened and the demand for greater fuel efficiency and performance grew, a new era dawned: electronic fuel injection (EFI). Among the early pioneers of this transition was Throttle Body Injection, or TBI. While perhaps not as sophisticated as today's advanced systems, TBI represented a significant leap forward, bridging the gap between the mechanical simplicity of carburetors and the precise electronic control of modern engines.

From Carburetors to EFI: A Necessary Transition

Before delving into TBI, it's essential to understand what it replaced. Carburetors, in their myriad forms (single-barrel, two-barrel, four-barrel, and even performance-oriented 'dual quads' or 'six-packs'), relied on a clever interplay of air velocity and pressure. As air rushed through the carburetor's throat, a narrower section called a venturi created a low-pressure zone. This vacuum would then draw fuel from a float bowl through carefully calibrated jets and passages, mixing it with the incoming air to form a combustible mist. While effective, carburetors were susceptible to environmental changes, temperature fluctuations, and required constant tuning to maintain optimal performance and emissions. Their mechanical nature also meant they were less precise in their fuel delivery compared to later electronic systems.

The transition to EFI was driven by several key factors:

• Emissions Control: EFI systems offer far greater precision in controlling the air-fuel ratio, allowing manufacturers to meet increasingly stringent emissions standards.
• Fuel Economy: By delivering only the necessary amount of fuel for a given condition, EFI significantly improves fuel efficiency.
• Performance: Precise fuel delivery translates to more consistent power delivery, better throttle response, and improved overall engine performance.
• Driveability: EFI systems are less affected by altitude and temperature changes, leading to smoother idling and more reliable cold starts.

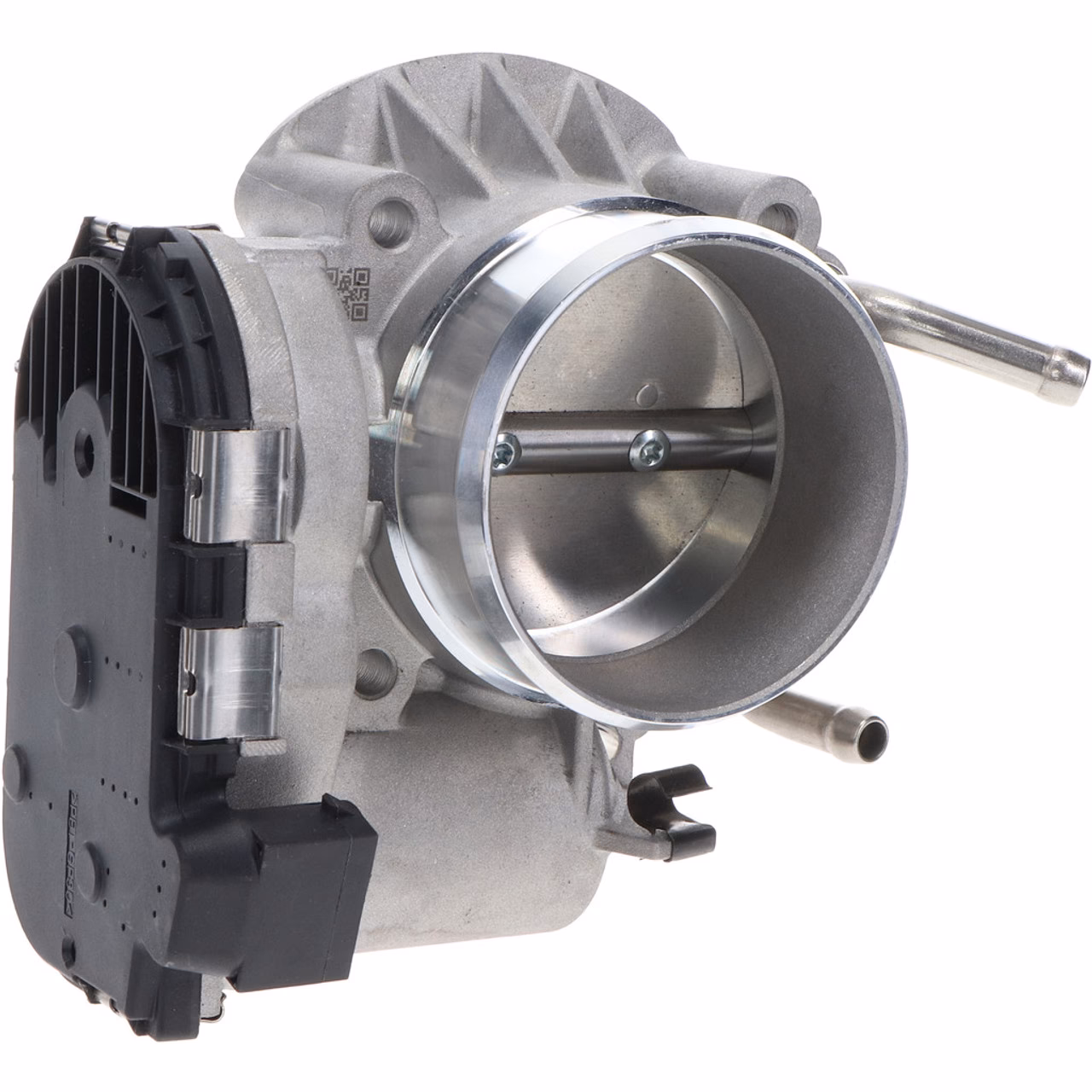

What Exactly is Throttle Body Injection (TBI)?

Throttle Body Injection (TBI) is a type of electronic fuel injection system that ingeniously integrated fuel injectors directly into the throttle body. Think of the throttle body as the engine's 'lungs' – it houses the throttle plate, which is controlled by your accelerator pedal. In a TBI system, one or two injectors are mounted within this throttle body. These injectors spray atomised fuel into the intake manifold, just above the throttle plate, where it mixes with incoming air before being drawn into the engine's cylinders. This design allowed manufacturers to retain many familiar components from the carbureted era, such as the air cleaner assembly, throttle linkage, and even the original intake manifold, simplifying the transition for both production and mechanics.

How TBI Works: A Simplified EFI Approach

At its core, EFI relies on a Powertrain Control Module (PCM), often referred to as the engine control unit (ECU). This 'brain' receives a constant stream of data from various sensors strategically placed around the engine. These sensors provide critical information, including:

The PCM processes this data in real-time and calculates the precise amount of fuel needed for optimal combustion, aiming for a stoichiometric air-fuel ratio of approximately 14.7:1. It then commands the fuel injectors to open for a specific duration, known as 'pulse width.' This pulse width is measured in milliseconds and dictates how much fuel is injected. The faster the engine runs or the more throttle applied, the shorter the pulse width (more frequent injections), and vice versa. This controlled pulsing ensures efficient fuel atomisation and a more consistent air-fuel mixture compared to carburetors.

TBI: A Transitional Technology

TBI is best understood as a transitional technology. It was a crucial step away from the purely mechanical world of carburetors and a stepping stone towards more advanced EFI systems like Multi-Port Fuel Injection (MPFI) and Gasoline Direct Injection (GDI).

Advantages of TBI:

• Simplicity: Compared to later EFI systems, TBI was relatively simpler to design and implement, leveraging existing infrastructure.
• Cost-Effective: Its simpler design made it a more economical option for manufacturers during the transition period.
• Improved Emissions and Economy: It offered a noticeable improvement in fuel economy and reduced emissions over carbureted systems.
• Retained Components: Allowed for the reuse of many parts from carbureted vehicles, reducing retooling costs.

Limitations of TBI:

• Less Precise Fuel Distribution: With injectors located only in the throttle body, fuel had to travel through the intake manifold runners to reach each cylinder. This could lead to uneven fuel distribution, especially under varying engine loads and temperatures. Some fuel might 'pool' in the manifold, affecting performance and emissions.
• Slower Response: The fuel delivery wasn't as instantaneous or precise as systems that injected fuel directly at each intake port.
• Limited Performance Potential: While an improvement, TBI systems generally had a lower ceiling for performance tuning compared to MPFI.

The Rise of Multi-Port Fuel Injection (MPFI)

The limitations of TBI paved the way for Multi-Port Fuel Injection (MPFI), which is the foundation of most modern EFI systems. In MPFI, a dedicated fuel injector is positioned at the intake port of each cylinder, just before the intake valve. This ensures that each cylinder receives its own precisely metered fuel charge, eliminating the uneven distribution issues associated with TBI. Early MPFI systems used 'batched' or 'simultaneous' injection, where injectors fired in groups or all at once. Modern MPFI systems employ 'sequential' injection, where each injector fires precisely when its corresponding intake valve is about to open, timed perfectly with the engine's firing order. This offers unparalleled precision, leading to significant improvements in performance, fuel economy, and emissions.

Direct Injection: The Cutting Edge

The evolution didn't stop at MPFI. Gasoline Direct Injection (GDI) takes fuel delivery a step further by injecting fuel directly into the combustion chamber itself, under extremely high pressure. This eliminates the intake manifold entirely from the fuel delivery process, allowing for even greater control over combustion, enhanced efficiency, and the potential for higher compression ratios, leading to more power. While GDI has been a staple in diesel engines for decades, its widespread adoption in gasoline engines is a more recent phenomenon, driven by the ongoing pursuit of efficiency and performance.

Maintaining Your TBI System

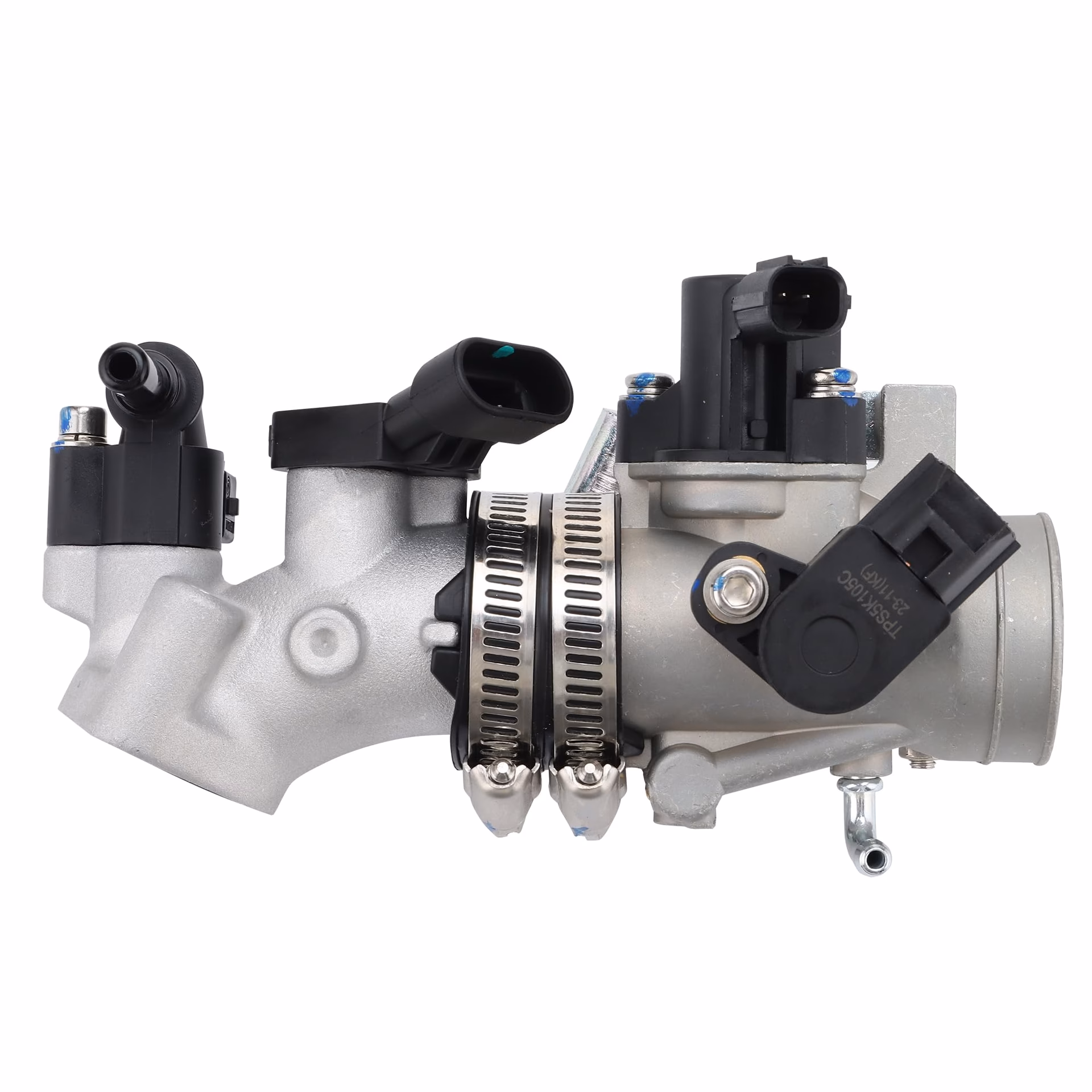

While TBI systems are less common in brand-new vehicles, many older cars and trucks still utilise them. Maintaining a TBI system is generally straightforward. The most common maintenance task involves cleaning the throttle body itself. Over time, carbon deposits can build up around the throttle plate and bore, affecting idle speed and throttle response. Using a dedicated throttle body cleaner and a soft cloth can help remove these deposits. It's crucial to follow the manufacturer's specific instructions for cleaning, as harsh chemicals or abrasive materials can damage sensitive components.

Key components to be aware of in a TBI system include:

• Fuel Injectors: Located within the throttle body.
• Throttle Position Sensor (TPS): Senses the throttle plate's position.
• Idle Air Control (IAC) Valve: Regulates idle speed by allowing air to bypass the closed throttle plate.
• Fuel Pressure Regulator: Maintains the correct fuel pressure to the injectors.

Frequently Asked Questions about TBI:

Q1: Is TBI the same as fuel injection?

A1: TBI is a specific *type* of fuel injection system. It was an early form of electronic fuel injection, distinct from later systems like Multi-Port Fuel Injection (MPFI) or Direct Injection (DI).

Q2: Can I convert my carbureted car to TBI?

A2: Yes, it is possible to convert a carbureted vehicle to TBI. This typically involves sourcing a TBI unit, compatible intake manifold, fuel pump, and the necessary electronic control components (PCM, sensors, wiring harness). It's a complex modification that requires a good understanding of automotive electronics and mechanics.

Q3: What are the signs of a failing TBI system?

A3: Common symptoms include rough idling, poor acceleration, decreased fuel economy, stalling, and difficulty starting. A check engine light may also illuminate if a sensor or component fails.

Q4: How often should I clean my TBI?

A4: There's no strict mileage interval. It's best to clean it if you notice symptoms like a rough or unstable idle, or a hesitation during acceleration. Regular inspections can help identify when cleaning is needed.

Conclusion

Throttle Body Injection, while superseded by more advanced technologies, played a vital role in the evolution of automotive fuel delivery. It marked a significant step towards the efficient, clean, and powerful engines we have today. Understanding TBI provides valuable insight into the historical progression of automotive engineering and the continuous drive for improvement. Whether you're working on a classic vehicle or simply curious about engine technology, recognizing the place and function of TBI is key to appreciating the sophisticated systems that power our modern world.
