Diagnosing a Faulty Fuel Injector: A DIY Guide

Fuel injectors are unsung heroes of modern vehicle engines, meticulously spraying petrol into each cylinder with pinpoint accuracy. This precise delivery ensures the correct air-to-fuel ratio, a critical factor for efficient combustion and optimal engine performance. However, like any mechanical component, fuel injectors can develop faults, leading to a host of frustrating engine problems, from a noticeable rough idle to complete engine failure. While some issues may necessitate professional intervention, many common fuel injector faults can be diagnosed right at home with a few basic tools and a bit of know-how. This guide will walk you through the symptoms, diagnostic codes, and practical tests to help you identify if a faulty fuel injector is indeed the cause of your vehicle's woes.

Understanding Your Fuel Injectors: The Heart of Fuel Delivery

Before diving into diagnostics, it's beneficial to understand how these crucial components operate. In a fuel-injected system, the process begins with the fuel pump, which delivers petrol under pressure to a 'fuel rail'. This rail acts as a manifold, supplying fuel to each injector mounted directly above its respective cylinder. Each fuel injector contains a tiny electromagnetic coil. When this coil is energised by an electrical signal, it creates a magnetic field that pulls up a small pintle (a type of pin), opening a valve and allowing a precise spray of fuel to enter the cylinder. This fuel then mixes with air, is compressed, and ignited by the spark plug to generate power.

The intricate timing and duration of each injector's opening are controlled by the vehicle's onboard computer, often referred to as the Engine Control Module (ECM) or Powertrain Control Module (PCM). This computer sends a rapid series of electrical pulses – typically 5-12 volts DC, depending on the manufacturer – to the injector. Crucially, the positive side of the injector's electrical connection usually receives a constant voltage, while the negative side is switched on and off rapidly by the ECM/PCM to precisely control when and for how long the injector sprays fuel.

Telltale Signs: Symptoms of a Failing Fuel Injector

When a fuel injector malfunctions, it disrupts the delicate balance of the air-to-fuel mixture in one or more cylinders, leading to noticeable performance issues. While these symptoms can often overlap with problems caused by other engine components, they are strong indicators that a fuel injector might be at fault. Common symptoms include:

• Engine Misfire: This is perhaps the most common and noticeable symptom. A misfire occurs when a cylinder fails to combust the air-fuel mixture properly. You might feel a noticeable jerk or stumble from the engine, especially under acceleration, or hear a distinct thumping sound. This happens because the faulty injector isn't delivering enough fuel, or any fuel at all, to its cylinder, preventing proper ignition.
• Rough Idle: If your engine feels like it's shaking or vibrating excessively when it's idling, particularly at a standstill, a rough idle is likely. A faulty injector can cause an inconsistent fuel supply to one cylinder, leading to an imbalance in engine operation that manifests as an uneven, vibrating idle.
• Stalling: In more severe cases, a completely dead or severely malfunctioning injector can cause the engine to stall unexpectedly, particularly at low speeds or when coming to a stop. This is because the engine's ability to maintain a consistent idle speed is compromised due to inadequate fuel delivery to one or more cylinders.
• Reduced Fuel Economy: An injector that is stuck open or leaking can continuously drip fuel, leading to excessive fuel consumption. Conversely, an injector that isn't spraying enough fuel can cause the ECM/PCM to try and compensate by enriching the mixture across all cylinders, also leading to higher fuel consumption.
• Check Engine Light (CEL) Illumination: Modern vehicles are equipped with sophisticated diagnostic systems. When an injector issue is detected, the ECM/PCM will typically illuminate the Check Engine Light on your dashboard and store a Diagnostic Trouble Code (DTC) in its memory.

Decoding the Diagnostic Trouble Codes (DTCs)

Given that many symptoms can point to various issues, the first and most crucial step in diagnosing a suspected faulty fuel injector is to use an OBDII scan tool. This device plugs into your vehicle's diagnostic port (usually located under the dashboard) and can retrieve any stored DTCs. For fuel injector issues, you'll most commonly encounter codes in the P02XX series, specifically:

• P0200: Injector Circuit/Open Malfunction (Generic)
• P0201: Injector Circuit/Open Malfunction - Cylinder 1
• P0202: Injector Circuit/Open Malfunction - Cylinder 2
• P0203: Injector Circuit/Open Malfunction - Cylinder 3
• P0204: Injector Circuit/Open Malfunction - Cylinder 4 (Not listed in original but common)
• P0205: Injector Circuit/Open Malfunction - Cylinder 5
• P0206: Injector Circuit/Open Malfunction - Cylinder 6
• P0207: Injector Circuit/Open Malfunction - Cylinder 7
• P0208: Injector Circuit/Open Malfunction - Cylinder 8

These codes specifically indicate an issue with the electrical circuit of a particular fuel injector. While they don't always mean the injector itself is physically broken, they point to a problem with its operation, which could be electrical (wiring, connector) or internal (the injector coil itself).

DIY Diagnostic Methods: Pinpointing the Problem

Once you have a suspected cylinder or general injector fault from your OBDII scan, you can perform several tests to confirm if the injector is indeed faulty. Always ensure the engine is off and cool before attempting any physical work, and disconnect the battery's negative terminal for safety where appropriate.

The Audible Test: Listening for the Click

A simple yet surprisingly effective test involves listening to the injectors. A properly functioning fuel injector will produce a distinct, rapid clicking sound as its internal pintle opens and closes. This sound is often quite subtle, but you can amplify it using a long screwdriver or a mechanic's stethoscope. With the engine running (exercise extreme caution around moving parts and hot surfaces), place the metal tip of the screwdriver on the body of each fuel injector and put your ear to the handle. Listen carefully for a consistent clicking sound. If an injector is not clicking at all, or if the clicking is intermittent or sporadic, it's a strong indicator that the injector is failing internally.

Electrical Health Check: Testing Coil Resistance with a Multimeter

The electromagnetic coil within the injector is crucial for its operation. A faulty coil can prevent the pintle from lifting, or cause it to operate erratically. You can test the integrity of this coil by measuring its electrical resistance using a multimeter. Resistance is measured in Ohms (Ω) and should fall within a specific range provided by your vehicle's manufacturer. Most fuel injectors typically have a resistance between 11 and 24 Ohms. If you can't find the exact specification for your vehicle, a good rule of thumb is that all injectors should measure within 0.5 Ohms of each other.

How to Test a Fuel Injector with a Multimeter:

1. Ensure the engine is off and cool.
2. Locate the electrical connector for the suspected fuel injector and carefully unplug it.
3. Set your multimeter to measure resistance (usually indicated by the Ohms symbol, Ω, or a setting like "200 Ohms").
4. Place one meter lead onto each of the two pins inside the injector's electrical connector. The polarity (which lead goes on which pin) does not matter for resistance measurement.
5. Read the resistance value displayed on the multimeter.
6. Compare this reading to the manufacturer's specification for your vehicle's injectors. If the reading deviates by more than 0.5 Ohms from the specified value, or if it significantly differs from the readings of other healthy injectors on your engine, the injector's coil is likely faulty and the injector needs replacement. An open circuit (infinite resistance) or a short circuit (very low resistance) also indicates a bad coil.

Power Verification: Circuit Voltage Test

Even if the injector's coil is healthy, it won't work if it's not receiving proper electrical power. This test verifies that the positive side of the injector circuit is receiving constant voltage when the ignition is on. Remember that the negative side is pulsed by the ECM/PCM.

How to Perform a Circuit Power Test:

1. With the ignition key in the 'ON' position (engine off), carefully unplug the electrical connector from the fuel injector.
2. Set your multimeter to measure DC voltage (e.g., 20V DC).
3. Place the red (positive) lead of the multimeter on one of the pins inside the injector's electrical connector.
4. Place the black (negative) lead of the multimeter on a known good ground point on the vehicle's chassis or directly on the negative battery terminal.
5. You should see battery voltage (around 12V) on one of the pins. If you don't, test the other pin. If neither pin shows voltage, there's a problem with the wiring or the fuse supplying power to the injectors, not necessarily the injector itself.

PCM Control Check: Ground Trigger Test

The ECM/PCM controls the injector by rapidly switching the ground signal on and off. You can check for this ground pulse using a 12-volt test light or the voltage setting on your multimeter. This test helps determine if the ECM/PCM is sending the correct signal to the injector.

How to Perform a Ground Trigger Test:

1. With the engine cranking or running (use caution), connect one end of a 12-volt test light to the positive battery terminal.
2. Touch the other end of the test light to the ground (negative) pin of the fuel injector's electrical connector (the one that didn't show constant voltage in the previous test).
3. The test light should flicker rapidly as the ECM/PCM pulses the ground signal. If it stays on constantly (indicating a constant ground) or doesn't light up at all, there's likely an issue with the ECM/PCM's control circuit for that injector or a break in the ground wire.
4. Alternatively, you can use your multimeter set to AC voltage to detect the rapid switching. A fluctuating AC voltage reading (even though it's a DC pulse, the rapid switching creates an AC component) indicates the pulse is present.

The Visual Check: Fuel Spray Pattern Test (Advanced)

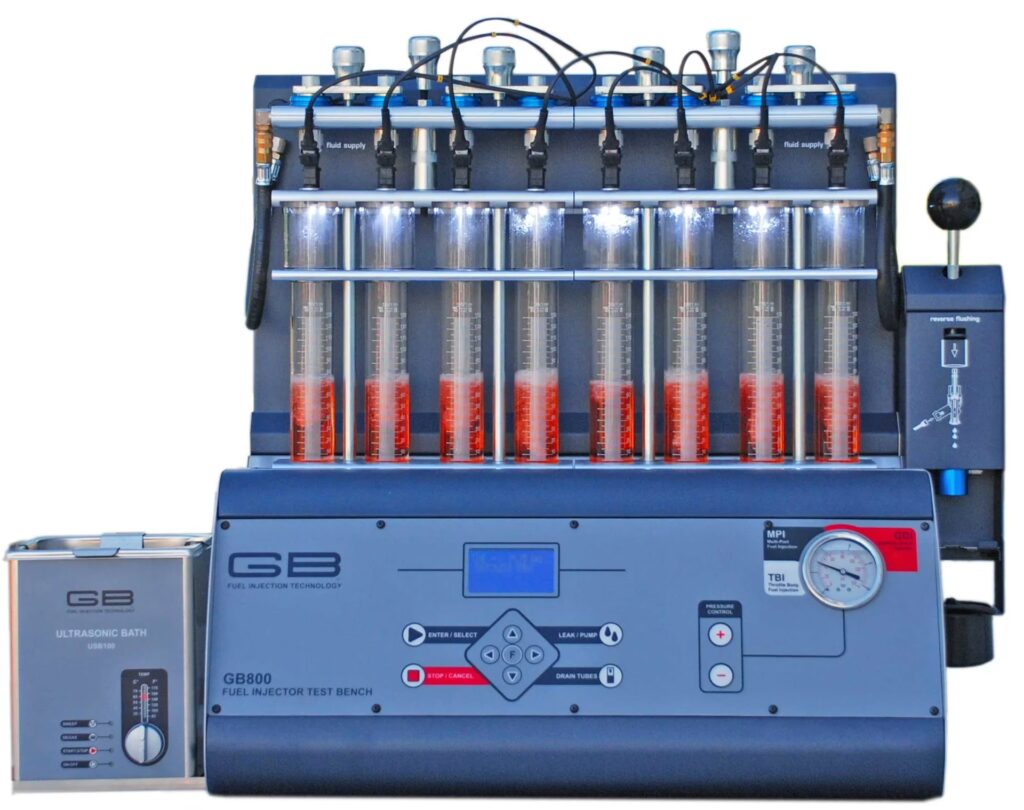

While the previous tests confirm electrical integrity, this test assesses the mechanical function of the injector's spray. A good injector produces a finely atomised, conical spray pattern. A faulty one might drip, stream, or have an uneven spray, leading to poor combustion. This test is more involved and potentially hazardous due to handling pressurised fuel, so it's often best left to professionals or undertaken with extreme caution and appropriate safety gear.

General Approach (for informational purposes):

This typically involves removing the fuel rail with the injectors still attached, positioning them over a container to catch fuel, and then briefly applying power (e.g., from a 9-volt battery) to activate each injector while observing its spray pattern. A good spray should be wide and consistent, not a narrow stream or individual drips.

The Swap Test: A Practical Diagnostic Trick

If you're still unsure after the electrical tests, or if you consistently get a P02XX code for a specific cylinder, a simple swap test can often confirm a faulty injector. This involves swapping the suspected faulty injector with a known good injector from another cylinder that is not showing an error code.

How to Perform a Swap Test:

1. Identify the cylinder with the diagnostic trouble code (e.g., P0201 for Cylinder 1).

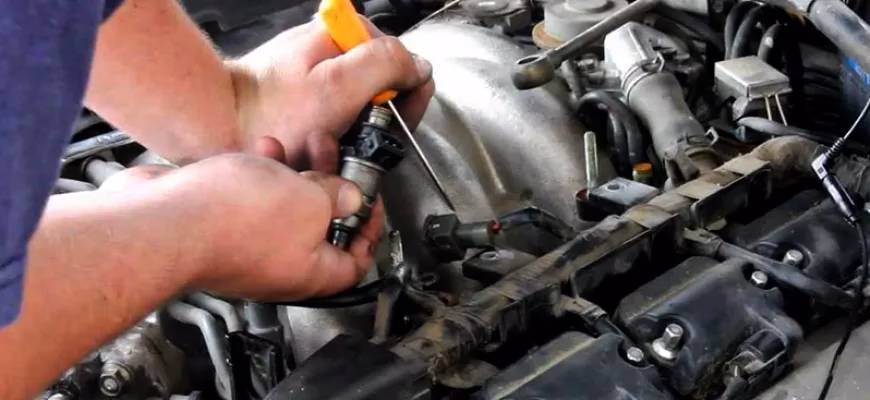

2. Carefully remove the fuel injector from the problematic cylinder and a healthy injector from a different cylinder (e.g., Cylinder 2).
3. Swap their positions, installing the suspected faulty injector into the healthy cylinder's spot, and vice-versa.
4. Clear the diagnostic trouble codes using your OBDII scan tool.
5. Start the engine and let it run for a while, or drive it briefly, to allow the ECM/PCM to re-evaluate the system.
6. Re-scan for codes. If the code now follows the injector (e.g., if you swapped the injector from Cylinder 1 to Cylinder 2, and you now get a P0202 code), then you've successfully identified the faulty injector. If the original code persists, the problem lies elsewhere in the cylinder's circuit (e.g., wiring or ECM/PCM).

Comparative Overview of Fuel Injector Diagnostics

Frequently Asked Questions (FAQs)

Q: Can I drive with a bad fuel injector?

A: While your car might still run with a faulty fuel injector, it's generally not advisable to drive for an extended period. A bad injector can lead to poor fuel economy, reduced engine performance, increased emissions, and potentially cause damage to other engine components like the catalytic converter due to unburnt fuel entering the exhaust system. It's best to diagnose and replace it as soon as possible.

Q: How much does it cost to replace a fuel injector?

A: The cost of replacing a fuel injector varies significantly depending on your vehicle's make and model, the type of injector (e.g., direct injection vs. port injection), and whether you do it yourself or have a professional mechanic do it. The part itself can range from £50 to £300 per injector. Labour costs can add significantly, especially for harder-to-reach injectors or complex systems. DIY replacement can save you a substantial amount on labour.

Q: Can fuel injector cleaner fix a faulty injector?

A: Fuel injector cleaners are designed to remove carbon deposits and clean blockages in otherwise healthy injectors. They can be very effective for preventative maintenance or for resolving minor issues caused by fuel contamination. However, if an injector has an internal electrical fault (like a bad coil) or a mechanical failure (like a stuck pintle), a cleaner is unlikely to fix the problem. It's important to diagnose the root cause before relying on additives.

Q: What causes fuel injectors to fail?

A: Several factors can contribute to fuel injector failure. The most common are:

• Clogging: Deposits from poor quality fuel or carbon build-up can block the tiny nozzles, affecting the spray pattern.
• Electrical Faults: The internal electromagnetic coil can fail due to age, heat, or manufacturing defects, leading to an open or short circuit.
• Wear and Tear: Over time, the internal moving parts of the injector can wear out, leading to leaks or improper operation.
• Contamination: Water or debris in the fuel system can damage the delicate internal components.

Q: How long do fuel injectors typically last?

A: Modern fuel injectors are designed to be highly durable and can often last the lifetime of the vehicle, or well over 100,000 miles. However, their lifespan can be significantly shortened by factors like poor fuel quality, infrequent fuel filter changes, extreme temperatures, and aggressive driving habits.

Conclusion

Fuel injectors are vital for the smooth and efficient operation of your vehicle's engine. While a faulty injector can certainly be a nuisance, understanding the common symptoms, utilising an OBDII scan tool, and performing a few straightforward DIY tests can empower you to accurately diagnose the problem. Whether it's listening for that tell-tale click, measuring coil resistance with a multimeter, or performing a strategic swap test, these methods provide a clear path to identifying the culprit. Prompt diagnosis and repair will not only restore your vehicle's performance but also prevent potential damage to other expensive engine components. With the right approach, tackling a faulty fuel injector can be a manageable task for the keen home mechanic, saving you time and money.
