The Cornerstone: Electronic Fuel Injection (EFI)
At its core, Electronic Fuel Injection (EFI) refers to any fuel delivery system that is meticulously controlled by an Engine Control Unit (ECU). The name itself is highly descriptive, as EFI systems precisely inject fuel directly into either the engine's intake manifold or, in more advanced setups, directly into the combustion cylinder itself. This method has become the industry standard due to its inherent advantages over older carburetted systems, particularly in terms of performance, reduced emissions, and enhanced fuel efficiency. While various forms of fuel injection exist – such as single-point, multi-point, sequential, and direct injection – they all operate on the fundamental principle of electronically controlled fuel delivery.
Key Components of an EFI System
To truly grasp how fuel injection works, it's essential to understand the individual parts that collaborate to ensure your engine receives the perfect air-fuel mixture under all operating conditions.
The Fuel Injector: Precision Delivery

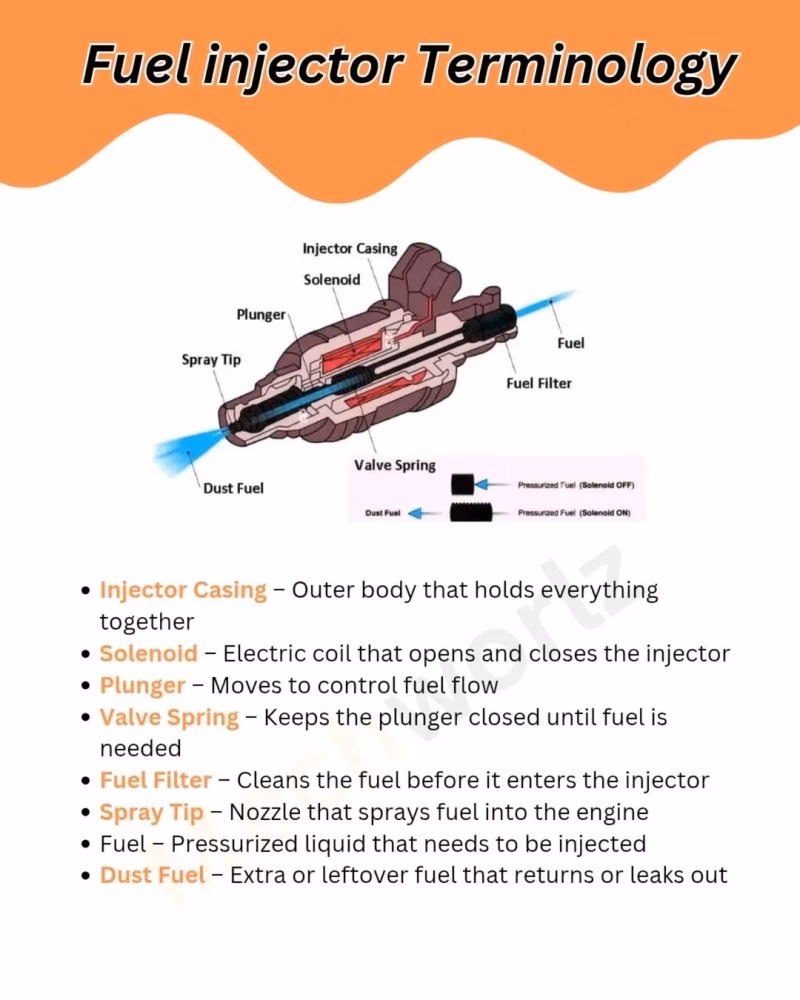

The fuel injector is arguably the most crucial component within your EFI system, giving the system its very name. Electronically controlled by the ECU, a fuel injector acts as a finely tuned valve. Its primary function is to spray a precise, atomised amount of fuel into the engine's combustion chamber. This atomisation is vital, as it ensures the fuel mixes optimally with air, leading to efficient combustion. The ECU dictates exactly when and for how long each injector opens, ensuring the engine always receives the correct amount of fuel, whether idling or at full throttle.
The Brain: Engine Control Unit (ECU/ECM)
Often referred to as the vehicle's "brain," the Engine Control Unit (ECU) or Engine Control Module (ECM) is a sophisticated computer responsible for managing one or several electrical systems. Within its extensive duties, the ECU plays a pivotal role in overseeing the EFI system. It continuously monitors data from numerous sensors throughout the vehicle – such as oxygen sensors, throttle position sensors, and engine temperature sensors – and adapts its commands accordingly. For instance, it determines the precise duration for which the fuel injectors must remain open during each cycle to achieve the ideal air-fuel ratio for any given driving situation. This constant monitoring and adaptation are what make modern engines so efficient and responsive.
Fuel Delivery Network: Pumps, Rails, and Filters
Before fuel can reach the injectors, it must be drawn from the tank and delivered under pressure. This network involves several vital components:
- Fuel Pump: This is the component responsible for delivering high-pressure liquid fuel from the tank to the EFI system. Fuel pumps are engineered to handle various ethanol-gasoline blends and are crucial for consistent fuel supply.
- Fuel Rail: A high-pressure line that distributes fuel from the pump to each individual fuel injector. It acts as a manifold, ensuring each injector receives fuel at a consistent pressure.
- Fuel Pump Assembly: Often, critical components like the fuel pump, fuel pressure regulator, fuel sending unit, and strainers or filters are integrated into a single assembly for easier installation and maintenance.
- Fuel Sending Unit: Contrary to its name, this unit doesn't send fuel. Instead, it measures the amount of fuel in your tank and transmits this information as an electrical current to your fuel gauge, allowing you to monitor your fuel level.
- Filters and Strainers: These are the unsung heroes of the fuel system, performing the critical job of extracting harmful particulates from the fuel. Strainers typically serve as the first line of defence, screening out larger contaminants like sand and dirt, while finer filters capture microscopic particulates, protecting sensitive EFI components from damage and ensuring optimal system performance.
- Pressure Regulator: This component is vital for maintaining the correct fuel pressure (measured in PSI or kPa) within your EFI system. By regulating pressure, it allows the fuel injectors to function correctly and ensures that air-fuel calculations remain as accurate as possible.
Delving into Fuel Injection Types
While all EFI systems share common principles, they differ significantly in where and how the fuel is injected into the engine. These differences have evolved to meet increasing demands for power, efficiency, and emissions control.
1. Single-Point Fuel Injection (SPI)
Also known as Throttle Body Injection (TBI), single-point fuel injection is the simplest form of EFI. In an SPI system, one or two fuel injectors are positioned in a central location, typically within the throttle body, much like a carburettor. These injectors spray fuel into a central point, from where it then travels down the intake manifold and is distributed to all cylinders. While a significant improvement over carburettors in terms of control and emissions, SPI systems are less precise than their multi-point counterparts because the fuel must travel further and can condense or distribute unevenly before reaching the cylinders. They were common in the late 1980s and early 1990s but are now largely obsolete.
2. Multi-Point Fuel Injection (MPI)
Multi-point fuel injection (MPI) represents a significant leap forward. In an MPI system, each cylinder has its own dedicated fuel injector, typically located in the intake manifold, just before the intake valve. This allows for much more precise fuel delivery to each cylinder, as the fuel has a shorter distance to travel and is less likely to condense on the manifold walls. MPI systems offer improved fuel atomisation, better throttle response, and more uniform fuel distribution across all cylinders, leading to increased power, better fuel economy, and lower emissions compared to SPI systems. This became the dominant form of fuel injection for many years.
3. Sequential Fuel Injection (SFI)
Sequential fuel injection (SFI) is an advanced form of MPI. While MPI systems fire all injectors simultaneously or in banks, SFI takes precision a step further. In an SFI system, the ECU times the opening of each injector to coincide precisely with the opening of its corresponding intake valve for each cylinder. This means fuel is injected just as the intake valve is about to open, allowing the fuel to enter the cylinder almost immediately. This highly precise timing optimises combustion, further improving fuel efficiency, reducing emissions, and enhancing engine performance, particularly at varying RPMs. It ensures that no fuel is wasted or sits in the manifold waiting to be drawn in, leading to cleaner and more efficient operation.
4. Direct Injection (DI)
Direct injection (DI) is the latest advancement in fuel injection technology and is increasingly common in modern vehicles. Unlike all previous types, where fuel is injected into the intake manifold, DI systems inject fuel directly into the engine's combustion chamber. This high-pressure injection occurs during the compression stroke, just before the spark plug fires. Injecting fuel directly into the cylinder allows for extremely precise control over the air-fuel mixture and timing. This results in several significant benefits: increased power output, improved fuel economy (especially at lower loads), reduced emissions, and the ability to run higher compression ratios without 'knocking'. However, DI systems typically operate at much higher fuel pressures and can be more complex, sometimes leading to carbon build-up issues on intake valves.
Comparative Overview of Fuel Injection Types
To summarise the key differences, consider the following table:
| Feature | Single-Point Injection (SPI) | Multi-Point Injection (MPI) | Sequential Injection (SFI) | Direct Injection (DI) |
|---|---|---|---|---|
| Injection Location | Throttle body (central) | Intake manifold (before each valve) | Intake manifold (before each valve) | Directly into combustion chamber |
| Number of Injectors | 1 or 2 | One per cylinder | One per cylinder | One per cylinder |
| Injection Timing | Continuous or batch | Batch or simultaneous | Timed with intake valve opening | Timed during compression stroke |
| Precision | Basic | Good | Very Good | Excellent |
| Fuel Economy | Moderate | Good | Better | Best |
| Emissions | Higher | Lower | Lowest (for port injection) | Lowest (overall) |
| Complexity | Low | Medium | Medium-High | High |
Understanding Fuel System Terminology
Beyond the injection types, a solid grasp of general fuel system terminology will empower you when discussing repairs or upgrading components.
Fuel Pumps: In-Tank vs. External/In-Line
The location of your fuel pump significantly impacts its design and lifespan:
- In-Tank Fuel Pump: As the name suggests, these pumps are located inside the fuel tank. Being submerged in liquid fuel offers a significant advantage: the fuel itself helps to cool and lubricate the pump, often leading to a longer operational lifespan. This is the most common design for modern vehicles.
- External/In-Line Fuel Pump: These pumps are mounted on the exterior of the fuel tank, typically underneath the vehicle. They rely on gravity to feed fuel into the pump. While often easier to service and replace due to their accessible mounting location, they may not benefit from the same cooling advantages as in-tank pumps. They are frequently used in automotive performance applications where higher flow rates are required.
Dual Pump Systems
Some fuel systems, particularly in marine applications or high-performance vehicles, employ a Dual Pump System. In these setups, a low-pressure fuel pump first transfers fuel from the tank to the engine area. Then, a separate high-pressure fuel pump takes over, delivering the fuel to the EFI system. This two-stage approach can be beneficial for long fuel lines or specific performance demands, though it introduces additional complexity and potential points of failure.
Essential "Small Parts"
When discussing fuel systems, the term "small parts" often arises. This refers to any components that are not the main fuel pump itself but are crucial for the system's integrity and function. This includes items such as O-rings, gaskets, strainers, filters, and pressure regulators. These seemingly minor components are vital for preventing leaks, ensuring proper filtration, and maintaining correct fuel pressure, all of which are essential for a reliable fuel system.
Measurements and Control
- PSI/kPa: Pounds per Square Inch (PSI) and Kilopascal (kPa) are standard units of measurement for fuel pressure. PSI is an Imperial unit, while kPa is Metric. It's important to know which unit your vehicle's service manual references.
- LPH/GPH: Litres Per Hour (LPH) and Gallons Per Hour (GPH) are units used to express the flow rate of a fuel pump – essentially, how much fuel the pump can supply over a given period.
- Pulse Width Modulation (PWM): This is an electronic control technique used by the ECU to manage EFI fuel pressure. PWM rapidly turns the fuel pump on and off. If more pressure is needed, the ECU extends the duration the pump is 'on' within each cycle; conversely, if less pressure is required, the 'on' time is reduced. This happens in milliseconds, allowing for extremely fine control over fuel pressure, extending the fuel pump's life by reducing its workload and operating temperature.
Fuel Types and System Compatibility
The type of fuel your vehicle uses can also impact its fuel system components and performance.
E85 Fuel (Flex Fuel)
E85, often referred to as Flex Fuel, is an ethanol-gasoline blend that can contain anywhere from 51% to 83% ethanol, depending on the season and location. It is specifically formulated for Flexible Fuel Vehicles (FFVs), which have internal combustion engines designed to support high-volume ethanol fuel blends. While E85 can sometimes be cheaper than standard petrol, it has a lower energy density, which often results in reduced fuel economy. It's crucial to note that E85 fuel cannot be used in all vehicles, particularly many motorcycles and powersport vehicles, as it can damage components not designed to withstand ethanol's corrosive properties. Always check your vehicle's compatibility before using E85.
Frequently Asked Questions (FAQs)
Here are some common questions regarding fuel injection systems:
Q: What is the main difference between EFI and a carburettor?
A: The primary difference lies in how fuel is delivered. A carburettor uses engine vacuum to draw fuel into the air stream, relying on mechanical principles. EFI systems, on the other hand, use electronically controlled injectors to precisely spray atomised fuel into the engine, managed by an ECU. EFI offers superior control, efficiency, and emissions.
Q: Why are there so many types of fuel injection?
A: The different types of fuel injection (SPI, MPI, SFI, DI) represent an evolution in automotive engineering, driven by the continuous demand for improved fuel efficiency, increased power output, and stricter emissions regulations. Each type offers progressively finer control and precision over fuel delivery.
Q: How often should fuel filters be replaced?
A: The replacement interval for fuel filters varies significantly depending on the vehicle manufacturer's recommendations, driving conditions, and fuel quality. Some manufacturers suggest replacement every 30,000 to 60,000 miles, while others may consider it a 'lifetime' part. It's always best to consult your vehicle's service manual for specific guidance. However, if you notice issues like reduced engine performance, difficulty starting, or unusual noises from the fuel pump, a clogged filter could be the cause.
Q: What is the ECU's role in fuel injection?
A: The ECU (Engine Control Unit) is the 'brain' that orchestrates the entire fuel injection process. It gathers data from numerous sensors (e.g., engine speed, air temperature, oxygen levels) and uses this information to calculate the precise amount of fuel needed. It then commands the fuel injectors to open for the exact duration required to achieve the optimal air-fuel mixture, adapting in real-time to changing driving conditions.
Q: Can I use E85 fuel in any car?
A: No, you can only use E85 fuel in vehicles specifically designed as Flexible Fuel Vehicles (FFVs). These vehicles have fuel system components (like fuel lines, seals, and injectors) that are resistant to the higher ethanol content, and their ECUs are calibrated to adjust for E85's different energy density. Using E85 in a non-FFV vehicle can lead to severe damage to the fuel system and engine.
Conclusion
From the foundational principles of Electronic Fuel Injection to the nuanced differences between single-point, multi-point, sequential, and direct injection, understanding your vehicle's fuel system is a fundamental aspect of automotive knowledge. Each component, from the fuel pump and rail to the intricate injectors and the controlling ECU, plays a vital role in ensuring your engine runs smoothly, efficiently, and cleanly. With this comprehensive overview of fuel injection types and associated terminology, you're now better equipped to diagnose issues, discuss repairs, or simply appreciate the sophisticated engineering that powers your ride. Keeping these systems well-maintained with quality components is paramount for long-term reliability and performance.
