Fuel Pump Anatomy: Key Components Explained

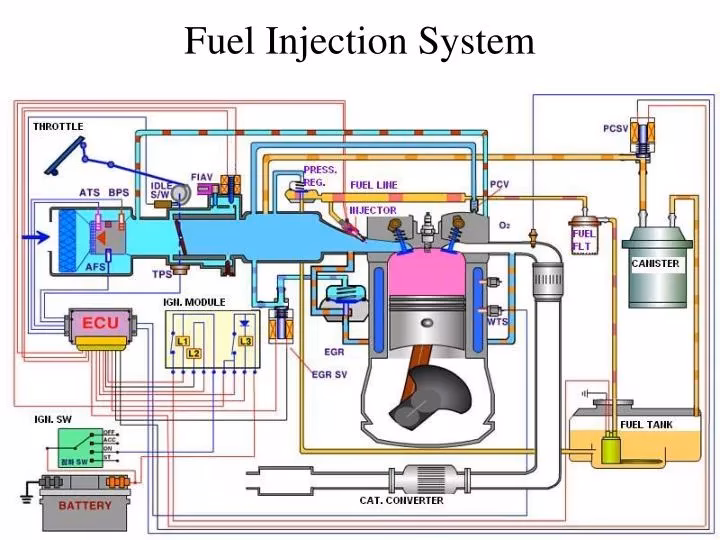

The fuel pump is a critical component in your vehicle's fuel system, responsible for delivering petrol or diesel from the fuel tank to the engine. Without a properly functioning fuel pump, your car simply won't run. While modern fuel pumps have become increasingly sophisticated, their fundamental purpose remains the same. Understanding the various components that make up a fuel pump can help you better diagnose issues and appreciate the engineering that keeps your engine purring.

The Heart of the System: Understanding Fuel Pump Types

Before delving into the individual components, it's useful to understand the two primary types of fuel pumps commonly found in vehicles today: mechanical and electric.

Mechanical Fuel Pumps

These were more prevalent in older vehicles and are driven by the engine's camshaft. As the camshaft rotates, it actuates a lever arm on the fuel pump, which in turn operates a diaphragm or piston to draw fuel from the tank and push it towards the carburettor or fuel injection system. While simpler in design, they are generally less efficient and can be prone to wear and tear over time.

Electric Fuel Pumps

The vast majority of modern vehicles utilise electric fuel pumps. These are powered by the vehicle's electrical system and are typically located within the fuel tank itself (in-tank pumps) or sometimes externally near the fuel tank. Electric pumps offer greater control over fuel pressure and flow, leading to improved engine performance and fuel efficiency. They are also generally more reliable and require less maintenance than their mechanical counterparts.

Key Components of a Fuel Pump

Regardless of whether it's mechanical or electric, a fuel pump is comprised of several key components that work in harmony to ensure a consistent supply of fuel. Let's break down these essential parts:

1. The Motor/Drive Mechanism

Electric Fuel Pumps: In electric pumps, this is the core of the operation. It's an electric motor, usually a DC motor, that converts electrical energy into mechanical energy. This rotation is what drives the pumping mechanism. The motor needs to be robust enough to handle the continuous operation and the resistance of the fuel it's pumping. The quality of the motor is a significant factor in the longevity and reliability of the fuel pump.

Mechanical Fuel Pumps: The drive mechanism here is an external lever or pushrod that connects to the engine's camshaft. As the camshaft rotates, it pushes on this lever, activating the pump's internal components. The lobe on the camshaft dictates the frequency and stroke of the pump.

2. The Pumping Mechanism

This is where the actual movement of fuel occurs. There are a few common designs:

• Impeller/Roller Vane Pumps: These are common in electric fuel pumps. An impeller, a rotating disc with vanes, spins rapidly within a housing. As the impeller rotates, the vanes trap small amounts of fuel and force it towards the outlet port. The centrifugal force generated plays a crucial role in the pump's efficiency.
• Diaphragm Pumps: Often found in mechanical pumps, and some electric designs. A flexible diaphragm is moved back and forth by the motor or drive mechanism. As the diaphragm moves, it creates a vacuum that draws fuel in through an inlet valve and then pushes it out through an outlet valve.
• Gear Pumps: Less common in modern automotive fuel pumps but used in some industrial applications. Two meshing gears rotate, trapping fuel between their teeth and carrying it from the inlet to the outlet.

3. Inlet and Outlet Ports

These are the entry and exit points for the fuel. The inlet port connects to the fuel line coming from the fuel tank, while the outlet port connects to the fuel line leading to the engine's fuel rail or carburettor. These ports are typically threaded or have fittings to ensure a secure and leak-free connection. The integrity of these connections is paramount to prevent fuel leaks.

4. Valves (Check Valves and Relief Valves)

Valves are crucial for controlling the direction and pressure of the fuel flow.

• Check Valves (or Non-Return Valves): These prevent fuel from flowing backward, ensuring that the fuel system remains primed and ready to deliver fuel when the engine is started. They are essential for maintaining fuel pressure when the engine is off, preventing vapour lock.
• Relief Valves (or Pressure Regulators): These are safety devices that prevent the fuel pressure from exceeding a certain limit. If the pressure becomes too high, the relief valve opens, allowing excess fuel to return to the fuel tank or a bypass circuit. This protects the fuel lines, injectors, and other components from damage due to over-pressurisation. The correct fuel pressure is vital for optimal combustion.

5. Housing and Seals

The housing protects the internal components of the fuel pump and provides the structural integrity. It's typically made of metal or durable plastic. High-quality seals and gaskets are used to prevent fuel leaks and contamination from entering the pump's internal workings. The quality of the housing and seals directly impacts the pump's lifespan.

6. Strainer/Filter

Most fuel pumps, especially in-tank units, incorporate a strainer or filter. This is usually a mesh screen or a porous material located at the inlet. Its primary function is to trap larger debris, such as rust particles or sediment, from the fuel tank before they can enter the pump's delicate internal mechanisms. This protects the pump from damage and premature wear.

7. Pressure Regulator (Integrated or Separate)

As mentioned earlier with relief valves, the pressure regulator is a key component. In many modern electric fuel pumps, the pressure regulator is integrated directly into the pump assembly. It monitors the fuel pressure in the system and adjusts the pump's output or bypasses excess fuel to maintain the correct pressure required by the engine. This ensures consistent fuel delivery under varying engine loads and conditions. Without accurate pressure regulation, the engine could run too lean or too rich.

How the Components Work Together

Imagine your electric fuel pump submerged in the fuel tank. When you turn the ignition key, electricity flows to the electric motor. This motor spins the impeller or moves the diaphragm. As the impeller/diaphragm moves, it creates a low-pressure area at the inlet, drawing fuel from the tank through the strainer. The fuel is then forced through the pumping mechanism, past the check valve, and towards the engine. The pressure regulator ensures that the fuel pressure remains within the specified range, and any excess fuel is returned to the tank. The outlet port then delivers this pressurised fuel to the fuel lines, ready for injection or carburetion.

Common Fuel Pump Failures and Component Issues

Understanding the components also helps in identifying potential failure points:

• Motor Failure: The electric motor can burn out due to overheating, electrical faults, or simply reaching the end of its lifespan.
• Impeller/Diaphragm Wear: Over time, the pumping mechanism can wear down, reducing its efficiency and ability to generate sufficient pressure.
• Valve Malfunction: Stuck or leaking valves can lead to poor fuel pressure, hard starting, or the engine stalling.
• Seal Degradation: Deteriorated seals can cause fuel leaks, which are not only a fire hazard but also lead to a loss of fuel pressure.
• Strained Strainer: A clogged strainer can restrict fuel flow, starving the engine and causing performance issues.

Table: Fuel Pump Component Functions

Frequently Asked Questions

Q1: Can I drive my car if the fuel pump is failing?

You might be able to for a short while, but a failing fuel pump will progressively lead to poor engine performance, hesitation, stalling, and eventually, the inability to start the engine. It's best to address the issue as soon as possible to prevent further damage or inconvenience.

Q2: How long do fuel pumps typically last?

The lifespan of a fuel pump can vary significantly depending on the vehicle, driving conditions, and fuel quality. However, many electric fuel pumps are designed to last for the life of the vehicle, often exceeding 100,000 miles. Regular maintenance and using clean fuel can contribute to a longer lifespan.

Q3: What are the symptoms of a bad fuel pump?

Common symptoms include a whining or buzzing noise coming from the fuel tank area, a loss of engine power, hesitation during acceleration, difficulty starting the engine, and the engine stalling unexpectedly. The "check engine" light may also illuminate.

Q4: Is it possible to replace just a component of the fuel pump?

In most modern vehicles with in-tank electric fuel pumps, the entire pump assembly is typically replaced as a unit. While individual components like the motor or regulator might fail, they are usually not sold separately for replacement within the assembly. For external mechanical pumps, some components might be serviceable, but it's less common.

In conclusion, the fuel pump is a vital and often complex component. By understanding its constituent parts and their functions, you can gain a deeper appreciation for your vehicle's engineering and be better equipped to recognise and address potential issues, ensuring your engine receives the consistent fuel supply it needs to perform at its best.
