Diesel Fuel Injectors: Your Engine's Precision Heart

In the intricate world of automotive mechanics, few components are as critical to a diesel engine's performance and efficiency as the fuel injector. Far more than a simple delivery nozzle, these sophisticated devices are the unsung heroes responsible for precisely metering and atomising fuel directly into the combustion chamber. Understanding their function is not just for seasoned mechanics but for anyone who wishes to truly grasp the heart of a diesel engine, its power delivery, and its impact on the environment. This article delves deep into the workings of fuel injectors, exploring their types, operational mechanics, and the crucial role they play in modern diesel technology.

Understanding the Diesel Engine Foundation

Before we dissect the fuel injector itself, it's essential to appreciate the fundamental principles of a diesel engine. Unlike petrol engines that rely on a spark plug for ignition, diesel engines utilise compression ignition. This means air is highly compressed within the cylinder, raising its temperature significantly. Fuel is then injected into this superheated air, igniting spontaneously. This fundamental difference dictates the unique requirements for fuel delivery, making the fuel injector an indispensable component.

Key Characteristics of Diesel Engines:

• High Compression Ratio: Typically much higher than petrol engines, leading to greater thermal efficiency.
• Fuel Type: Utilises diesel fuel, which has a higher energy density and is less volatile than petrol.
• Torque Output: Known for generating substantial torque at lower RPMs, ideal for heavy-duty applications.
• Fuel Efficiency: Generally offers superior fuel economy compared to petrol engines, especially under load.

Core Components of a Diesel Engine:

The seamless operation of a diesel engine relies on several interconnected parts working in harmony. While each has its role, the fuel injector stands out due to its direct influence on combustion quality.

• Cylinder Block: The robust foundation housing the cylinders.
• Pistons: Move within the cylinders, compressing air and facilitating combustion.
• Fuel Injector: The focus of our discussion, precisely delivering fuel at the right time and pressure.
• Crankshaft: Converts the pistons' linear motion into rotational energy.
• Turbocharger: Often present to boost air intake, enhancing combustion and power.

The Pivotal Role of Fuel Injection in Diesel Engines

Fuel injection is not merely about getting fuel into the engine; it's about doing so with incredible precision. This precision directly influences fuel economy, emissions, and the engine's overall power output. The effectiveness of the fuel injection system determines how completely and cleanly the fuel burns, which in turn affects everything from vehicle performance to environmental compliance.

Why Fuel Injectors are So Important:

At its core, a fuel injector's primary function is to atomise the fuel. This means breaking it down into an extremely fine mist. Imagine trying to burn a bucket of water versus a fine spray – the latter will evaporate and burn far more efficiently. Similarly, highly atomised fuel mixes much better with the compressed air, leading to more complete and efficient combustion. Poor atomisation results in unburnt fuel, leading to wasted energy, reduced power, and increased harmful emissions.

Beyond atomisation, injectors must deliver the exact quantity of fuel at the precise moment. This timing is critical; injecting too early or too late can lead to issues like engine knocking, poor power delivery, or even stalling. Therefore, fuel injectors are sophisticated devices that manage both fuel quantity and combustion timing.

Fuel Injection Versus Carburetion: A Comparison

For context, it's useful to briefly compare fuel injection with carburetion, an older method of fuel delivery. While carburetors were once standard, fuel injection has become the norm in diesel engines due to its superior capabilities:

Types of Fuel Injectors in Diesel Engines

The evolution of diesel engines has seen various types of fuel injectors, each offering different levels of control and efficiency. Understanding these types is key to appreciating the technological advancements in modern diesel powerplants.

Mechanical Fuel Injectors

These are the older generation of injectors, operating purely on hydraulic pressure from the fuel pump. They are robust and simpler in design, making them less prone to electronic failures. However, their main limitation is the lack of precise control over fuel metering and spray patterns. They typically open at a set pressure and deliver fuel in a less refined spray, which can lead to less efficient combustion and higher emissions. While still found in older or simpler diesel applications, they are largely superseded by more advanced systems.

Electronic Fuel Injectors

Representing a significant leap forward, electronic fuel injectors are controlled by the engine's Electronic Control Unit (ECU). The ECU receives data from various sensors (engine speed, load, temperature, etc.) and precisely dictates when and how much fuel the injector delivers. This allows for highly accurate fuel metering and dynamic adjustments based on real-time engine conditions. The result is better fuel economy, improved power output, and significantly reduced emissions due to optimised combustion.

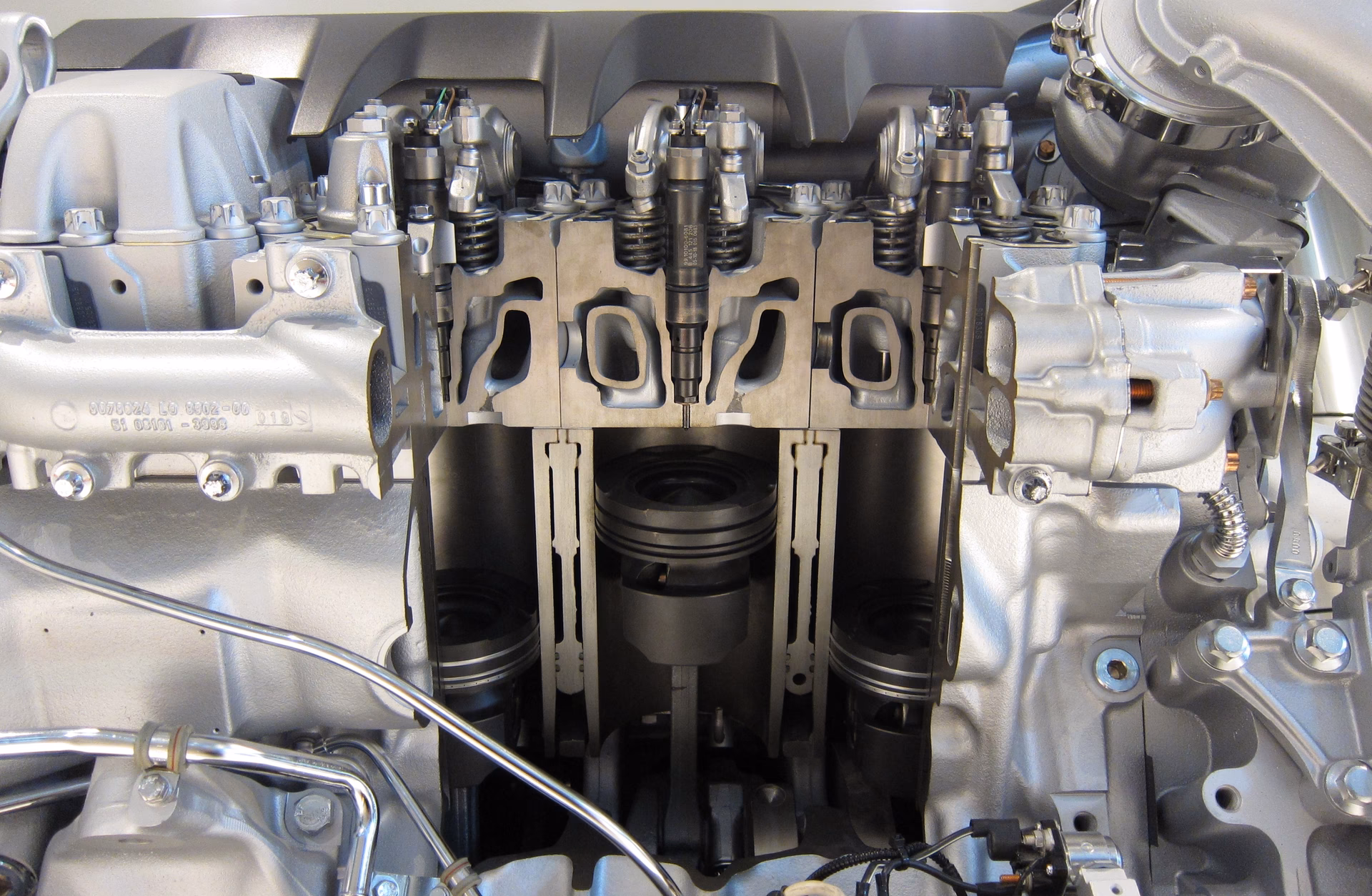

Common Rail Fuel Injection Systems

The pinnacle of modern diesel injection technology, the Common Rail system, takes electronic control to an even higher level. In this setup, a single, high-pressure fuel rail acts as an accumulator, supplying highly pressurised fuel (often exceeding 2,000 bar) to all injectors. Each injector, electronically controlled, can then independently open and close multiple times within a single combustion cycle. This allows for 'pilot' injections (small pre-injections to soften the main combustion event), main injections, and 'post' injections (for particulate filter regeneration). This multi-injection capability leads to incredibly fine atomisation, exceptionally efficient combustion, reduced engine noise, and ultra-low emissions. Most modern diesel vehicles utilise some form of common rail technology.

Components and Operational Mechanics of Fuel Injectors

A fuel injector is a complex assembly of several key components working in unison to achieve its precise function. Understanding these parts and their operation illuminates how fuel is transformed from a liquid into a perfectly atomised spray.

Nozzle Designs

The nozzle is where the magic of atomisation happens. Its design is paramount, influencing the spray pattern, droplet size, and penetration into the combustion chamber. Common designs include single-hole (older, less efficient) and multi-hole nozzles. Modern multi-hole nozzles can have up to eight or more tiny holes, meticulously angled to produce an extremely fine and wide spray. This maximises the fuel's surface area, allowing for rapid and complete mixing with air, which is crucial for both power and clean combustion.

Fuel Injection Pump

Before the fuel reaches the injector, it must be pressurised. This is the role of the fuel injection pump. In older systems, the pump directly controlled the timing and pressure for each injector. In modern common rail systems, a high-pressure pump continuously supplies pressurised fuel to the common rail, from which individual injectors draw as needed. The immense pressure generated by these pumps (hundreds to thousands of bar) is essential for achieving the fine atomisation required by modern engines.

Control Mechanisms

The brain behind the injector's operation is its control mechanism. In mechanical injectors, this was purely hydraulic. However, modern electronic and common rail injectors rely on sophisticated Electronic Control Units (ECUs). The ECU gathers data from various engine sensors and sends precise electrical signals to the injector's solenoid or piezoelectric actuator. This allows for sub-millisecond control over the opening and closing of the injector, enabling multiple injection events per cycle and dynamic adjustments to fuel delivery based on real-time driving conditions.

The Fuel Delivery Process

The journey of fuel begins in the tank, moves through a filter, and then reaches the high-pressure pump. This pump pressurises the fuel, sending it to the common rail (in modern systems). From the common rail, each injector receives fuel. When the ECU sends an electrical signal, the injector's internal mechanism (solenoid or piezoelectric actuator) opens a tiny valve. The highly pressurised fuel is then forced through the microscopic holes of the nozzle, emerging as a fine, conical spray directly into the combustion chamber. The duration the valve stays open, known as 'pulse width', dictates the amount of fuel injected, while the timing of the pulse relative to the piston's position is equally critical.

Impact on Engine Performance and Emissions

The direct correlation between fuel injector performance and overall engine attributes cannot be overstated. Efficient injectors are not just about getting the engine to run; they're about optimising every aspect of its operation.

Efficiency and Fuel Economy

An optimally functioning fuel injector ensures that every drop of diesel is combusted as completely as possible. This leads to maximum energy extraction from the fuel, translating directly into better fuel efficiency. When fuel is poorly atomised or incorrectly timed, it results in incomplete combustion, wasting fuel and reducing power output. Modern injectors, especially common rail systems with their multi-injection capabilities, can significantly improve fuel economy by tailoring the combustion process to specific engine loads and speeds, delivering a powerful yet economical drive.

Emissions Control

In today's environmentally conscious world, reducing harmful exhaust emissions is paramount. Fuel injectors play a critical role here. By ensuring complete combustion, they minimise the production of unburnt hydrocarbons, carbon monoxide, and particulate matter. The ability of modern injectors to perform multiple, precisely timed injections allows for cleaner burns, reducing harmful NOx (Nitrogen Oxides) and soot. This is achieved by creating a more homogeneous air-fuel mixture and controlling the temperature peaks within the combustion chamber, making it easier for diesel engines to meet stringent global emissions standards.

Maintenance and Troubleshooting of Fuel Injectors

Like any high-precision component, fuel injectors require proper maintenance to ensure their longevity and optimal performance. Neglecting them can lead to a cascade of issues impacting the entire engine system.

Common Issues with Fuel Injectors:

• Clogging: The most common issue. Impurities in fuel or carbon deposits can block the tiny nozzle holes, disrupting the spray pattern and reducing fuel flow. This leads to poor combustion, reduced power, and increased smoke.
• Leakage: Worn seals or internal damage can cause fuel to leak, leading to fuel dilution in the engine oil, reduced fuel pressure, and potential fire hazards.
• Electrical Failures: In electronic injectors, faulty wiring, sensor issues, or ECU malfunctions can prevent the injector from firing correctly, leading to misfires or complete engine failure.
• Wear and Tear: Over time, the internal components (like springs, needles, or piezoelectric elements) can wear out, affecting injection timing and pressure.

Routine Maintenance Practices:

Proactive maintenance is far more cost-effective than reactive repairs. Here are key practices:

• Regular Fuel Filter Replacement: This is arguably the most important step. A clean fuel filter prevents contaminants from reaching and clogging the delicate injector nozzles.
• Use High-Quality Fuel: Always use diesel fuel that meets the manufacturer's specifications. Lower quality fuel can contain more impurities or lack necessary lubricants, accelerating wear and deposit build-up.
• Periodic Injector Cleaning: While some fuel additives claim to clean injectors, professional ultrasonic cleaning or chemical flushing by a specialist is often required for heavily clogged injectors.
• Monitoring Engine Performance: Pay attention to signs like increased fuel consumption, rough idling, hesitation during acceleration, or excessive smoke from the exhaust. These are often early indicators of injector issues.
• Professional Diagnostics: Regularly scheduled diagnostic checks can identify subtle injector performance issues before they escalate into major problems.

Recent Technological Advancements and Future Trends

The landscape of diesel engine technology is constantly evolving, driven by the twin demands for greater efficiency and lower emissions. Fuel injectors are at the forefront of this innovation.

Injector Technology Innovations:

• Piezoelectric Injectors: These utilise piezoelectric materials that expand and contract rapidly when an electric current is applied, allowing for incredibly fast and precise control over injection events. This enables more sophisticated multi-injection strategies, further refining combustion.
• Improved Nozzle Designs: Continuous research into nozzle geometry and materials leads to even finer atomisation and better spray patterns, optimising fuel distribution within the cylinder.
• Adaptive Injection Strategies: Modern ECUs, combined with advanced injectors, can dynamically adjust injection timing and quantity based on a myriad of real-time factors, leading to peak performance across diverse operating conditions.

The Impact of Fuel Quality and Future Trends:

The quality of diesel fuel directly impacts injector performance and longevity. Modern engines with their high-pressure, fine-tolerance injectors are particularly sensitive to fuel purity and lubricity. Future trends are likely to see even more stringent fuel specifications and potentially new fuel types.

The rise of alternative fuels like biodiesel, synthetic diesel (HVO), and even hydrogen for internal combustion engines will necessitate further adaptations in fuel injector design to handle different fuel properties. The drive towards hybrid diesel powertrains will also demand injectors that can seamlessly integrate with electric motors, optimising performance across a broader operating range.

The evolution of fuel injection technologies is crucial for meeting regulatory requirements and enhancing fuel efficiency in diesel engines. As engineers push the boundaries of design and control, fuel injectors will continue to be a vital component in the quest for cleaner, more powerful, and more efficient diesel engines.

Frequently Asked Questions (FAQs)

Q1: How often should I have my fuel injectors serviced?

A1: This can vary based on your vehicle's manufacturer recommendations, driving conditions, and fuel quality. However, a general rule of thumb is to have them inspected or cleaned every 60,000 to 100,000 miles (or roughly 100,000 to 160,000 kilometres). Paying attention to symptoms like reduced fuel economy or rough idling can indicate an earlier need for service.

Q2: Can I clean fuel injectors myself with an additive?

A2: Fuel additives can help prevent deposits from forming and might offer some minor cleaning for light build-up. However, for significant clogging or performance issues, a professional ultrasonic cleaning or a mechanic-performed fuel system flush is usually more effective. Always choose reputable brands of additives.

Q3: What are the signs of a faulty fuel injector?

A3: Common signs include a noticeable drop in fuel economy, engine misfires or rough idling, reduced engine power or acceleration, increased exhaust smoke (especially black smoke), and a strong diesel smell. The 'Check Engine' light may also illuminate.

Q4: Is it expensive to replace fuel injectors?

A4: Yes, replacing fuel injectors, especially in modern common rail systems, can be quite costly. This is due to the high cost of the precision components themselves and the labour involved in their removal and installation. Proper diagnosis is essential before replacement.

Q5: How does fuel quality affect injector lifespan?

A5: High-quality, clean fuel with adequate lubricity is crucial for injector longevity. Poor quality fuel, containing impurities, water, or lacking necessary lubricants, can lead to rapid wear, clogging, and corrosion of the delicate injector components, significantly shortening their lifespan.

Conclusion

The fuel injector stands as a testament to the continuous innovation in automotive engineering. Far from being a simple component, it is a highly sophisticated device that embodies the efficiency and power of a diesel engine. Its ability to precisely meter, atomise, and inject fuel at incredibly high pressures and exact timings is fundamental to achieving optimal combustion. This translates directly into better fuel economy, increased power output, and significantly reduced emissions.

From the robust mechanical injectors of yesteryear to the highly advanced common rail systems of today, the evolution of fuel injection technology has been pivotal in shaping the modern diesel engine. As we look to the future, with a growing emphasis on sustainability and alternative fuels, the role of the fuel injector will only become more critical, adapting to new demands and continuing to drive the performance and environmental responsibility of diesel powertrains.
