Fuel Injector Replacement: A DIY Guide

Your car's fuel injectors are vital components, precisely delivering fuel into the engine's combustion chambers. Over time, these intricate parts can become clogged or fail, leading to reduced performance, poor fuel economy, or even engine misfires. While the thought of replacing them might seem daunting, with the right tools, a methodical approach, and a clear guide, it's a task many home mechanics can confidently tackle. This comprehensive article will walk you through the process of safely removing and reinstalling your fuel injectors, offering practical advice and addressing common pitfalls to ensure a smooth operation.

Why Consider Replacing Your Fuel Injectors?

Fuel injectors are designed for longevity, but they're not immune to wear and tear. Common issues include clogging from fuel impurities, electrical failures in the solenoid, or leaks from worn O-rings. Symptoms like a rough idle, decreased fuel efficiency, engine misfires, a strong fuel smell, or even a check engine light can all point towards faulty injectors. Addressing these issues promptly can prevent more significant engine damage and restore your vehicle's optimal performance. Replacing them can be a cost-effective solution compared to professional repair, provided you're comfortable with the process.

Essential Tools for the Job

Before you begin, gather all the necessary tools. Having everything to hand will streamline the process and prevent frustrating delays. Here's what you'll need:

• 14mm Open-Ended Spanner: Crucial for releasing the red collar on certain pipe connections.
• 8mm Socket with Extensions and Ratchet: A 1/4-inch drive is ideal for tight spaces, but a 3/8-inch drive should also work. You'll need various extension lengths to reach all bolts, especially those holding the plenum.
• Torx Drivers (T15 & T25): These are typically required for specific screws on the fuel rail and injector locking plates. While the exact sizes might vary slightly, T15 and T25 are commonly encountered.
• Screwdriver or Socket for Jubilee Clips: For loosening and tightening hose clamps.
• Small Jubilee Clip: A replacement for any cut clips during disassembly, ensuring a secure reassembly.
• Silicone Grease: Essential for lubricating the O-rings on your new injectors, aiding smooth installation and preventing damage.
• Clean Rags or Shop Towels: For catching any fuel spills and plugging manifold openings.
• New Fuel Injectors: Ensure you have the correct type and number of injectors for your specific vehicle. You might also have a replacement plenum if yours is damaged or being upgraded.

Understanding Your Vehicle's Fuel System Layout

Before diving into the removal, it's helpful to understand the layout of your fuel system, particularly the fuel supply and return lines, and the components that manage fuel pressure. The location of the fuel damper and fuel pressure regulator can vary significantly depending on your car's model year. Knowing these locations will help you properly identify the components and safely depressurise the system.

The fuel supply line brings fuel from the tank to the engine and is connected to the fuel damper. The fuel return line takes excess fuel back to the tank and is connected to the fuel pressure regulator.

Fuel System Component Locations by Model Year

Always consult your vehicle's specific service manual if you are unsure about component locations, as variations can occur even within similar model ranges.

Safety First: Depressurising the Fuel System

Working with fuel systems requires caution. The fuel rail operates under significant pressure, and failing to release this pressure before disconnecting lines can lead to a dangerous spray of highly flammable petrol. Always have a fire extinguisher nearby and work in a well-ventilated area, away from open flames or ignition sources.

The primary step to ensure safety is to depressurise the fuel rail. Locate the valve cap at the right-hand end of the fuel rail – it looks much like a tyre valve cap. Remove this cap, and inside you'll find a valve. Carefully depress this valve, ideally with a small tool or a rag covering it, to release the fuel pressure. Be prepared for a small amount of petrol to squirt out; have a clean cloth or rag ready to catch it immediately. This step is critical for your safety and to minimise fuel spills.

Step-by-Step: Removing Your Fuel Injectors

Once you've safely depressurised the fuel system and gathered your tools, you can begin the removal process. Take your time, and if unsure, double-check your steps. Remember, this is a detailed guide based on common procedures; minor variations might exist for your specific vehicle.

1. Remove Induction System (If Applicable): If you have an aftermarket induction system like a K&N or Dreamscience, you will likely need to remove this first to gain adequate access to the plenum and fuel rail. Stock induction systems generally provide enough clearance.
2. Disconnect Plenum Pipe (Red Collar): Using your 14mm open-ended spanner, push the red collar inwards on the pipe that emerges from the end of the plenum. While holding the collar in, gently pull the pipe out. This connection can sometimes be stubborn.
3. Remove Lower Plenum Pipe: Locate the pipe that runs up to the bottom of the plenum, under the throttle body. This pipe is typically secured with a single-use clip. You may need to carefully cut this clip to remove the pipe. Be prepared to replace it with a new Jubilee clip during reassembly.
4. Unbolt the Plenum: The plenum is secured to the inlet manifold by six 8mm bolts. These bolts can be tricky to access, especially the two on the left-hand side. Use various lengths of extensions on your 8mm socket and ratchet. You might need to use your fingers to locate the hidden bolts. Ensure all six bolts are completely loosened and removed.
5. Loosen Boost Hose: Undo the Jubilee clip that secures the boost hose to the throttle body. Once loosened, gently pull the hose away from the throttle body to create space.
6. Lift the Plenum: Carefully lift the plenum away from the inlet manifold. There should be enough slack in the attached cables and hoses (like the throttle body electrical connection) to allow you to move it aside without completely disconnecting everything. Gently lay it down to the side, ensuring no strain on the remaining connections.
7. Protect Manifold Openings: This is a crucial step. Immediately after lifting the plenum, place clean rags or shop towels into the exposed holes of the inlet manifold. This prevents anything, like dropped tools or debris, from falling into the engine's intake ports, which could cause severe damage.
8. Disconnect Throttle Body Electrical Connection: If you haven't already, unplug the electrical connection from the throttle body. This provides more freedom to move the plenum.
9. Depressurise Fuel Rail (Revisit): If you skipped this step earlier or want to double-check, now is an ideal time. Ensure the fuel rail is fully depressurised by depressing the valve on its end, catching any residual fuel with a rag.

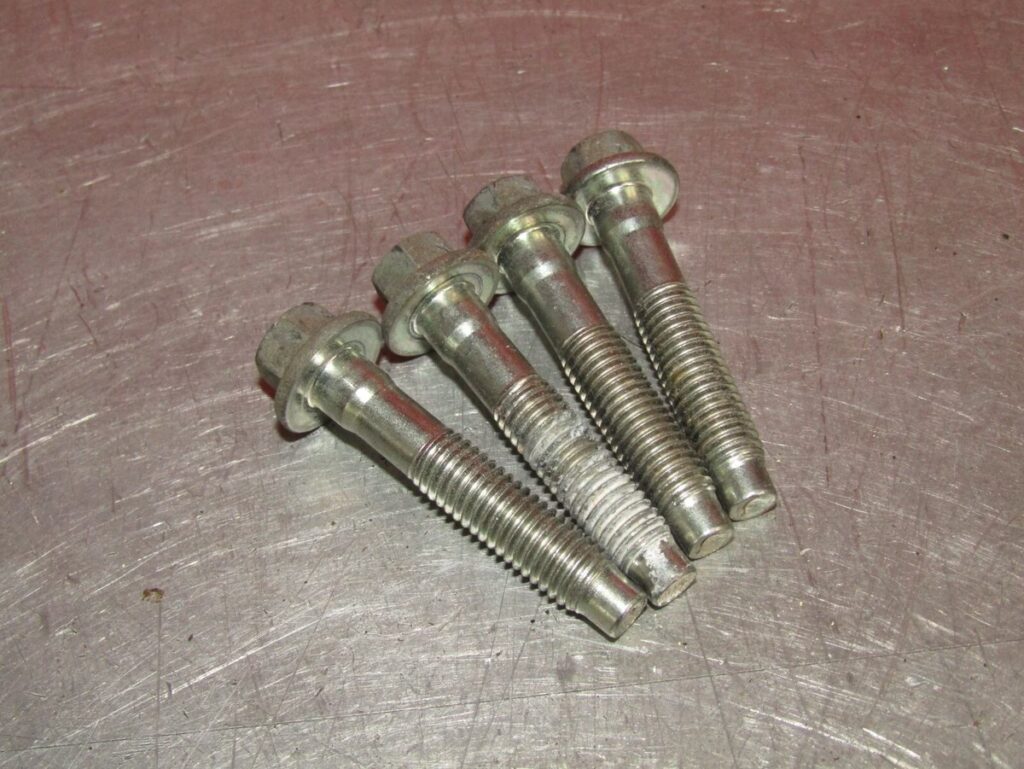

10. Unbolt Fuel Rail: The fuel rail is held down by three 8mm bolts. Two of these bolts primarily secure the rail itself. The third bolt, typically on the left, passes through the rail and also holds a guard. It's recommended to completely remove this third, longer bolt, as its length can hinder the removal of the rail. Be careful not to drop the guard, as its thread is often within the guard itself.
11. Disconnect Injector Electrical Connectors: Each of the five fuel injectors has an electrical connector. To release them, gently press the small clip located on the top of each connector and then pull it upwards. Take care not to damage the clips or wiring.
12. Remove Fuel Pipe Plastic Clip: At the top of the fuel rail, where the main petrol supply pipe connects, there's a small Torx screw. Undo this screw. You can then slide the plastic clip upwards and out. Note that there's often a small locking clip on the right side of it that needs to be lifted to disengage it before sliding.
13. Remove Fuel Rail and Injectors: Now, carefully wiggle the fuel rail while gently lifting it. The injectors should pull out of their sockets in the manifold along with the rail. As you tip the rail, some residual petrol might come out of the hole left by the petrol pipe connection, so have a cloth ready to catch it.
14. Separate Injectors from Rail: With the fuel rail assembly removed, you now need to detach the injectors from the rail itself. There are typically three small Torx screws holding a plate that locks the injectors into the rail. Undo these screws, then slide the plate out. You can now gently wiggle the individual injectors free from the fuel rail.

At this point, you'll have your old injectors removed. You might observe differences, such as the spray pattern. For instance, some high-performance injectors (like RS models) feature a 10-hole spray pattern for finer atomisation, compared to older or standard injectors (like ST models) which might have only 4 larger holes. This difference impacts fuel delivery and engine efficiency.

Reinstallation: Bringing It All Back Together

Reinstalling the new fuel injectors and reassembling the components is essentially the reverse of the removal process. However, a few critical steps require extra attention to ensure proper sealing and functionality.

1. Lubricate New Injector O-Rings: This is a crucial step to prevent damage during installation and ensure a proper seal. Take your new injectors and generously smear a small amount of silicone grease onto the O-rings at both ends of each injector. This lubrication allows them to slide smoothly into the fuel rail and the manifold sockets.
2. Install Injectors into Fuel Rail: Carefully pop the greased new injectors back into their respective slots on the fuel rail. Ensure they are fully seated.
3. Secure Injectors with Locking Plate: Slide the locking plate back into position over the injectors. You may need to lift the injectors slightly to ensure the plate slides in correctly and engages with the grooves on the injectors. Once the plate is in place, reinsert and tighten the three Torx screws that secure it to the fuel rail. Do not overtighten these small screws.
4. Reinstall Fuel Rail Assembly: This step often requires a bit of finesse. With the injectors now attached to the rail, gently guide the entire assembly back towards the manifold. Many find it easier to push the left side of the rail (with its corresponding injectors) into the manifold sockets first, then align and push the right side into place. Apply firm, even pressure to ensure all injectors are fully seated in their manifold ports. You should feel them "pop" into place.
5. Secure Fuel Rail: Reinsert and tighten the three 8mm bolts that hold the fuel rail down. Remember to reattach the guard with the longer bolt on the left side.
6. Reattach Fuel Pipe Plastic Clip: Slide the plastic clip back into position where the main petrol supply pipe connects to the fuel rail. Reinsert and tighten the small Torx screw. Ensure the locking clip on the right side is properly engaged.
7. Reconnect Injector Electrical Connectors: Carefully plug the electrical connectors back onto each of the five fuel injectors. You should hear or feel a positive click as they lock into place. Give each one a gentle tug to ensure it's securely fastened.
8. Reinstall Plenum and Throttle Body: Carefully lift the plenum back into position over the inlet manifold. Ensure no hoses or wires are trapped. Reconnect the electrical connection to the throttle body if you disconnected it fully.
9. Secure Plenum: Align the plenum with the manifold and reinsert all six 8mm bolts. Start them all by hand to avoid cross-threading, then tighten them evenly.
10. Reconnect Hoses: Reattach the boost hose to the throttle body and secure it with its Jubilee clip. Reattach the pipe that runs to the bottom of the plenum; if you cut its original clip, replace it with a new Jubilee clip and tighten it securely.
11. Final Checks: Remove any rags or towels from the manifold openings. Double-check that all electrical connections are secure, all bolts are tightened (but not overtightened), and all hoses and clips are properly reconnected.
12. Replace Bleed Valve Cap: If you removed the plastic cap from the fuel rail bleed valve, replace it. Some mechanics prefer to use a metal valve cap for added durability.
13. Prime the Fuel System: This is a vital step to ensure fuel is at the injectors before starting the engine. Turn your car's ignition to the "on" position (but do not start the engine). This will activate the fuel pump and pressurise the system. Then, once more, depress the bleed valve on the fuel rail until a steady stream of petrol comes out. This confirms the system is primed and free of air. Release the valve and replace the cap.

Post-Installation: What to Expect

After reassembling everything and priming the fuel system, it's time to start the engine. Don't be alarmed if the car doesn't fire up immediately or if you encounter a temporary error. When the engine starts, you might notice a slight rough idle for a few moments as the system fully stabilises and any residual air is purged. In some cases, particularly after significant fuel system work, your car's onboard diagnostics might trigger a fault.

One common message reported is "ENGINE SYSTEM FAULT - REDUCED ACCELERATION" with no specific fault codes. This often occurs because the car's computer detects a temporary loss of fuel pressure during the bleeding process or during the initial start-up. In many instances, this error will clear itself after driving a short distance (e.g., 200 yards) as the fuel pressure stabilises and the system recalibrates. If the error persists or is accompanied by specific fault codes, it's advisable to investigate further or consult a professional.

Always take your car for a short test drive after any significant maintenance to ensure everything is functioning correctly and safely. Listen for unusual noises, check for fuel leaks, and monitor your dashboard for any warning lights.

Frequently Asked Questions (FAQs)

How long does it typically take to replace fuel injectors?

For someone with a decent understanding of mechanics and the right tools, this job can often be completed in approximately one hour. However, if you encounter seized bolts, stubborn connectors, or are new to the process, it could take longer. Always allocate more time than you think you'll need to avoid rushing and making mistakes.

What are the common signs of a faulty fuel injector?

Signs of a failing fuel injector can include a noticeable drop in fuel economy, a rough or erratic engine idle, misfires (which might cause the engine to shake or run unevenly), a strong smell of petrol (indicating a leak), or a check engine light illuminating on your dashboard, often with specific fault codes related to fuel trim or misfires on particular cylinders.

Can I clean my old injectors instead of replacing them?

Yes, cleaning fuel injectors is an option, especially if they are merely clogged rather than mechanically or electrically faulty. This can be done using fuel system cleaners added to your tank or by having them professionally cleaned and flow-tested off the car. However, if an injector is physically damaged, leaking, or has an internal electrical fault, cleaning will not resolve the issue, and replacement is the only reliable solution.

Is replacing fuel injectors a DIY job for everyone?

While this guide provides detailed steps, replacing fuel injectors is considered an intermediate-level DIY task. It requires a certain degree of mechanical aptitude, patience, and the ability to follow instructions meticulously. If you are uncomfortable working with fuel systems, dealing with delicate electrical connections, or lack confidence in your mechanical skills, it's always best to consult a qualified mechanic. Safety should always be your top priority.

What if I don't depressurise the fuel rail?

Failing to depressurise the fuel rail before disconnecting components can be extremely dangerous. The fuel inside is under high pressure (often 40-60 PSI or more), and if a line is disconnected without releasing this pressure, petrol can spray out forcefully. This poses a significant fire hazard and can cause chemical burns or eye injuries. Always follow the depressurisation steps carefully.

Replacing your fuel injectors can be a rewarding DIY project that saves you money and gives you a deeper understanding of your vehicle. By following this guide carefully, paying attention to detail, and prioritising safety, you can successfully restore your engine's performance and efficiency. Remember, patience and precision are your best tools in any automotive repair.
