In the realm of modern automotive engineering, the transition from traditional carburettor systems to Electronic Fuel Injection (EFI) has been nothing short of revolutionary. Gone are the days of manual adjustments and the hit-or-miss nature of fuel delivery; today, a sophisticated computer takes the reins, meticulously controlling every drop of fuel injected into your engine. This intricate dance of electronics and mechanics ensures optimal performance, improved fuel economy, and significantly reduced emissions. For those accustomed to the more 'analogue' world of turning screws and swapping jets, the complexities of fuel maps, electronic sensors, and laptop tuning might seem like rocket science. However, gaining a fundamental understanding of how an EFI system operates, particularly the role of its various sensors and how they communicate with the central processing unit, can demystify this vital technology and provide invaluable insight into the heart of your vehicle.
How EFI Fuel Injectors Deliver Power
At the core of any Electronic Fuel Injection system lies the fuel injector, a precise solenoid-operated valve responsible for atomising and delivering fuel directly into the engine's intake manifold or combustion chamber. Unlike a carburettor, which relies on Venturi effect and mechanical linkages, an EFI system uses a myriad of electronic sensors and a highly sophisticated computer, known as the Engine Control Unit (ECU). The ECU constantly gathers information from these sensors, collates it, and compares it against a pre-programmed fuel map. Based on these gathered specifics, the ECU determines precisely when and for how long each fuel injector should open. This duration is critically important and is referred to as the Pulse Width.
Consider an engine at idle: it requires very little fuel to maintain its target Air/Fuel Ratio, typically around 14:1. Consequently, each fuel injector fires for a very short pulse width at a specific time, as programmed within the ECU. As engine speed and load increase, so too does the engine's demand for fuel. The ECU responds by increasing each injector's pulse width, ensuring the engine receives the necessary fuel to keep pace with its escalating needs. The amount of time a fuel injector is held open, relative to the total cycle time, is known as its Duty Cycle, measured as a percentage. For instance, an injector operating at a 50 percent duty cycle is held open for an equal amount of time as it is held closed.
It is crucial to note that operating an injector at a duty cycle over 80 percent is generally not recommended. At this point, the injector is nearing its maximum capacity and risks becoming 'static' or held wide open for too long. This can lead to a lean condition, where insufficient fuel is delivered, potentially causing catastrophic engine damage due to excessive heat. On most EFI systems, fuel injectors operate in a 'firing order' akin to an ignition system, with each injector opening for the same duration (duty cycle) at a predetermined time. Therefore, if one injector is approaching its maximum duty cycle, it's a strong indication that the entire system is reaching its limit. In such cases, decreasing the duty cycle to a more manageable number often involves increasing the injector size and adjusting the ECU's tune accordingly to maintain the correct air/fuel ratio.
Fuel Metering Methods: Speed Density vs. Mass Airflow
Modern EFI systems primarily employ two common methods for metering air and maintaining the optimal air/fuel ratio: Speed Density and Mass Airflow. Each method has its own advantages and disadvantages, influencing their application in various engine setups, from factory-fitted vehicles to aftermarket conversions.
Speed Density
Speed Density metering is often considered the simpler of the two methods, especially appealing for aftermarket EFI kits due to its ease of packaging and user-friendly installation. This system determines the engine's fuel needs based primarily on engine speed (RPM) and the air pressure within the intake manifold. A Manifold Absolute Pressure (MAP) sensor, typically mounted on the intake manifold or throttle body, reads the intake manifold's air pressure. This information, combined with engine speed data—usually obtained from the ignition coil or a crank position sensor—is processed by the ECU. The ECU then compares this data to a pre-programmed table to calculate the engine's airflow and, subsequently, its fuel requirements. Speed density systems are prevalent in aftermarket four-barrel throttle body-type EFI setups, such as the Holley Super Sniper, largely because of their straightforward installation process.
Manifold Absolute Pressure (MAP) Sensor
MAP sensors are fundamental to speed density systems. Single-bar MAP sensors are commonly installed in naturally aspirated factory applications, reporting barometric pressure, which is approximately 14.7 psi (atmospheric pressure). However, for boosted applications (engines with turbochargers or superchargers), a MAP sensor with a greater range is essential, as these forced induction systems significantly increase pressure within the intake. The amount of boost being introduced dictates the required range of the MAP sensor. For example, an engine producing 8 pounds of boost might experience intake pressures around 22.7 psi, necessitating a 2-Bar MAP sensor, which is capable of reading up to twice atmospheric pressure (approximately 29.4 psi).
Mass Airflow
A Mass Airflow metering system, while technically more accurate than speed density, often presents greater challenges when retrofitting into vehicles like older muscle cars, largely due to specific air inlet requirements. This system utilises a Mass Airflow (MAF) sensor, which is typically mounted in front of the throttle body, to directly measure the actual mass of air entering the engine. The MAF sensor works using a heated wire that is maintained at a predetermined temperature, slightly above the ambient inlet air temperature. As air flows over this wire, it draws heat away. The ECU detects this change in temperature and calculates the amount of current needed to heat the wire back to its operating temperature. This current value is then converted into a precise measurement of the airflow entering the inlet tract. Because a MAF system measures actual airflow, it offers a more precise and flexible design, particularly beneficial for engines undergoing moderate changes, such as camshaft swaps. However, the requirement for additional plumbing in front of the throttle body to house the MAF sensor and an external airbox/filter can make MAF metering designs somewhat more cumbersome and difficult to install in confined engine compartments.
Mass Airflow (MAF) Sensor
The precise placement of the MAF sensor is crucial for its accurate operation. It must be mounted a specific distance from the throttle body within a straight section of the inlet tract to ensure laminar airflow across its sensing element. This requirement can pose installation difficulties in tight engine bays, where finding an unobstructed, straight section of sufficient length can be challenging. Despite these challenges, the MAF system's ability to measure actual airflow, rather than inferring it, often results in superior fuel control and adaptability to engine modifications.
Comparison: Speed Density vs. Mass Airflow
Understanding the fundamental differences between these two metering methods is key to appreciating their respective strengths and weaknesses. The choice between them often depends on the specific application, desired accuracy, and ease of installation.
| Feature | Speed Density | Mass Airflow |
|---|---|---|
| Measurement Basis | Engine speed (RPM) & Manifold Pressure (MAP) | Direct measurement of air mass (MAF) |
| Accuracy | Good, but inferred; less adaptable to mods | Excellent, measures actual airflow; highly adaptable to mods |
| Sensor Placement | MAP sensor on intake/throttle body | MAF sensor in inlet tract before throttle body |
| Installation Complexity | Generally simpler, common for aftermarket kits | More complex due to plumbing/space requirements |
| Cost | Often more cost-effective for aftermarket | Can be more expensive due to MAF sensor |
| Typical Application | Aftermarket throttle body EFI, some OE | Most modern OE vehicles, high-performance builds |
Additional Critical Sensors in EFI Systems
Beyond the primary metering sensors, a host of other sensors work in concert, providing the ECU with a comprehensive picture of the engine's operating conditions. These sensors are vital for the ECU to make precise adjustments to both fuel delivery and ignition timing, ensuring optimal performance, efficiency, and longevity. The specific sensors used can vary depending on the vehicle's application, manufacturer, and the EFI system's design.
Throttle Position Sensor (TPS)
The Throttle Position Sensor (TPS) is typically mounted on the throttle shaft of the throttle body. Its primary function is to determine the exact position of the throttle plate, from fully closed (idle) to wide open. This information is crucial for the ECU to understand the driver's power demand and to provide further data that aids in determining engine airflow and load. For instance, rapid changes in TPS readings indicate quick acceleration, prompting the ECU to enrich the fuel mixture for a stronger response.
Intake Air Temperature (IAT) Sensor
The Intake Air Temperature (IAT) sensor measures the temperature of the incoming air stream, usually located within the intake manifold or the air intake tube. Air density changes with temperature; colder air is denser and contains more oxygen, while hotter air is less dense. By knowing the air temperature, the ECU can accurately calculate the mass of air entering the engine and adjust fuel delivery accordingly to maintain the desired air/fuel ratio. This ensures consistent performance across various ambient temperatures.

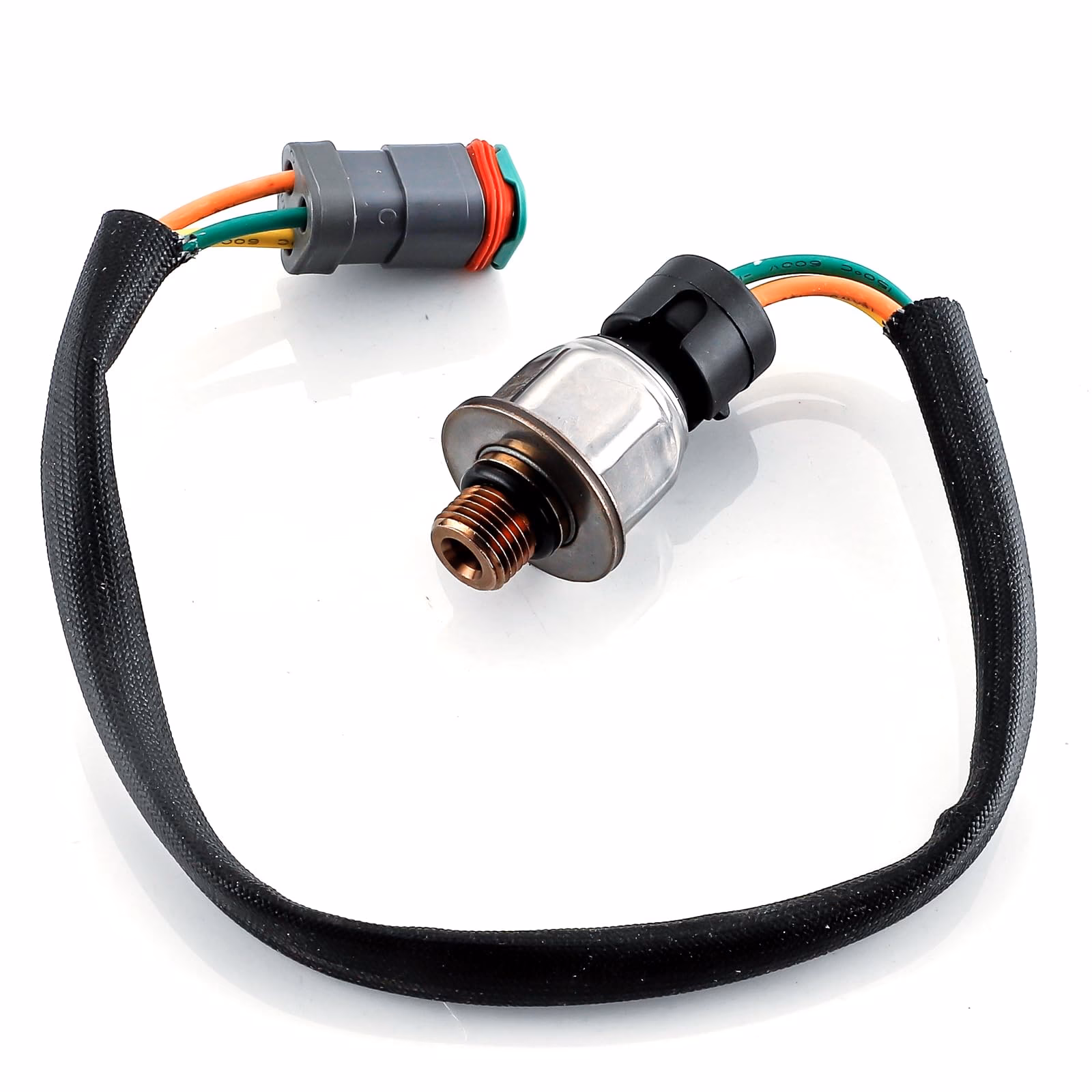

Oil Pressure Sensor
While not directly involved in fuel metering, some original equipment (OE) and aftermarket EFI systems incorporate an oil pressure sensor. This sensor monitors the engine's oil pressure, a critical parameter for engine health. In the event of dangerously low oil pressure, the ECU can trigger protective measures, such as entering a 'limp mode' to reduce engine load and prevent damage, or even shutting the engine down in extreme cases. Many GM engines, for example, feature a dedicated port for an oil pressure sensor, often at the top rear of the block, while LS-series engines may have a block-off plate above the oil filter that can be modified to accept one.
Coolant Temperature Sensor (CTS)
The Coolant Temperature Sensor (CTS) is indispensable for accurate fuel control, as an engine's fuel requirements change significantly with its operating temperature. Typically mounted in the intake manifold or cylinder heads, with direct access to the coolant passage, the CTS informs the ECU about the engine's current temperature. This data is vital for scenarios such as cold starts, which require a richer fuel mixture for easier ignition and stable idle, compared to hot start conditions. Many aftermarket EFI systems will not enter 'closed-loop' operation (where the O2 sensor provides feedback for real-time adjustments) until the engine reaches a set operating temperature, highlighting the CTS's importance for proper and reliable operation. Furthermore, electric cooling fans controlled by the ECU often rely on accurate coolant temperature readings to activate and deactivate at the correct thresholds.
O2 Sensor (Oxygen Sensor)
One of the most critical sensors for precise fuel control in modern EFI systems is the O2 sensor, or oxygen sensor. Most contemporary systems utilise wideband O2 sensors, often a single unit or a pair mounted on either side of the exhaust system. These sensors measure the residual oxygen content in the exhaust gases, providing real-time feedback on the efficiency of combustion and, by extension, the air/fuel ratio exiting the engine. This information is continuously sent to the ECU, which can then react almost instantaneously, making appropriate and minute changes to the engine's fuel delivery to maintain the optimal air/fuel ratio, particularly during closed-loop operation.
Crankshaft Position Sensor (CKP)
The Crankshaft Position Sensor (CKP) is a cornerstone for both fuel injection timing and ignition timing. Located typically near the crankshaft, often on the passenger side rear of LS engine blocks, this sensor sends a signal to the ECU relating to engine RPM and the precise angular position of the crankshaft. The CKP is triggered by a 'reluctor wheel' (either 24x or 58x teeth) mounted on the crankshaft inside the engine block. This precise timing information allows the ECU to determine when each cylinder is at top dead centre (TDC), enabling accurate fuel injector firing and spark plug ignition.
Camshaft Position Sensor (CMP)
Working in conjunction with the CKP sensor, the Camshaft Position Sensor (CMP) relies on a Hall effect sensor and a reluctor wheel mounted on the camshaft. It delivers precise camshaft position information to the ECU. This allows the ECU to distinguish between the exhaust and compression strokes, which is crucial for sequential fuel injection where each injector fires just before the intake valve opens for its respective cylinder. Earlier LS engines and some truck blocks had the CMP sensor mounted at the top rear of the block, near the oil pressure port. When GM introduced the higher-resolution 58x crank reluctor, the CMP sensor was moved to the front of the block and updated to a 4x trigger, further enhancing timing precision.
Knock Sensor
The knock sensor is a vital protective device in modern engines. It detects abnormal sounds and vibrations within the engine block, particularly those indicative of detonation or 'knocking' – a destructive phenomenon where the air/fuel mixture ignites prematurely. The information gleaned from a knock sensor is processed by the ECU, which determines if the detected sounds are detrimental. If detonation is detected, the ECU can react responsively, typically by retarding ignition timing, thereby preventing potential engine damage. These sensors are common on contemporary engines, such as the LS and LT lines, and can be found mounted in various locations, including the valley cover under the intake manifold or on each side of the engine block (e.g., LS3).
Frequently Asked Questions about EFI Systems
What happens if an EFI sensor fails?
If an EFI sensor fails, the ECU typically enters a 'limp mode' or uses default values to keep the engine running, albeit often with reduced performance, increased fuel consumption, or illuminated warning lights (e.g., 'Check Engine' light). The engine might run rough, hesitate, or even stall. The ECU uses diagnostic trouble codes (DTCs) to identify which sensor has failed, aiding in troubleshooting and repair.
Can I convert my carburettor-equipped car to EFI?
Yes, it is possible to convert a carburettor-equipped vehicle to EFI. Many aftermarket companies offer complete EFI conversion kits that replace the carburettor with a throttle body injection unit or provide multi-port injection solutions. These kits typically include a new ECU, wiring harness, fuel pump, and the necessary sensors. The complexity and cost vary depending on the specific kit and desired level of performance.
What is 'closed-loop' operation in an EFI system?
Closed-loop operation refers to the state where the ECU uses feedback from the O2 sensor to make real-time, continuous adjustments to the fuel delivery. This allows the system to maintain the optimal air/fuel ratio (stoichiometric) for efficient combustion and emissions control. In contrast, 'open-loop' operation occurs during cold starts or heavy acceleration, where the ECU ignores O2 sensor input and relies on pre-programmed maps and other sensor data.
How does EFI improve fuel economy compared to carburettors?
EFI systems significantly improve fuel economy by providing far more precise control over fuel delivery. Unlike carburettors, which can only approximate fuel needs, EFI systems continuously monitor numerous engine parameters and adjust fuel injection down to the millisecond. This exact metering ensures that only the necessary amount of fuel is injected for the prevailing conditions, reducing waste and optimising combustion efficiency across the entire RPM range.
What is 'tuning' in the context of EFI?
Tuning an EFI system involves modifying the pre-programmed fuel and ignition maps within the ECU to optimise engine performance, efficiency, or accommodate modifications (e.g., camshaft swaps, forced induction). This is typically done using specialised software and hardware to adjust parameters like fuel pulse width, ignition timing, and rev limits. Professional tuning is often required to unlock the full potential of modified engines and ensure safe, reliable operation.
Conclusion
The intricate world of Electronic Fuel Injection systems, initially daunting to many, reveals itself as a marvel of engineering when broken down. The harmonious interplay between a sophisticated Engine Control Unit and a network of precise sensors allows for unparalleled control over fuel delivery. From determining the minuscule Pulse Width of an injector to maintaining the critical Duty Cycle and achieving the perfect Air/Fuel Ratio, EFI ensures that every drop of fuel is utilised with maximum efficiency. Whether your vehicle employs a Speed Density or Mass Airflow metering method, the underlying principle remains the same: precise, computer-controlled fuel management for superior performance and reduced environmental impact. Understanding these components not only demystifies modern automotive technology but also empowers enthusiasts and mechanics alike to appreciate the subtle yet profound intelligence at the heart of their vehicle's engine.
