Fuel Injector Seal Kit Explained

In the intricate world of automotive mechanics, understanding the function of seemingly small components can make a significant difference to your vehicle's overall health and performance. One such component, often overlooked until a problem arises, is the fuel injector seal kit. This unassuming set of seals plays a vital role in ensuring your engine receives the precise amount of fuel it needs to operate efficiently. This article will delve into what a fuel injection fuel feed & return pipe seal kit is, its importance, the signs that indicate it needs replacing, and why choosing the right kit is paramount.

The Role of Fuel Injectors

Before we dissect the seal kit, it's essential to grasp the fundamental purpose of fuel injectors. In modern vehicles, fuel injectors have replaced carburetors as the primary means of delivering fuel to the engine's combustion chambers. They are electronically controlled devices that spray a fine mist of fuel directly into the intake manifold or cylinder. This precise atomisation and delivery of fuel, combined with air, creates the combustible mixture that powers your engine. The amount of fuel injected is meticulously controlled by the engine's computer (ECU) to optimise performance, fuel economy, and emissions.

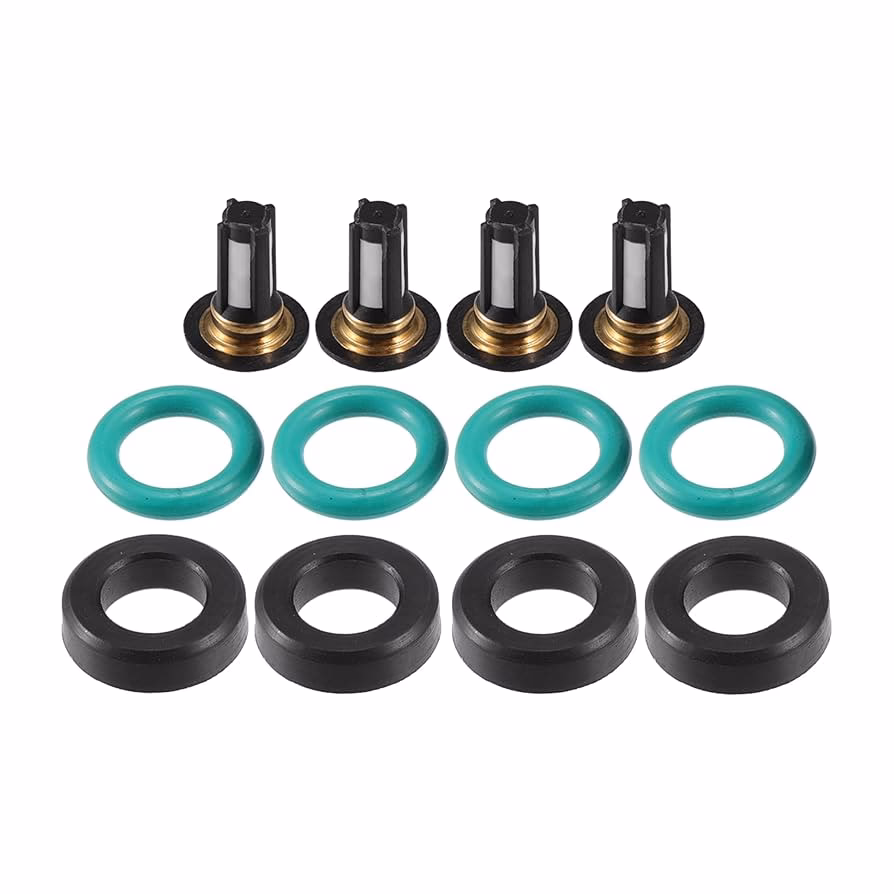

What is a Fuel Injection Fuel Feed & Return Pipe Seal Kit?

A fuel injection fuel feed & return pipe seal kit is a collection of rubber or synthetic O-rings and seals specifically designed to create a leak-proof connection between the fuel rail, the fuel injectors, and the associated fuel lines. These seals are critical for several reasons:

• Preventing Fuel Leaks: The primary function is to prevent fuel from escaping the system. Fuel is highly flammable, and even a small leak can be a serious fire hazard. Leaks can occur at the point where the fuel rail connects to the injectors, or where the fuel lines connect to the fuel rail or the fuel pump.
• Maintaining Fuel Pressure: The seals ensure that the fuel system maintains the correct fuel pressure. If seals are degraded or damaged, fuel can leak out, leading to a drop in pressure. Low fuel pressure means the injectors won't receive enough fuel, resulting in poor engine performance.
• Preventing Air Intrusion: While less common on the feed side, compromised seals can also allow air to enter the fuel system. This can lead to intermittent running issues and difficulty starting.
• Protecting Injectors: The seals also act as a barrier against dirt and debris entering the fuel injectors, which could otherwise cause blockages or damage.

The "feed" pipe refers to the line that supplies pressurised fuel to the fuel rail, which then distributes it to the injectors. The "return" pipe, found in some fuel systems, carries excess fuel back from the fuel rail to the fuel tank, helping to regulate fuel pressure and keep the fuel cool. Therefore, a comprehensive seal kit will typically include seals for both the feed and return connections, as well as the seals that fit directly onto the fuel injectors themselves where they seat into the fuel rail or intake manifold.

Why Are These Seals Important?

The seals in a fuel injection system are subjected to a harsh environment. They are constantly exposed to:

• Fuel: Modern fuels contain various additives and ethanol, which can degrade rubber over time.
• Heat: The engine compartment generates significant heat, which can cause rubber seals to harden, crack, or become brittle.
• Pressure: The fuel system operates under pressure, putting stress on the seals to maintain their integrity.

Over time, these factors will inevitably lead to the seals degrading. When this happens, the consequences can range from minor performance issues to potentially dangerous situations.

Signs Your Fuel Injector Seal Kit Needs Replacing

Recognising the symptoms of failing fuel injector seals is crucial for timely replacement. Here are some common indicators:

• Fuel Smell: This is often the most noticeable sign. If you detect a strong smell of petrol (gasoline) around your vehicle, especially when it's parked or shortly after it’s been running, it could indicate a fuel leak from a faulty seal. Never ignore a fuel smell.
• Poor Engine Performance: Symptoms like rough idling, hesitation during acceleration, loss of power, or misfires can all be linked to fuel delivery issues caused by leaking seals or low fuel pressure.
• Check Engine Light: Modern vehicles have sophisticated diagnostic systems. A fuel leak or a significant drop in fuel pressure can trigger the "Check Engine" light on your dashboard. The diagnostic trouble codes (DTCs) stored by the ECU might point towards fuel system pressure issues.
• Difficulty Starting: If the seals are leaking, the fuel system may not be able to hold pressure when the engine is off. This can lead to longer cranking times or difficulty starting the engine, especially when it's hot.
• Visible Leaks: In some cases, especially with more severe degradation, you might be able to see dampness or wetness around the fuel injectors or fuel lines, indicating a leak.

Choosing the Right Seal Kit

When it's time to replace your fuel injector seals, it's vital to use a high-quality kit that is compatible with your specific vehicle make, model, and year. Generic kits may not offer the correct fit or material, leading to premature failure or continued leaks.

Key considerations when purchasing a seal kit:

• Vehicle Specificity: Always ensure the kit is designed for your car. Manufacturers use different injector designs and fuel rail configurations.
• Material Quality: Look for kits made from high-quality, fuel-resistant materials like Viton or EPDM rubber, which are designed to withstand the harsh automotive environment. Cheaper, low-quality rubber can degrade quickly.
• Completeness: A good kit should include all the necessary seals for the injectors (top and bottom if applicable), as well as seals for the fuel rail and line connections.
• Reputable Brands: Opt for kits from reputable aftermarket parts manufacturers known for their quality and reliability.

The Replacement Process

Replacing fuel injector seals is a job that requires a certain level of mechanical skill and attention to detail. It typically involves:

1. Safety First: Disconnect the battery and relieve fuel system pressure before starting any work. Wear appropriate safety gear, including gloves and eye protection.
2. Accessing the Injectors: This often involves removing engine covers, the air intake system, and sometimes the fuel rail itself.
3. Removing the Fuel Rail: Carefully unbolt and detach the fuel rail, which holds the injectors in place.
4. Replacing Seals: Gently remove the old seals from the injectors and the fuel rail. Clean the injector pintle caps and the injector seats in the fuel rail. Lubricate the new seals with a small amount of clean engine oil or a specific fuel injector lubricant before carefully installing them. This prevents tearing and ensures a proper fit.
5. Reassembly: Reinstall the fuel rail and injectors, ensuring they are seated correctly. Reconnect all associated components and lines.
6. Testing: After reassembly, reconnect the battery and turn the ignition key to the "on" position (without starting the engine) a couple of times to allow the fuel pump to prime the system and build pressure. Check meticulously for any signs of leaks before starting the engine. Once confirmed leak-free, start the engine and monitor its operation and listen for any unusual noises or smells.

Given the critical nature of the fuel system and the potential fire risks associated with leaks, if you are not confident in your mechanical abilities, it is highly recommended to have this work performed by a qualified mechanic.

Frequently Asked Questions

Q1: How often should fuel injector seals be replaced?
There is no fixed interval for replacing fuel injector seals. They should be replaced when they show signs of wear or degradation, such as fuel leaks or poor engine performance attributed to fuel delivery issues. It's often done as a preventative measure when replacing fuel injectors or the fuel rail.

Q2: Can I use generic seals from a hardware store?
No, it is strongly advised against using generic seals. Fuel system seals must be made of specific, fuel-resistant materials and be precisely dimensioned for your vehicle's injectors and fuel rail. Using the wrong type of seal can lead to leaks, poor performance, and safety hazards.

Q3: What is the difference between top and bottom injector seals?

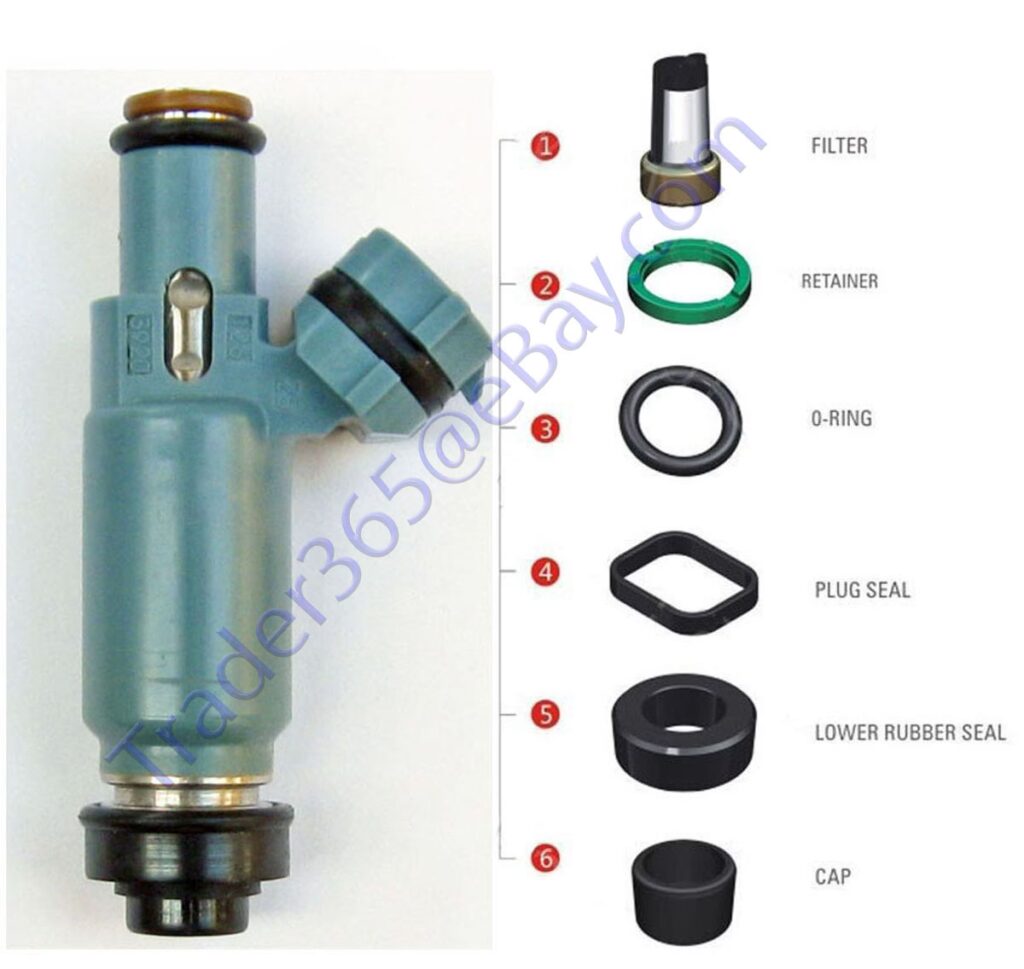

Injectors typically have seals at both the fuel rail end (top) and the intake manifold or cylinder head end (bottom). The top seals ensure a leak-proof connection to the fuel rail, while the bottom seals prevent air from entering and fuel from leaking into the intake manifold. Both are crucial and should be replaced.

Q4: My car smells of petrol. Is it definitely the injector seals?
A petrol smell is a strong indicator of a fuel leak, and failing injector seals are a common cause. However, leaks can also occur from fuel lines, the fuel filter, the fuel pump, or other components of the fuel system. A thorough inspection is necessary to pinpoint the exact source of the leak.

Conclusion

The fuel injection fuel feed & return pipe seal kit, while small and often unseen, is an indispensable part of your vehicle's fuel delivery system. Its primary role is to maintain fuel integrity and pressure, ensuring your engine runs smoothly, efficiently, and safely. By understanding the signs of wear and opting for quality replacement parts, you can prevent potentially serious issues and keep your vehicle performing at its best. Regular checks, especially if you notice any of the symptoms mentioned, are key to maintaining a healthy fuel system.
