Is Your Diesel Fuel Return Line Faulty?

Have you ever found yourself pondering the inner workings of your diesel engine, perhaps even typing 'What is a diesel fuel return line?' into a search bar? You're not alone. While seemingly simple, the diesel fuel return line is a surprisingly crucial component of your vehicle's fuel system. At its core, it’s responsible for safely channelling excess fuel from the engine back to the fuel tank. Yet, as with most things mechanical, its simplicity belies a critical role in maintaining your engine’s health and efficiency. Understanding this often-overlooked part, especially how to identify when it’s gone awry, is paramount for any diesel vehicle owner in the UK.

Understanding the Diesel Fuel Return Line

Before delving into the symptoms of a faulty return line, it's essential to grasp its fundamental purpose and design. This humble line is far more than just a pipe; it's an integral part of a sophisticated system designed to ensure your engine runs smoothly and efficiently.

The Basics of Diesel Fuel Return Lines

The primary function of a diesel fuel return line is to return any unused, excess fuel from the engine back to the fuel tank. Diesel engines operate by drawing more fuel than is strictly necessary for immediate combustion. This surplus fuel serves several vital purposes, not least of which is to help cool the fuel injectors and maintain a consistent fuel pressure within the system. The return line ensures this unused fuel is recycled, preventing the engine from being flooded and optimising fuel economy.

Function and Importance of Diesel Fuel Return Lines

The return line plays a pivotal role in regulating the fuel system’s pressure. The fuel pump continuously supplies fuel under pressure to the injectors. Not all of this fuel is injected into the combustion chamber. The excess, which has absorbed heat from the engine, is then directed back to the tank via the return line. This continuous circulation helps to keep the fuel system cool, preventing the fuel from becoming too hot, which could lead to issues like vapour lock or reduced fuel density. Without a properly functioning return line, your engine could suffer from poor fuel economy, reduced performance, and even potential damage from overheating.

Interaction with Other Engine Components

The diesel fuel return line doesn't operate in isolation. It's part of a complex, interconnected system that includes the fuel injectors, the injection pump, and the fuel tank itself. The return line typically connects the fuel rail (which supplies fuel to the injectors) or individual injectors to the fuel tank, ensuring a steady, balanced circulation of fuel. This harmonious interaction is crucial for maintaining the balance and efficiency of the engine’s fuel system. In essence, the diesel fuel return line acts as a mediator, helping to maintain equilibrium within your engine’s operations.

Components of a Diesel Fuel Return Line System

To fully appreciate how the return line works, it's helpful to understand the key components that make up this vital system and their individual roles.

Fuel Injectors and Their Role

Fuel injectors are central to the fuel delivery process. They are responsible for atomising and spraying a precise amount of diesel into the engine's combustion chamber. Any fuel that is not injected for combustion – often referred to as 'back leakage' – is then directed into the return line system. The efficiency of the injectors directly impacts the amount of fuel that needs to be returned, making them a critical point in the system's overall health.

The Function of Fuel Pumps

The fuel pump, whether a lift pump or a high-pressure pump, is responsible for drawing fuel from the tank and propelling it towards the engine and injectors under significant pressure. It must maintain a consistent pressure to ensure the injectors function correctly. If the pump generates excess pressure, or if the injectors are not consuming enough fuel, the surplus is managed by the return line, ensuring the system maintains the correct balance.

Return Hoses: The Transporter

The actual conduits for the returning fuel are the return hoses. These are typically made from durable materials resistant to heat, pressure, and chemical degradation from diesel fuel. They carry the excess fuel from the injectors (or fuel rail) back to the tank. The integrity of these hoses is paramount; any leak or degradation can lead to significant issues. They also contribute to cooling the engine by removing heated, unused fuel.

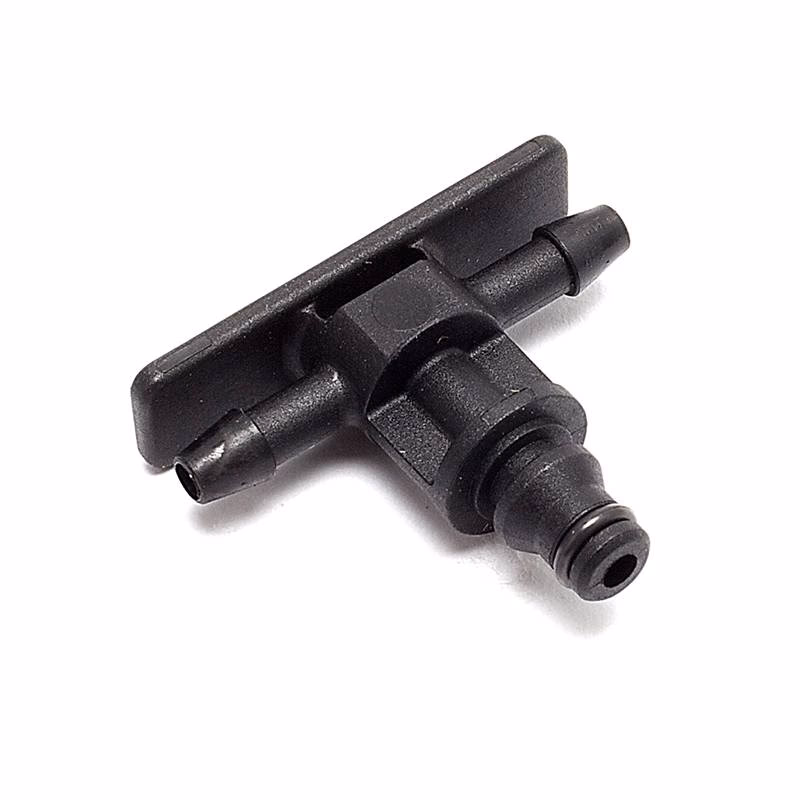

Connecting Components: Fittings, Clamps, and Seals

While the injectors, pumps, and hoses are the main players, a host of smaller but equally critical components – such as fittings, clamps, and seals – ensure the system functions correctly. These parts connect the various elements, secure hoses to injectors and tanks, and, most importantly, prevent leaks that could lead to decreased performance, fuel wastage, or even safety hazards. A fault in any of these seemingly minor components can compromise the entire system.

How Diesel Fuel Return Lines Work: A Step-by-Step Guide

The operation of a diesel fuel return line is a continuous, cyclical process. Understanding these steps helps to demystify its function and highlights why a fault can have such widespread implications.

1. Step 1: Fuel Delivery
   The journey begins in the fuel tank. The fuel pump draws diesel and sends it under pressure towards the engine's fuel rail and injectors. This high-pressure environment is vital for the injectors to atomise the fuel effectively, which is crucial for efficient combustion.
2. Step 2: Fuel Injection
   Upon reaching the fuel injectors, a precise amount of diesel is sprayed into the combustion chamber. The injectors atomise the fuel into a fine mist, allowing it to mix thoroughly with air for optimal burning.
3. Step 3: Surplus Fuel Management
   Despite the precision, there's always some fuel that isn't immediately used for combustion. This surplus, if left unchecked, could lead to issues such as engine flooding or overheating. This is where the diesel fuel return line becomes indispensable.
4. Step 4: Return of Excess Fuel
   The surplus fuel is redirected into the diesel fuel return line. From here, it's efficiently carried back to the fuel tank for storage and future use. This constant recycling helps to maintain the engine’s temperature and ensures no fuel is wasted.
5. Step 5: Continuous Cycle
   As long as the engine is running, this cycle of fuel delivery, injection, and return of excess fuel continues seamlessly. The harmonious interplay of these components within the diesel fuel return line system is what enables the smooth and efficient functioning of a diesel engine, contributing significantly to fuel economy and overall vehicle performance.

Recognising a Faulty Diesel Fuel Return Line: The Key Symptoms

Knowing the signs of a faulty diesel fuel return line is crucial for proactive maintenance and avoiding more severe engine problems. While some symptoms can point to other issues, a combination of these often indicates a problem with your return line system.

Common Issues and Their Symptoms

1. Leaks in the Return Line

Perhaps the most straightforward and common issue is a fuel leak. This can occur due to wear and tear over time, especially in the return hoses, or damage to fittings, seals, and clamps. Leaks are not only wasteful but can also reduce the necessary pressure within the fuel system, impacting injector performance. You might notice:

• Visible Fuel Leaks: Look for puddles or wet spots under your vehicle, particularly near the engine or fuel tank area.
• Strong Fuel Odour: A persistent smell of diesel, especially inside the cabin or around the engine bay, is a strong indicator of a leak.
• Decreased Fuel Efficiency: Leaking fuel means wasted fuel, directly impacting your miles per gallon (MPG).

2. Blockages in the System

Over time, debris, sediment, or even fuel contaminants can accumulate within the return line, leading to partial or complete blockages. This obstruction prevents excess fuel from returning to the tank, causing it to build up within the engine's fuel system. Symptoms of a blockage include:

• Engine Stalling or Running Out of Fuel: A severe blockage can cause the engine to be starved of fuel as the system cannot properly regulate pressure or flow.
• Engine Overheating: If hot, unused fuel cannot return to the tank, it remains in the engine bay, contributing to increased engine temperature.
• Engine Running Rich / Flooding Symptoms: Excess fuel in the engine due to poor return can lead to rough running, excessive smoke, and poor combustion.
• Decreased Engine Performance: The engine might feel sluggish, lack power, especially under load, or have poor acceleration.

3. Faulty Fuel Injectors

While not a direct fault of the return line itself, malfunctioning fuel injectors can significantly impact its performance. If injectors are not atomising fuel correctly or are delivering the wrong amount, it can lead to an abnormal volume of fuel needing to be returned. This can strain the return line system and manifest as:

• Excessive Back Leakage: This is a key diagnostic indicator. If an injector is faulty, it might return an unusually high volume of fuel, leading to pressure loss in the main fuel rail and symptoms like poor or no engine starting, rough running, and poor acceleration.
• Reduced Back Leakage: Conversely, a worn injector might inject too much fuel into the combustion chamber, leading to less fuel returning. This can also cause issues with fuel pressure and engine performance.
• Engine Misfires and Rough Idling: Inconsistent fuel delivery or return due to injector issues can lead to an uneven combustion process.

4. Worn Out Fuel Pump

A fuel pump that isn't maintaining the correct pressure can indirectly indicate issues with the return line system's balance. If the pump is weak, it might not provide enough pressure for the return line to function optimally. Conversely, an over-performing pump combined with a faulty return line can exacerbate pressure issues. Symptoms can overlap with other fuel system problems:

• Loss of Engine Power: Insufficient or excessive fuel pressure can directly impact the engine's ability to generate power.
• Difficulty Starting: Especially noticeable during cold starts, as the system struggles to build and maintain adequate fuel pressure.
• Decreased Fuel Efficiency: Inefficient fuel delivery and return will inevitably lead to higher fuel consumption.

Symptoms at a Glance:

To help you quickly identify potential issues, here's a comparative table of common symptoms and their potential relation to a faulty diesel fuel return line:

Diagnosing and Troubleshooting a Faulty Return Line

Once you suspect an issue, the next step is diagnosis. While some basic checks can be done at home, professional help is often recommended for accurate identification and repair.

Visual Inspection

Start with a thorough visual inspection. Look for any obvious signs of leaks along the entire length of the return line, from the injectors back to the tank. Check hoses for cracks, chafing, or swelling. Inspect fittings and clamps for looseness or corrosion. A simple check of the engine bay for fuel residue can also provide clues.

Performance Monitoring

Pay close attention to your vehicle's performance. Keep a log of your fuel efficiency over time. Note any changes in engine power, acceleration response, or how smoothly it idles. These subtle shifts can be early indicators of a developing problem.

Professional Diagnostics: Back Leakage Test

For more precise diagnosis, particularly when suspecting faulty injectors or internal blockages, a professional back leakage test is invaluable. This involves connecting specialised measuring equipment to the return lines of each injector. By running the engine, technicians can measure the volume of fuel returned by each injector. Significant discrepancies (e.g., one injector returning much more or much less fuel than others) indicate a fault, often within the injector itself, but directly impacting the return line system's balance. This test can highlight issues that visual inspections alone cannot detect.

The Importance of Prompt Attention

Ignoring symptoms of a faulty fuel return line can have detrimental effects on your vehicle's fuel efficiency and engine performance. A seemingly minor leak can escalate into a significant fuel loss, posing a fire hazard. A blockage can lead to engine overheating and potential long-term damage to critical components like the fuel pump or injectors. Addressing these issues promptly is essential to prevent further damage, maintain peak engine performance, and ensure the safe operation of your vehicle. Remember, preventive care is always better and often less costly than reactive repairs.

Consequences of Ignoring Issues

Neglecting a faulty diesel fuel return line isn't just an inconvenience; it can lead to serious and costly repercussions for your vehicle and even pose safety risks.

• Reduced Fuel Efficiency: Even a small leak or partial blockage means your engine isn't using fuel as efficiently as it should, leading to higher running costs.
• Engine Damage: Continuous overheating due to poor fuel return can cause premature wear and tear on engine components. Issues like injector lock-up (where an injector gets stuck open or closed) can occur if fuel pressure regulation is severely compromised.
• Compromised Performance: Reduced power, poor acceleration, and rough idling make for an unpleasant and potentially unsafe driving experience. Your vehicle may struggle to perform as expected, especially when towing or under heavy loads.
• Safety Hazards: Fuel leaks pose a significant fire risk, especially in a hot engine bay. Furthermore, issues like vapour lock (where fuel turns into a gas in the fuel lines due to heat) can cause sudden engine stalling, which can be dangerous, particularly at high speeds.

It's clear that understanding and addressing fuel return line issues promptly is not merely about maintaining efficiency but also about ensuring the longevity and safety of your diesel vehicle.

Frequently Asked Questions (FAQ)

What is the primary purpose of a diesel fuel return line?

A diesel fuel return line is a vital part of your engine's fuel system. Its main purpose is to return excess, unused fuel from the engine back to the fuel tank. This process helps to regulate fuel pressure, cool the fuel system, and prevent the engine from being flooded, ensuring efficient fuel usage and optimal engine performance.

How do I know if my diesel fuel return line is faulty?

Several signs can indicate a faulty diesel fuel return line. These include a noticeable decrease in fuel efficiency, a loss of engine power, visible fuel leaks around the engine or under the vehicle, a strong diesel fuel odour, the engine overheating, misfires, or rough idling. In severe cases, your vehicle might experience unexpected engine stalling or difficulty starting.

What happens if my diesel fuel return line is blocked?

If your diesel fuel return line is blocked, excess fuel cannot properly return to the tank. This can lead to a build-up of fuel and pressure in the engine's fuel system. Consequences can include engine overheating, the engine running 'rich' (receiving too much fuel), decreased performance, rough idling, and in extreme cases, engine stalling or damage due to component strain.

Can I repair my diesel fuel return line myself?

While minor issues like replacing a visibly leaking return hose might be manageable for someone with basic mechanical experience and the correct tools, diagnosing more complex problems like internal blockages, faulty injectors causing excessive back leakage, or issues with fittings and seals often requires specialised knowledge and equipment. For accurate diagnosis and repair, it is generally recommended to seek professional help from a qualified mechanic.

What commonly causes diesel fuel return line leaks?

Leaks in a diesel fuel return line are most commonly caused by general wear and tear over time, particularly in the flexible return hoses which can degrade, crack, or become brittle. Damage to the connecting components such as seals, O-rings, clamps, or fittings can also lead to leaks. Exposure to extreme temperatures, vibrations, and chemical reactions with the fuel can accelerate this degradation.

How often should I inspect my diesel fuel return line?

It's good practice to have your diesel fuel return line inspected during your vehicle's regular service intervals or maintenance checks. This frequency can vary based on your vehicle's make, model, age, and how frequently you use it. However, if you notice any of the symptoms mentioned above, immediate inspection is advisable.

Does a faulty diesel fuel return line affect my fuel economy?

Absolutely. A faulty diesel fuel return line can significantly impact your fuel economy. Leaks directly lead to wasted fuel, while blockages or inefficient return processes can disrupt the optimal cycle of fuel usage and return, forcing the engine to work harder or consume more fuel than necessary to maintain performance, thus reducing your miles per gallon.

Does the diesel fuel return line affect engine temperature?

Yes, it does. One of the crucial roles of the diesel fuel return line is to help regulate engine temperature. By continuously returning unused fuel – which has absorbed heat from the engine – back to the cooler fuel tank, the return line helps to prevent the fuel system and, consequently, the engine itself from overheating. A blocked or compromised return line can lead to elevated engine temperatures.

What materials are diesel fuel return lines typically made of?

Diesel fuel return lines, especially the hoses, are typically constructed from robust materials designed to withstand the harsh automotive environment. This includes reinforced rubber, high-density plastics, or sometimes braided cloth-covered lines. These materials are chosen for their resistance to heat, pressure, and the corrosive properties of diesel fuel, ensuring durability and leak prevention.

What other components work in conjunction with the diesel fuel return line?

The diesel fuel return line is part of a larger, integrated fuel system. It works in conjunction with the fuel pump (which delivers fuel from the tank), the fuel injectors (which spray fuel into the engine), the fuel rail (which distributes fuel to the injectors), and the fuel tank itself. Smaller components like various fittings, clamps, and seals are also essential for the system's integrity and smooth operation.

Conclusion

In closing, the diesel fuel return line, while often overlooked, is an indispensable component of a diesel engine’s fuel system. Its critical role in managing excess fuel, regulating fuel pressure, maintaining engine temperature, and ensuring efficient fuel usage is paramount for optimal vehicle performance and longevity. Understanding the mechanics of a diesel fuel return line – its components, how they interact, and, crucially, the common issues that may arise – can empower you as a vehicle owner in the UK.

By being aware of the tell-tale symptoms like visible leaks, decreased fuel efficiency, loss of power, or engine overheating, you can monitor your engine’s health, identify potential problems early, and seek professional assistance when necessary. Proactive maintenance and timely repairs of your diesel fuel return line will not only save you money in the long run by preventing more extensive damage but also ensure your diesel vehicle remains reliable, efficient, and safe on the road. Don't underestimate the significance of this humble line; its proper functioning is key to your diesel's continued performance.
