The modern automobile is a marvel of engineering, and at its heart lies the complex interplay of various systems working in harmony to deliver power and efficiency. One of the most crucial of these is the fuel injection system. Gone are the days of carburettors, largely replaced by the precision and adaptability of fuel injection. But what exactly is a fuel injector system, and how does it contribute to your vehicle's performance? This article will delve into the fundamental principles, components, and benefits of these essential automotive technologies.
Each injector has its own pumping element, and in the case of electronic control, a fuel solenoid valve as well. The fuel system is divided into the low-pressure (< 5 bar) fuel supply system, and the high-pressure injection system (< 2000 bar). The unit injector system enables high injection pressures of up to 2,200 bar.[/caption]
The Core Function: Atomisation for Combustion
At its most basic level, a fuel injector system's primary purpose is to atomise fuel and deliver it into the engine's cylinders. Atomisation refers to the process of breaking down liquid fuel into a fine mist or spray. This is critical for achieving efficient and complete combustion. Imagine trying to light a damp log versus dry kindling – the finer the fuel particles, the more readily they ignite and burn. In an internal combustion engine, this fine spray ensures that the fuel mixes thoroughly with the incoming air, creating a combustible mixture that burns cleanly and powerfully. This precise delivery is a significant improvement over older carburettor systems, which relied on vacuum pressure to draw fuel into the airstream, often resulting in less consistent fuel-air ratios.
Key Components of a Fuel Injection System
A typical fuel injection system is a sophisticated network of components, each playing a vital role:
Fuel Pump
The fuel pump is responsible for drawing fuel from the fuel tank and delivering it under pressure to the rest of the system. Modern vehicles usually employ electric fuel pumps, often located within the fuel tank itself. These pumps ensure a consistent supply of fuel, regardless of the vehicle's orientation or fuel level, providing the necessary pressure for the injectors to operate effectively.
Fuel Filter
Before reaching the injectors, the fuel passes through a fuel filter. This component is crucial for removing any impurities, debris, or contaminants that might be present in the fuel. Clogged fuel filters can restrict fuel flow, leading to poor engine performance, hesitation, and even engine damage. Regular replacement of the fuel filter is a vital part of routine maintenance.
Fuel Rail
The fuel rail is a manifold that distributes pressurised fuel to each individual fuel injector. It acts as a temporary reservoir, ensuring that each injector receives a consistent supply of fuel at the correct pressure. The design and material of the fuel rail can vary, but its function remains the same – to deliver fuel evenly.
Fuel Injectors
These are the stars of the show. Fuel injectors are essentially electronically controlled valves. When the engine's control unit (ECU) sends an electrical signal, the injector opens for a precisely timed duration, spraying a measured amount of atomised fuel into the combustion chamber or intake manifold. The precision of these injectors is paramount for optimising fuel economy and reducing emissions. The nozzle design of the injector is engineered to create the finest possible fuel spray, promoting efficient mixing with air.
Fuel Pressure Regulator
The fuel pressure regulator maintains a consistent fuel pressure within the fuel rail. It works by bypassing excess fuel back to the fuel tank when the pressure exceeds a set limit. This ensures that the injectors always receive fuel at the optimal pressure, regardless of engine load or speed.
Engine Control Unit (ECU) / Powertrain Control Module (PCM)
The ECU, often referred to as the car's 'brain', is the central computer that manages and controls the fuel injection system. It receives data from numerous sensors throughout the vehicle, including throttle position, engine speed, air temperature, and oxygen levels. Based on this data, the ECU calculates the exact amount of fuel needed and precisely times the opening of each injector to achieve the ideal air-fuel ratio for various driving conditions. This sophisticated control allows for significant improvements in fuel efficiency, power output, and emissions reduction compared to older systems.
Types of Fuel Injection Systems
While the fundamental principle remains the same, there are several types of fuel injection systems:
Throttle Body Injection (TBI)
This was an early form of fuel injection, often seen as a transition from carburettors. In TBI systems, a single or two injectors are located in the throttle body, delivering fuel into the intake manifold, similar to how a carburettor works. While an improvement over carburettors, TBI systems are less precise than more advanced systems.
Multi-Point Fuel Injection (MPFI) / Port Fuel Injection (PFI)
In MPFI systems, each cylinder has its own dedicated fuel injector, typically located in the intake manifold just before the intake valve. This allows for more precise fuel delivery directly into the path of the incoming air as it enters the cylinder. This leads to better fuel atomisation and a more consistent air-fuel mixture for each cylinder, resulting in improved performance and efficiency.
Gasoline Direct Injection (GDI)
This is the most advanced and increasingly common type of fuel injection. With GDI, the fuel injectors spray fuel directly into the combustion chamber itself. This allows for even greater control over fuel delivery, enabling higher compression ratios, improved fuel economy, and reduced emissions. The high pressure required for direct injection means GDI systems have more robust components.
Benefits of Fuel Injection Systems
The widespread adoption of fuel injection is due to the significant advantages it offers over older carburettor technology:
- Improved Fuel Economy: Precise control over the air-fuel ratio ensures that the engine only uses the amount of fuel it needs, leading to better mileage.
- Increased Power and Performance: Optimal fuel delivery and atomisation result in more efficient combustion, translating to greater power and responsiveness.
- Reduced Emissions: By ensuring a cleaner burn and precise fuel metering, fuel injection systems significantly reduce harmful exhaust emissions, helping vehicles meet stringent environmental regulations.
- Smoother Idling and Drivability: The consistent and precise fuel delivery leads to smoother engine operation, especially at idle and low speeds.
- Better Cold Starts: Fuel injection systems can adjust fuel delivery for cold starts more effectively than carburettors, eliminating the need for manual chokes.
- Adaptability: Fuel injection systems can adapt to changing atmospheric conditions (altitude, temperature) and engine loads automatically, thanks to the ECU and sensor inputs.
Maintenance and Common Issues
While fuel injection systems are generally reliable, they do require some maintenance. The most common issues include:
- Clogged Injectors: Over time, carbon deposits can build up on the injector nozzles, restricting fuel flow and affecting spray pattern. This can lead to rough idling, misfires, and reduced power. Using high-quality fuel and occasionally using a fuel injector cleaner can help prevent this.
- Faulty Fuel Pump: A failing fuel pump can result in a lack of power, hesitation, and difficulty starting.
- Clogged Fuel Filter: As mentioned, a dirty fuel filter restricts fuel flow. Regular replacement is essential.
- Sensor Malfunctions: Issues with sensors (e.g., oxygen sensor, mass airflow sensor) can lead the ECU to make incorrect fuel delivery calculations, impacting performance and emissions.
Troubleshooting these issues often involves diagnostic tools that can read error codes from the ECU, pinpointing the source of the problem. Regular servicing and paying attention to your vehicle's performance are key to identifying and addressing potential issues early.
Fuel Injectors vs. Mufflers
It's important to distinguish the role of fuel injectors from other engine components. For instance, a muffler, also known as a silencer, is part of the exhaust system. Its sole purpose is to reduce the noise produced by the engine's exhaust gases. It does not play any role in fuel delivery or combustion. While both are critical for a functioning vehicle, they serve entirely different purposes.
Similarly, in a spark ignition (SI) engine, the ignition system, which includes spark plugs, is responsible for igniting the air-fuel mixture. The spark plug provides the necessary spark to initiate combustion. Fuel injectors deliver the fuel, but the ignition system is what ignites it. Understanding these distinctions is crucial for comprehending how your engine operates as a whole.

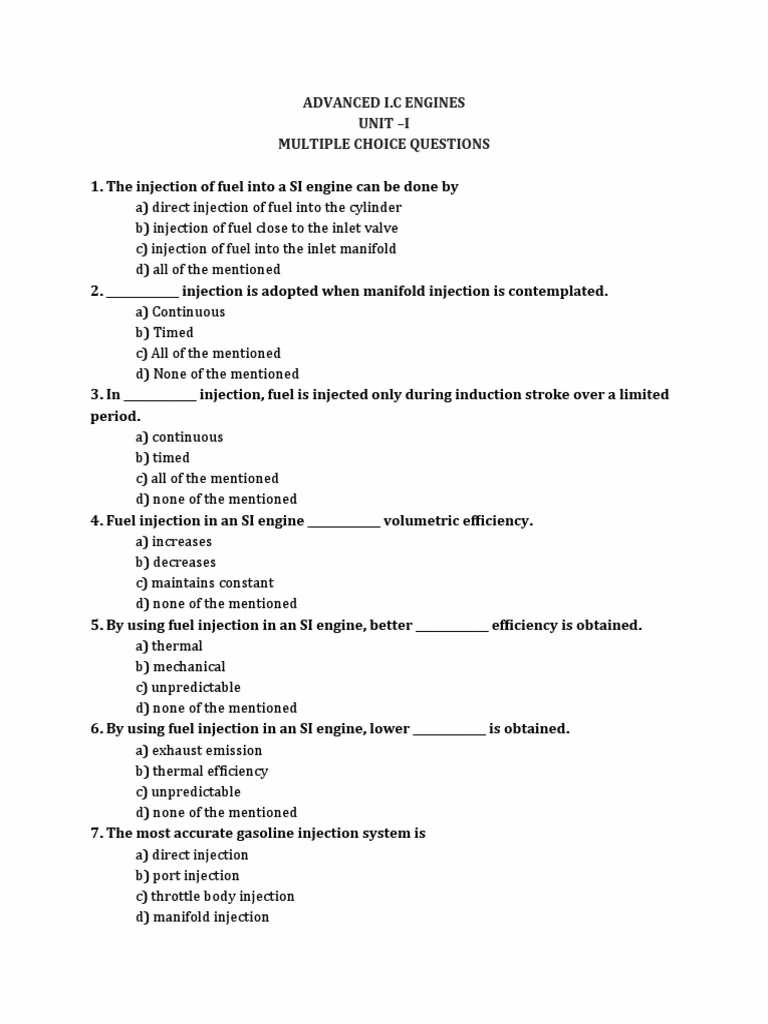

Frequently Asked Questions
Q1: How often should I clean my fuel injectors?
There's no fixed schedule, but if you notice a decline in fuel economy, rough idling, or hesitation, a professional cleaning might be beneficial. Some mechanics recommend a preventative cleaning every 30,000-50,000 miles.
Q2: Can I use generic fuel injector cleaner?
While some generic cleaners can help, it's often best to use a cleaner specifically recommended for your vehicle or one that's known to be effective. Poor quality cleaners can sometimes do more harm than good.
Q3: What are the signs of a clogged fuel injector?
Common signs include poor fuel economy, rough idling, engine misfires, hesitation during acceleration, and a reduction in overall engine power.
Q4: Does fuel injection use more fuel than carburettors?
No, quite the opposite. Fuel injection systems are designed for precision and typically use less fuel than carburettor systems, leading to better fuel economy.
Q5: What is the difference between port injection and direct injection?
Port injection (MPFI) delivers fuel into the intake manifold, while direct injection (GDI) sprays fuel directly into the combustion chamber. Direct injection offers greater control and efficiency.
In conclusion, the fuel injector system is a cornerstone of modern automotive technology. Its ability to precisely atomise and deliver fuel for optimal combustion is key to the performance, efficiency, and environmental compliance of today's vehicles. Understanding its components and function empowers you to better maintain your car and appreciate the engineering that goes into making it run smoothly.
