Understanding Low Fuel Injection Pressure
Low fuel injection pressure is a critical issue that can significantly impact your vehicle's performance, fuel efficiency, and overall engine health. When the fuel injection system doesn't deliver fuel at the correct pressure, it disrupts the precise atomisation and delivery of fuel into the combustion chamber. This can lead to a cascade of problems, from rough idling and reduced power to increased emissions and potential long-term engine damage. This article will delve into the common causes behind low fuel injection pressure and provide practical methods for diagnosing and rectifying these issues.
Common Causes of Low Fuel Injection Pressure
Several factors can contribute to a drop in fuel injection pressure. Identifying the root cause is the first step towards an effective repair. Here are some of the most frequent culprits:
1. Fuel Pump Issues
The fuel pump is responsible for drawing fuel from the tank and delivering it to the injection system at the required pressure. If the fuel pump is weak, worn, or failing, it won't be able to maintain adequate pressure. This can be due to:
- Aging Fuel Pump: Like any mechanical component, fuel pumps degrade over time. Internal wear can reduce their output capacity.
- Electrical Problems: Issues with the fuel pump relay, fuse, wiring, or even the pump motor itself can prevent it from operating correctly.
- Clogged Fuel Filter: A severely clogged fuel filter restricts fuel flow to the pump, effectively starving it and causing a pressure drop.
2. Clogged Fuel Filter
The fuel filter is designed to remove contaminants from the fuel before they reach the injectors. Over time, these contaminants build up, restricting fuel flow and increasing the workload on the fuel pump. A clogged filter can:
- Reduce the volume of fuel reaching the pump.
- Cause the fuel pump to work harder, potentially leading to premature failure.
- Result in a noticeable drop in fuel pressure, especially under load.
3. Fuel Injector Problems
While the focus is often on the pump and filter, the injectors themselves can also cause low pressure issues. This can occur if:
- Leaking Injectors: If an injector is leaking internally, fuel can bypass the intended spray nozzle, reducing the overall pressure in the fuel rail.
- Partially Clogged Injectors: While more commonly associated with poor spray patterns, significant clogging can also impede fuel flow, indirectly affecting rail pressure.
4. Fuel Pressure Regulator Faults
Most fuel systems have a fuel pressure regulator that maintains a consistent pressure within the fuel rail. If this regulator malfunctions:
- Stuck Open: If the regulator gets stuck in an open position, it will bleed off excess fuel, leading to low pressure in the fuel rail.
- Weak Spring: The spring within the regulator might weaken over time, allowing fuel to escape at a lower pressure than specified.
5. Leaks in the Fuel System
Any leak in the fuel lines, fuel rail, or injector seals can result in a loss of pressure. These leaks can be caused by:
- Damaged Fuel Lines: Cracks or corrosion in fuel lines can lead to significant fuel loss.
- Loose Connections: Improperly tightened fittings or clamps can allow fuel to escape.
- Faulty O-rings or Seals: Degradation of rubber seals around injectors or fuel rail connections can cause leaks.
6. Low Fuel Level
While seemingly obvious, a very low fuel level in the tank can sometimes cause issues. If the fuel pickup is not fully submerged, the fuel pump may draw air, which can lead to intermittent pressure drops.
Symptoms of Low Fuel Injection Pressure
Recognising the signs of low fuel injection pressure is crucial for timely intervention. Common symptoms include:
- Engine Misfires: Inconsistent fuel delivery leads to incomplete combustion, causing the engine to misfire, especially under load.
- Rough Idling: The engine may shake or run unevenly when idling due to the inadequate fuel supply.
- Reduced Power and Acceleration: The vehicle will feel sluggish and lack its usual responsiveness.
- Poor Fuel Economy: The engine may struggle to perform efficiently, leading to increased fuel consumption.
- Difficulty Starting: Insufficient fuel pressure can make it harder for the engine to start, particularly when cold.

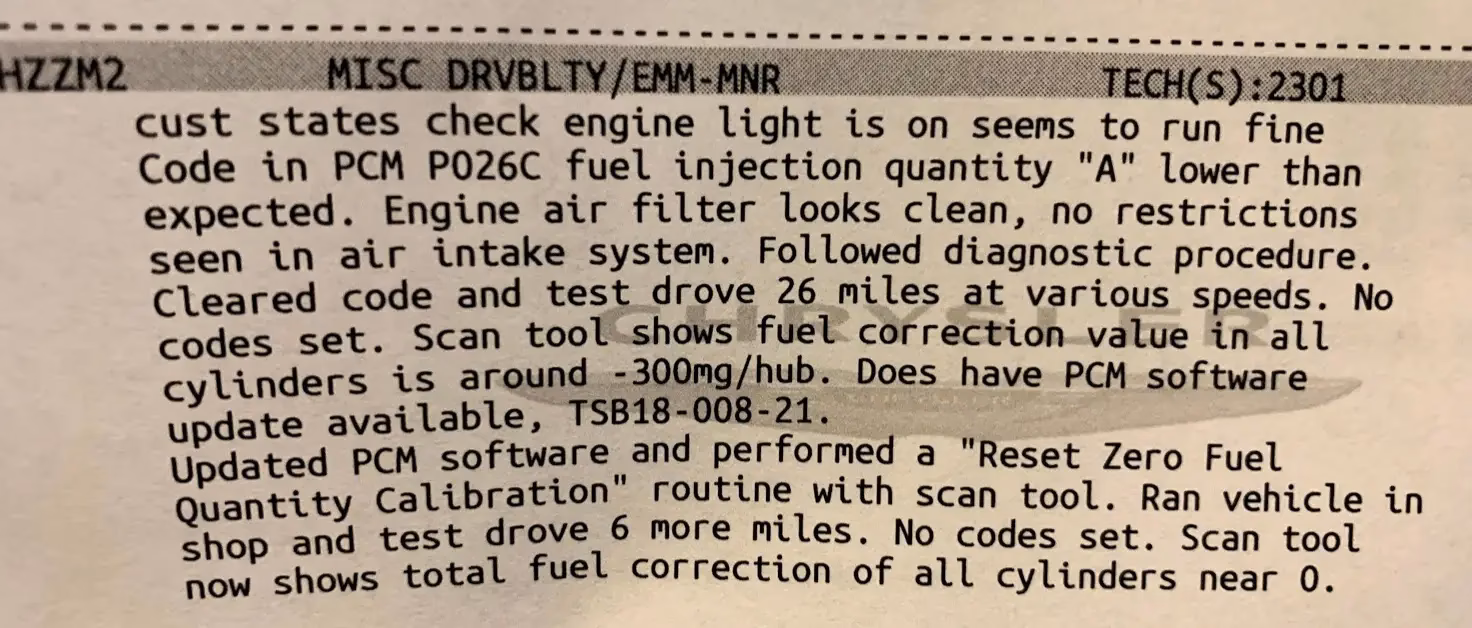

- Check Engine Light: Modern vehicles are equipped with sensors that detect deviations from normal operating parameters, often triggering the Check Engine light. A common diagnostic trouble code (DTC) associated with this is P026C (Fuel Injector Quantity Lower Than Expected), which can be a symptom of low fuel rail pressure.
- Exhaust Smoke: In diesel engines, incomplete combustion due to low fuel pressure can result in black smoke from the exhaust.
Diagnostic Steps for Low Fuel Pressure
Diagnosing low fuel injection pressure requires a systematic approach. Here’s a breakdown of common diagnostic steps:
1. Check for Diagnostic Trouble Codes (DTCs)
Using an OBD-II scanner is the first step. Look for codes related to fuel pressure, fuel trim, or misfires. A code like P026C can point towards a fuel delivery issue.
2. Fuel Pressure Test
This is the most direct way to confirm low fuel pressure. A fuel pressure gauge is connected to the fuel rail or a designated test port. The test is performed with the engine running and under various load conditions to observe pressure fluctuations.
3. Inspect the Fuel Filter
A simple visual inspection of the fuel filter can reveal if it's clogged. If it looks dirty or the vehicle has a high mileage since the last replacement, it's a prime suspect.
4. Test the Fuel Pump
This involves checking the voltage supply to the fuel pump to ensure it's receiving adequate power. If power is confirmed, the pump's output volume and pressure can be tested directly.
5. Check for Fuel Leaks
Visually inspect all fuel lines, connections, and the fuel rail for any signs of fuel seepage or drips. A pressure test can sometimes reveal small leaks by observing a rapid drop in pressure when the pump is switched off.
6. Test the Fuel Pressure Regulator
The fuel pressure regulator can be tested for proper operation, often by checking if it holds pressure when the vacuum line is disconnected (if applicable) or by observing its effect on fuel pressure during operation.
7. Inspect Fuel Injectors
While more complex, injectors can be tested for leaks or flow rates using specialized equipment. Sometimes, a simple visual check for external leaks around the injector seals can be informative.
Methods of Exclusion and Repair
Once the cause is identified, the appropriate repair can be carried out:
| Suspected Cause | Diagnostic Step | Repair Method |
|---|---|---|
| Clogged Fuel Filter | Visual inspection, pressure drop before filter | Replace fuel filter |
| Weak Fuel Pump | Low fuel pressure reading, insufficient flow rate | Replace fuel pump |
| Leaking Fuel Lines/Connections | Visual inspection for leaks, fuel smell | Repair or replace damaged lines, tighten connections |
| Faulty Fuel Pressure Regulator | Pressure regulator test, pressure fluctuations | Replace fuel pressure regulator |
| Leaking Fuel Injector | Injector leak-down test, fuel smell | Replace faulty injector or seals |
| Low Oil Viscosity (Diesel Generators) | Oil viscosity check, engine temperature | Replace with correct grade oil |
| Worn Bearings (Diesel Generators) | Excessive bearing clearance | Recondition or replace bearings |
Addressing Specific Generator Issues (Diesel)
In the context of diesel generator sets, similar principles apply, but with some nuances:
- Oil Viscosity: As noted, using oil with too low a viscosity, especially in warmer conditions or if the wrong grade is used, can lead to lower oil pressure, which can indirectly affect the lubrication of fuel system components. Always use the manufacturer-recommended oil grade.
- Bearing Clearance: Excessive wear in engine bearings (crankshaft, connecting rod) can create larger clearances. When the engine heats up, the oil thins, and more oil is lost through these larger gaps, leading to a drop in oil pressure. While this is primarily an oil pressure issue, severe engine wear can sometimes be symptomatic of broader system stress.
- Injector Pressure Specifics: For diesel injectors, pressure that is too low can result in poor fuel atomisation, increased fuel consumption, difficulty starting, and exhaust smoke. Conversely, pressure that is too high can cause knocking, reduced power, and premature wear on fuel pump components. Adjustments must be made according to precise specifications.
Frequently Asked Questions
Q1: Can a bad fuel injector cause low fuel rail pressure?
Yes, a leaking injector can cause a loss of pressure in the fuel rail, leading to a symptom of low fuel rail pressure. However, the primary cause of low rail pressure is usually the fuel pump or a clogged filter.
Q2: What happens if my fuel pressure is too low?
Low fuel pressure can lead to engine misfires, rough idling, reduced power, poor acceleration, decreased fuel economy, and difficulty starting.
Q3: How do I check my fuel pressure?
You'll need a fuel pressure gauge that connects to your vehicle's fuel system, typically at the fuel rail or a test port. Consult your vehicle's service manual for the correct procedure and expected pressure readings.
Q4: Is it safe to drive with low fuel pressure?
It is generally not recommended to drive for extended periods with low fuel pressure. It can lead to poor engine performance, increased wear on engine components, and potential stalling.
Q5: What is the typical fuel pressure for a petrol car?
Typical fuel pressure for petrol (gasoline) vehicles can range from 30 to 60 PSI (pounds per square inch), but this varies significantly by manufacturer and model. Always refer to your vehicle's service manual for specific values.
Conclusion
Maintaining correct fuel injection pressure is vital for the optimal performance and longevity of your vehicle's engine. By understanding the common causes, recognising the symptoms, and employing systematic diagnostic procedures, you can effectively address issues related to low fuel pressure. Whether it's a simple fix like replacing a fuel filter or a more involved repair like replacing a fuel pump, addressing these problems promptly will ensure your vehicle runs smoothly, efficiently, and reliably.
