The inline fuel injection pump, a marvel of mechanical engineering, has been a cornerstone of diesel engine technology for decades. Before the advent of more sophisticated common rail systems, this robust and reliable pump was responsible for precisely delivering the right amount of fuel at the correct pressure and timing to each cylinder. Understanding its operation is key to appreciating the ingenuity that powers many heavy-duty vehicles, agricultural machinery, and industrial engines even today. It's a system built on mechanical precision, delivering fuel with incredible accuracy without the need for complex electronics.

At its heart, the inline fuel injection pump is a positive displacement pump, meaning it moves a fixed amount of fluid with each cycle. Unlike a simple fuel lift pump, which merely transfers fuel, the inline injection pump is designed to generate the extremely high pressures required to atomise fuel effectively within the combustion chamber, ensuring efficient ignition and power generation.
The Core Principle: Individual Pumping Elements

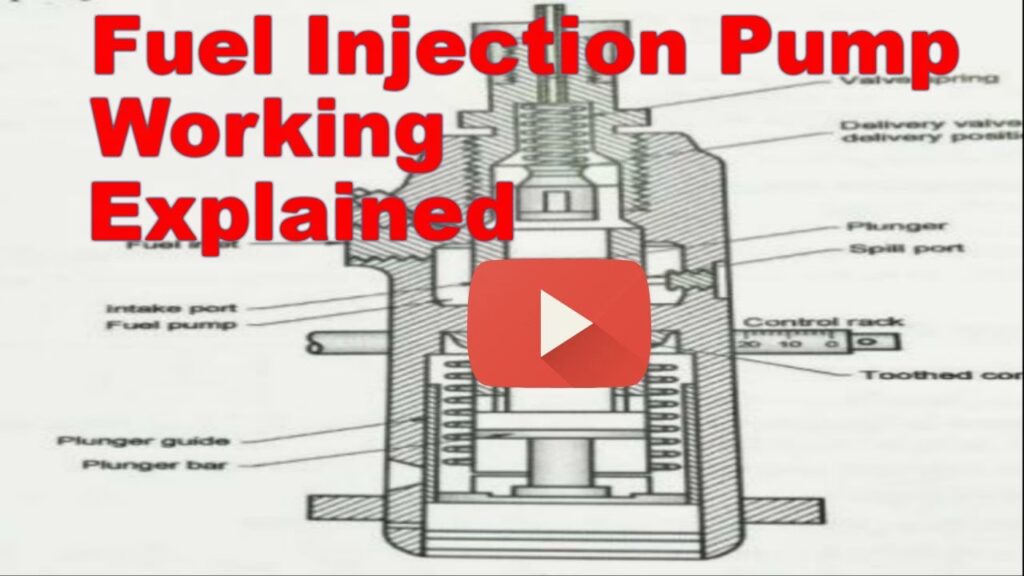

Imagine a series of individual pumping units, one for each engine cylinder, all housed within a single robust casing and driven by a common camshaft. This is the fundamental concept of the inline fuel injection pump. Each pumping unit consists primarily of a plunger and a barrel, meticulously machined to extremely tight tolerances. The plunger moves up and down within its barrel, driven by a lobe on the pump's internal camshaft. As the plunger moves, it creates the pressure necessary to inject fuel.
Key Components and Their Roles
To fully grasp the pump's operation, it's essential to understand its main constituents:
- Pump Housing: The main body, typically cast iron, which encloses all the internal components and provides mounting points.
- Camshaft: An internal camshaft with lobes, much like an engine's camshaft, that actuates the plungers. It's usually driven by the engine's timing gear.
- Plunger and Barrel Assembly: The heart of each pumping element. The plunger is a cylindrical rod that reciprocates within a precisely fitted barrel. The top of the plunger has a helical groove or cutaway, which is crucial for fuel quantity control.
- Delivery Valve: Located at the top of each pumping element, this spring-loaded valve opens to allow high-pressure fuel to flow to the injector and then closes sharply to prevent fuel dribble and maintain pressure in the fuel line, ensuring a clean cut-off of injection.
- Control Rack and Control Sleeve: The control rack is a toothed rod that engages with gear segments on the bottom of each plunger's control sleeve. By sliding the control rack, the control sleeves rotate the plungers, altering their effective stroke and thus the amount of fuel delivered.
- Governor: An essential component that senses engine speed and load, then automatically adjusts the position of the control rack to regulate the fuel supply, maintaining desired engine speed and preventing over-speeding. Governors can be mechanical, pneumatic, or hydraulic.
- Tappets and Rollers: These transfer the motion from the camshaft lobes to the plungers.
The Operating Cycle: A Dance of Precision
The operation of an inline fuel injection pump can be broken down into a series of distinct phases for each pumping element:
1. Filling Phase (Suction Stroke)
As the plunger moves downwards (due to its return spring), a port in the barrel is uncovered, allowing low-pressure fuel from the pump's internal gallery (fed by a lift pump) to fill the space above the plunger. This happens when the cam lobe is not lifting the tappet.
2. Compression and Delivery Phase (Pumping Stroke)
As the camshaft rotates, a lobe lifts the tappet, pushing the plunger upwards. Initially, the fuel above the plunger is simply displaced back into the fuel gallery until the top edge of the plunger covers the inlet port. Once the port is covered, the fuel is trapped and rapidly compressed. The pressure quickly rises until it's high enough to overcome the spring force of the delivery valve. The delivery valve lifts, and a precise amount of high-pressure fuel is forced through the delivery valve and into the high-pressure fuel line leading to the respective fuel injector.
3. Fuel Quantity Control and Cut-off
This is where the ingenious design of the plunger's helical groove comes into play. As the plunger continues its upward stroke, the helical groove eventually uncovers a spill port in the barrel. Once this port is uncovered, the high-pressure fuel above the plunger is suddenly released back into the pump's fuel gallery, causing the pressure to drop instantaneously. The delivery valve snaps shut, effectively ending the injection. The point at which the spill port is uncovered depends on the rotational position of the plunger.
The control rack is the mechanism that rotates the plungers. When the control rack slides, it rotates the control sleeve, which in turn rotates the plunger. By rotating the plunger, the effective stroke (the portion of the upward movement during which fuel is actually delivered) is altered. A greater effective stroke means more fuel is injected, and a shorter effective stroke means less fuel. When the control rack is moved to its 'stop' position, the plunger is rotated so that the helical groove uncovers the spill port almost immediately, preventing any fuel delivery and shutting down the engine.
4. Timing Control
While the primary function is quantity control, the inline pump also manages injection timing. This is typically achieved through a separate timing device, often integrated into the pump's drive mechanism. This device, usually a centrifugal or hydraulic advance unit, adjusts the rotational position of the pump's camshaft relative to the engine's crankshaft. At higher engine speeds, fuel needs to be injected earlier (advanced) to allow sufficient time for combustion to complete, given the faster piston movement.
The Role of the Governor
The governor is arguably the most critical component for engine control. Without it, the engine speed would fluctuate wildly with changes in load. The governor's primary function is to maintain a desired engine speed by adjusting the fuel delivery. It does this by sensing engine speed (typically through centrifugal weights) and then moving the control rack to increase or decrease the fuel supplied by the plungers.
| Governor Type | Principle of Operation | Typical Application |
|---|---|---|
| Mechanical Governor | Uses centrifugal weights that move outwards with increasing speed, acting against springs to adjust the control rack. | Older diesel engines, agricultural machinery, generators. |
| Pneumatic Governor | Uses a diaphragm connected to the engine's intake manifold vacuum to sense load and speed, adjusting the control rack. | Lighter duty diesel engines, some older vehicles. |
| Hydraulic Governor | Uses engine oil pressure and a system of weights and springs to achieve very precise speed control. | Large industrial engines, marine applications, power generation. |
Advantages and Disadvantages
While largely superseded by common rail systems in modern vehicles, the inline fuel injection pump offered significant advantages in its heyday:
Advantages:
- Robustness and Durability: Built to withstand harsh conditions and operate reliably for long periods.
- Mechanical Simplicity: Lacks complex electronics, making it easier to diagnose and repair with mechanical knowledge.
- High Injection Pressure: Capable of generating sufficient pressure for good fuel atomisation.
- Independent Pumping Elements: Failure of one element does not necessarily disable the entire pump.
- Ease of Timing Adjustment: Mechanical adjustments for timing are relatively straightforward.
Disadvantages:
- Limited Flexibility: Cannot easily vary injection pressure or timing independently of engine speed and load in a highly sophisticated manner.
- Emissions: Less precise control over injection parameters leads to higher emissions compared to modern systems.
- Noise: Tends to be noisier due to the mechanical nature of injection.
- Size and Weight: Generally larger and heavier than rotary or common rail pumps.
- Cost: High precision machining makes individual components expensive.
Maintenance Considerations
Inline fuel injection pumps are known for their longevity, but they are not immune to issues. Common problems often relate to fuel quality, leading to wear on the precision-fit plungers and barrels. Contaminated fuel can cause scoring, reducing the pump's ability to build and hold pressure. Worn delivery valves can lead to poor atomisation and dribbling. Governor issues can result in unstable engine speed or poor load response. Regular fuel filter replacement and ensuring clean fuel are paramount to the pump's lifespan.
Frequently Asked Questions (FAQs)
Q1: Can an inline fuel injection pump be repaired?
Yes, inline fuel injection pumps are highly repairable. Specialists with the right tools and knowledge can often rebuild them, replacing worn plungers, barrels, delivery valves, and seals. This often involves precise calibration on a test bench.
Q2: How does the inline pump get fuel from the tank?
An inline injection pump does not draw fuel directly from the tank. A separate low-pressure fuel lift pump (often mounted on the side of the injection pump or engine) is responsible for drawing fuel from the tank and supplying it to the injection pump's internal gallery at a consistent, low pressure.
Q3: What happens if the fuel injection timing is off?
Incorrect fuel injection timing can lead to several problems. If the timing is too late, combustion occurs when the piston is already moving down, leading to reduced power, poor fuel economy, and excessive exhaust smoke. If the timing is too early, it can cause harsh combustion (diesel knock), excessive cylinder pressures, and potential engine damage.
Q4: Is the inline fuel injection pump still used in modern engines?
While common rail systems have largely replaced inline pumps in passenger vehicles and most modern heavy-duty applications due to their superior emissions control and fuel efficiency, inline pumps are still found in some simpler, less emissions-regulated applications, particularly in developing regions, stationary engines, and older machinery where their robustness and ease of maintenance are valued.
Q5: How does the pump know which cylinder to inject fuel into?
The pump's camshaft is precisely timed with the engine's crankshaft. Each lobe on the pump's camshaft corresponds to a specific engine cylinder's firing order. As the engine rotates, the pump's camshaft rotates in sync, ensuring that the correct plunger delivers fuel to its corresponding injector at the precise moment required for that cylinder's power stroke.
The inline fuel injection pump, despite its age, remains a testament to mechanical ingenuity. Its ability to precisely meter and deliver high-pressure fuel, controlled purely by mechanical means, allowed for the widespread adoption and development of the diesel engine. While modern systems offer greater refinement and control, the fundamental principles demonstrated by the inline pump continue to underpin the science of diesel fuel injection, showcasing a remarkable blend of mechanical design and robust performance.
