Understanding the inner workings of your vehicle's engine can seem like a daunting task, yet it's incredibly empowering for any car owner or enthusiast. At the heart of a modern engine's power delivery lies the fuel injection system, a marvel of engineering designed to precisely deliver fuel for optimal combustion. When faced with a diagram of this complex system, it can appear overwhelming. However, by breaking it down into its core components, you'll gain invaluable insight into how your car achieves its performance and efficiency. This article aims to demystify the fuel injection diagram, explaining the purpose and function of each key part, ensuring you can interpret these vital schematics with confidence.
A typical fuel injection diagram provides a visual representation of the system's layout and the flow of fuel. While the exact configuration can vary between different vehicle models and types of injection systems, certain fundamental components are almost universally present. These diagrams are indispensable tools for mechanics and DIYers alike, aiding in diagnosis, repair, and general understanding.

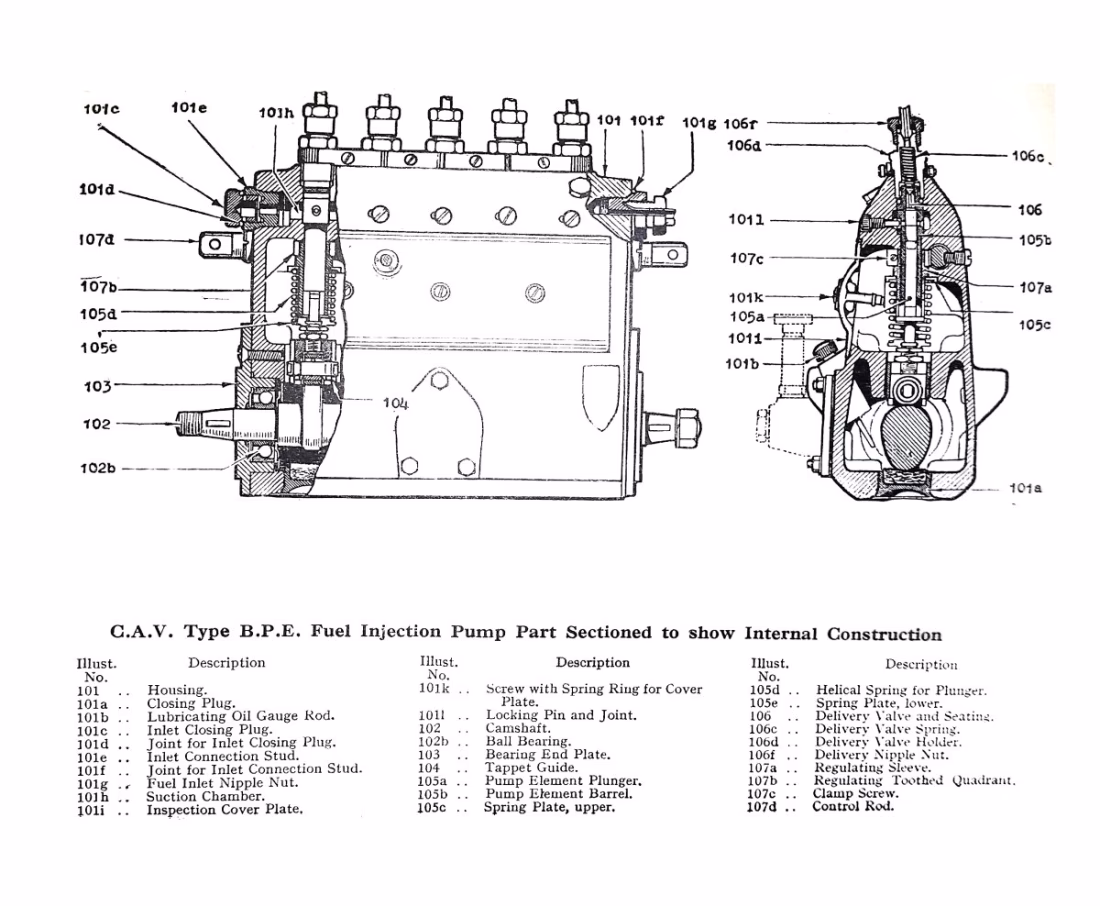

The Core of Fuel Delivery: The Fuel Injection Pump Diagram
The fuel injection pump is arguably the most complex component within the system, especially in diesel engines or older mechanical petrol injection setups. Its primary role is to pressurise fuel to extremely high levels and then deliver it with precise timing and quantity to the engine's cylinders. A diagram focusing on the pump itself will highlight several crucial internal parts:
Injection Pump Body
This is the main housing of the pump, serving as the structural framework for all internal components. It's typically cast from a robust metal alloy, designed to withstand the immense pressures generated within. The body contains various chambers, passages, and mounting points for the other parts, ensuring they are held in precise alignment. Its integrity is crucial for the pump's overall reliability and leak-free operation. Think of it as the 'shell' that keeps everything together and protected.
Plunger and Barrel Assembly
Often referred to as the 'heart' of the injection pump, the plunger and barrel assembly is responsible for pressurising the fuel. The plunger is a precisely machined piston that moves within a correspondingly accurate cylinder, known as the barrel. As the plunger moves upwards, it compresses the fuel trapped within the barrel, increasing its pressure dramatically. The extremely tight tolerances between the plunger and barrel are critical for preventing fuel leakage and maintaining the high pressures required for effective injection. The movement of the plunger is typically controlled by a camshaft within the pump, ensuring synchronisation with engine cycles.
Delivery Valve
Positioned at the outlet of the high-pressure side of the pump, the delivery valve plays a crucial role in controlling the flow of fuel to the injector lines. It's a non-return valve that opens under high pressure to allow fuel to pass to the injectors and then rapidly closes to prevent fuel from flowing back into the pump. Furthermore, many delivery valves have a 'cut-off' feature, which momentarily reduces the pressure in the injector line just after injection. This quick pressure drop helps to prevent secondary injections or dribbling from the injector nozzle, ensuring sharp and precise fuel cut-off for better combustion and reduced emissions.
Governor
The governor is a vital control mechanism within the fuel injection pump, particularly prominent in mechanical systems. Its primary function is to regulate the amount of fuel delivered to the engine based on engine speed and load, ensuring stable idle, preventing over-speeding, and providing the correct amount of power when needed. Governors can be mechanical (using centrifugal weights), pneumatic (using manifold vacuum), or hydraulic. A diagram will show how the governor mechanism connects to the fuel rack or control sleeve, which in turn adjusts the effective pumping stroke of the plungers, thereby controlling the fuel quantity. Understanding the governor's interaction with the fuel delivery system is key to comprehending the engine's dynamic response.
Beyond the Pump: Other Essential Components in a Fuel Injection System Diagram
While the injection pump is central, a complete fuel injection system diagram encompasses many other components that work in harmony to ensure efficient fuel delivery. These parts manage the fuel from the tank right up to the combustion chamber:
Fuel Tank
The starting point for all fuel, the tank stores petrol or diesel safely. Diagrams typically show it at the rear of the vehicle, connected by fuel lines.
Fuel Pump (Lift Pump/Transfer Pump)
Before fuel reaches the high-pressure injection pump, it's often drawn from the tank by a lower-pressure fuel pump (sometimes called a lift pump or transfer pump). This pump ensures a continuous supply of fuel to the main injection pump, preventing cavitation and ensuring it operates efficiently. In many modern petrol systems, this pump is electric and located inside the fuel tank.
Fuel Filter
Positioned between the fuel tank/lift pump and the high-pressure injection pump, the fuel filter is absolutely critical. It removes impurities, dirt, rust, and other contaminants from the fuel before they can reach and damage the sensitive, precisely machined components of the injection pump and injectors. A clogged fuel filter can significantly restrict fuel flow, leading to performance issues.
Fuel Lines
These are the conduits through which fuel travels throughout the system. Diagrams will show various lines: suction lines (from tank to pump), high-pressure lines (from injection pump to injectors), and return lines (for excess fuel). They must be robust enough to handle the pressures involved and resistant to fuel degradation.
Fuel Rail (Common Rail)
In many modern systems, particularly common rail direct injection (CRDI) diesel engines and multi-point petrol injection systems, the fuel rail is a common manifold that distributes high-pressure fuel evenly to all the injectors. It acts as a reservoir, maintaining a consistent pressure for all injectors, which is crucial for precise fuel delivery.
Fuel Injectors
These are the final components in the fuel delivery chain, responsible for spraying a finely atomised mist of fuel directly into the engine's intake manifold (Port Fuel Injection - PFI) or directly into the combustion chamber (Direct Injection - DI). Injectors are electro-mechanical valves (solenoid-operated) that open and close very rapidly, delivering precise quantities of fuel under high pressure. The fine atomisation is essential for thorough mixing with air, leading to efficient combustion.
Fuel Pressure Regulator
This device maintains a consistent fuel pressure within the system, typically in the fuel rail or near the injectors. It bleeds off excess fuel back to the tank via a return line, ensuring that the injectors receive fuel at the correct pressure, regardless of engine speed or load.
Return Line
Any fuel that is not injected into the engine, or excess fuel from the pressure regulator, is returned to the fuel tank via the return line. This helps to cool the fuel, especially in high-pressure systems, and prevents unnecessary pressure build-up.
Sensors and Engine Control Unit (ECU)
While not always depicted in simple pump diagrams, modern fuel injection systems are heavily reliant on electronic control. Diagrams of complete systems will show various sensors (e.g., crank position sensor, camshaft position sensor, manifold absolute pressure sensor, oxygen sensor, throttle position sensor) that feed data to the Engine Control Unit (ECU). The ECU processes this information and precisely controls the timing and duration of injector opening, as well as the operation of components like the fuel pump, for optimal performance, fuel economy, and emissions control. The ECU's role is critical for the system's overall calibration and adaptability.
How the Fuel Injection System Works (Simplified Flow)
To put it all into perspective, here's a simplified step-by-step flow of how a typical fuel injection system operates:
- Fuel is drawn from the fuel tank by the low-pressure fuel pump.
- It then passes through the fuel filter to remove contaminants.
- The clean fuel is delivered to the high-pressure injection pump (or directly to the fuel rail in petrol systems).
- The injection pump (or high-pressure pump in CRDI) pressurises the fuel to extremely high levels, often guided by the governor to control quantity.
- This high-pressure fuel travels through fuel lines to the fuel rail.
- The fuel pressure regulator ensures consistent pressure in the rail.
- Finally, the fuel injectors, precisely controlled by the ECU (based on sensor input), spray the atomised fuel into the engine's combustion chambers or intake manifold at the precise moment for ignition.
- Excess fuel is returned to the tank via the return line.
Types of Fuel Injection Systems
While the core components remain similar, fuel injection systems have evolved significantly. Here's a brief comparison of common types:
| System Type | Principle of Operation | Key Advantages | Key Disadvantages |
|---|---|---|---|
| Port Fuel Injection (PFI) | Fuel injected into the intake manifold, just before the intake valve. Mixes with air before entering cylinder. | Simpler, less expensive, good fuel-air mixing time. | Less precise fuel delivery, 'wall wetting' issues, lower power output vs. DI. |
| Direct Injection (DI) | Fuel injected directly into the combustion chamber. | More precise fuel control, better fuel economy, higher power, lower emissions (often). | More complex, higher pressures, potential for carbon build-up on intake valves. |
| Common Rail Direct Injection (CRDI) | High-pressure fuel stored in a 'common rail' and delivered to solenoid/piezo injectors. Predominantly diesel. | Extremely precise control over injection timing & multiple injections per cycle, reduced noise, better economy & emissions. | Very high pressures require robust components, expensive to repair. |
| Mechanical Injection | Fuel pump directly controls injection timing and quantity via mechanical linkages (e.g., older diesel pumps). | Robust, simple (mechanically), no ECU needed. | Less precise, higher emissions, lower fuel economy, limited control over injection events. |
Frequently Asked Questions (FAQs)
What's the difference between a mechanical and electronic fuel injection system diagram?
A mechanical system diagram will primarily show the physical linkages, cams, plungers, and the governor's mechanical interaction within the pump. An electronic system diagram will highlight the ECU, various sensors (e.g., MAF, MAP, O2), and the electronic control lines leading to the injectors and fuel pump, indicating how signals are sent and received to precisely control fuel delivery.
Why is fuel atomisation so important?
Fuel atomisation refers to the process of breaking liquid fuel into a very fine mist or spray. This is crucial because it vastly increases the fuel's surface area, allowing it to mix more thoroughly and rapidly with air. Better mixing leads to more complete and efficient combustion, resulting in improved power, better fuel economy, and reduced harmful emissions.
Can I clean fuel injectors myself?
While over-the-counter fuel system cleaners can offer some benefit by being added to your fuel tank, deep cleaning or servicing of injectors typically requires professional equipment. This often involves removing the injectors and using specialised ultrasonic cleaning baths and flow-testing benches to ensure they are spraying correctly and delivering the right amount of fuel. Incorrect cleaning can damage the delicate nozzles.
How often should I replace my fuel filter?
The replacement interval for a fuel filter varies significantly depending on the vehicle manufacturer's recommendations, driving conditions, and fuel quality. It can range from every 15,000 miles to 60,000 miles or more. Always consult your vehicle's owner's manual for the precise maintenance schedule. Regular replacement prevents blockages that can starve the engine of fuel, leading to poor performance or damage to the fuel pump.
What role does the ECU play in a modern fuel injection diagram?
In a modern fuel injection diagram, the ECU (Engine Control Unit) is the 'brain'. It takes real-time data from numerous sensors (engine speed, load, temperature, oxygen levels, etc.), processes this information, and then calculates the precise amount of fuel needed for optimal combustion at any given moment. It then sends electrical signals to the fuel injectors, controlling their opening time and duration. The ECU ensures the system adapts to changing driving conditions for the best performance and lowest emissions.
By understanding the components and their interplay within a fuel injection diagram, you're not just looking at lines and boxes; you're gaining a profound appreciation for the intricate engineering that powers your vehicle. This knowledge empowers you to better understand diagnostics, communicate more effectively with mechanics, and even tackle some basic maintenance tasks yourself. A well-understood and well-maintained fuel injection system is key to your vehicle's longevity and performance.
