Diesel Fuel Pump Testing Explained

Ensuring your diesel engine runs smoothly and efficiently hinges significantly on the health of its fuel pump. The fuel pump is the heart of the diesel fuel system, responsible for delivering the precise amount of fuel at the correct pressure to the injectors. Over time, wear and tear, contamination, or component failure can impact its performance, leading to a host of issues from poor starting and reduced power to increased fuel consumption and rough idling. This guide delves into the essential methods and equipment used to test a diesel fuel pump, focusing on both delivery and calibration aspects, crucial for maintaining optimal engine operation.

Understanding the Diesel Fuel Pump's Role

In a diesel engine, the fuel pump's primary job is to draw fuel from the tank and supply it under pressure to the injection pump or directly to the injectors, depending on the system design. For mechanical injection systems, the fuel pump often works in conjunction with the injection pump, which then meters and times the fuel delivery. For common rail systems, a high-pressure fuel pump is critical for building the immense pressures required for efficient combustion. Regular testing and calibration are vital, especially for mechanical pumps, to ensure the engine receives the correct fuel volume at the precise moment for optimal combustion. This is where specialised test benches become invaluable.

Essential Equipment for Fuel Pump Testing

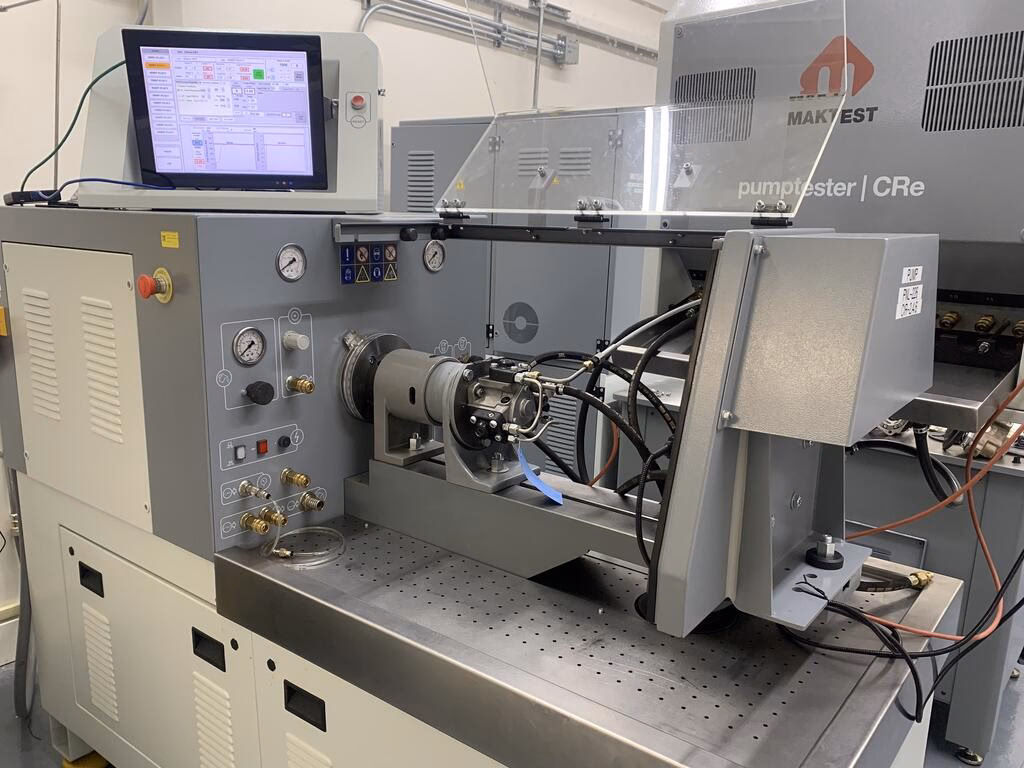

Testing diesel fuel pumps effectively requires specific tools and equipment. The cornerstone of this process is the diesel fuel injection test bench. These sophisticated machines are designed to simulate the operating conditions of the engine, allowing technicians to accurately measure fuel delivery, pressure, and other critical parameters. A common type of test bench mentioned is the 12PSB diesel fuel injection test bench. These benches are engineered for reliability, low noise, and energy efficiency, boasting high output torque and comprehensive auto-protection functions, making them user-friendly and effective.

The 12PSB Diesel Fuel Injection Test Bench: A Closer Look

The 12PSB series test bench is a versatile piece of equipment, often custom-designed to meet specific customer requirements. Its advanced features, such as high-quality frequency conversion devices, contribute to its stable operation and precise control. The bench typically includes:

• Variable Speed Drive: Allows for testing the pump across a wide range of engine speeds.
• Fuel Measurement System: Accurately measures the volume of fuel delivered by the pump at various speeds and load conditions.
• Pressure Gauges: Monitor fuel pressure throughout the system.
• Mounting Fixtures: Securely hold different types of diesel fuel pumps for testing.
• Calibration Equipment: Used to adjust the pump's output to meet manufacturer specifications.

The ability to test and calibrate a wide variety of pumps, including DENSO in-line pumps (K, M, MW, A, B, BV, P types) and distributor injection pumps (EP/VA, EP/VM, VE, F types), as well as various Chinese pump models (I, II, III, K, P7, BQ), makes the 12PSB a comprehensive solution for diesel fuel system diagnostics and repair.

Key Tests Performed on Diesel Fuel Pumps

Using a test bench like the 12PSB, a range of critical tests can be performed to assess the health of a diesel fuel pump. These tests help diagnose issues and ensure the pump is functioning within its designed parameters:

1. Measurement of Each Cylinder Delivery

This test involves measuring the fuel output from each individual outlet of the injection pump at various engine speeds. Consistent delivery across all cylinders is crucial for smooth engine operation and balanced power output. Significant variations can indicate internal wear or blockage within the pump.

2. Testing of Oil Supply Points and Interval Angles

For mechanical injection pumps, the timing of fuel delivery is as important as the volume. This test checks the point at which fuel begins to be supplied by the pump and the angular interval between these deliveries. Incorrect timing can lead to poor performance, increased emissions, and potential engine damage.

3. Mechanical Governor Adjustment and Checking

Many diesel injection pumps incorporate mechanical governors to regulate engine speed. Testing the governor's response and adjusting its settings ensures the engine operates within its intended RPM range and responds correctly to load changes. This is vital for engine performance and fuel economy.

4. Distributor Pump Checks and Adjustments

Distributor pumps, common in many diesel engines, distribute fuel to the cylinders. Testing involves checking the internal pressure, oil return, and the sealing of the pump body. Adjustments may be needed to ensure correct fuel distribution and prevent leaks.

5. Supercharging and Compensatory Device Testing

Modern diesel injection systems often include devices to manage fuel delivery based on engine load, altitude, or temperature (e.g., boost pressure compensators). Testing these components ensures they are functioning correctly to optimise combustion under various conditions.

6. Electromagnetic Valve Testing

For pumps equipped with electronic control units or solenoid valves, testing the function of these electromagnetic valves (e.g., at 12V/24V) is essential. These valves control various aspects of fuel delivery and timing.

7. Internal Pressure Measurement

Measuring the internal operating pressure of the distributor pump provides insight into the condition of its internal components, such as the rotor and vanes. Low or inconsistent pressure can indicate wear or damage.

8. Injection Pump Body Sealing Check

A crucial test to ensure the integrity of the pump housing. Leaks can lead to loss of fuel pressure, contamination of the engine oil, and reduced fuel efficiency. A leak-free pump is paramount.

9. Automatic Oil Supply System Integration

The ability to test pumps with an auto-sucking oil supply (including VE pumps) allows for a more comprehensive evaluation of the fuel supply system's ability to draw fuel under its own suction.

Calibrating the Speed Curve of an Injection Diesel Pump

Calibration is the process of adjusting the fuel pump to meet specific performance standards, particularly its fuel delivery rate across different engine speeds. The speed curve of an injection diesel pump dictates how much fuel is delivered as the engine RPM changes. This curve is critical for matching the fuel delivery to the engine's air intake capacity and ensuring optimal power and efficiency throughout the operating range.

The calibration process typically involves:

1. Setting up the pump on the test bench according to manufacturer specifications.
2. Running the pump at various specified RPMs.
3. Measuring the fuel output at each RPM point.
4. Adjusting internal or external control mechanisms (e.g., governor settings, fuel delivery screws) to match the target fuel delivery rate for each RPM.
5. Recording the final calibration data. Printing and keeping this calibration data is crucial for future reference and warranty purposes. It provides a record of the pump's performance after servicing.

A steady drive and good balance of the fuel pump test bench are essential during calibration to ensure accurate and repeatable measurements. This is often achieved through the use of a large inertia flywheel, which smooths out the rotational speed and provides a stable platform for testing.

Addressing Other Related Equipment

While the 12PSB is a prominent example, other machines like the ZQYM618C diesel pump calibration machine also serve similar purposes in the automotive workshop. The specific nomenclature might differ, but the core function remains the same: to accurately test and calibrate diesel fuel injection systems. The mention of 'Custom CMS block' suggests that such machines might have modular or configurable software interfaces, allowing workshops to tailor their diagnostic capabilities.

Common Issues and Symptoms of a Failing Fuel Pump

Recognising the symptoms of a failing diesel fuel pump can help you address problems before they become severe:

• Difficulty Starting: A weak fuel pump may not deliver enough fuel pressure for the engine to start easily.
• Loss of Power: Insufficient fuel delivery can lead to a noticeable reduction in engine power, especially under load.
• Rough Idling: Inconsistent fuel delivery can cause the engine to idle unevenly.
• Increased Fuel Consumption: While counterintuitive, a pump that is struggling might over-deliver fuel in an attempt to compensate, leading to higher consumption.
• Engine Stalling: In severe cases, the fuel pump may fail completely, causing the engine to stall.
• Fuel Leaks: Visible leaks around the pump or fuel lines are a clear sign of a problem.

Frequently Asked Questions

How do I know if my diesel fuel pump is bad?

Common signs include difficulty starting, loss of engine power, rough idling, stalling, and increased fuel consumption. A professional diagnosis using a fuel pressure gauge or a test bench is the most reliable way to confirm a faulty fuel pump.

Can I test a diesel fuel pump without a test bench?

For basic checks, you can use a fuel pressure gauge to measure the pressure at the fuel rail or outlet. However, detailed testing, calibration, and diagnosing issues related to internal pump components typically require a dedicated test bench like the 12PSB.

What is the role of a flywheel in a fuel pump test bench?

A large inertia flywheel provides a stable and consistent rotational speed for the pump being tested. It helps to smooth out fluctuations in torque, ensuring more accurate and repeatable measurements of fuel delivery and pressure.

Why is calibrating the speed curve important?

Calibrating the speed curve ensures that the correct amount of fuel is delivered at all engine operating speeds. This is critical for achieving optimal engine performance, fuel efficiency, and emissions control.

What does 'rack travel measurement' refer to?

Rack travel measurement, an optional feature on some test benches, refers to the measurement of the movement of the control rack within the injection pump. This rack controls the amount of fuel injected, and its precise movement is essential for accurate fuel delivery.

Conclusion

Maintaining the health of your diesel engine's fuel system is paramount for its longevity and performance. Understanding how to test a diesel fuel pump and the role of specialised equipment like the 12PSB diesel fuel injection test bench empowers both professional mechanics and diligent car owners. By accurately testing delivery, calibrating the speed curve, and performing essential checks, you can ensure your diesel engine operates at its peak efficiency, providing reliable power and excellent fuel economy for years to come. Regular maintenance and timely diagnostics are key to preventing costly repairs and keeping your diesel vehicle running smoothly.
